2002 BUICK PARK AVENUE Owner's Manual

3-14
P SCAN (Preset Scan): Press this button to listen to
each of your preset stations for a few seconds. The radio
will go to the first preset station, play for a few seconds,
then go on to the next preset station. Press P SCAN
again to stop scanning. The radio will scan preset
stations with a strong signal only. The sound will mute
while scanning.
AUTO (Automatic) SET: Press this button and the
system will seek and set the 12 strongest FM or the
6 strongest AM stations on your preset pushbuttons
(depending on which band (AM or FM) you are
listening to). AUTO SET will flash while seeking
and will remain on until this function is complete.
To return to the stations you manually set, press AUTO
SET again.
Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press AM
-FM to select the band.
3. Tune in the desired station.4. Press TONE to select the setting you prefer.
5. Press and hold one of the six numbered pushbuttons.
The sound will mute. When it returns, release the
pushbutton. Whenever you press that numbered
pushbutton, the station you set will return and the
tone you selected will be automatically selected for
that button.
6. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
BASS: Press this knob lightly so it extends. Turn the
knob to increase or decrease bass.
TREB (Treble): Press this knob lightly so it extends.
Turn the knob to increase or decrease treble. If a station
is weak or noisy, you may want to decrease the treble.
Push these knobs back into their stored positions when
you're not using them.
TONE: This feature allows you to choose preset bass and
treble equalization settings designed for country/western,
jazz, talk, pop and classical stations. CLASS will appear
on the display when you first press TONE.
Each time you press the TONE button, this feature will
switch to one of these program types.

3-15
To return the bass and treble to the manual mode, either
press TONE until MANUAL appears or press and
release the BASS or TREB knob and turn it until the
display goes blank. See ªSetting Preset Stationsº listed
previously to program the auto tone feature.
Adjusting the Speakers (Balance/Fade)
BAL (Balance): Press this knob lightly so it extends.
Turn the knob to move the sound to the left or right
speakers. The middle position balances the sound
between the speakers.
FADE: Press this knob lightly so it extends. Turn
the knob to move the sound to the front or rear
speakers. The middle position balances the sound
between the speakers.
Push these knobs back into their stored positions when
you're not using them.
Playing a Cassette Tape
The longer side with the tape visible should face to the
right. If the ignition and the radio are on, the tape can be
inserted and will begin playing. If you hear nothing or
hear a garbled sound, the tape may not be in squarely.
Press EJECT to remove the tape and start over.While the tape is playing, use the VOLUME, SEEK,
FADE, BAL, BASS and TREB controls just as you do
for the radio. Other controls may have different
functions when a tape is inserted. The display will show
an arrow to show which side of the tape is playing.
If you want to insert a tape when the ignition or radio is
off, first press EJECT or RECALL.
Your tape bias is set automatically.
If an error appears on the display, see ªCassette Tape
Messagesº later in this section.
1 PREV (Previous): Press this pushbutton to search
for the previous selection on the tape. Your tape must
have at least three seconds of silence between each
selection for previous to work. The sound will mute
while seeking.
2 NEXT: Press this pushbutton to search for the
next selection on the tape. Your tape must have at least
three seconds of silence between each selection for next
to work. The sound will mute while seeking.
3


(Reverse): Press this pushbutton to reverse the
tape rapidly. Press it again to return to playing speed.
The radio will play while the tape reverses.

3-16
4

(Forward): Press this pushbutton to advance
quickly to another part of the tape. Press it again to
return to playing speed. The radio will play while the
tape advances.
5 SIDE: Press this pushbutton to change the side of the
tape that is playing.
6 RAND (Dolby): Press this pushbutton to reduce
background noise. The double
-D symbol will appear on
the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
AM
-FM: Press this button to listen to the radio when a
cassette tape is playing.
SOURCE: Press this button to play a cassette tape or a
CD when listening to the radio. TAPE SIDE and an
arrow will appear on the display. If this button is pressed
again, the system will go to disc play; CD PLAY will
appear on the display.
 SEEK : Press the up or down arrow to go to
the next or previous selection on the tape. Your tape
must have at least three seconds of silence between
each selection for seek to work. The sound will mute
while seeking.
EJECT: Press this button, located next to the cassette
tape slot, to eject a tape. Eject may be activated with the
radio off.
Cassette Tape Messages
E (Error): If this message and a number appears while
trying to play a cassette tape, it could be for one of the
following reasons:
E10: The tape is tight and the player can't turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over
and repeat. If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try a new tape to make sure your player is
working properly.
E11: The tape is broken. Try a new tape.

3-17
CLN (Clean): If this message appears on the display,
the cassette tape player needs to be cleaned. It will still
play tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer. If your radio displays an
error number, write it down and provide it to your dealer
when reporting the problem.
Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in. The disc should begin playing. If
you want to insert a CD while the ignition or the radio is
off, first press EJECT or RECALL.
If you turn off the ignition or radio with a disc in the
player, it will stay in the player. When you turn on the
ignition or system, the disc will start playing where it
stopped, if it was the last selected audio source.
Also, as a protection feature, if a CD is ejected and left
in the player, it will be pulled back in the player with the
ignition on or off.
If an error appears on the display, see ªCompact Disc
Messagesº later in this section.1 PREV (Previous): Press this pushbutton to go to the
start of the current track, if more than eight seconds
have played. If you hold this pushbutton or press it more
than once, the player will continue moving back through
the disc. The sound will mute while seeking.
2 NEXT: Press this pushbutton to go to the next track. If
you hold this pushbutton or press it more than once, the
player will continue moving forward through the disc.
The sound will mute while seeking.
3


(Reverse): Press and hold this pushbutton to
quickly reverse within a track. You will hear sound at a
reduced level. Release it to play the passage.
4


(Forward): Press and hold this pushbutton to
quickly advance within a track. You will hear sound at a
reduced level. Release it to play the passage.
6 RAND (Random): Press this pushbutton to hear the
tracks in random, rather than sequential, order. Press it
again to turn off random play.
RECALL: Press this button to see which track is
playing. Press it again within five seconds to see how
long it has been playing. To change what is normally
shown on the display (track or elapsed time), press this
button until you see the display you want, then hold this
button until the display flashes.

3-18
AM-FM: Press this button to listen to the radio when a
CD is playing.
SOURCE: Press this button to play a cassette tape or a
CD when listening to the radio. TAPE SIDE and an
arrow will appear on the display. If this button is pressed
again, the system will go to disc play; CD PLAY will
appear on the display.
 SEEK
: Press the up or down arrow to go to the
previous or next track on the CD. The sound will mute
while seeking.
EJECT: Press this button, located next to the CD slot,
to eject a CD. Eject may be activated with the radio off.Compact Disc Messages
E (Error): If you're driving on a very rough road or if
it's very hot, the disc may not play and an E and a
number may appear on the display. When the road
becomes smooth or the temperature returns to normal,
the disc should play. If the disc comes out, it could be
for one of the following reasons:
E20: The disc is upside down.
E20: It is dirty, scratched or wet.
E20: There's too much moisture in the air. (Wait
about an hour and try again.)
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer. If your radio displays an
error number, write it down and provide it to your dealer
when reporting the problem.

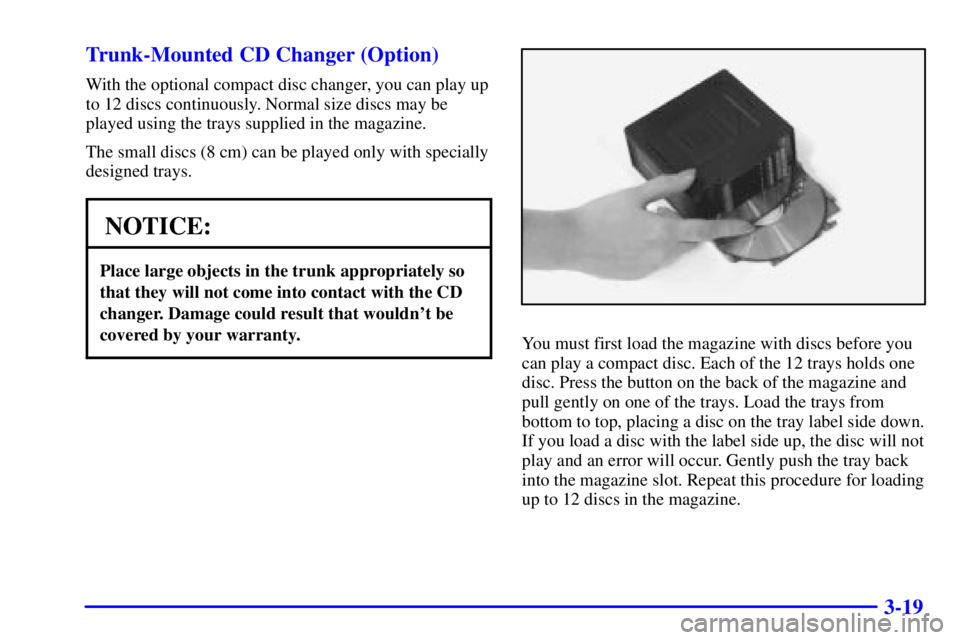

3-19 Trunk-Mounted CD Changer (Option)
With the optional compact disc changer, you can play up
to 12 discs continuously. Normal size discs may be
played using the trays supplied in the magazine.
The small discs (8 cm) can be played only with specially
designed trays.
NOTICE:
Place large objects in the trunk appropriately so
that they will not come into contact with the CD
changer. Damage could result that wouldn't be
covered by your warranty.
You must first load the magazine with discs before you
can play a compact disc. Each of the 12 trays holds one
disc. Press the button on the back of the magazine and
pull gently on one of the trays. Load the trays from
bottom to top, placing a disc on the tray label side down.
If you load a disc with the label side up, the disc will not
play and an error will occur. Gently push the tray back
into the magazine slot. Repeat this procedure for loading
up to 12 discs in the magazine.

3-20
Once you have loaded the discs in the magazine, slide
open the door of the compact disc (CD) changer. Push
the magazine into the changer in the direction of the
arrow marked on top of the magazine.Close the door by sliding it all the way to the left. If the
door is left partially open, the changer will not operate
and an error will occur. When the door is closed, the
changer will begin checking for discs in the magazine.
This will continue for up to two minutes depending on
the number of discs loaded.
To eject the magazine from the player, slide the
CD changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer.

3-21
All of the CD functions are controlled by the radio
buttons except for ejecting the magazine. Whenever a
CD magazine with discs is loaded in the changer,
CHNGR will appear on the radio display. If the CD
changer is checking the magazine for CDs, CHNGR will
flash on the display until the changer is ready to play.
When a CD begins playing, the disc and track number
will be displayed. The disc numbers are listed on the
front of the magazine.
Playing a Compact Disc
If an error appears on the display, see ªCompact Disc
Messagesº later in this section.
1 PREV (Previous): Press this pushbutton to go to the
start of the current track, if more than eight seconds
have played. If you hold this button or press it more than
once, the player will continue moving back through the
disc to the previous track. The sound will mute while
seeking.
2 NEXT: Press this pushbutton to go to the next track
on the disc. If you hold this button or press it more than
once, the player will continue moving forward through
the disc to the next track. The sound will mute
while seeking.3

(Reverse): Press and hold this pushbutton to
quickly reverse within a track. Release it to play the
passage. You will hear sound at a reduced level.
4


(Forward): Press and hold this pushbutton to
quickly advance within a track. Release it to play the
passage. You will hear sound at a reduced level.
5 SIDE: Press this pushbutton to select the next disc in
the magazine. Each time you press this button, the disc
number on the radio display will go to that of the next
available CD. If a CD cannot be played, its number will
be skipped when selecting discs while using this button.
6 RAND (Random): Press this pushbutton to enter the
random play mode. RAND will appear on the display.
While in this mode, tracks and discs will be played in
random order. Press this button again to turn off the
random feature and return to normal operation.
RECALL: Press this button to see what track is
currently playing. Press it again within five seconds to
see how long the track has been playing. EL TM will
appear on the display when in elapsed time mode. When
a new track starts to play, the track number will also
appear. Press this button a third time and the time of day
will be displayed.
