2002 BUICK PARK AVENUE Owner's Manual

6-41 Rear Quarterpanel Turn Signal Lamps
and Stoplamps
1. Open the trunk.
2. On either side of the rear of the trunk is a plastic
retainer that holds the cargo net and taillamp
assembly in place. Unhook the cargo net from the
cargo net retainer and remove the retainer by turning
it counterclockwise.
3. Remove the plastic
retaining screws on the
trunk's interior.
4. Pull back the trunk trim panel.
5. Beneath the trim panel are three nuts that secure the
taillamp assembly. Remove the nuts only from the
side you want to access. The turn signal and a
stoplamp can now be accessed.

6-42
6. Pull the taillamp assembly away from the vehicle.
7. Remove the bulb socket
assembly by turning the
socket one
-quarter turn
counterclockwise and
pulling it out.
8. Once the socket has
been removed, pull
the bulb straight out
to remove it from
the socket.
9. Replace it with a new bulb.
10. Reverse Steps 1 through 8 to reinstall the
taillamp assembly.

6-43 Trunk-Mounted Rear Turn Signals,
Stoplamps and Back-Up Lamps
1. There are four
studs located at the
inside edge of the
trunk lid. Remove
the protective
vinyl caps from
the studs.
2. Remove the nuts from the studs.

6-44
3. Remove the six fasteners along the top of the
trunk lid (three on each side), holding the trunk trim
in place.4. Pull the trunk trim back to expose the three
remaining nuts holding the taillamp assembly in
place. Remove the protective vinyl caps from
the studs.

6-45
5. From inside the trunk compartment, remove the nuts
from the studs.6. Pull the taillamp assembly away from the
trunk lid. The bulbs are located on the back
side of the assembly.

6-46
7. Turn the bulb socket
one
-quarter turn
counterclockwise and
pull it out. You can use a
tool to remove the bulb
socket if you are unable
to do it by hand.
8. Once the socket has
been removed,
pull the bulb straight
out to remove it
from the socket.
9. Replace it with a new bulb.
10. Reverse Steps 1 through 8 to reinstall the
taillamp assembly.
Windshield Wiper
Blade Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See ªWiper Blade
Checkº in the Index for more information.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
see ªNormal Replacement Partsº in the Index.
To replace the wiper blade assembly, do the following:
1. Position the wipers on the windshield in the ªmidº
wipe position.
2. Lift the windshield wiper arm away from the
windshield. The windshield wiper does not have a
locking upright position feature.

6-47
3. Push the tab on the wiper blade assembly and pull
the assembly down enough to release it from the ªUº
hooked end of the wiper arm. Slide the assembly
away from the arm.
4. Replace the blade.
5. To reinstall the wiper blade assembly, slide it over
the wiper arm to engage the ªUº hooked end on the
wiper blade assembly. Pull up on the assembly to
lock it into place.

6-48

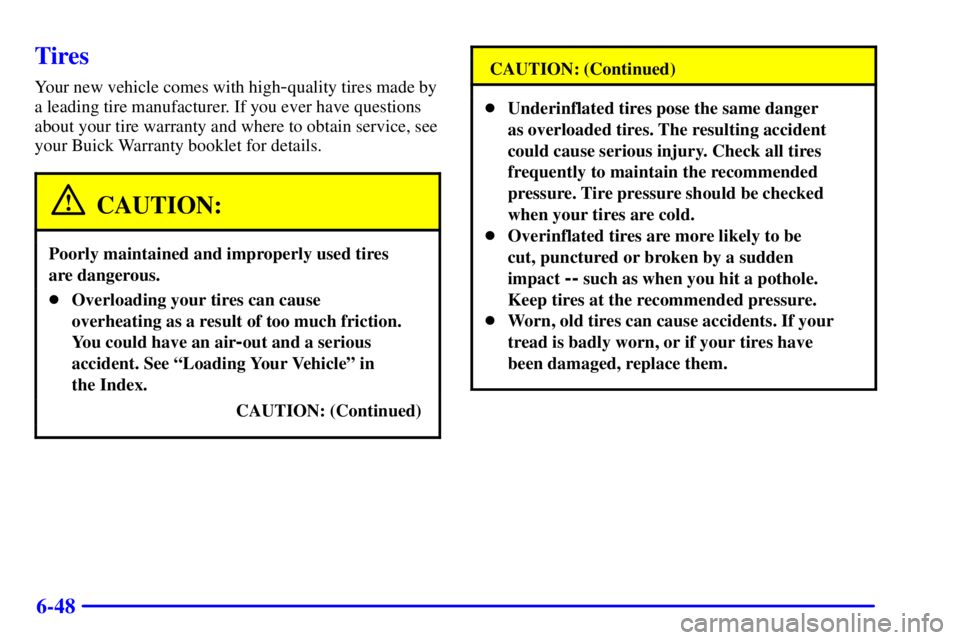

Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service, see
your Buick Warranty booklet for details.
CAUTION:
Poorly maintained and improperly used tires
are dangerous.

Overloading your tires can cause
overheating as a result of too much friction.
You could have an air
-out and a serious
accident. See ªLoading Your Vehicleº in
the Index.
CAUTION: (Continued)
CAUTION: (Continued)

Underinflated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.

Overinflated tires are more likely to be
cut, punctured or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.

Worn, old tires can cause accidents. If your
tread is badly worn, or if your tires have
been damaged, replace them.
