Manual convertible top, roadster5. Fold the release levers against the
convertible top frame.
In order to avoid subsequent
moisture damage, do not open
and store the convertible top when it is
wet.<

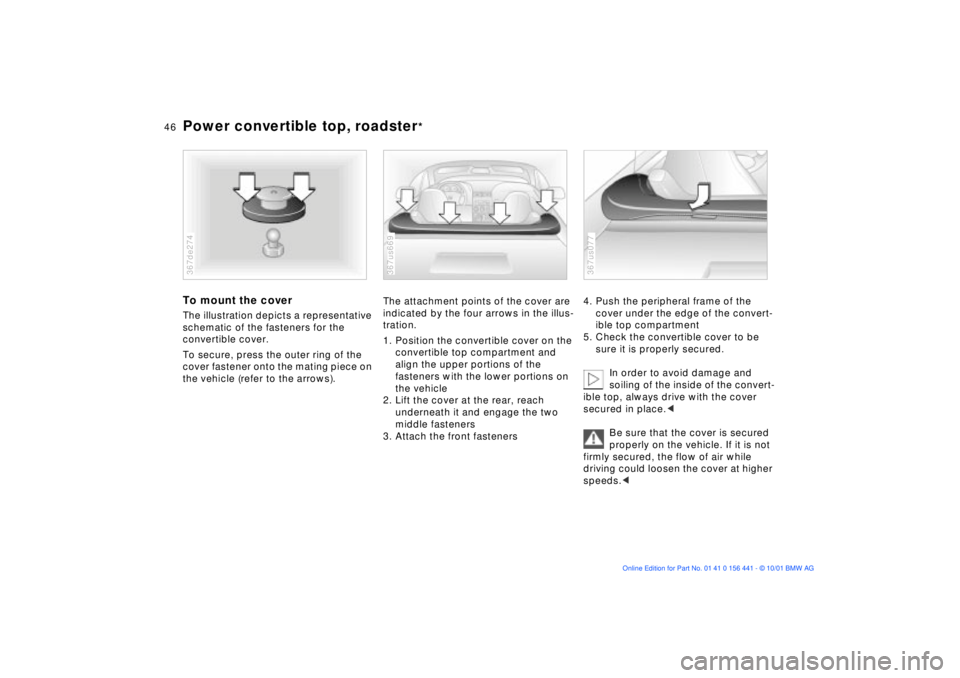

To mount the coverThe illustration depicts a representative
schematic of the fasteners for the
convertible cover.
To secure, press the outer ring of the
cover fastener onto the mating piece on
the vehicle (refer to the arrows).367de274
The attachment points of the cover are
indicated by the four arrows in the illus-
tration.
1. Position the convertible cover on the
convertible top compartment and
align the upper portions of the
fasteners with the lower portions on
the vehicle
2. Lift the cover at the rear, reach
underneath it and engage the two
middle fasteners
3. Attach the front fasteners367us669

42n
Manual convertible top, roadster4. Push the peripheral frame of the
cover under the edge of the convert-
ible top compartment
5. Check the convertible cover to be
sure it is properly secured.
In order to avoid damage and
soiling of the inside of the convert-
ible top, always drive with the cover
secured in place.<
Be sure that the cover is secured
properly on the vehicle. If it is not
firmly secured, the flow of air while
driving could loosen the cover at higher
speeds.< 367us077

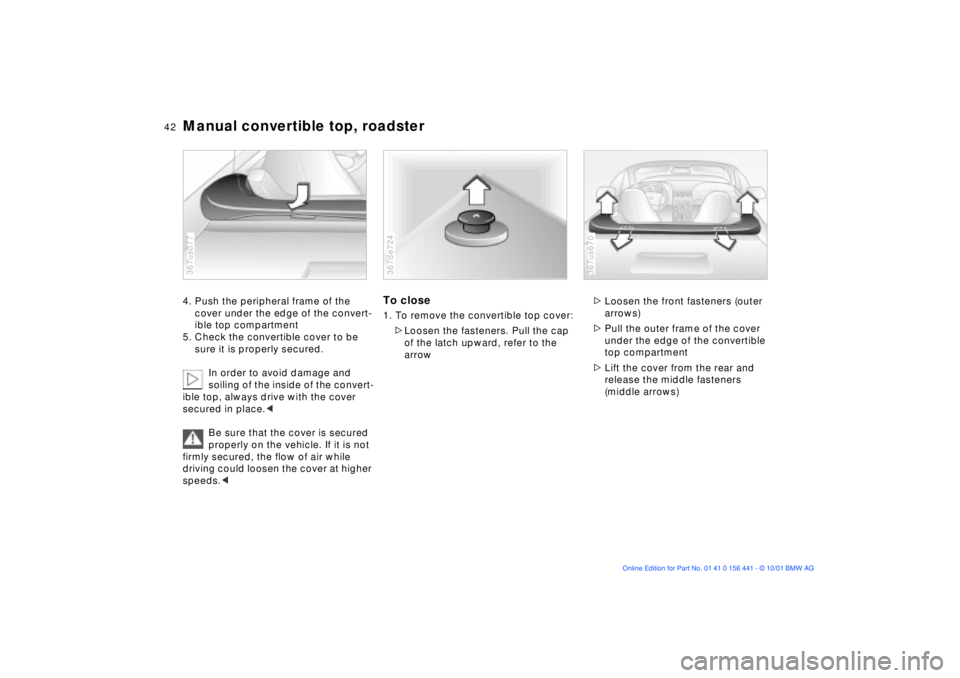

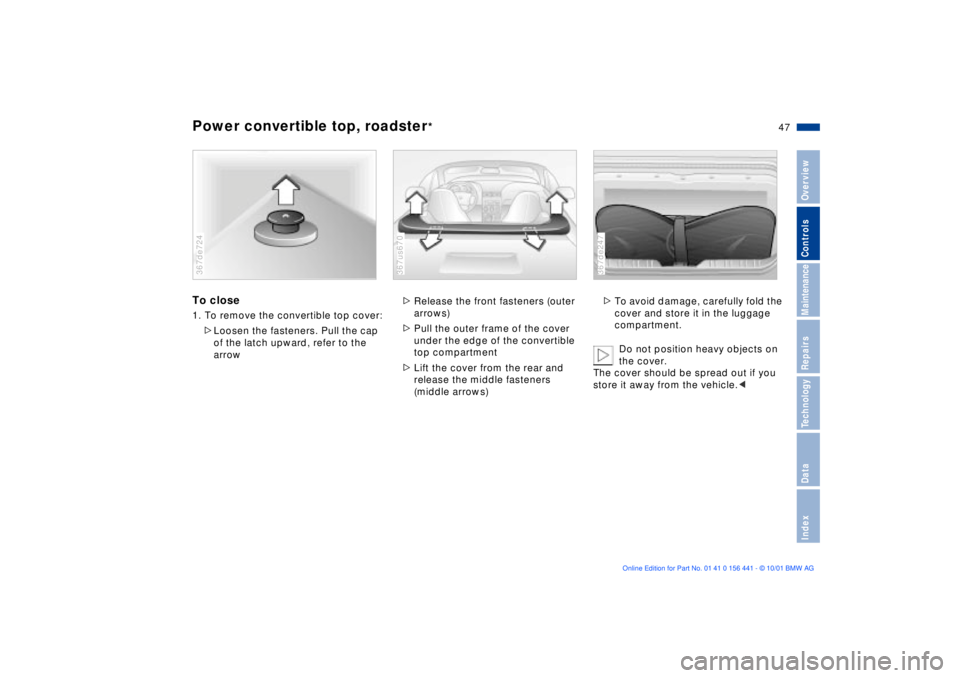

To close1. To remove the convertible top cover:
>Loosen the fasteners. Pull the cap
of the latch upward, refer to the
arrow367de724
>Loosen the front fasteners (outer
arrows)
>Pull the outer frame of the cover
under the edge of the convertible
top compartment
>Lift the cover from the rear and
release the middle fasteners
(middle arrows)367us670

43n
IndexDataTechnologyRepairsMaintenanceControlsOverview
Manual convertible top, roadster>To avoid damage, carefully fold the
cover and store it in the luggage
compartment.
Do not position heavy objects on
the cover.
If you store the cover away from the
vehicle, the cover should be spread
out.<

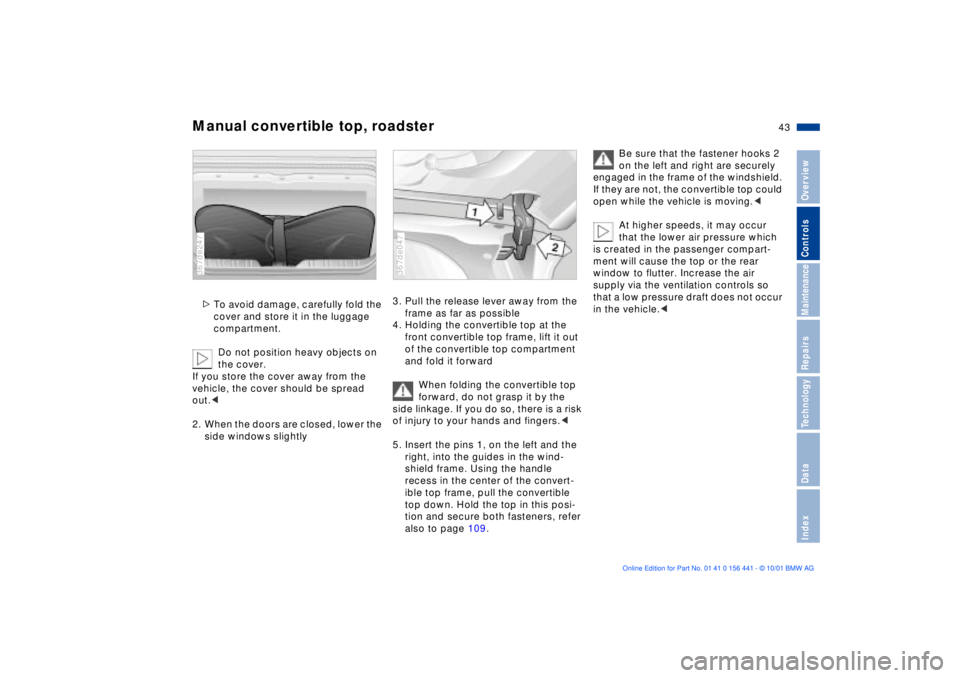

2. When the doors are closed, lower the
side windows slightly367de247
3. Pull the release lever away from the
frame as far as possible
4. Holding the convertible top at the
front convertible top frame, lift it out
of the convertible top compartment
and fold it forward
When folding the convertible top
forward, do not grasp it by the
side linkage. If you do so, there is a risk
of injury to your hands and fingers.<
5. Insert the pins 1, on the left and the
right, into the guides in the wind-
shield frame. Using the handle
recess in the center of the convert-
ible top frame, pull the convertible
top down. Hold the top in this posi-
tion and secure both fasteners, refer
also to page 109.367de047
Be sure that the fastener hooks 2
on the left and right are securely
engaged in the frame of the windshield.
If they are not, the convertible top could
open while the vehicle is moving.<
At higher speeds, it may occur
that the lower air pressure which
is created in the passenger compart-
ment will cause the top or the rear
window to flutter. Increase the air
supply via the ventilation controls so
that a low pressure draft does not occur
in the vehicle.<

44n
Power convertible top, roadster
*
Weather protectionThe convertible top combines reliable
protection from the elements with
simple, convenient operation. Here are
a few tips to ensure that you have plea-
sure with your roadster.
It is advisable to close the convertible
top when the vehicle is parked. The
closed convertible top not only protects
the passenger compartment from
unforeseeable damage from the
weather, it also provides a certain
degree of theft protection. In addition,
keep valuables only in the locked
luggage compartment, even with the
convertible top closed.
Never mount a roof-mounted luggage
rack on the convertible top. Please
contact your BMW center for suitable
securing devices and additional acces-
sories.
To prevent damage, do not operate the
convertible top at temperatures at the
freezing point.
To conserve the battery, it is advisable
to operate the top only with the engine
running.Operate the convertible top only
when the vehicle is stationary.
Do not lay objects on the convertible
top, since they would fall off when the
convertible top is operated and cause
damage or injuries.
Do not reach into the convertible top
mechanism during opening and closing.
Keep children away from the moving
parts of the convertible top during
operation.
The automatic sequence is interrupted
immediately if the button for actuating
the top (pages 45 and 48) is released.
The sequence can be continued in the
desired direction by pressing the
button.<

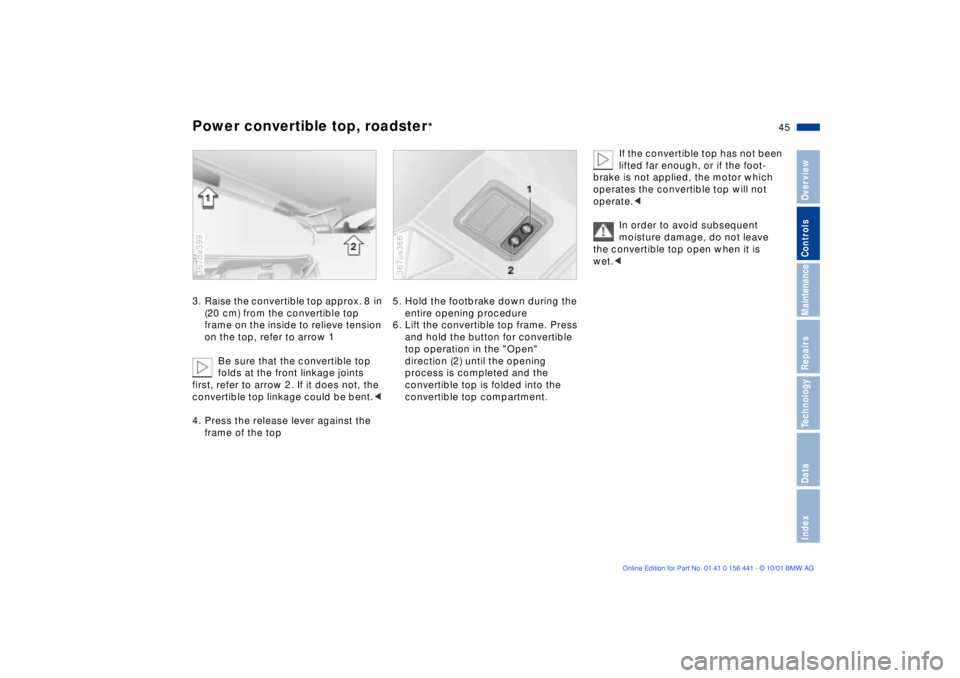

To open 1. With the doors closed, lower the side
windows a few inches (centimeters)
2. To release the convertible top: pull
the levers outward on the left and the
right of the frame of the top (refer to
the illustration)367de046

45n
IndexDataTechnologyRepairsMaintenanceControlsOverview
Power convertible top, roadster
*
3. Raise the convertible top approx. 8 in
(20 cm) from the convertible top
frame on the inside to relieve tension
on the top, refer to arrow 1
Be sure that the convertible top
folds at the front linkage joints
first, refer to arrow 2. If it does not, the
convertible top linkage could be bent.<
4. Press the release lever against the
frame of the top367de399
5. Hold the footbrake down during the
entire opening procedure
6. Lift the convertible top frame. Press
and hold the button for convertible
top operation in the "Open"
direction (2) until the opening
process is completed and the
convertible top is folded into the
convertible top compartment.367us366
If the convertible top has not been
lifted far enough, or if the foot-
brake is not applied, the motor which
operates the convertible top will not
operate.<
In order to avoid subsequent
moisture damage, do not leave
the convertible top open when it is
wet.<

46n
Power convertible top, roadster
*
To mount the coverThe illustration depicts a representative
schematic of the fasteners for the
convertible cover.
To secure, press the outer ring of the
cover fastener onto the mating piece on
the vehicle (refer to the arrows).367de274
The attachment points of the cover are
indicated by the four arrows in the illus-
tration.
1. Position the convertible cover on the
convertible top compartment and
align the upper portions of the
fasteners with the lower portions on
the vehicle
2. Lift the cover at the rear, reach
underneath it and engage the two
middle fasteners
3. Attach the front fasteners367us669
4. Push the peripheral frame of the
cover under the edge of the convert-
ible top compartment
5. Check the convertible cover to be
sure it is properly secured.
In order to avoid damage and
soiling of the inside of the convert-
ible top, always drive with the cover
secured in place.<
Be sure that the cover is secured
properly on the vehicle. If it is not
firmly secured, the flow of air while
driving could loosen the cover at higher
speeds.< 367us077

47n
IndexDataTechnologyRepairsMaintenanceControlsOverview
Power convertible top, roadster
*
To close1. To remove the convertible top cover:
>Loosen the fasteners. Pull the cap
of the latch upward, refer to the
arrow367de724
>Release the front fasteners (outer
arrows)
>Pull the outer frame of the cover
under the edge of the convertible
top compartment
>Lift the cover from the rear and
release the middle fasteners
(middle arrows)367us670
>To avoid damage, carefully fold the
cover and store it in the luggage
compartment.
Do not position heavy objects on
the cover.
The cover should be spread out if you
store it away from the vehicle.< 367de247

48n
Power convertible top, roadster
*

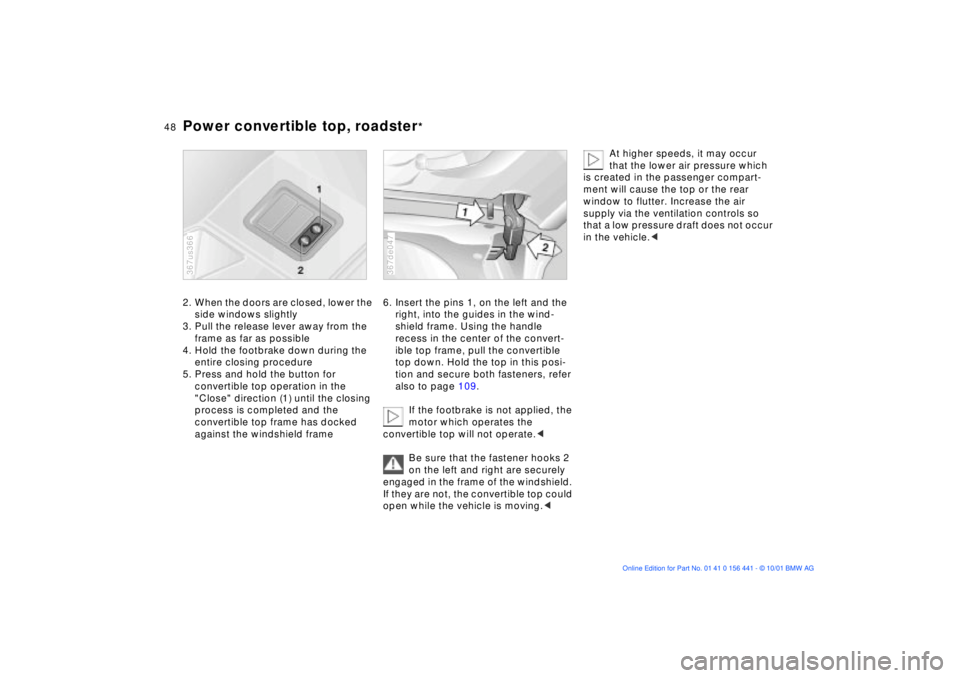

2. When the doors are closed, lower the
side windows slightly
3. Pull the release lever away from the
frame as far as possible
4. Hold the footbrake down during the
entire closing procedure
5. Press and hold the button for
convertible top operation in the
"Close" direction (1) until the closing
process is completed and the
convertible top frame has docked
against the windshield frame367us366
6. Insert the pins 1, on the left and the
right, into the guides in the wind-
shield frame. Using the handle
recess in the center of the convert-
ible top frame, pull the convertible
top down. Hold the top in this posi-
tion and secure both fasteners, refer
also to page 109.
If the footbrake is not applied, the
motor which operates the
convertible top will not operate.<
Be sure that the fastener hooks 2
on the left and right are securely
engaged in the frame of the windshield.
If they are not, the convertible top could
open while the vehicle is moving.< 367de047
At higher speeds, it may occur
that the lower air pressure which
is created in the passenger compart-
ment will cause the top or the rear
window to flutter. Increase the air
supply via the ventilation controls so
that a low pressure draft does not occur
in the vehicle.<
