1 Parking lamps/Low beams76
2 Horn
3 Washer/Wiper system65
4 Hazard warning flashers24
5 Cruise control

*
67
6

>

Turn signals64

>

High beams64

>

Headlamp flasher64

>

Computer

*
70
7 Fog lamps76
8 Hood release118

Cockpit

18n

Instrument cluster
367us705

19n

IndexDataTechnologyRepairsMaintenanceControlsOverview

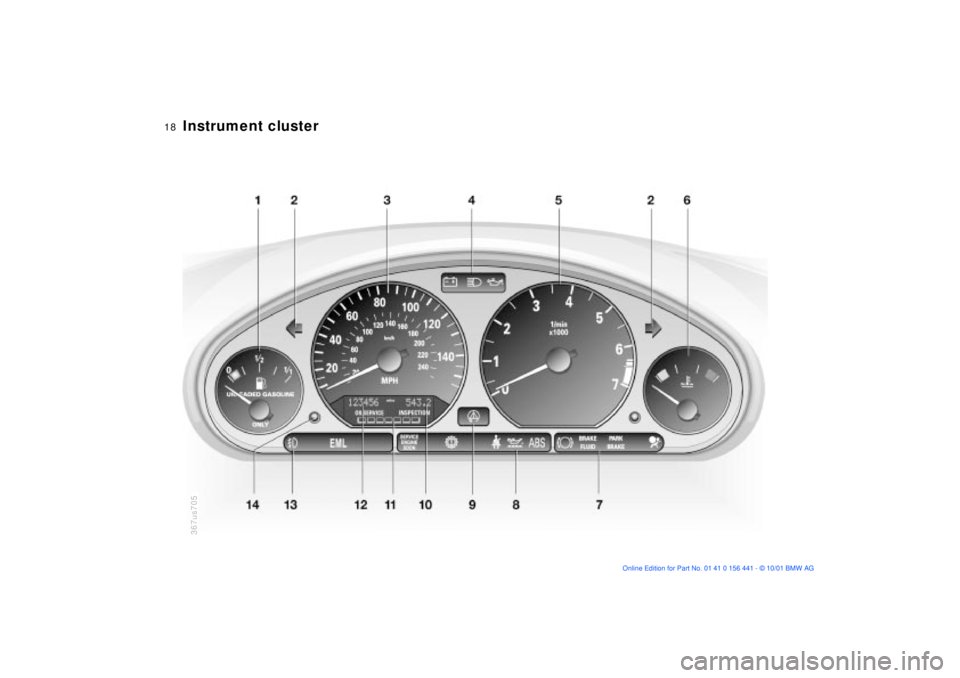

Instrument cluster

1 Fuel gauge with indicator lamp
for reserve range68
2 Indicator lamp for turn signals23
3 Speedometer
4 Indicator and warning lamps for:

>

Battery charge current20

>

High beams23

>

Engine oil pressure20
5 Tachometer68
6 Coolant temperature gauge69
7 Indicator and warning lamps for:

>

Brake pad wear22

>

Brake hydraulic
system20, 21, 22

>

Parking brake21

>

Airbags21
8 Indicator and warning lamps for:

>

Service Engine Soon22

>

Automatic transmission

*
22

>

Safety belts21

>

Engine oil level21

>

Antilock Brake System (ABS)21
9 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability Control
(DSC

*
)22
10 Trip odometer/Gear indicator for
automatic transmission with
Steptronic

*
6811 Service Interval Display69, 128
12 Odometer68
13 Indicator and warning lamps for:

>

Front fog lamps

*
23

>

Engine electronics22
14 Trip odometer reset button68
The illustration shows the instrument
cluster in the US version. In the Cana-
dian models, some of the indicator and
warning lamps have a different appear-
ance, refer to pages 20 to 23.

20n

Indicator and warning lamps

Technology that monitors itself

Indicator and warning lamps that are
identified by "

l

" are tested for proper
functioning whenever the ignition key is
turned. They each light up once for
different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this in the
following section.

Red: stop immediately

Battery charge current

l

The battery is no longer being
charged. The alternator drive
belt is defective or there is a malfunc-
tion in the charging circuit of the alter-
nator. Please contact the nearest BMW
center.
If the drive belt is defective, stop
and switch off the engine immedi-
ately to prevent overheating and
serious engine damage. If the drive belt
is defective, increased steering effort is
also required.

<


Engine oil pressure

l

Stop the vehicle immediately
and switch off the engine.
Check the engine oil level and top off as
required. If the oil level is correct,
please contact the nearest BMW
center.
Do not continue driving, as the
engine could sustain serious
damage from inadequate lubrication.

<



Brake hydraulic system

l

The brake fluid level is too low.
Before driving further, be sure to
read the notes on pages 104 and 126.
Brake hydraulic system warning
lamp for Canadian models.

21n
IndexDataTechnologyRepairsMaintenanceControlsOverview
Indicator and warning lamps

Red and yellow: continue to drive
cautiously

The red warning lamp for the
brake hydraulic system comes
on together with the yellow indi-
cator lamps for ABS, ASC+T/
DSC

*
:
The entire ABS, CBC, ASC+T/
DSC

*
and


ADB/DBC


control
system has failed. Continue
driving cautiously and defen-
sively. Avoid hard brake applications.
Have the system checked by your BMW
center as soon as possible.
For additional information, refer to
pages 73, 74 and 102.
Warning lamps for Canadian
models.

Red: an important reminder

Parking brake
Comes on when the parking
brake is engaged.
For additional information, refer to
page 60.
Parking brake warning lamp for
Canadian models.
Please fasten your safety belt

l

Together with an acoustic signal.
Comes on until the safety belts
are fastened.
For additional information on safety
belts, refer to page 52.
Airbags

l

Please have the system
inspected by your BMW center.
For additional information, refer to
pages 54 and 164.

Yellow: check as soon as possible

Antilock Brake System (ABS)

l

Comes on during normal vehicle
operation: ABS has been deac-
tivated in response to system malfunc-
tion. Conventional braking efficiency
is available without limitations. Please
have the system inspected by your
BMW center.
For additional information, refer to
page 101.
Antilock Brake System warning
lamp for Canadian models.
Engine oil level
Comes on while driving: the
oil level is at the absolute
minimum; refill as soon as possible. Do
not drive more than approx. 30 miles
(50 km) until you do.
For additional information, refer to
page 123.
Engine oil level
Comes on after the engine has
been switched off: add engine
oil at your earliest opportunity (when
you stop to refuel).
For additional information, refer to
page 123.

22n

Indicator and warning lamps

Automatic transmission

*
Because of a malfunction, the
automatic transmission shifts
only in the emergency program. Please
consult the nearest BMW center.
For additional information, refer to
page 64.
Brake pads

l

Have the brake pads checked.
For additional information, refer
to page 104.
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC)

*


l

Indicator lamp flashes:
The system is actively regulating drive
torque and braking force.
The indicator lamp stays lit:
ASC+T has been switched off with the
button or it is defective, or the DSC

*

has been switched off, ADB is
operational.
Please consult the nearest BMW center
in case of a malfunction.
For additional information, refer to
pages 73, 74.

Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability
Control (DSC)

*
and brake
hydraulic system warning
lamp

l

The indicator lamps remain on:
The DSC

*
and ADB/DBC have been
switched off with the button or there is
a system malfunction.
Please consult the nearest BMW
center.
For additional information, refer to
page 74.
Indicator and warning lamps for
Canadian models.

Service Engine Soon l
If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a fault in the emis-
sions-related electronic systems.
Although the vehicle remains opera-
tional, you should have the systems
checked by your BMW center at the
earliest possible opportunity.
For additional information, refer to
page 133.
"Service Engine Soon" warning
lamp for Canadian models.
Engine electronics l
There is a fault in the engine's
electronic control system. You
can continue to drive with reduced
engine output or engine speed. Please
have the system inspected by your
BMW center.

23n
IndexDataTechnologyRepairsMaintenanceControlsOverview
Indicator and warning lampsGreen: for your information
Turn signal indicators
Flashes when the turn signal
indicators are in operation.
Rapid flashing indicates a system
malfunction.
For additional information, refer to
page 64.
Front fog lamps
*
Lights up whenever you switch
on the front fog lamps.
For additional information, refer to
page 76.
Blue: for your information
High beams
Lights up when the high beams
are on or the headlamp flasher
is actuated.
For additional information, refer to
page 64.

24n
Hazard warning flashers Warning triangle
* First-aid kit
*
The button flashes rhythmically when
the hazard flashers are on.
To help you locate the button in an
emergency, the button is also illumi-
nated whenever the vehicle lamps
are on.367de025
Z3 coupeThe warning triangle is located in the
luggage compartment under the floor
mat so that it is readily accessible (refer
to the illustration).
Grasp the floor mat by the straps on the
left and right. Pull it upward and remove
it.Z3 roadsterThe warning triangle is located in the
luggage compartment in the area of the
sill.
Always observe all legal regula-
tions requiring a warning triangle
to be carried in the vehicle.<367de684
Z3 cou
pe
Z3 coupeIn the luggage compartment at the left
rear. Release the Velcro
¨ fasteners.
Z3 roadsterIn the luggage compartment on the
right in a storage tray.
Some of the articles in the first-aid
kit may be used within a limited
time only. For this reason, check the
expiration dates of each of the items
regularly, and replace any whose expi-
ration dates have passed. You can
acquire replacements in any drugstore
or pharmacy. Always observe all legal
regulations requiring a first-aid kit to be
carried in the vehicle.<
