2002 BMW MOTORRAD R 1150 RT Rider's Manual (in English)

7
General information and controls
1
321
10
8
9
5*467
Telltale and warning lights
1Left turn indicator repeater
green
s
2 Warning light battery charge
red
r (b 56)
3 Warning light Tank capac-
ity/when app. 4 litres
remain in tank orange
m
(b 23, 56)
4 Neutral indicator (gearbox)
green
k (b 53)
5 Warning light ABS red
l
(
b 56, 68)
( ) Figure in bracketsbpage number for
description
6 Warning light, general
red
e\b(b 56, 68)
7 Warning light engine oil
pressure red
p\b(b 56)
8 Telltale light Right turn indi-
cator repeater green
t
9 Telltale light fog lamp green
t
10 High-beam headlight telltale
blue
q
*n depending on national-market
specification
10r22bkg3.book Seite 7 Freitag, 27. Januar 2006 12:43 12

8
General information and controls
1
KeysYou will receive two master
keys and one spare key.
The key number is on the
accompanying plastic tag.
\f Note:
Ignition switch and steering
lock, tank filler cap lock and du-
alseat lock are all operated with
the same key. The key also fits
the storage compartment and
System cases.
d Warning:
Only RESIDUAL BRAKING
FUNCTIONALITY is available
when the ignition is switched
off (b 67)
Ignition switch and steering lock
10r22bkg3.book Seite 8 Freitag, 27. Januar 2006 12:43 12

9
General information and controls
1
Ignition switch and steering lock
Key positions
d Warning:
Never turn the key to OFF or
I while riding the
motorcycle!
ON Operating position,
ignition, lights and all
electrical circuits
switched on
R * Ignition and lights off,
steering lock disengaged
(handlebars can be turned
freely to left or right)
* The key can be removed in these
positions
Turn the handlebars to full left
lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF* Ignition and lights off,
steering locked
I**Parking light on,
steering locked
\f Note:
Switch the parking light on
only for limited periods. Note
state of battery charge.
10r22bkg3.book Seite 9 Freitag, 27. Januar 2006 12:43 12

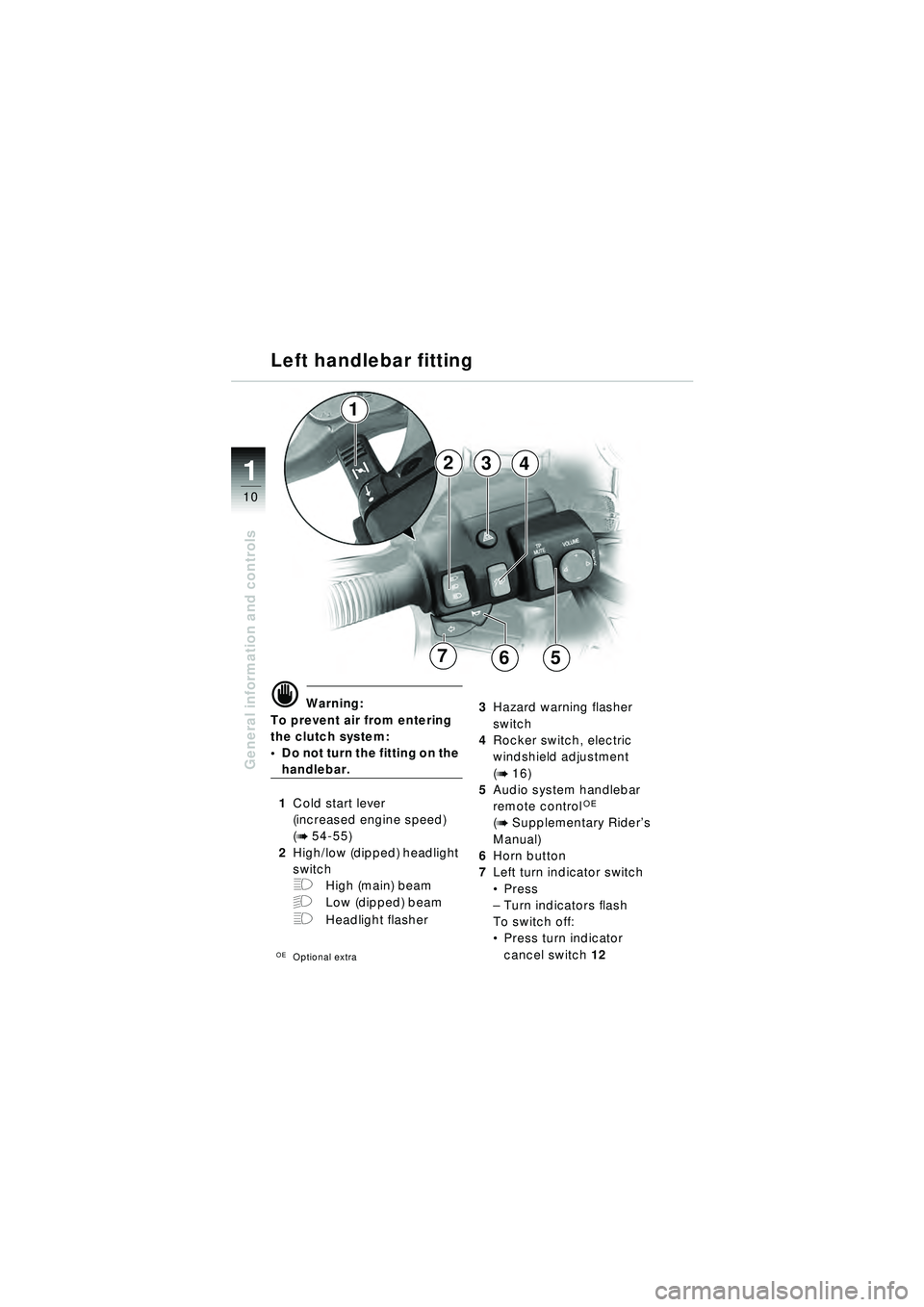

10
General information and controls
1
d Warning:
To prevent air from entering
the clutch system:
 Do not turn the fitting on the
handlebar.
1 Cold start lever
(increased engine speed)
(
b 54-55)
2 High/low (dipped) headlight
switch
FHigh (main) beam
GLow (dipped) beam
FHeadlight flasher
OEOptional extra
3Hazard warning flasher
switch
4 Rocker switch, electric
windshield adjustment
(
b 16)
5 Audio system handlebar
remote control
OE
(b Supplementary Rider ’s
Manual)
6 Horn button
7 Left turn indicator switch
Press
– Turn indicators flash
To switch off:
 Press turn indicator
cancel switch 12
Left handlebar fitting
5
432
1
76
10r22bkg3.book Seite 10 Freitag, 27. Januar 2006 12:43 12

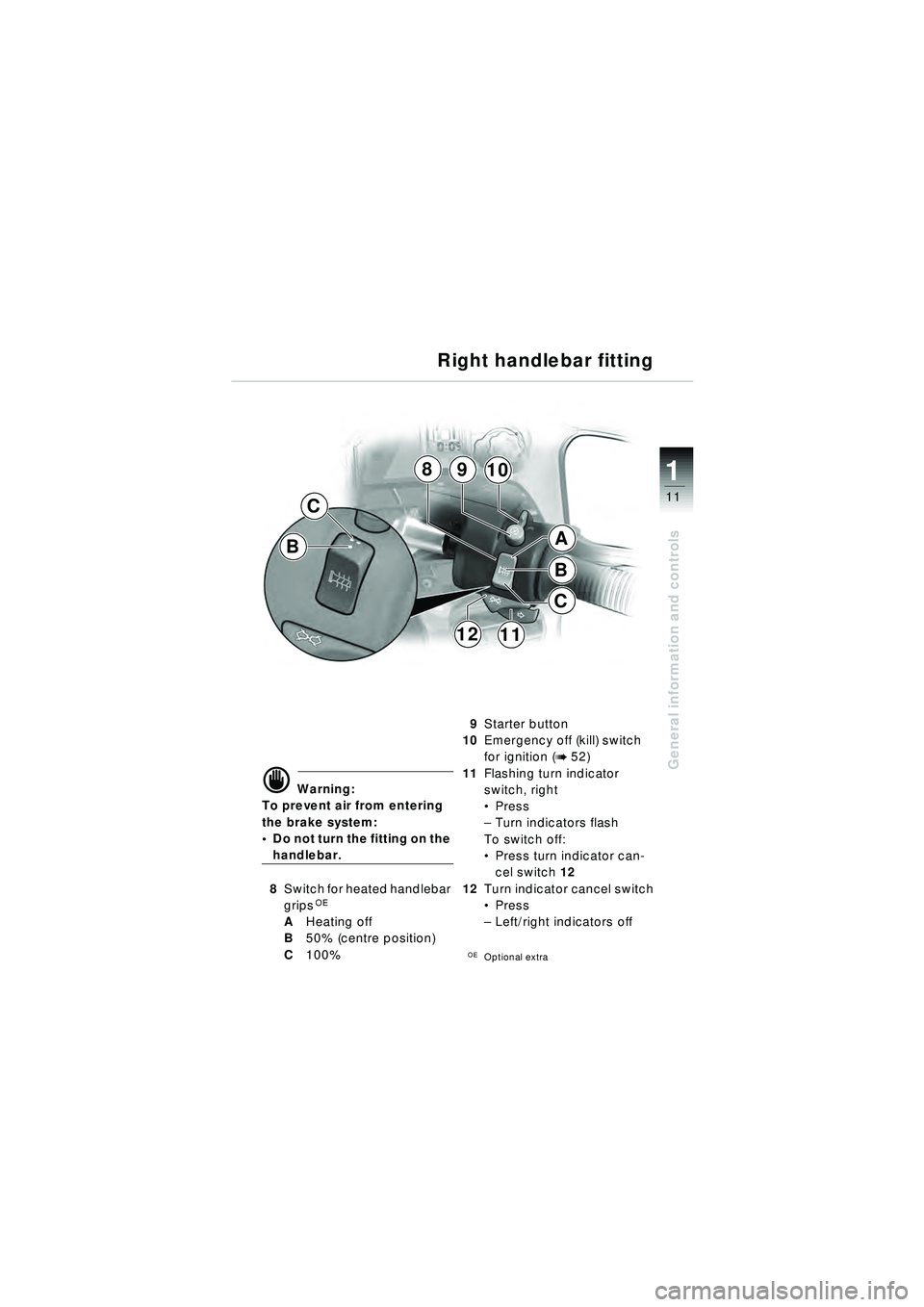

11
General information and controls
1
B
C
1112
B
C
8910
A
d Warning:
To prevent air from entering
the brake system:
 Do not turn the fitting on the
handlebar.
8 Switch for heated handlebar
grips
OE
A Heating off
B 50% (centre position)
C 100% 9
Starter button
10 Emergency off (kill) switch
for ignition (
b 52)
11 Flashing turn indicator
switch, right
Press
– Turn indicators flash
To switch off:
 Press turn indicator can-
cel switch 12
12 Turn indicator cancel switch
Press
– Left/right indicators off
OEOptional extra
Right handlebar fitting
10r22bkg3.book Seite 11 Freitag, 27. Januar 2006 12:43 12

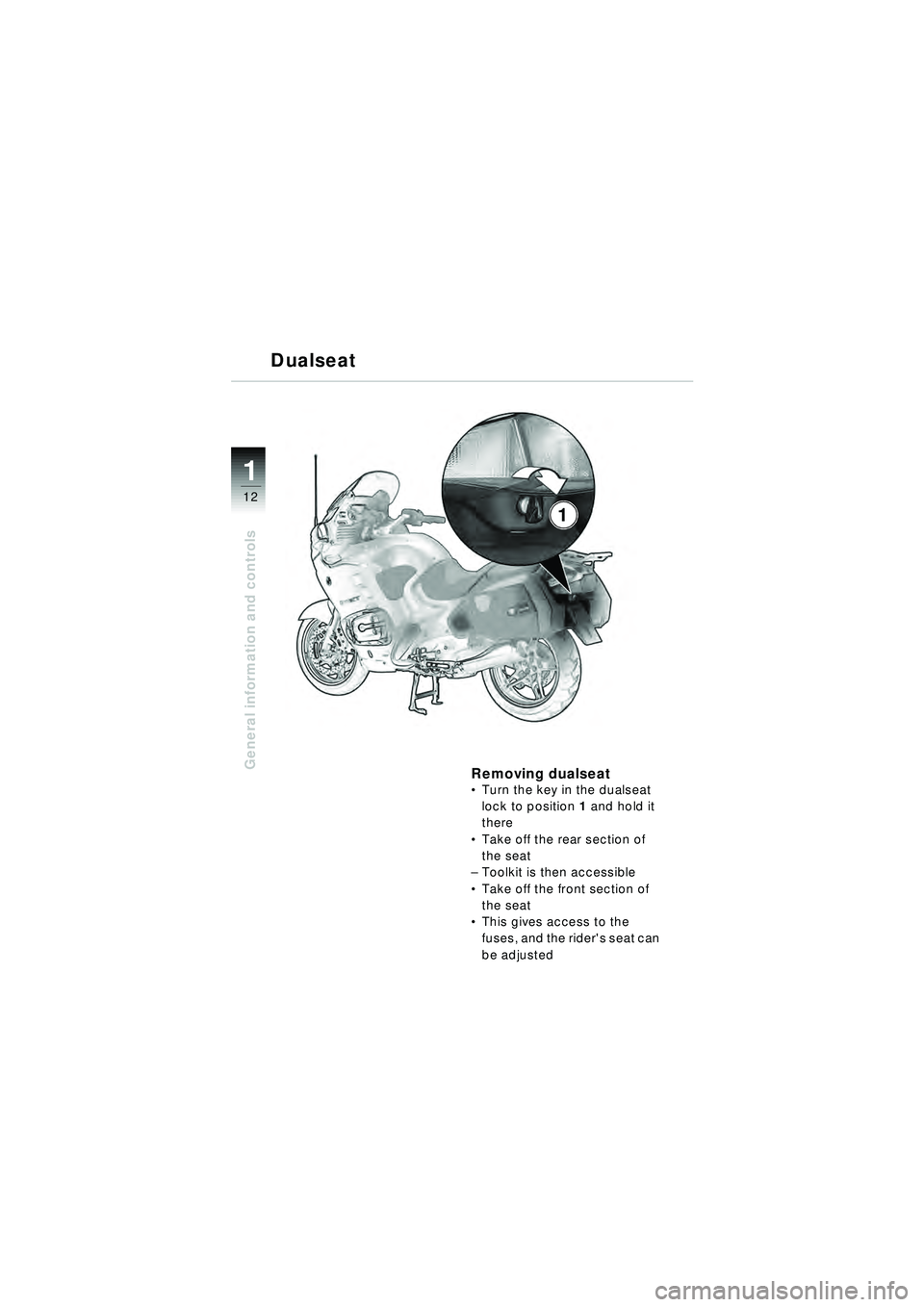

12
General information and controls
1
1
Dualseat
Removing dualseat
Turn the key in the dualseat
lock to position 1 and hold it
there
 Take off the rear section of
the seat
– Toolkit is then accessible
 Take off the front section of
the seat
 This gives access to the
fuses, and the rider's seat can
be adjusted
10r22bkg3.book Seite 12 Freitag, 27. Januar 2006 12:43 12

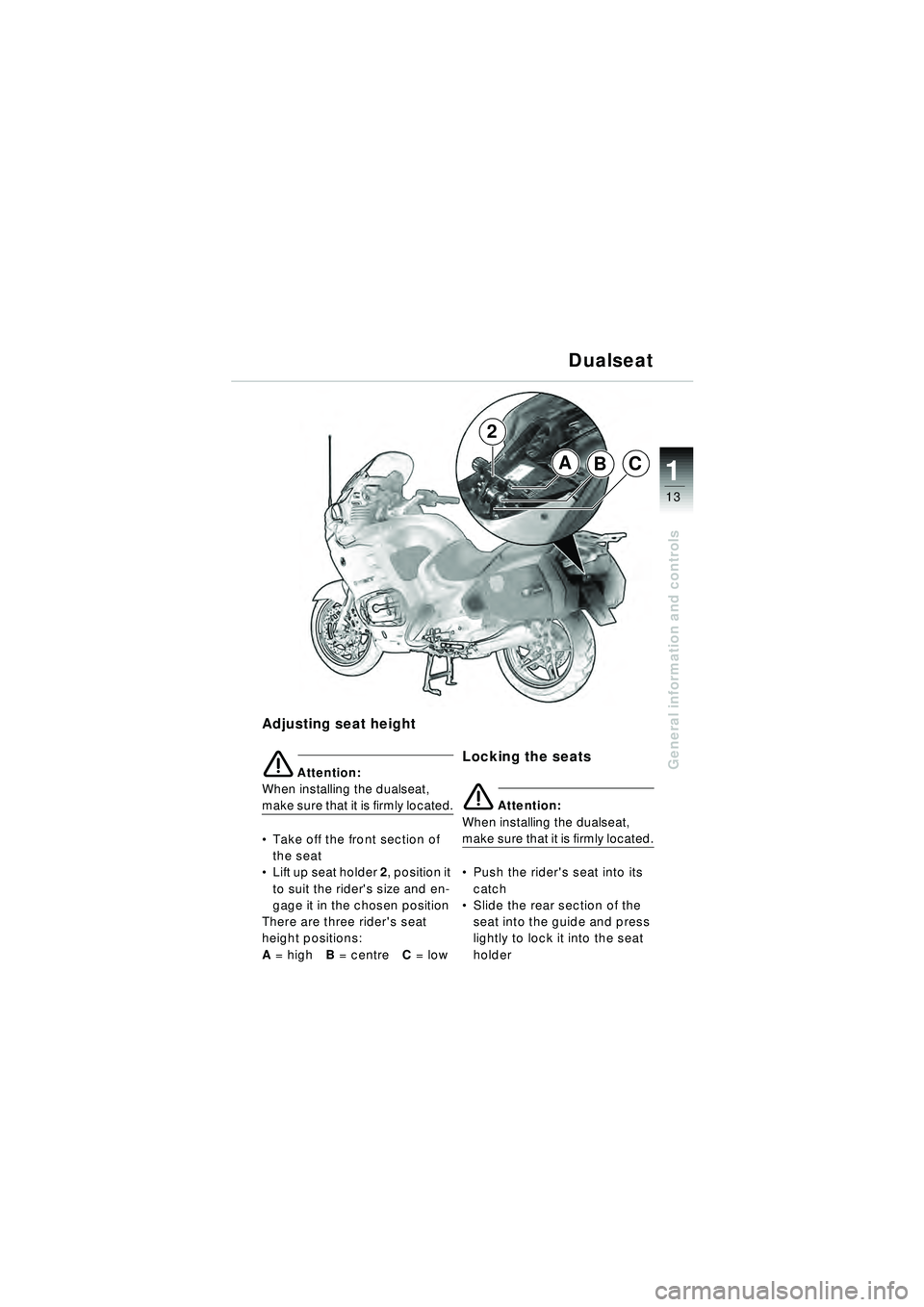

13
General information and controls
1ABC
2
Adjusting seat height
e Attention:
When installing the dualseat,
m a k e s u r e t h a t i t is f i r m l y l o c a t e d.
 Take off the front section of
the seat
 Lift up seat holder 2, position it
to suit the rider's size and en-
gage it in the chosen position
There are three rider's seat
height positions:
A = high B = centre C = low
Locking the seats
e Attention:
When installing the dualseat,
m a k e s u r e t h a t i t is f i r m ly l oc a t e d.
 Push the rider's seat into its
catch
 Slide the rear section of the
seat into the guide and press
lightly to lock it into the seat
holder
Dualseat
10r22bkg3.book Seite 13 Freitag, 27. Januar 2006 12:43 12

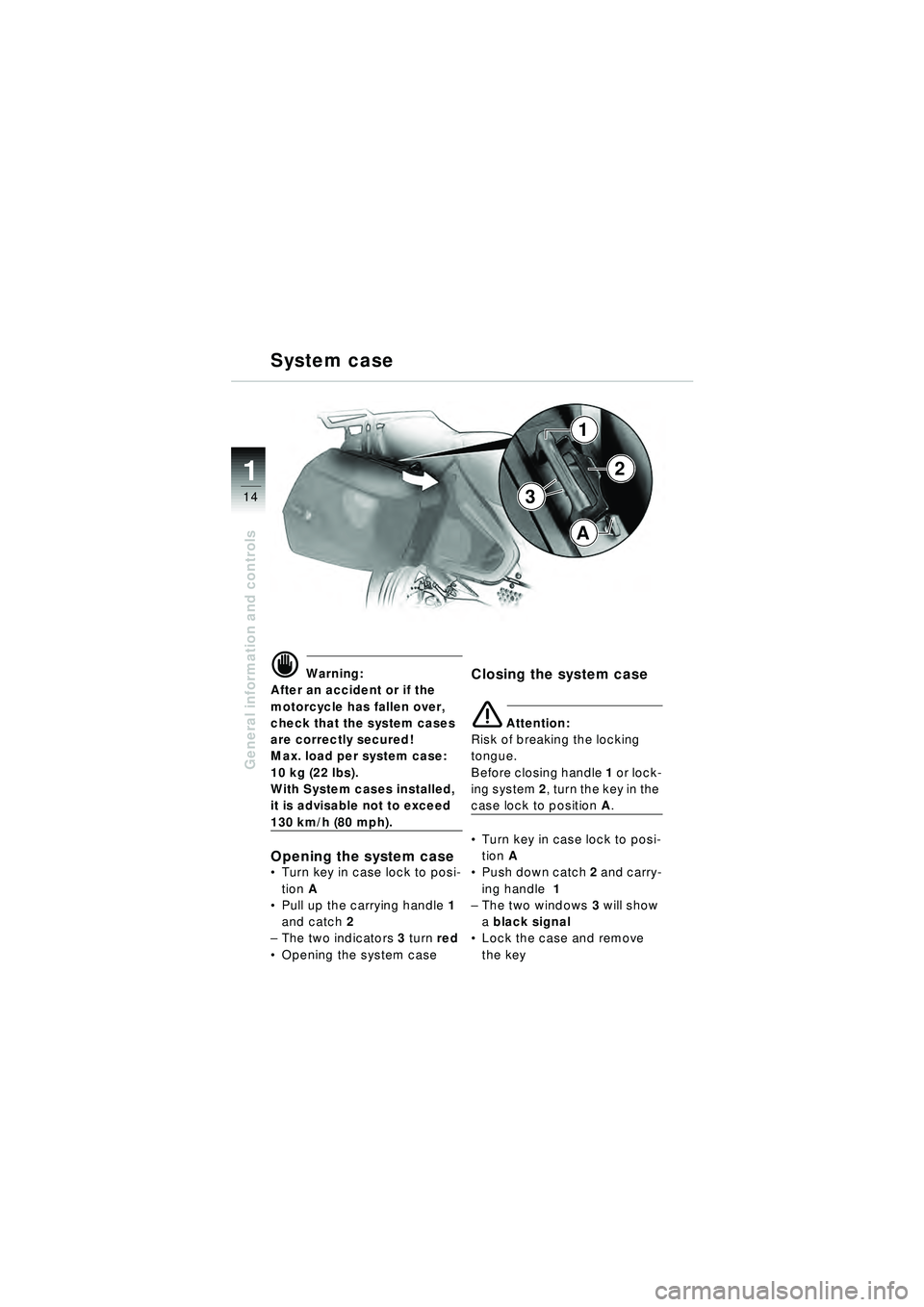

14
General information and controls
1
System case
d Warning:
After an accident or if the
motorcycle has fallen over,
check that the system cases
are correctly secured!
Max. load per system case:
10 kg (22 lbs).
With System cases installed,
it is advisable not to exceed
130 km/h (80 mph).
Opening the system case Turn key in case lock to posi-
tion A
 Pull up the carrying handle 1
and catch 2
– The two indicators 3 turn red
 Opening the system case
Closing the system case
e Attention:
Risk of breaking the locking
tongue.
Before closing handle 1 or lock-
ing system 2, turn the key in the
case lock to position A.
 Turn key in case lock to posi-
tion A
 Push down catch 2 and carry-
ing handle 1
– The two windows 3 will show
a black signal
 Lock the case and remove
the key
3
1
2
A
