Rider's Manual
R 1150 RT
R 850 RT
10r22bkg3.book Seite 85 Montag, 30. Januar 2006 9:20 09

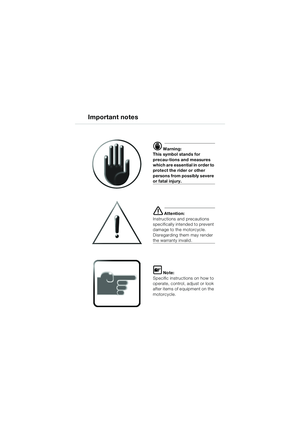

d Warning:
This symbol stands for
precau-tions and measures
which are essential in order to
protect the rider or other
persons from possibly severe
or fatal injury.
e Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle.
Disregarding them may render
the warranty invalid.
L Note:
Specific instructions on how to
operate, control, adjust or look
after items of equipment on the
motorcycle.

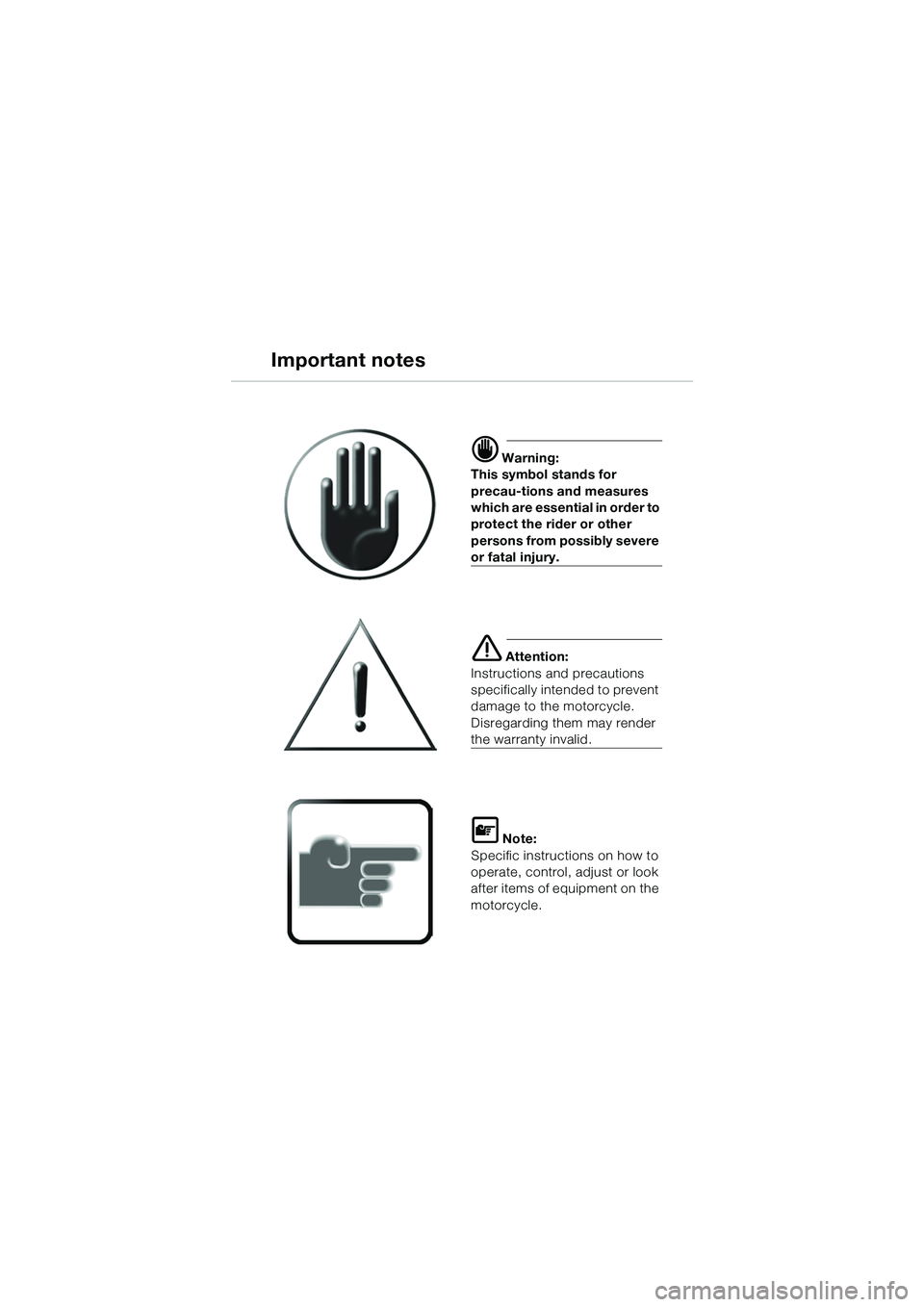

Important notes
10r22bkg3.book Seite 87 Montag, 30. Januar 2006 9:20 09

1
Introduction
i

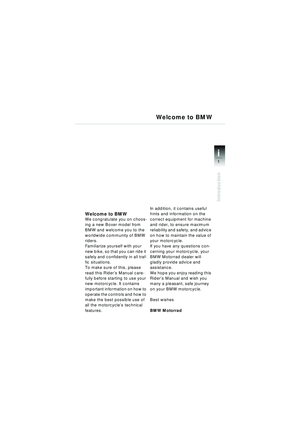

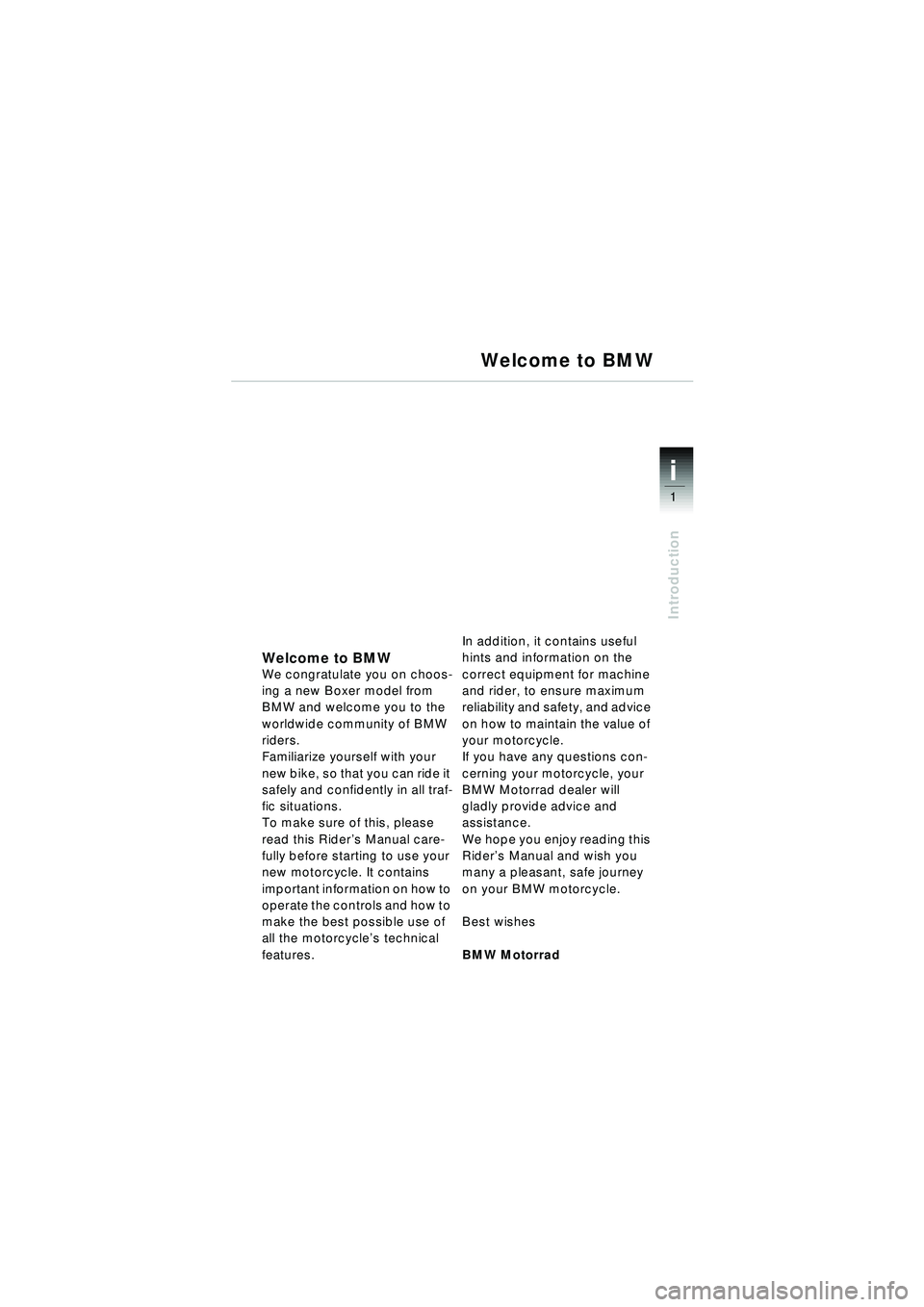

Welcome to BMWWe congratulate you on choos-
ing a new Boxer model from
BMW and welcome you to the
worldwide community of BMW
riders.
Familiarize yourself with your
new bike, so that you can ride it
safely and confidently in all traf-
fic situations.
To make sure of this, please
read this Rider’s Manual care-
fully before starting to use your
new motorcycle. It contains
important information on how to
operate the controls and how to
make the best possible use of
all the motorcycle’s technical
features.In addition, it contains useful
hints and information on the
correct equipment for machine
and rider, to ensure maximum
reliability and safety, and advice
on how to maintain the value of
your motorcycle.
If you have any questions con-
cerning your motorcycle, your
BMW Motorrad dealer will
gladly provide advice and
assistance.
We hope you enjoy reading this
Rider’s Manual and wish you
many a pleasant, safe journey
on your BMW motorcycle.
Best wishes
BMW Motorrad
Welcome to BMW
10r22bkg3.book Seite 1 Freitag, 27. Januar 2006 12:43 12

i
2
Introduction
General information and con-
trols
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6

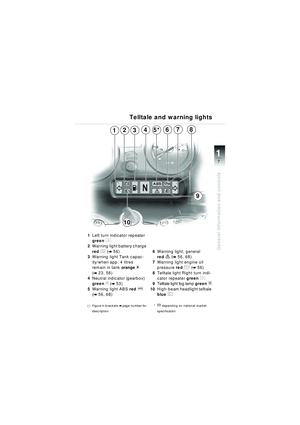

Telltale and warning lights ..... 7

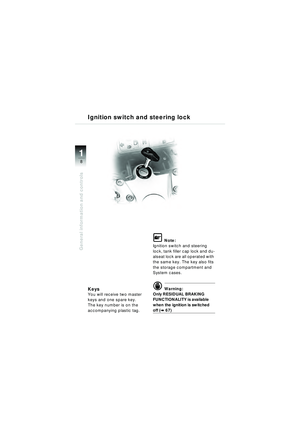

Ignition switch and steering
lock .................................... 8-9

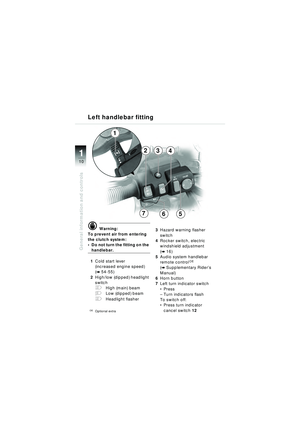

Left handlebar fitting ........... 10

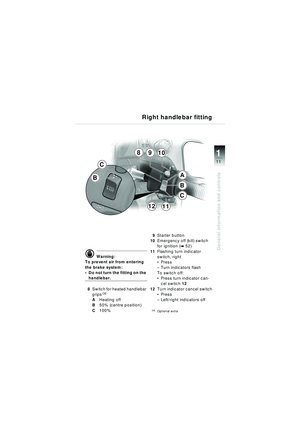

Right handlebar fitting ......... 11

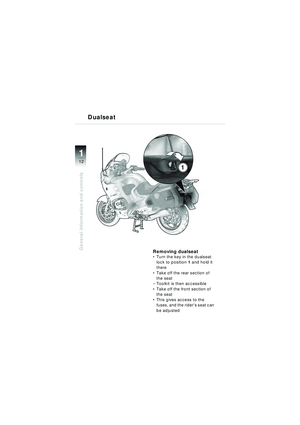

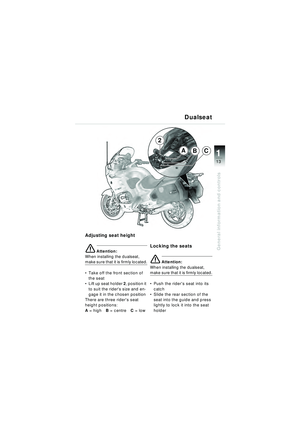

Seats ............................. 12-13

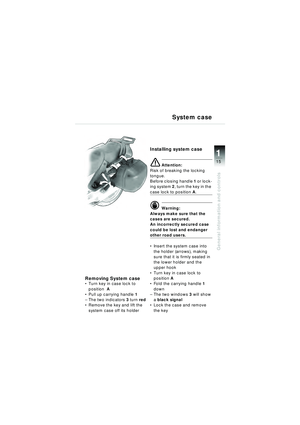

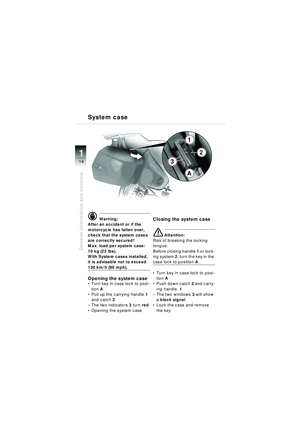

System case .................. 14-15

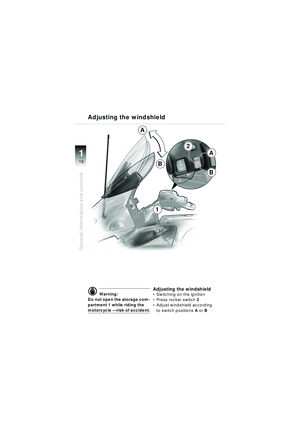

Adjusting the windshield ..... 16

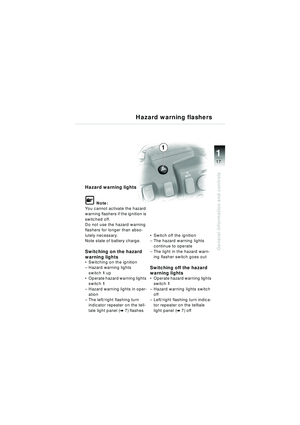

Hazard warning flashers ...... 17Safety check

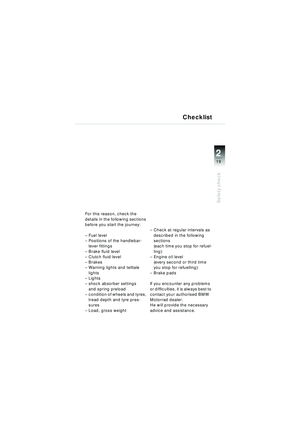

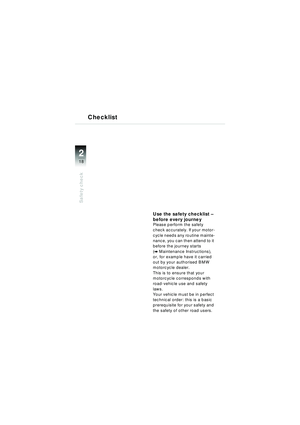

Checklist ........................ 18-19

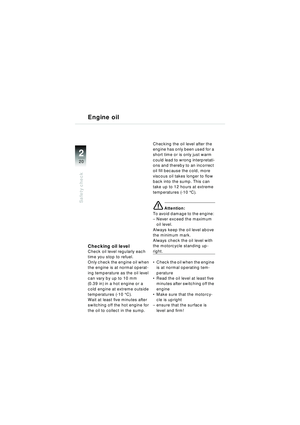

Engine oil ....................... 20-21

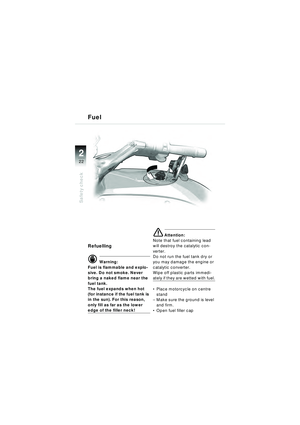

Fuel ................................ 22-23

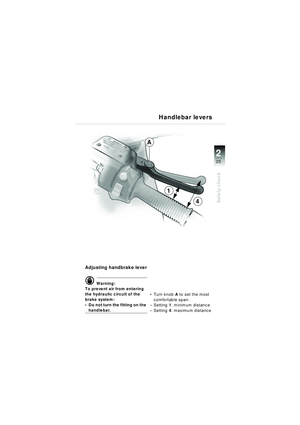

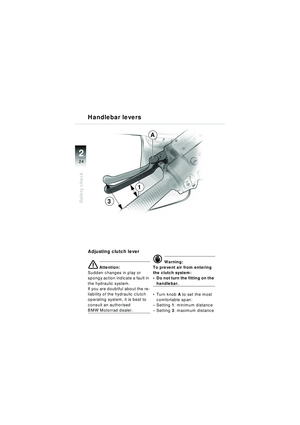

Handlebar levers ............ 24-25

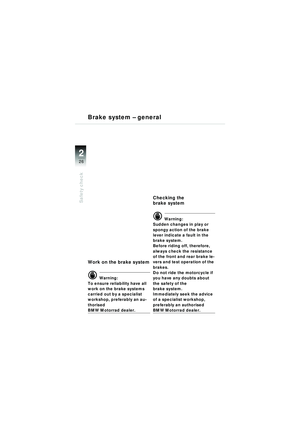

Brake system
- general ........................ 26-27

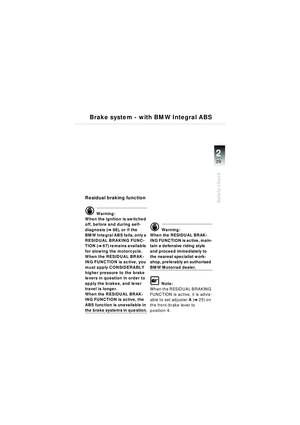

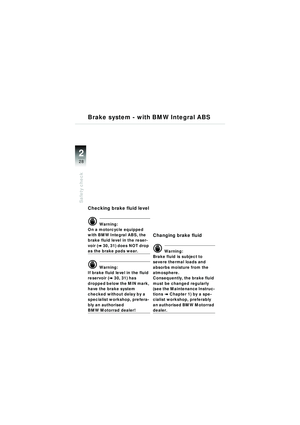

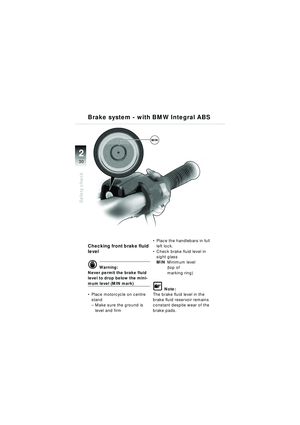

- with BMW Integral
ABS ............................ 28-31
Clutch ................................. 32

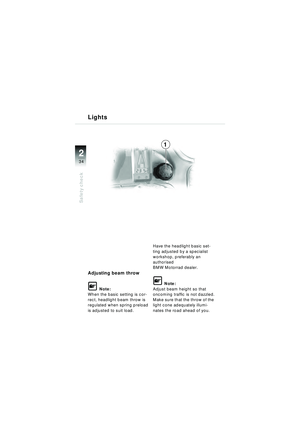

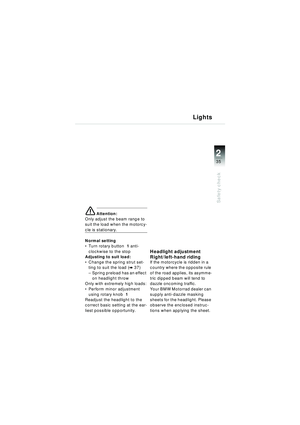

Lights ............................. 33-35

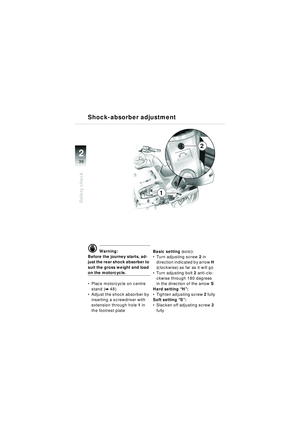

Shock absorbers ................ 36

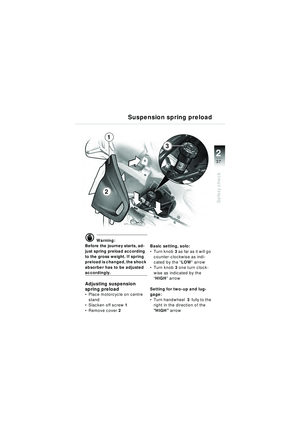

Suspension spring
preload ............................... 37

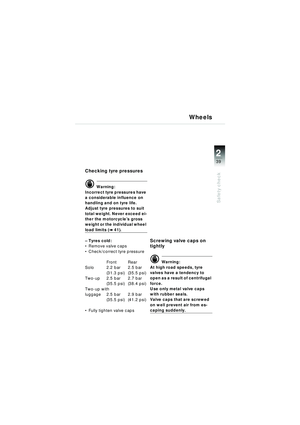

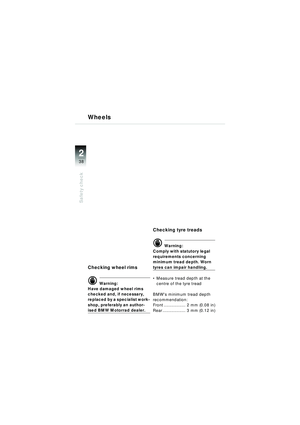

Wheels ........................... 38-39

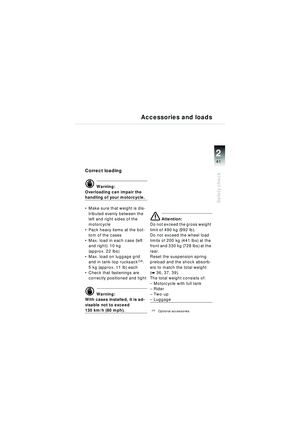

Loads............................. 40-41
Contents
10r22bkg3.book Seite 2 Freitag, 27. Januar 2006 12:43 12

i
3
Introduction
Starting – Riding – Parking

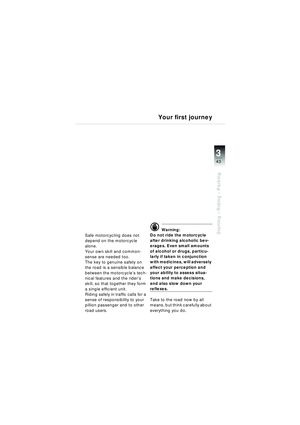

First time out ................. 42-43
Important notes ............. 44-45

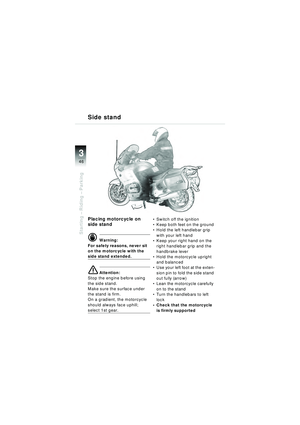

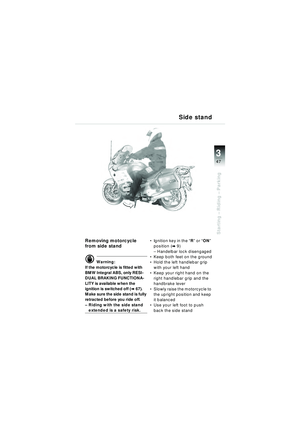

Side stand ..................... 46-47

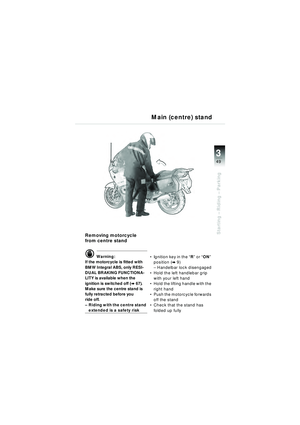

Centre stand ................. 48-49

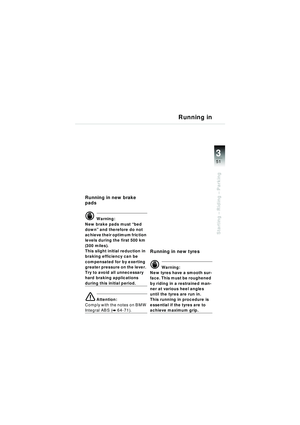

Running in ..................... 50-51

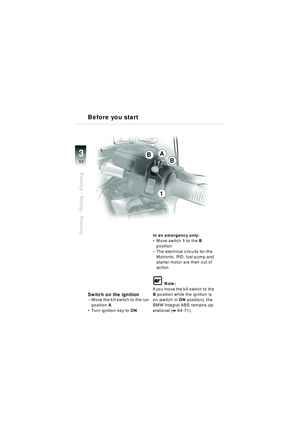

Before you start ............. 52-53
Starting ......................... 54-55
Telltale and warning
lights................................. 56-57

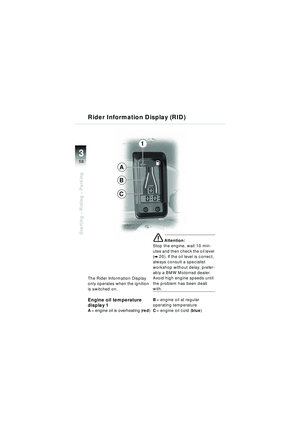

Rider Information Display
(RID) .............................. 58-59
Riding, gear shifts.......... 60-61

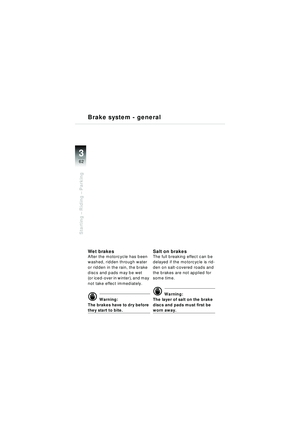

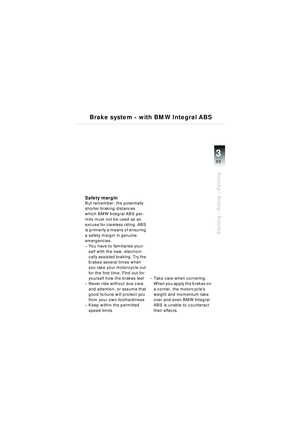

Brake system
- general ........................ 62-63

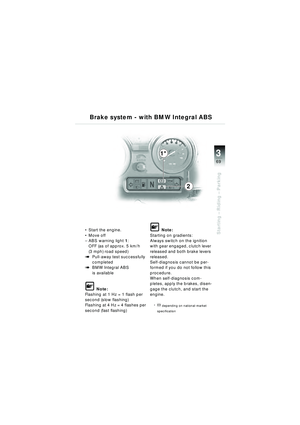

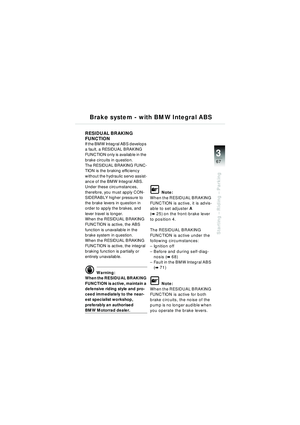

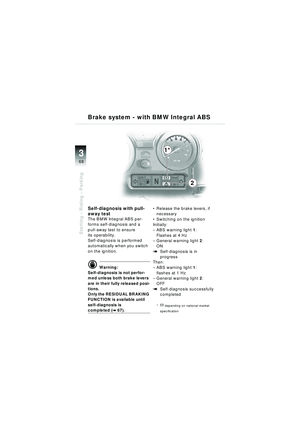

- with BMW Integral ABS ............................ 64-70
BMW Integral ABS fault
table ...................................... 71 Arrive safely
Arrive safely....................72-73
Service worldwide ............... 74
Environmental protection .... 75
BMW rider’s equipment ....... 76
BMW motorcycle
accessories ......................... 77

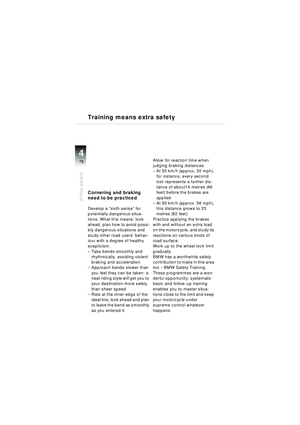

Training means extra
safety .................................. 78
Concluding thoughts ........... 79
Contents
10r22bkg3.book Seite 3 Freitag, 27. Januar 2006 12:43 12

4
General information and controls
1

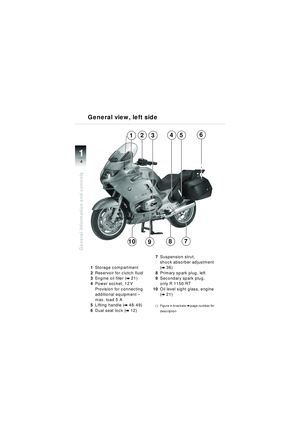

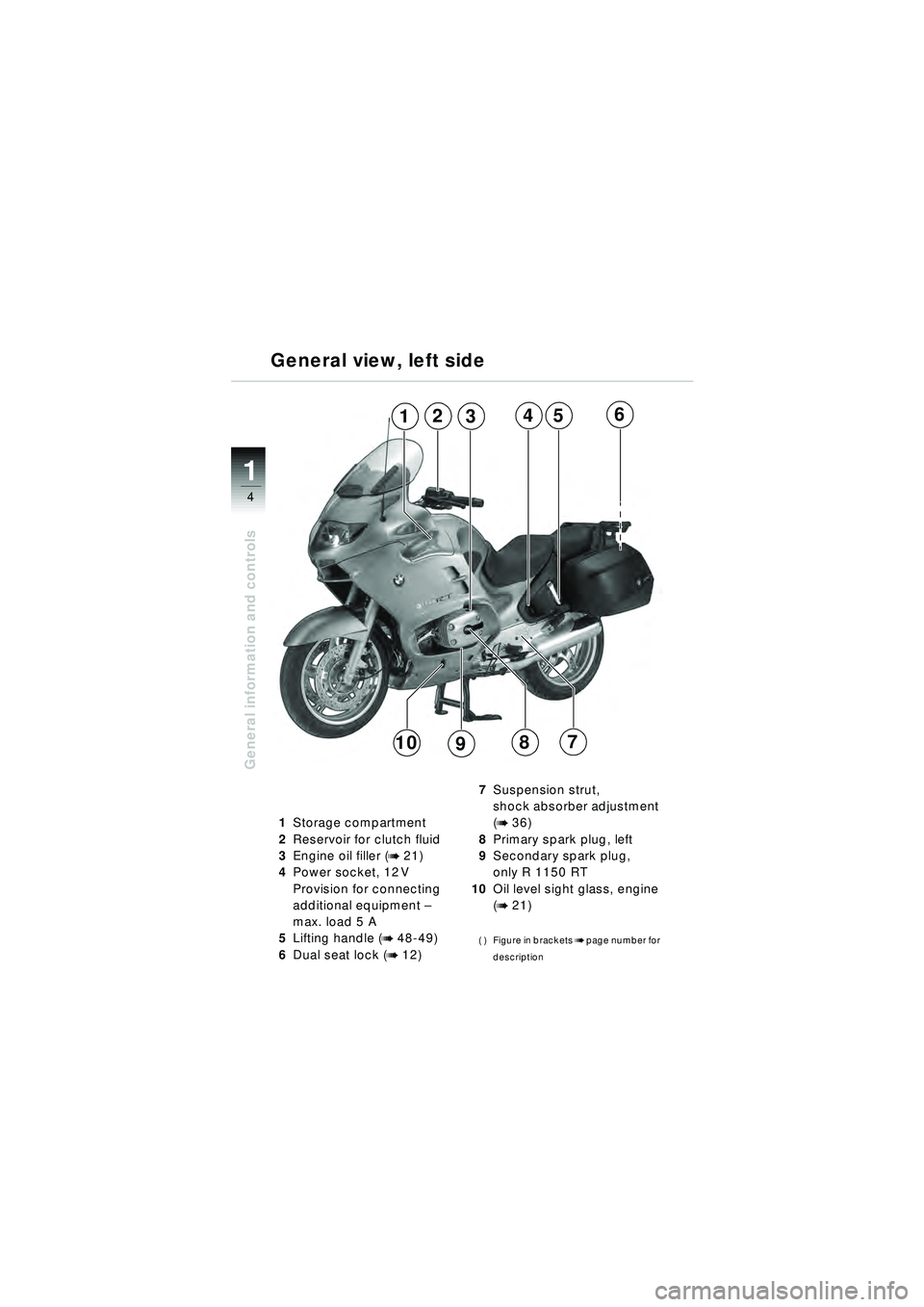

General view, left side
1Storage compartment
2 Reservoir for clutch fluid
3 Engine oil filler (
b 21)
4 Power socket, 12 V
Provision for connecting
additional equipment –
max. load 5 A
5 Lifting handle (
b 48-49)
6 Dual seat lock (
b 12) 7
Suspension strut,
shock absorber adjustment
(
b 36)
8 Primary spark plug, left
9 Secondary spark plug,
only R 1150 RT
10 Oil level sight glass, engine
(
b 21)
( ) Figure in bracketsbpage number for
description
543216
78910
10r22bkg3.book Seite 4 Freitag, 27. Januar 2006 12:43 12

5
General information and controls
1
1413
181519
1211
171620

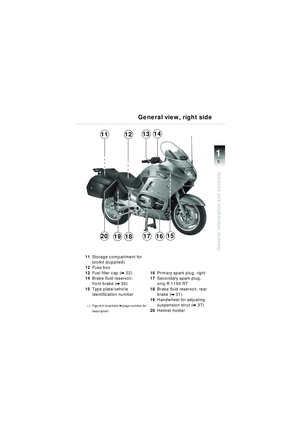

11Storage compartment for
toolkit (supplied)
12 Fuse box
13 Fuel filler cap (
b 22)
14 Brake fluid reservoir,
front brake (
b 30)
15 Type plate/vehicle
identification number
( ) Figure in bracketsbpage number for
description
16 Primary spark plug, right
17 Secondary spark plug,
only R 1150 RT
18 Brake fluid reservoir, rear
brake (
b 31)
19 Handwheel for adjusting
suspension strut (
b 37)
20 Helmet holder

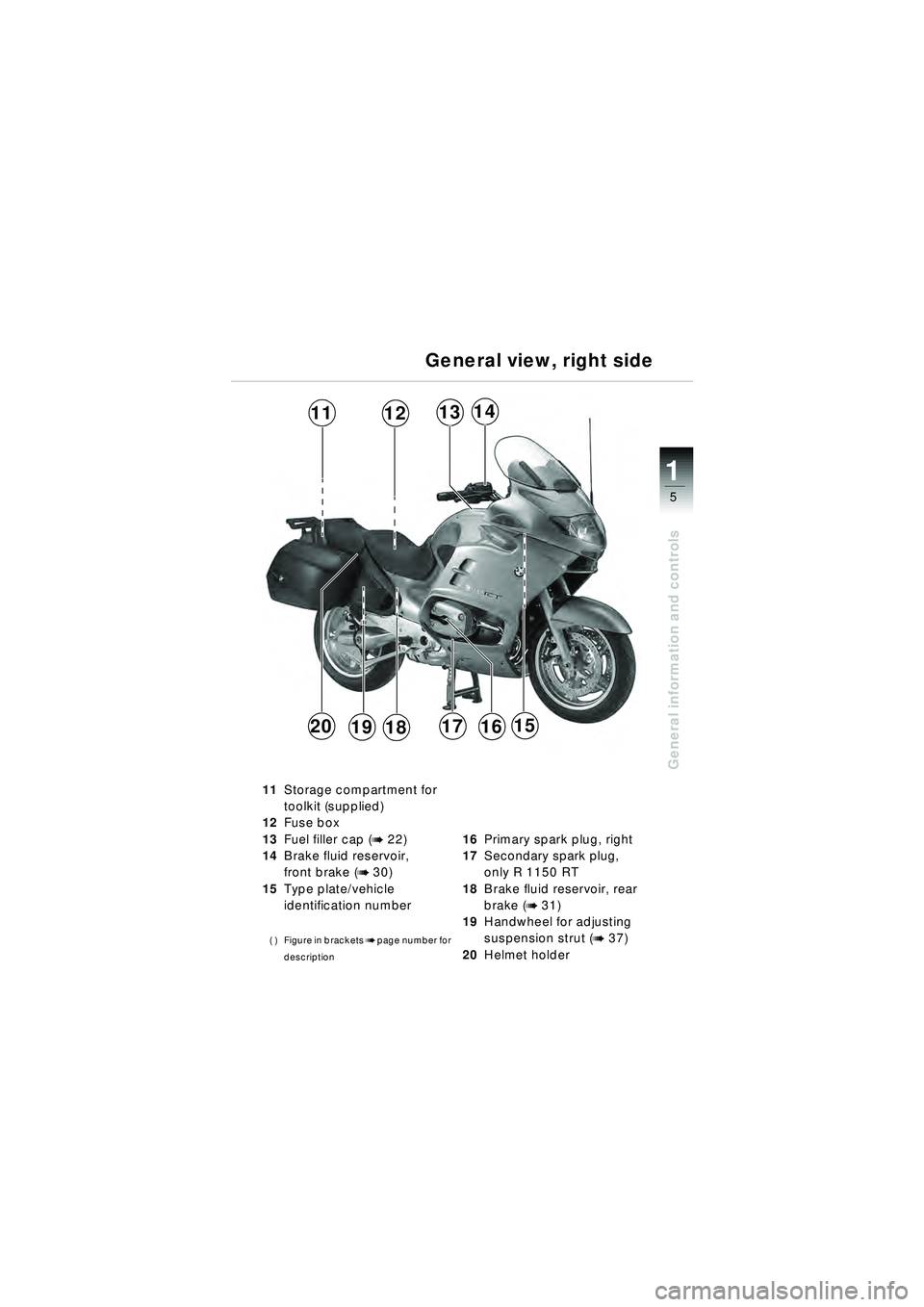

General view, right side
10r22bkg3.book Seite 5 Freitag, 27. Januar 2006 12:43 12

6
General information and controls
1

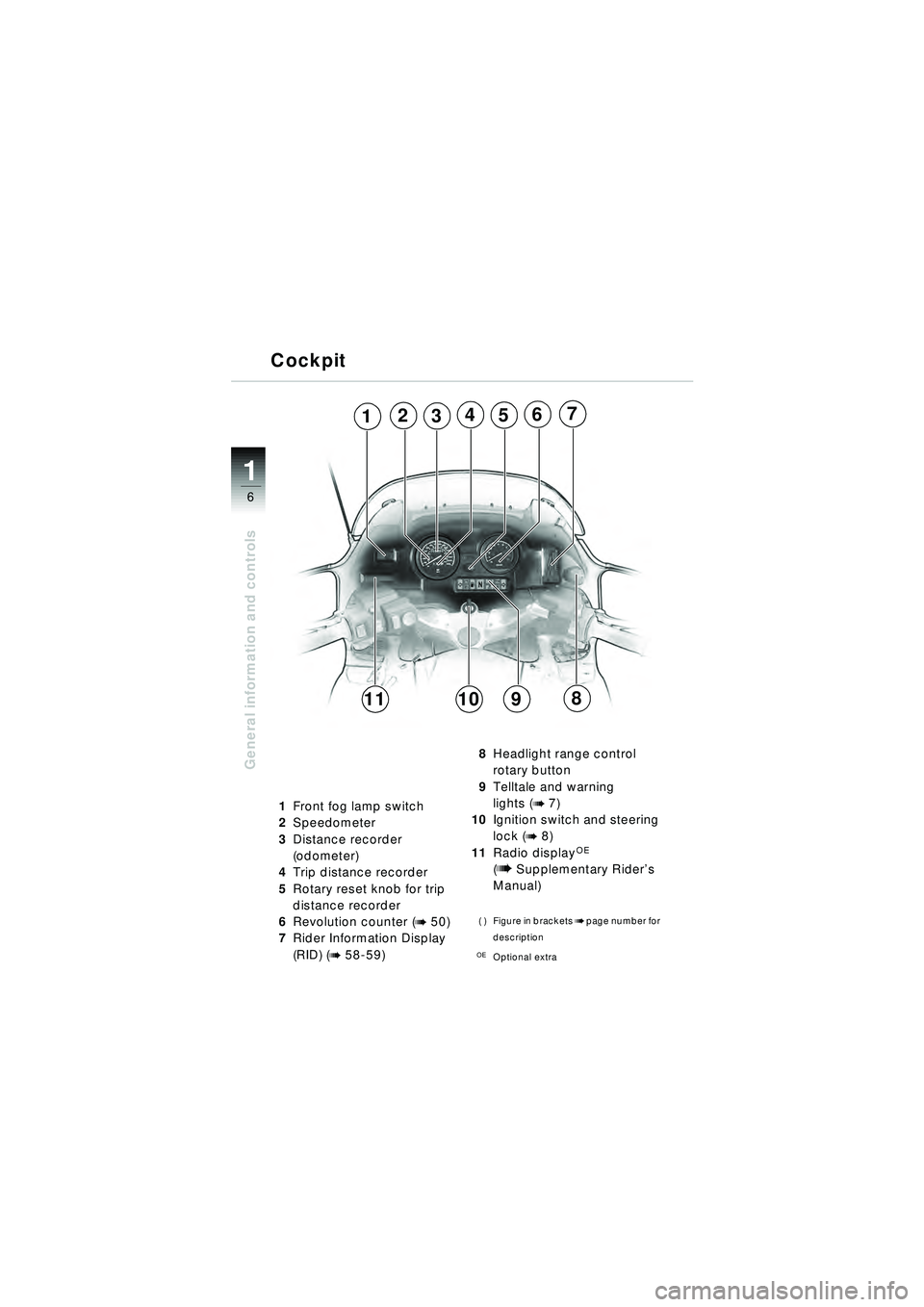

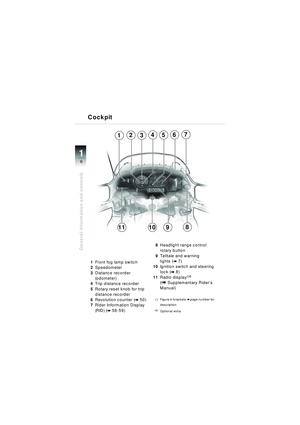

1Front fog lamp switch
2 Speedometer
3 Distance recorder
(odometer)
4 Trip distance recorder
5 Rotary reset knob for trip
distance recorder
6 Revolution counter (
b 50)
7 Rider Information Display
(RID) (
b 58-59) 8
Headlight range control
rotary button
9 Telltale and warning
lights (
b 7)
10 Ignition switch and steering
lock (
b 8)
11 Radio displayOE
(b Supplementary Rider ’s
Manual)
( ) Figure in bracketsbpage number for
description
OEOptional extra
Cockpit
3542167
118910
10r22bkg3.book Seite 6 Freitag, 27. Januar 2006 12:43 12
