General information and controls
1
321
10
8
9
5*467

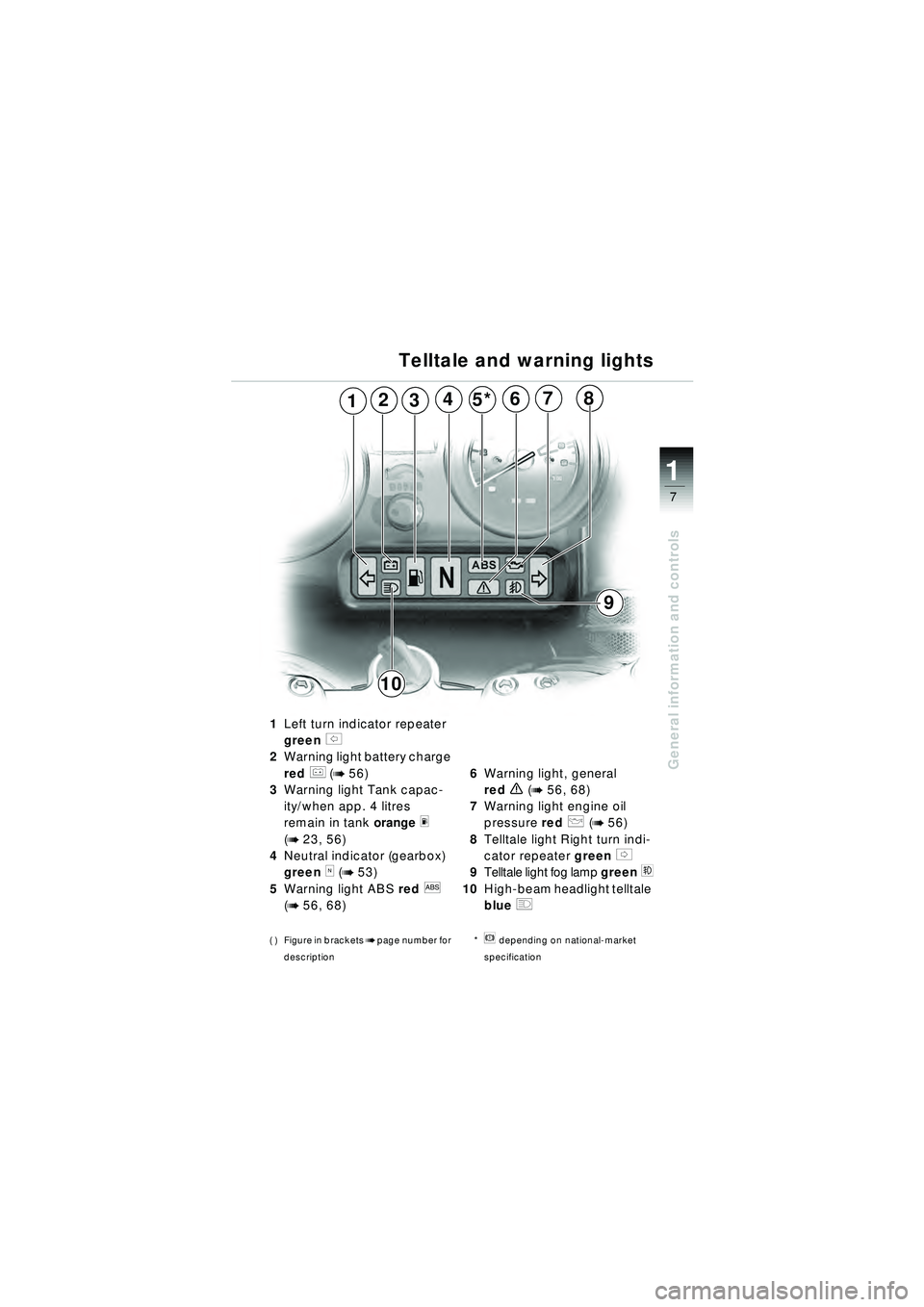

Telltale and warning lights
1Left turn indicator repeater
green
s
2 Warning light battery charge
red
r (b 56)
3 Warning light Tank capac-
ity/when app. 4 litres
remain in tank orange
m
(b 23, 56)
4 Neutral indicator (gearbox)
green
k (b 53)
5 Warning light ABS red
l
(
b 56, 68)
( ) Figure in bracketsbpage number for
description
6 Warning light, general
red
e\b(b 56, 68)
7 Warning light engine oil
pressure red
p\b(b 56)
8 Telltale light Right turn indi-
cator repeater green
t
9 Telltale light fog lamp green
t
10 High-beam headlight telltale
blue
q
*n depending on national-market
specification
10r22bkg3.book Seite 7 Freitag, 27. Januar 2006 12:43 12

9
General information and controls
1

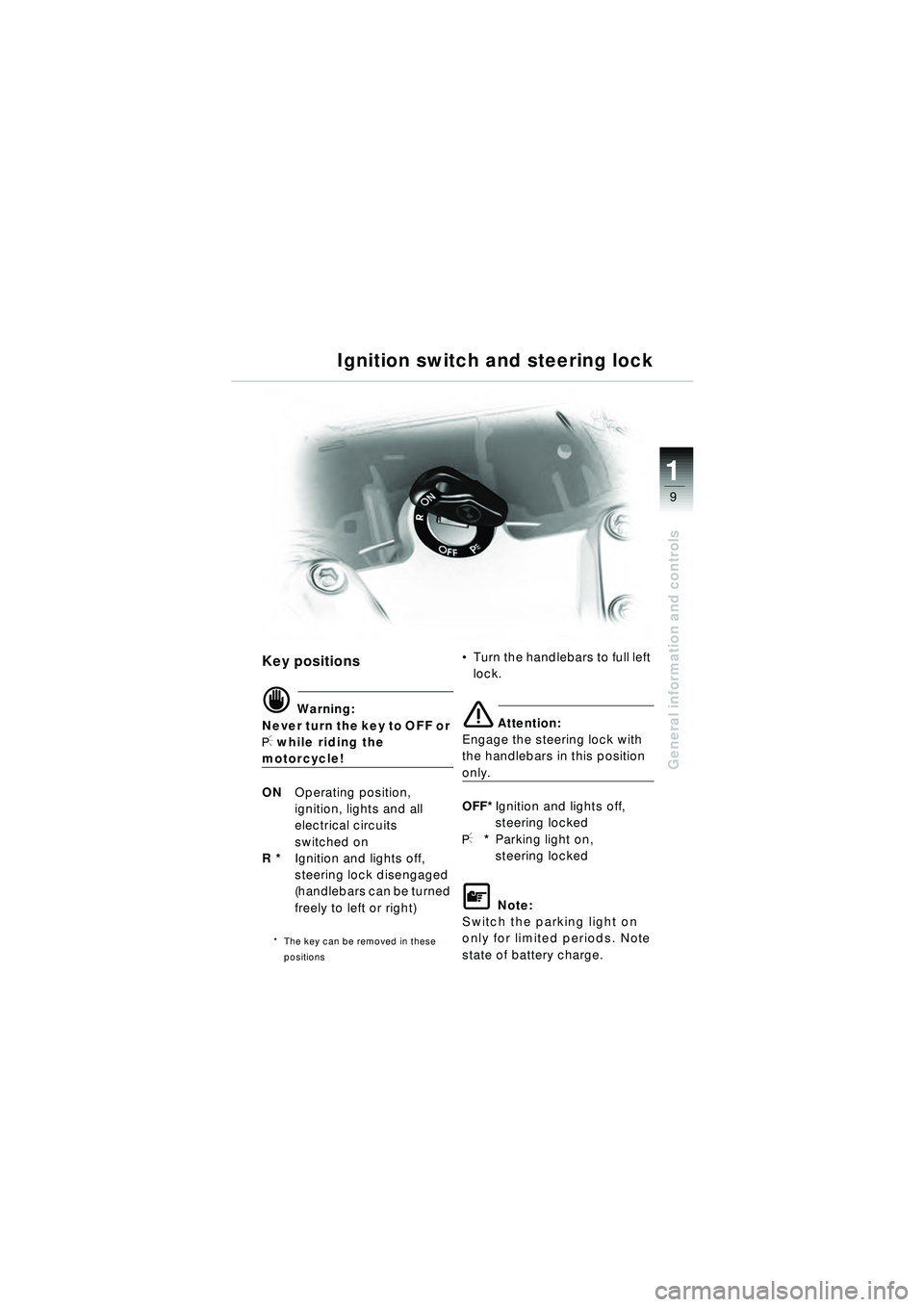

Ignition switch and steering lock
Key positions
d Warning:
Never turn the key to OFF or
I while riding the
motorcycle!
ON Operating position,
ignition, lights and all
electrical circuits
switched on
R * Ignition and lights off,
steering lock disengaged
(handlebars can be turned
freely to left or right)
* The key can be removed in these
positions
Turn the handlebars to full left
lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF* Ignition and lights off,
steering locked
I**Parking light on,
steering locked
\f Note:
Switch the parking light on
only for limited periods. Note
state of battery charge.
10r22bkg3.book Seite 9 Freitag, 27. Januar 2006 12:43 12

17
General information and controls
1

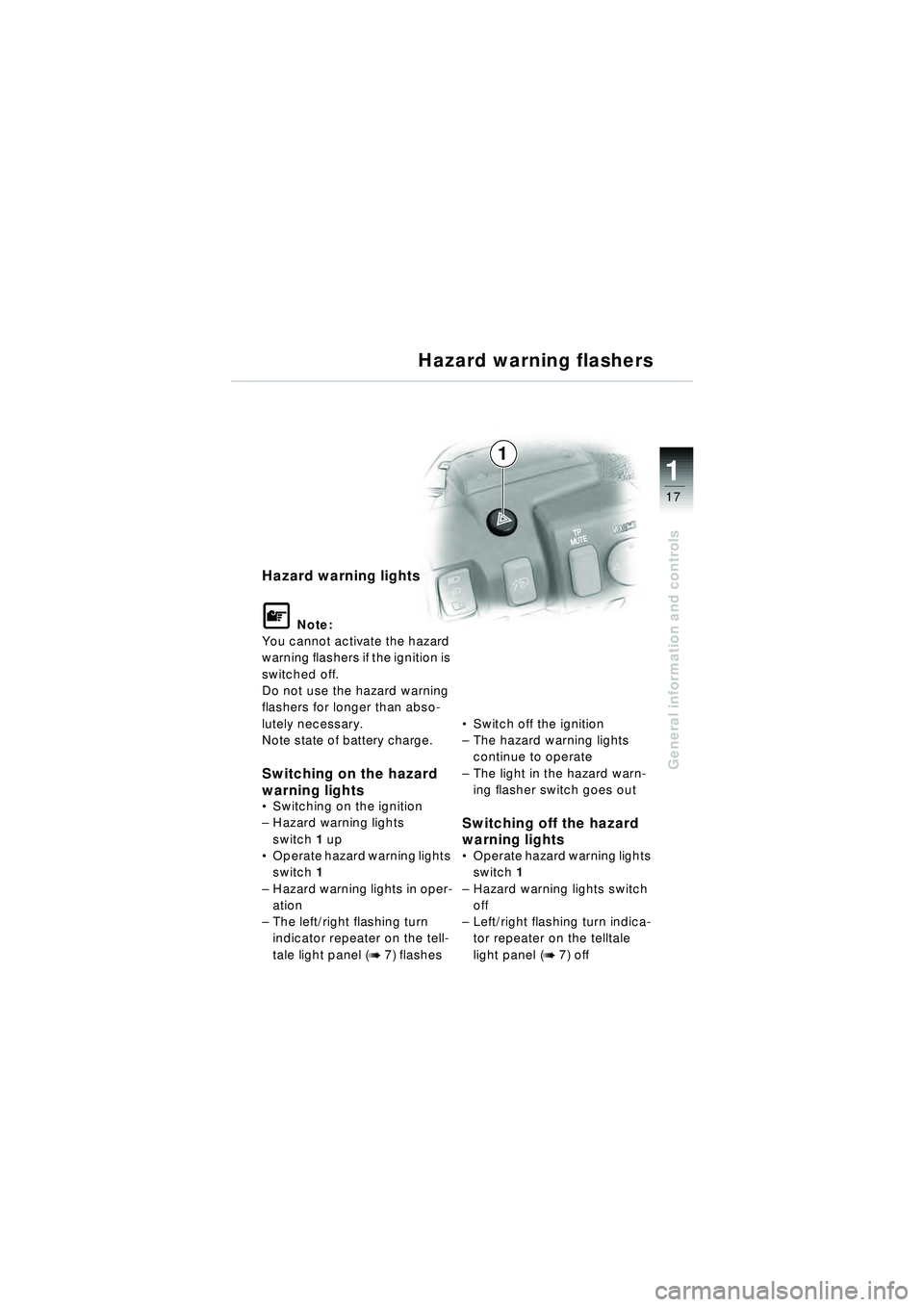

Hazard warning lights
\f Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
Switching on the hazard
warning lights
 Switching on the ignition
– Hazard warning lights
switch 1 up
 Operate hazard warning lights
switch 1
– Hazard warning lights in oper-
ation
– The left/right flashing turn
indicator repeater on the tell-
tale light panel (
b 7) flashes
Switch off the ignition
– The hazard warning lights
continue to operate
– The light in the hazard warn-
ing flasher switch goes out
Switching off the hazard
warning lights
Operate hazard warning lights
switch 1
– Hazard warning lights switch
off
– Left/right flashing turn indica-
tor repeater on the telltale
light panel (
b 7) off
Hazard warning flashers
1
10r22bkg3.book Seite 17 Freitag, 27. Januar 2006 12:43 12

3
54

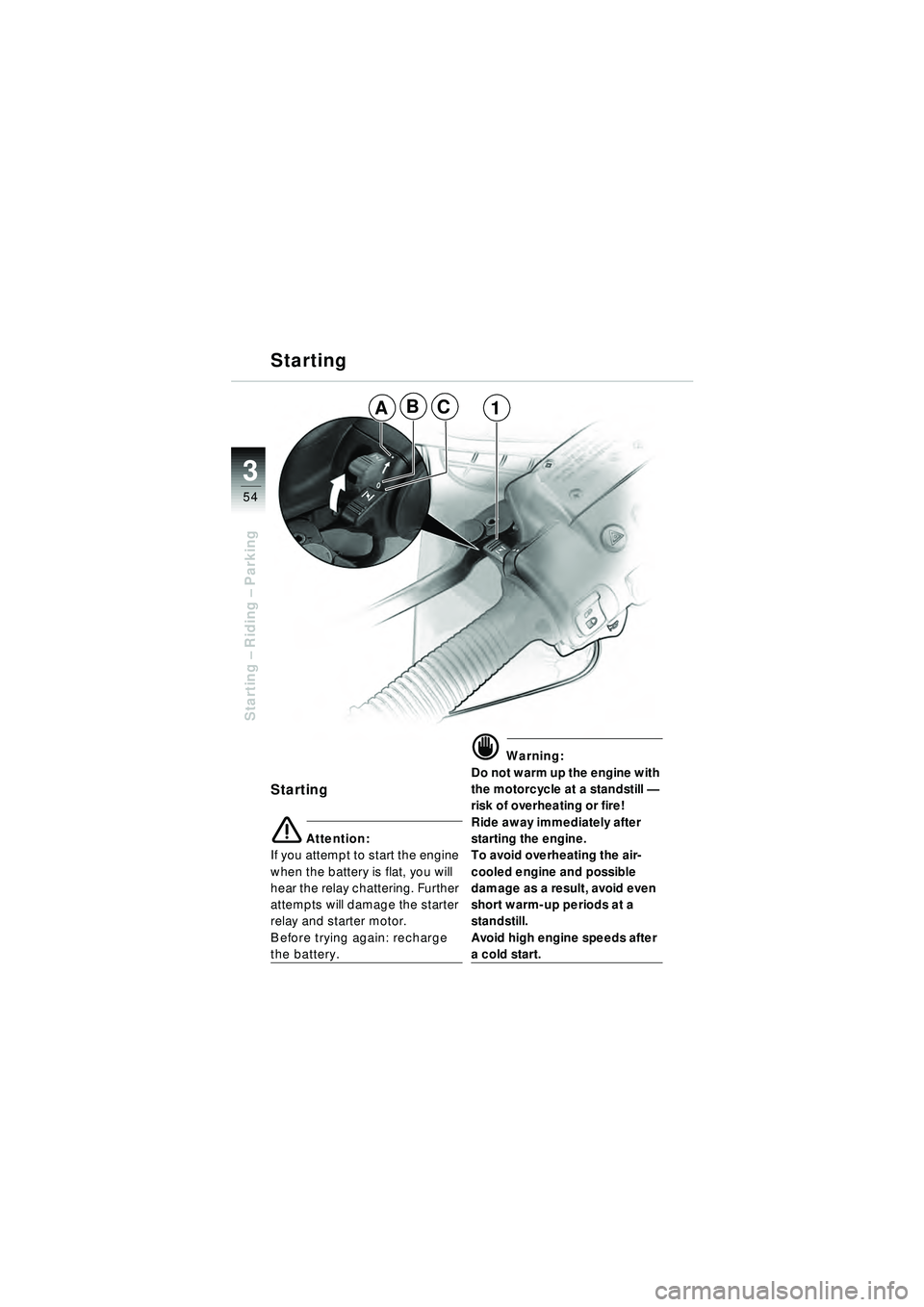

Starting – Riding – Parking
Starting
Starting
e Attention:
If you attempt to start the engine
when the battery is flat, you will
hear the relay chattering. Further
attempts will damage the starter
relay and starter motor.
Before trying again: recharge
the battery.
d Warning:
Do not warm up the engine with
the motorcycle at a standstill —
risk of overheating or fire!
Ride away immediately after
starting the engine.
To avoid overheating the air-
cooled engine and possible
damage as a result, avoid even
short warm-up periods at a
standstill.
Avoid high engine speeds after
a cold start.
BC1A
10r22bkg3.book Seite 54 Freitag, 27. Januar 2006 12:43 12

3
56
Starting – Riding – Parking

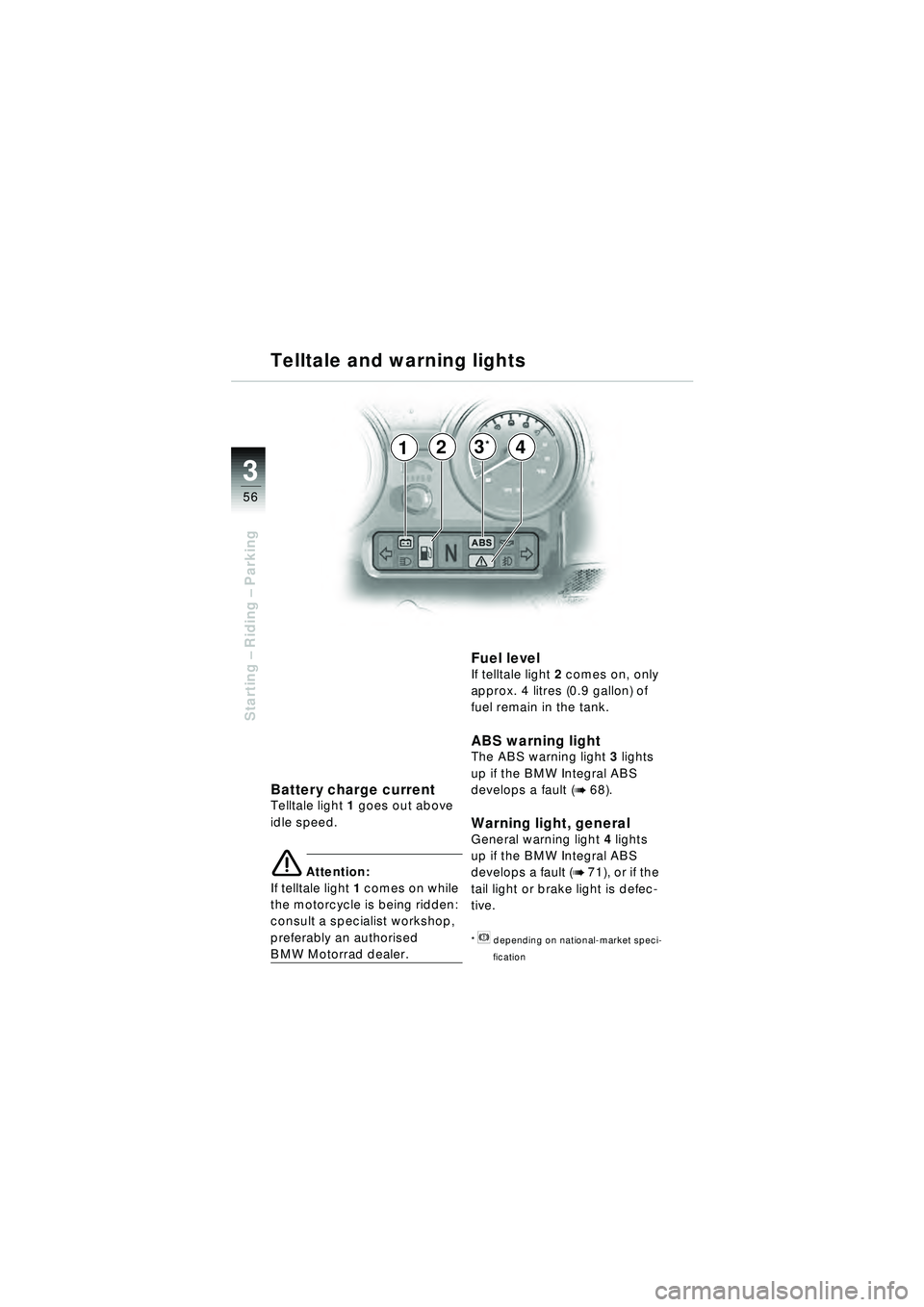

Battery charge currentTelltale light 1 goes out above
idle speed.
e Attention:
If telltale light 1 comes on while
the motorcycle is being ridden:
consult a specialist workshop,
preferably an authorised
BMW Motorrad dealer.
Fuel levelIf telltale light 2 comes on, only
approx. 4 litres (0.9 gallon) of
fuel remain in the tank.
ABS warning lightThe ABS warning light 3 lights
up if the BMW Integral ABS
develops a fault (
b 68).
Warning light, general General warning light 4 lights
up if the BMW Integral ABS
develops a fault (
b 71), or if the
tail light or brake light is defec-
tive.
* n depending on national-market speci-
fication
23*41
Telltale and warning lights
10r22bkg3.book Seite 56 Freitag, 27. Januar 2006 12:43 12

82
Index
i

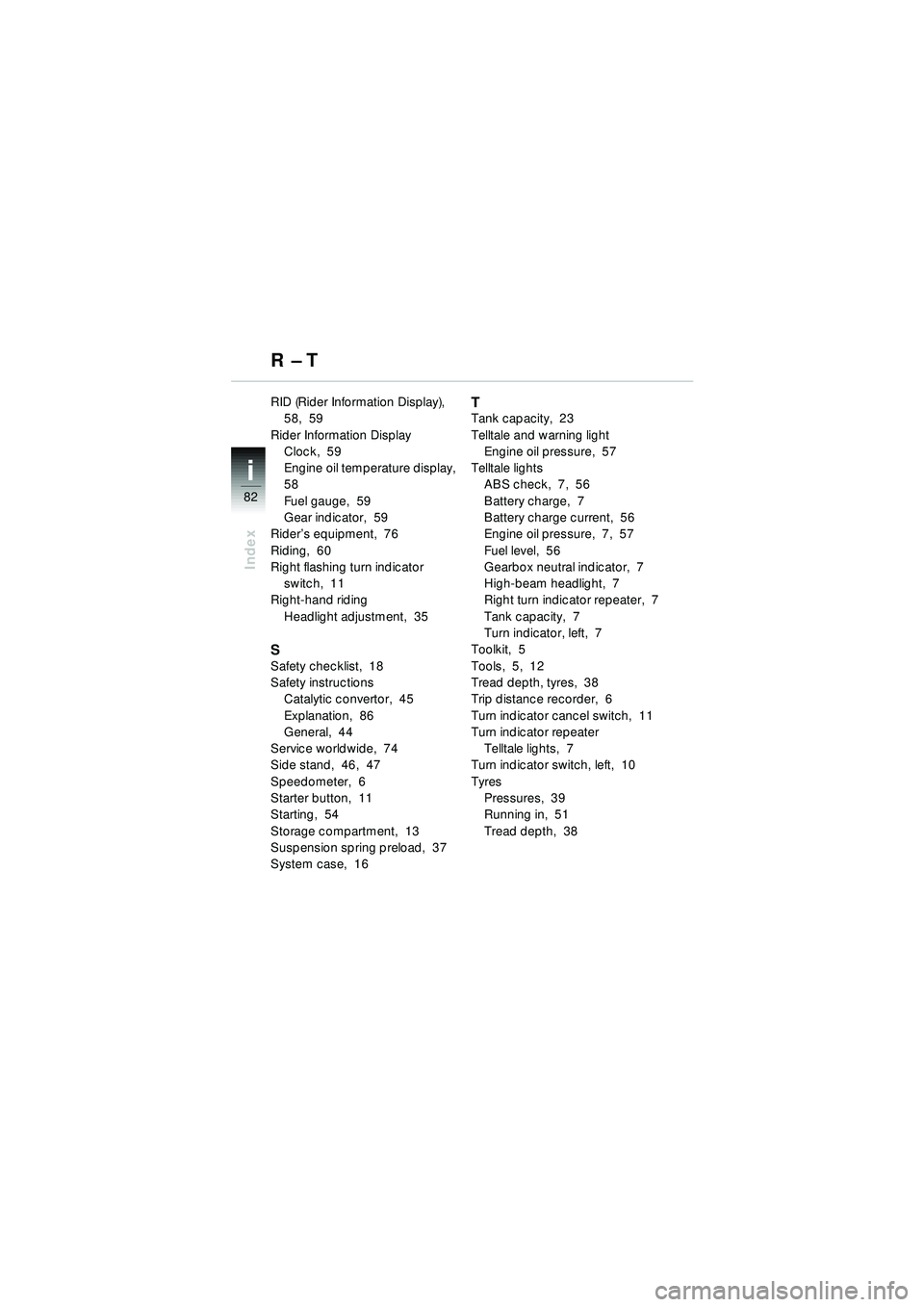

RID (Rider Information Display), 58, 59
Rider Information Display Clock, 59
Engine oil temperature display,
58
Fuel gauge, 59
Gear indicator, 59
Rider ’s equipment, 76
Riding, 60
Right flashing turn indicator switch, 11
Right-hand riding
Headlight adjustment, 35
SSafety checklist, 18
Safety instructionsCatalytic convertor, 45
Explanation, 86
General, 44
Service worldwide, 74
Side stand, 46, 47
Speedometer, 6
Starter button, 11
Starting, 54
Storage compartment, 13
Suspension spring preload, 37
System case, 16
TTank capacity, 23
Telltale and warning light Engine oil pressure, 57
Telltale lights ABS check, 7, 56
Battery charge, 7
Battery charge current, 56
Engine oil pressure, 7, 57
Fuel level, 56
Gearbox neutral indicator, 7
High-beam headlight, 7
Right turn indicator repeater, 7
Tank capacity, 7
Turn indicator, left, 7
Toolkit, 5
Tools, 5, 12
Tread depth, tyres, 38
Trip distance recorder, 6
Turn indicator cancel switch, 11
Turn indicator repeater
Telltale lights, 7
Turn indicator switch, left, 10
Tyres
Pressures, 39
Running in, 51
Tread depth, 38
R – T
10r22bkg3.book Seite 82 Freitag, 27. Januar 2006 12:43 12

83
Index
i
VValve caps, 39
WWarning lightsABS check, 56
Battery charge current, 56
Fuel level, 56
General, 7, 56
Warnings Braking, 62
Wheel rims, 38
Windshield adjustment Rocker switch, 10
V – Z
10r22bkg3.book Seite 83 Freitag, 27. Januar 2006 12:43 12
