YOUR 607 IN DETAIL97
''Isofix'' mountings*
Available on the one third side of the rear seat, the Isofix mountings allowfitting of a special child seat ,
approved for PEUGEOT vehiclesand sold within its network. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly.
* According to current legislation. Ski flap
 Lower the armrest to access the ski flap. Open by pulling the han-dle.
The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.It can be used in the rearwards fac-ing position from birth to 13 kg and inthe forwards facing position from 9 to18 kg. In the forwards facing position,
the
front seat must be in the interme- diate longitudinal position, withthe seat back upright. In this position, the combined use of the Isofix mountings, the restrainingcushion and the seat belt is compul-
sory. This seat may also be used where there are no Isofix mountings: in thiscase it is compulsory to wear athree-point seat belt.
 Follow the instructions in thebrochure for fitting the childseat.

15-07-2002
YOUR 607 IN DETAIL
98
CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:ÐAll children under the age of 10* must travel in a special approved child seat*, adapted to their weight, in a seat fitted with a seat belt.
Ð Front passenger seat*: children under the age of 10 must not travel in the forwards facing position**. The rearwards facing position is permitted. In this position it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 13 kg)
"Britax Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the 'mid-way'position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Ršmer Prince": installed in the rear using a three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg) "Ršmer Vario'': installed in the rear with a three point seat belt.
1
2
3

15-07-2002
YOUR 607 IN DETAIL99
Never leave a child or an animal in a vehicle whichis exposed to the sun andhas the windows closed.
Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a rearwards-facingchild seat in the front. The child would risk being killed or seriously injured if the air bagwere to inflate. Observe strictly the recommenda- tions for assembling or attachingthe child seat as shown in thechild seat instructions.
From 3 to 10 years (15 to 36 kg)
''Recaro start'': installed in the rear with a threeÐpoint seat belt. The height and width of the seat back must be adjusted according to the age and the build of your child. "Klippan Optima": installed in the rear with a threeÐpoint seat belt. From the age of 6 years (approximately 22 kg), the booster is used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or thechild seat straps, keeping the slack in relation to the child's body to a mini-mum.
To prevent the doors from opening accidentally, use the child-lock. Also, do not open the rear windows more than a third.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing or folded down). In this case, adjustthe front passenger seat to the rear-most position and leave the air bag active.
4
5

15-07-2002
In accordance with European regulations (Directive 2000/3), the table below indicates to what extent each seat in your vehicle may be fitted with a child seat:
U : universal category
U (R) : universal category, rearwards facing and forwards facing, set in the highest position.
X : no child seat According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).
L2 : R…MER Prince E1 03301058 Universal (9 to18 kg).
L3 : R…MER Vario E1 03301120 Universal (15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing E1 03301123 and Universal (birth to 13 kg)*.
L7 : KIDDY Isofix Forwards facing E2 030011 Universal (9 to 18 kg)*.
* See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings. Weight range
Seat < 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger Fixed seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Front passenger U (R) U (R) U (R) U (R)
Booster seat (R) L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger UU UU
Side L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger XX L3, L4, L5 L4, L5
Centre
YOUR 607 IN DETAIL
100

15-07-2002
YOUR 607 IN DETAIL101
SEAT BELTS Front seat belt height adjustment :  To lower the attachment point, squeeze control 1and slide it
downwards.
 To raise the attachment point,squeeze control 1 and slide it
upwards.
To lock the seat belts  Pull the strap, then insert the endinto the buckle. Front seat belts with pre-tensioner and force limiter Safety in the event of a frontal impact has been improved by the introduc-tion of seat belts with pre-tensionerand force limiter connected to thefront air bags. Depending on theseriousness of the impact, the pre-tensioning system instantly tightensthe seat belts firmly against the bod-ies of the occupants. The pre-tensioning seat belts are armed when the ignition is on. The force limiter reduces the pres- sure of the seat belt on the body ofthe occupant in the event of an acci-dent. Rear seat belts with force limiter The rear seats are all fitted with a three-point inertia reel seat belt. Third rear central seat belt
Ð pull the belt located between the
two head restraints at the left rear,
Ð insert the fixed buckle in the black clasp located on the left,
Ð insert the sliding buckle in the red and black (movable) clasp.
To release it, press the black button of the locking clasp. To be effective, a seatbelt must be tightened asclose to the body as pos-sible.
Depending on the nature and seri-ousness of the impact, the pre-tensioners may be triggeredbefore and independently of theair bags. In all cases, the air bag warning light comes on. After an impact, have the system
checked by a PEUGEOT dealer. The system has been designed to be fully operational for ten years.
For improved safety, have it checked by a PEUGEOT dealerwithin ten years of purchase of thevehicle.

15-07-2002
YOUR 607 IN DETAIL
102

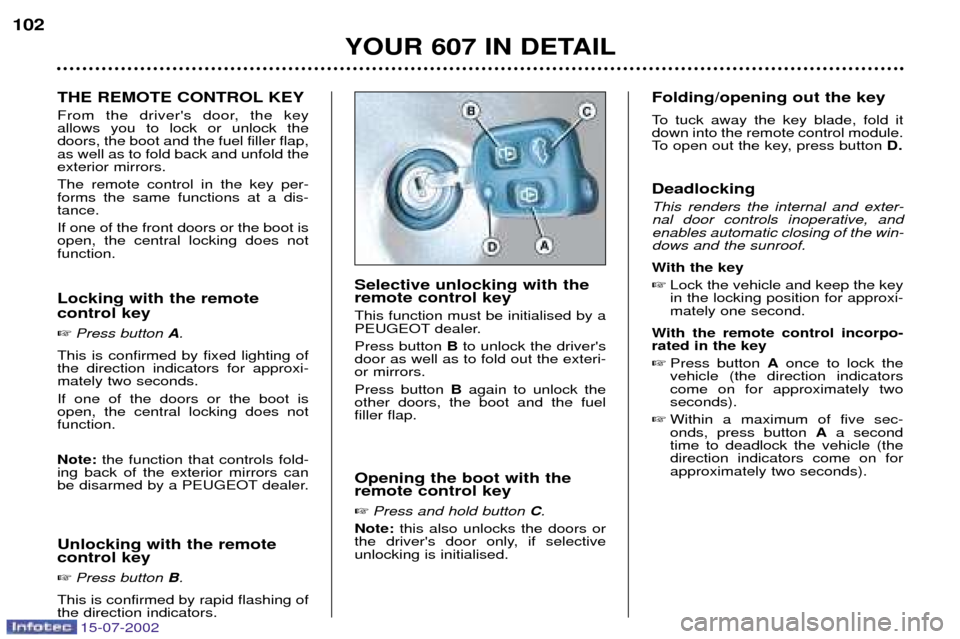

THE REMOTE CONTROL KEY
From the driver's door, the key allows you to lock or unlock thedoors, the boot and the fuel filler flap,as well as to fold back and unfold theexterior mirrors. The remote control in the key per- forms the same functions at a dis-tance. If one of the front doors or the boot is open, the central locking does notfunction. Selective unlocking with theremote control key This function must be initialised by a
PEUGEOT dealer. Press button Bto unlock the driver's
door as well as to fold out the exteri- or mirrors. Press button Bagain to unlock the
other doors, the boot and the fuel filler flap. Folding/opening out the key
To tuck away the key blade, fold it down into the remote control module.
To open out the key, press button
D.
Deadlocking This renders the internal and exter- nal door controls inoperative, andenables automatic closing of the win-dows and the sunroof.
With the key  Lock the vehicle and keep the key in the locking position for approxi-mately one second.
With the remote control incorpo-rated in the key  Press button Aonce to lock the
vehicle (the direction indicatorscome on for approximately twoseconds).
 Within a maximum of five sec-onds, press button Aa second
time to deadlock the vehicle (thedirection indicators come on forapproximately two seconds).
Unlocking with the remotecontrol key  Press button B.
This is confirmed by rapid flashing ofthe direction indicators.
Locking with the remote control key
 Press button A.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. If one of the doors or the boot is open, the central locking does notfunction. Note: the function that controls fold-
ing back of the exterior mirrors can
be disarmed by a PEUGEOT dealer. Opening the boot with theremote control key
 Press and hold button C.
Note: this also unlocks the doors or
the driver's door only, if selectiveunlocking is initialised.

15-07-2002
YOUR 607 IN DETAIL103
Electronic engine immobiliser This locks the engine control system a few moments after the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possi-ble. If the system does not function
correctly, the central locking button
indicator light, situated on the centreconsole, flashes rapidly when theignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. Flat battery (CR 2025/3 volt battery) This is indicated by illumination of a warning light on the instrument panel
display, accompanied by an audiblesignal and a message on the multi-
function display.
Contact a PEUGEOT dealer to
replace the battery.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your car
To locate your car in a car park:
 press button A; the courtesy lights
come on and the direction indica- tors flash for a few seconds.

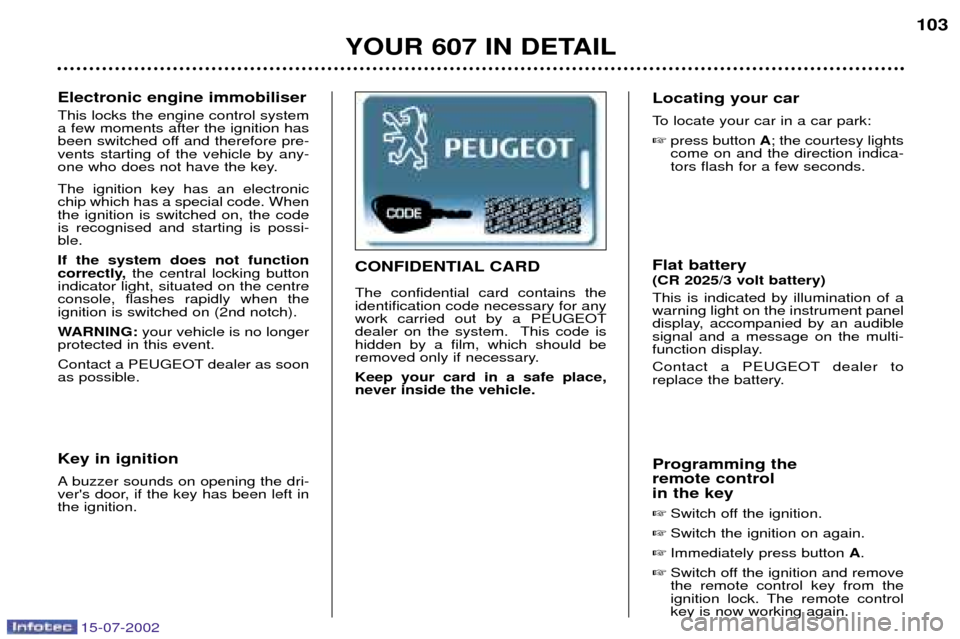

CONFIDENTIAL CARD The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film, which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control in the key Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote controlkey is now working again.

15-07-2002
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control key is a high-performance system.Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your
knowledge.The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: Ð Ensure that you are given the confidential card;
Ð Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
104
