2002.5 Peugeot 607 Dag technical data

15-07-2002
TECHNICAL DATA157
* According to country. MODELS: Model codes
PETROL ENGINES
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power: EU standard (KW)Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm) FuelCatalytic converterElectronic injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement) Gearbox - Final drive 2 litre 16V 2.2 litre 16V 24V V6 Injection
1997 2230 2946
85x88 86x96 87x82.6 16 16 24
100 116 152
6000 5650 6000
190 217 285
4100 3900 3750
Unleaded* Unleaded Unleaded Yes* Yes YesYe s Ye s Ye s
Manual Manual Automatic Manual Automatic
(5-speed) (5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.751.9 1.85 8 1.85 8

15-07-2002
TECHNICAL DATA
158
Turbo diesel Turbo diesel2 litre HDI 2.2 litre 16V HDI 1997 2179
85x88 85x96
81 6
80 79 98 4000 4000
250 314
1750 2000
Diesel Diesel Yes* Yes
No Yes Yes Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.75 4.75
1.85 1.85 8
DIESEL ENGINES
MODELS: Model codes 9DRHZB 9DRHSB 9D4HXB 9D4HXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power : EU standard (KW) Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm)FuelCatalytic converterParticulate emission filter (PEF)Electronic Injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive
* According to country.

15-07-2002
TECHNICAL DATA159
2 litre 16V
Manual 9DRFNB 22.9 (12.3)* 2.8 (6.6)* 32.8 (8.6)* 205 g/km*
2.2 litre 16V Manual 9D3FZB 22.2 (12.7) 39.2 (7.2) 30.7 (9.2) 219 g/km
2.2 litre 16V Automatic 9D3FZE 20.1 (13.8) 39.2 (7.2) 29.4 (9.6) 230 g/km
24V V6 injection Manual 9DXFXB 19.8 (14.2) 38.7 (7.3) 28.5 (9.9) 237 g/km
24V V6 injection Automatic 9DXFXE 19.2 (14.7) 36.6 (7.7) 27.7 (10.2) 245 g/km
2 litre turbo Manual9DRHZB 35.8 (7.9)* 60.1 (4.7)* 47.9 (5.9)* 157 g/km*
diesel HDI 9DRHSB 35.7 (8.0)* 60.0 (4.8)* 47.8 (6.0)* 160 g/km*
2.2 litre 16V Manual 9D4HXB 31.7 (8.9) 51.4 (5.5) 2.2 (6.7) 178 g/km
turbo diesel HDI
2.2 litre 16V
Automatic 9D4HXE 28.8 (9.8) 48.7 (5.8) 39.2 (7.2) 193 g/kmturbo diesel HDI
Fuel consumption values correct at time of printing. * According to country. Consumption As per directive 99/100 in MPG (litres/100km)
Engine Gearbox Model Urban Extra-urban Mixed Emission codes driving driving driving by mass of CO2

15-07-2002
TECHNICAL DATA
160
* The speed of a towing vehicle is limited to 60 mph (100 km/h). (1) 12 % gradient. (2) 8 % gradient.
Note : When the external temperature is higher than 45¡C, restrict the gross train weight. For vehicles with a 2.2 litre 16V
HDI engine with automatic gearbox, towing is not possible

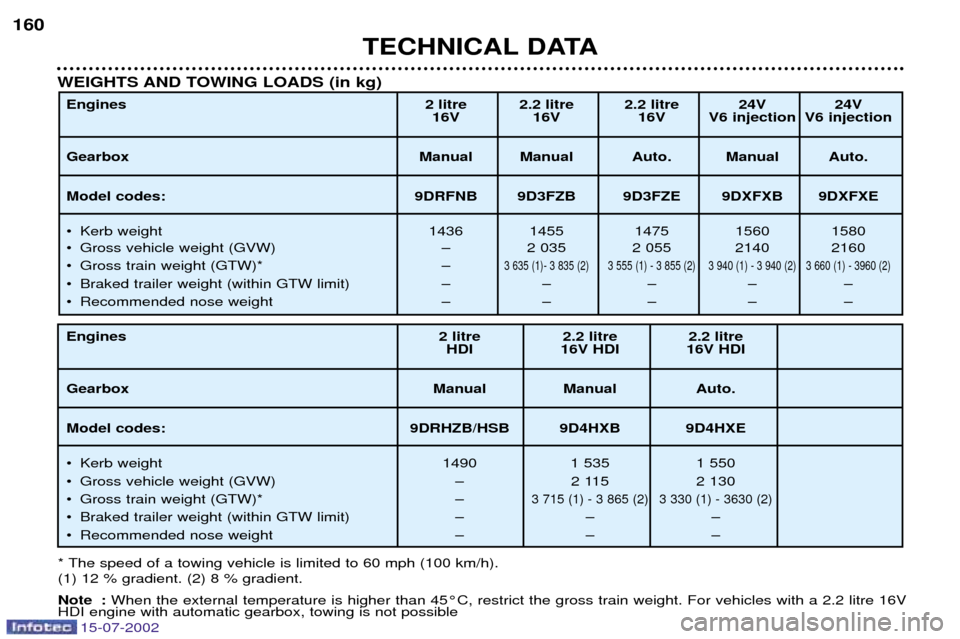

WEIGHTS AND TOWING LOADS (in kg)
Engines 2 litre 2.2 litre 2.2 litre 24V 24V
16V 16V 16V V6 injection V6 injection
Gearbox Manual Manual Auto. Manual Auto.
Model codes: 9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE
¥ Kerb weight 1436 1455 1475 1560 1580
¥ Gross vehicle weight (GVW) Ð 2 035 2 055 2140 2160
¥ Gross train weight (GTW)* Ð
3 635 (1)- 3 835 (2) 3 555 (1) - 3 855 (2) 3 940 (1) - 3 940 (2) 3 660 (1) - 3960 (2)
¥ Braked trailer weight (within GTW limit) Ð Ð Ð Ð Ð
¥ Recommended nose weight Ð Ð Ð Ð Ð Engines 2 litre 2.2 litre 2.2 litre
HDI 16V HDI 16V HDI
Gearbox Manual Manual Auto.
Model codes: 9DRHZB/HSB 9D4HXB 9D4HXE
¥ Kerb weight 1490 1 535 1 550
¥ Gross vehicle weight (GVW) Ð 2 115 2 130
¥ Gross train weight (GTW)* Ð
3 715 (1) - 3 865 (2) 3 330 (1) - 3630 (2)
¥ Braked trailer weight (within GTW limit) Ð Ð Ð
¥ Recommended nose weight Ð Ð Ð

15-07-2002
TECHNICAL DATA161
DIMENSIONS (in mm)

15-07-2002
TECHNICAL DATA
162
THE IDENTIFICATION FEATURES OF YOUR 607 A. Manufacturer's plate.B. Serial number on the bodywork.C. Serial number on the fascia.
D. Tyres.Label Don the inside of the fuel filler flap indicates :
Ð the dimensions of the rims and tyres,
Ð the makes of tyre recommended by the manufacturer,Ð the tyre pressures (checking of the tyre pressure must be carried out when the tyres are cold, at least once a
month).
E. Paint reference. The label on the right hand engine support in the engine compartment indicates the paint colour reference.
