2001 TOYOTA SIENNA Owners Manual

01 SIENNA_U (L/O0008)
292001 MY SIENNA (OM45406U)
3. Put a new transmitter battery with posi-
tive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.

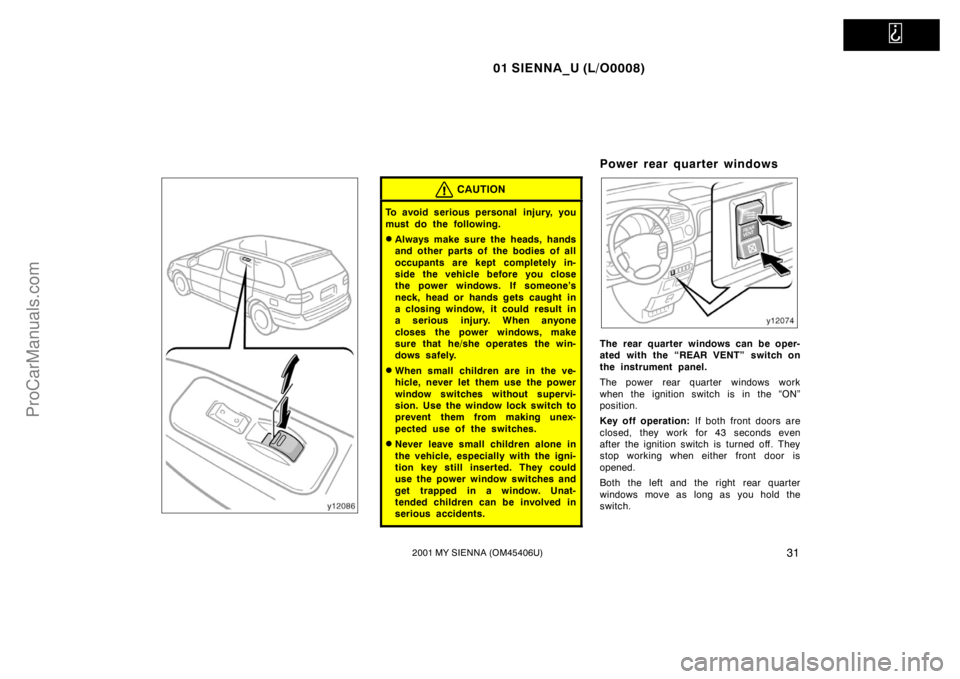

Power windows
The windows can be operated with the
switch on each front door.
The power windows work when the ignition
switch is in the “ON” position.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
ProCarManuals.com

01 SIENNA_U (L/O0008)
302001 MY SIENNA (OM45406U)
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. It
stops working when either front door is
opened.
CAUTION
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Window
lock switch
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s
door. The driver ’s door also has the
switch that controls the passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
ProCarManuals.com

01 SIENNA_U (L/O0008)
312001 MY SIENNA (OM45406U)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.
Power rear quarter windows
The rear quarter windows can be oper-
ated with the “REAR VENT” switch on
the instrument panel.
The power rear quarter windows work
when the ignition switch is in the “ON”
position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
Both the left and the right rear quarter
windows move as long as you hold the
switch.
ProCarManuals.com

01 SIENNA_U (L/O0008)
322001 MY SIENNA (OM45406U)
To open: Push the switch on the upper
side.
To close: Push the switch on the lower
side.
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the hands and
other parts of the bodies of all oc-
cupants are kept completely inside
the vehicle before you close the
power rear quarter windows. If
someone’s hands get caught in a
closing window, it could result in a
serious injury. When anyone closes
the power rear quarter windows,
make sure that he/she operates the
windows safely.
When small children are in the ve-
hicle, never let them use the power
rear quarter window switches with-
out supervision.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power rear quarter window
switch and get trapped in a window.
Unattended children can be involved
in serious accidents.
To open the window, pull the latch han-
dle toward you and swing it fully out.
When closing the window, make sure it is
completely closed.
Center side windows and
manual rear quarter windows
ProCarManuals.com

01 SIENNA_U (L/O0008)
332001 MY SIENNA (OM45406U)
Back door
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lever.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with back door.Strap
Handle
When closing the back door, use the
inside strap or handle for easier reach
to the back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
NOTICE
To prevent damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
ProCarManuals.com

01 SIENNA_U (L/O0008)
342001 MY SIENNA (OM45406U)
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood make sure it locks into place. If
necessary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
ProCarManuals.com

01 SIENNA_U (L/O0008)
352001 MY SIENNA (OM45406U)
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the front, sliding or back doors or hood
is forcibly unlocked or the battery ter-
minal is disconnected and then recon-
nected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
other exterior lights.SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
for details.)
2. Have all passengers get out of the
vehicle.
3. Close the front, sliding and back doors
and hood. Then lock all the doors with
the key or wireless remote control
transmitter.
The indicator light will come on when the
front, sliding and back doors and hood are
closed and locked.As the doors are locked, the system will
give you a preparation time of 30 seconds
before the setting, during which the front,
sliding or back doors and hood may be
opened.
Be careful not to unlock any door with the
key or wireless remote control transmitter
during setting. This will cancel the system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the front, sliding or back doors
or hood is open at that time, the setting
is interrupted until it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
ProCarManuals.com

01 SIENNA_U (L/O0008)
362001 MY SIENNA (OM45406U)
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the front, sliding or back
doors is unlocked or if the hood is
forcibly opened without the key or wire-
less remote control transmitter
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.
If any of the doors is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After 1 minute, the alarm will automatically
stop and the indicator light will start flash-
ing again.
Reactivating the alarm
Once set, the system cannot be cancelled
without the key or wireless remote control
transmitter. If the front, sliding and back
doors and hood are closed after the alarm
stops, the system automatically resets the
alarm.The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
To stop alarm midway, do the following:
Unlock either front door or back door
with the key or wireless remote control
transmitter.
Turn the key from the “LOCK” to “ON”
position.
These ways cancel the system at the
same time.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system as described above.
5. Repeat this operation for the other
doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.If the system does not work properly,
have it checked by your Toyota dealer.
ProCarManuals.com
