2001 TOYOTA SIENNA Owners Manual

01 SIENNA_U (L/O0008)
1412001 MY SIENNA (OM45406U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty.
(See “Fuel gauge” in this section for
instructions.)
b. The fuel tank cap is not tightened se-
curely. (See “Fuel tank cap” in Section
1−2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission elec-
trical system.If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(g) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(h) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti−
lock brake system and the brake assist
system works properly, the light turns off
after a few seconds. Thereafter, if the
system malfunctions, the light comes on
again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system, the brake assist
system, the traction control system and
vehicle skid control system do not oper-
ate, but the brake system still operates
conventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1422001 MY SIENNA (OM45406U)
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the anti−lock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
(i) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(j) Open Power Sliding Door Warning
Light and Buzzer
This light comes on if the power sliding
door is not completely closed with the
ignition key in the “ON” position.
If you forcibly close the power sliding door
by hand when the ignition key is in the
“ON” position, the open power sliding door
warning light may stay on. In this case,
try opening and closing the power sliding
door again by hand slowly, or use one of
the “DOOR L”, “DOOR R” or “PWR
DOOR” switches inside the vehicle or
“POWER DOOR”, “D−PWR DOOR” or “P−
PWR DOOR” switches of the wireless re-
mote control transmitter.
If you shift out of “P” when the power
sliding door is opened or in the process
of closing with the power sliding door sys-
tem on, a buzzer will sound and the open
power sliding door warning light will flash.
This is a warning that the sliding door is
not completely closed.(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ACC” or
“ON” position. After about 6 seconds,
the light will go off. This means the
system of the airbag and front seat belt
pretensioners are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side airbag sensor, front seat belt
pretensioner assemblies, inflators, warning
light, interconnecting wiring and power
sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position or remains on.
The light comes on or flashes while
driving.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1432001 MY SIENNA (OM45406U)
(l) “VSC” Warning Light
The light warns that when there is a prob-
lem somewhere in the vehicle skid control
system or traction control system.
The light will come on when the ignition
key is turned to “ON”, and will go off after
about a few seconds. This means that the
system is operating properly.
If the “VSC” warning light comes on, the
vehicle skid control system and traction
control system do not work. However, as
conventional braking operates when ap-
plied, there is no problem to continue your
driving.
If any of the following conditions occur,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle:
The “VSC” warning light does not come
on after the ignition is turned to on.
The “VSC” warning light is left on after
the ignition is turned to on.
The “VSC” warning light comes on
while driving.(m) “TRAC OFF” Indicator/Warning Light
The light warns that when there is a prob-
lem somewhere in the vehicle skid control
system or traction control system.
The light will come on when the ignition
key is turned to “ON”, and will go off after
about a few seconds. This means that the
system is operating properly.
If the “TRAC OFF” indicator light comes
on, the traction control system does not
work. However, as conventional braking
operates when applied, there is no prob-
lem to continue your driving.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle:
The “TRAC OFF” indicator/warning light
does not come on after the ignition is
turned to on.
The “TRAC OFF” indicator/warning light
is left on after the ignition is turned to
on.
The “TRAC OFF” indicator/warning light
comes on while driving without pushing
“TRAC OFF” switch.(n) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” in Section 7−3.)
(o) Low Tire Pressure Warning Light
This light warns that the tire pressure of
any one of the tires is critically reduced.
The light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the low tire pressure warning system is
functioning properly.
If the light comes on while driving, adjust
tire pressure to the specified level. (See
“Tires” in Section 8.) After the tire pres-
sure is adjusted, the light should go off
after driving at about more than 30 km/h
(19 mph) for some time. If the light still
remains, have the low tire pressure warn-
ing system checked at your Toyota dealer.
(p) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1442001 MY SIENNA (OM45406U)
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the doors.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to “ACC”.
The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light, open
power sliding door warning light and
SRS warning light should come on. The
“ABS” warning light, “VSC” warning
light, low tire pressure warning lights,
“TRAC OFF” indicator/warning light and
slip indicator light go off after a few
seconds.6. Vehicles with a power sliding door sys-
tem:
Open the sliding door.
The open power sliding door warning
light should come on.
Close the sliding door.
The open power sliding door warning
light should go off.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1452001 MY SIENNA (OM45406U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission147 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Traction control system151 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle skid control system153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire pressure warning system155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake157 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control157 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 6
ProCarManuals.com

01 SIENNA_U (L/O0008)
1462001 MY SIENNA (OM45406U)
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see Section 3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.You must push in the key to turn the key
from “ACC” to the “LOCK” position. The
selector lever must be put in the “P” posi-
tion before pushing the key.
Vehicles with engine immobiliser system—
Once you remove the key, the engine im-
mobiliser system is automatically set. (See
“Engine immobiliser system” in Section
1−2.)
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock
ProCarManuals.com

01 SIENNA_U (L/O0008)
1472001 MY SIENNA (OM45406U)
Automatic transmission
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” or “ACC” position and the
selector lever pulled toward you).

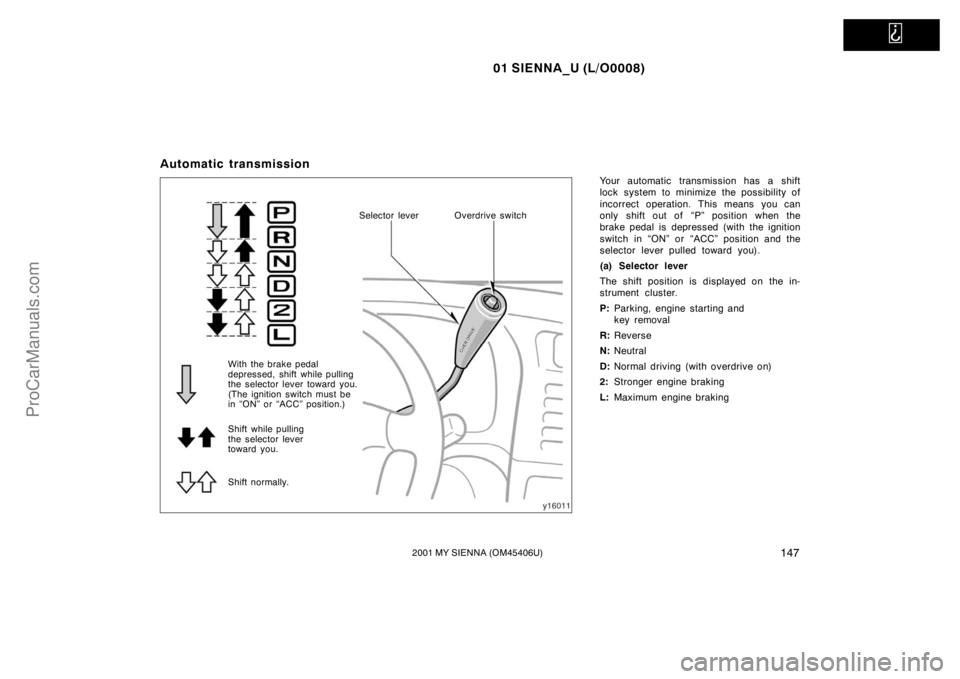

(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R:Reverse
N:Neutral
D:Normal driving (with overdrive on)
2:Stronger engine braking
L:Maximum engine braking
Selector lever Overdrive switch
With the brake pedal
depressed, shift while pulling
the selector lever toward you.
(The ignition switch must be
in “ON” or “ACC” position.)
Shift while pulling
the selector lever
toward you.
Shift normally.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1482001 MY SIENNA (OM45406U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on.Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
(c) Normal driving
1. Start the engine as instructed in “How
to start the engine” in Section 3. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake
pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into overdrive
gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than 112 km/h (69 mph), and
stronger engine braking will be en-
abled.
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than 58 km/h (36 mph), and
maximum engine braking will be en-
abled.
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking is not enabled because the cruise
control is not cancelled.
ProCarManuals.com
