2001 TOYOTA SIENNA Owners Manual

01 SIENNA_U (L/O0008)
3082001 MY SIENNA (OM45406U)

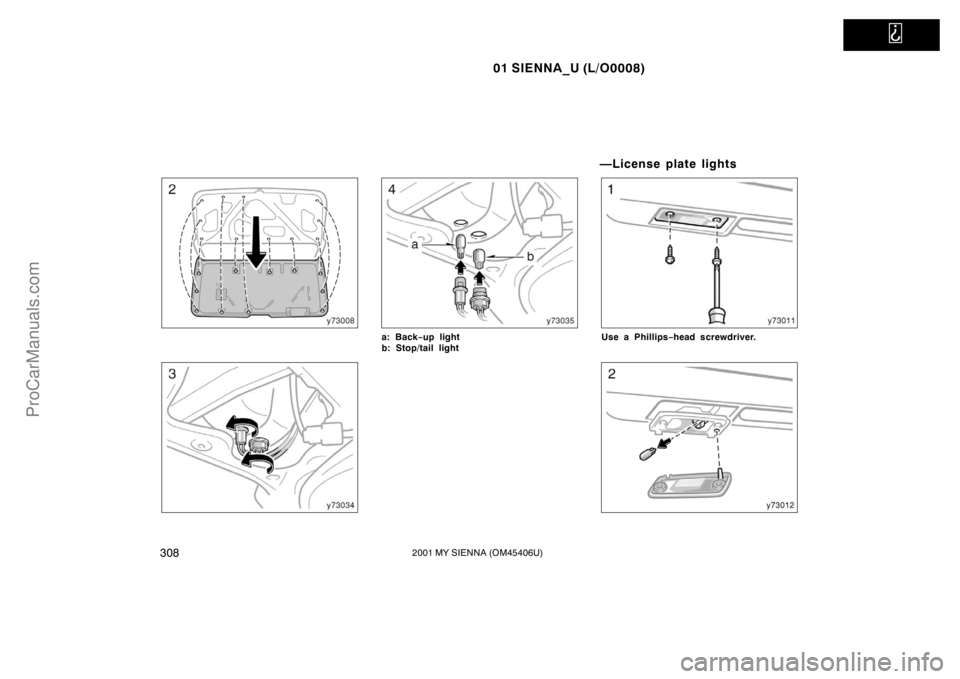

a: Back−up light
b: Stop/tail light
—License plate lights
Use a Phillips−head screwdriver.
ProCarManuals.com

01 SIENNA_U (L/O0008)
3092001 MY SIENNA (OM45406U)

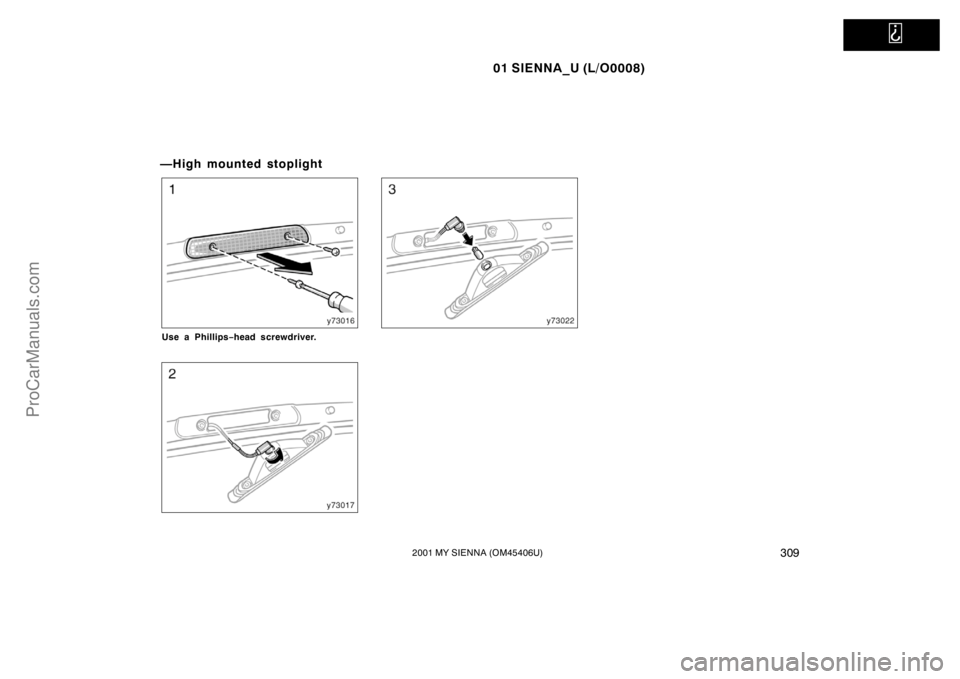

—High mounted stoplight
Use a Phillips−head screwdriver.
ProCarManuals.com

01 SIENNA_U (L/O0008)
3102001 MY SIENNA (OM45406U)
ProCarManuals.com

01 SIENNA_U (L/O0008)
3112001 MY SIENNA (OM45406U)
SPECIFICATIONS
Dimensions and weight312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires315 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8
ProCarManuals.com

01 SIENNA_U (L/O0008)
3122001 MY SIENNA (OM45406U)
Dimensions and weight Engine
Model:
1MZ−FE
Type:
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.):
87.583.0 (3.443.27)
Displacement, cm
3 (cu. in.):
2995 (182.8) Overall width mm (in.)
2900 (114.2) Overall height mm (in.)
1610 (63.4) Wheelbase mm (in.)
Front tread mm (in.) 1565 (61.6)
Rear tread mm (in.)
526 (1160)
∗: Unladen vehicleOverall length mm (in.)
Vehicle capacity weight kg (lb.)
(occupants + luggage)4930 (194.1)
1865 (73.4)
1710 (67.3)
∗
ProCarManuals.com

01 SIENNA_U (L/O0008)
3132001 MY SIENNA (OM45406U)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp. gal.):
79 (21, 17.5)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.):
1.1 (0.043)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No.BT−33−73F (used belt), Ibf:
Generator belt 12510
Power steering pump belt 11520
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
Oil grade:
API grade SJ, “Energy−Conserving” or
ILSAC multigrade engine oil is recom-
mended.Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
10.4 (11.0, 9.2)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethylene−glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
ProCarManuals.com

01 SIENNA_U (L/O0008)
3142001 MY SIENNA (OM45406U)
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the
lights turned off
Charging rates:
5 A max.
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 4.75 (5.0, 4.2)
Fluid type:
Automatic transmission fluid D−ll or
DEXRONIII (DEXRONII)BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
96 (3.8)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf):
3—5 clicks
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
ProCarManuals.com

01 SIENNA_U (L/O0008)
3152001 MY SIENNA (OM45406U)
Tires
Wheel nut torque, N·m (kgf·m, ft·lbf):
104 (10.5, 77)
NOTE: For a complete information on
tires (e.g. replacing tires or re-
placing wheels), see “Checking
tire pressure” through “Aluminum
wheel precautions” in Section 7−2.
Tire size Wheel size
P205/70R15 95S 240 (2.4, 35) 156.5JJ
220 (2.2, 32)
∗
1
240 (2.4, 35)∗
2
T145/80D16 420 (4.2, 60)156.5JJ
164T P215/65R15 95S
Tire size Wheel size
P205/70R15 95S 240 (2.4, 35) 156.5JJ
240 (2.4, 35) 156.5JJ P215/65R15 95S
When driving under the above vehicle load conditions at sustained high speeds above
160 km/h (100 mph), in countries where such speeds are permitted by−law, inflate
the front and rear tires to 240 kPa (2.4 kgf/cm
2 or bar, 35 psi) provided that it does
not exceed the maximum cold tire pressure molded on the tire sidewall.
∗
1: Vehicle load up to 6 passengers∗
2: Up to vehicle capacity weight Normal driving
Trailer towing Tire size and pressure:
Tire pressure,
kPa (kgf/cm
2 or bar, psi)
Tire pressure,
kPa (kgf/cm
2 or bar, psi)
