2001 TOYOTA SIENNA Owners Manual

01 SIENNA_U (L/O0008)
932001 MY SIENNA (OM45406U)
7. Sit the child on the child seat. Place
a shoulder belt over each shoulder.
Insert the tabs into the buckle.
CAUTION
When the built−in child restraint is
in use, do not use the adult lap and
shoulder belt instead of the built−in
child restraint seat belt as it can
cause death or severe injury to the
child in a sudden stop or crash.
After inserting the tabs, make sure
the tabs and buckle are locked and
that the shoulder belts and buckle
strap are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tabs and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the built−in child restraint until
the seat belt is fixed.
8. Fasten the shoulder belt clip.
The purpose of the clip is to keep the
shoulder belts positioned correctly on the
shoulders.
CAUTION
An unfastened shoulder belt clip will
not keep the belts on the child’s
shoulders. In a sudden stop or crash,
the child may go too far forward and
be seriously injured. Make sure the
belt clip is fastened at all times.
ProCarManuals.com

01 SIENNA_U (L/O0008)
942001 MY SIENNA (OM45406U)
9. Lift the seat belt adjusting lever to
allow the belts to retract until the
shoulder belts are snugly adjusted
around the child’s shoulders.
You should not be able to put more than
two fingers between a shoulder belt and
the child’s chest.
After adjusting the shoulder belt tightness
by lifting the seat belt adjusting lever,
move the shoulder belt clip 5 to 8 cm (2
to 3 in.) below the child’s chin. On each
belt, the shoulder part should be centered
on the child’s shoulder. The belts should
be away from the child’s face and neck,
but not falling off the child’s shoulders.10. To release the child from the seat
belts, separate the shoulder belts,
then press the buckle release button.
Move both belts off the child’s shoulders.11. To store the built−in child restraint,
fasten the shoulder belt clip and re-
turn the seat belt buckle. Raise the
child seat cushion.
CAUTION
Before using the vehicle’s seat belt,
make sure the head restraint is prop-
erly adjusted.
ProCarManuals.com

01 SIENNA_U (L/O0008)
952001 MY SIENNA (OM45406U)
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” in
this section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” in this section.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
—Types of child restraint
system
ProCarManuals.com

01 SIENNA_U (L/O0008)
962001 MY SIENNA (OM45406U)
(A) INFANT SEAT INSTALLATION
An infant seat is used in rear−facing
position only.CAUTION
Do not put a rear−facing child re-
straint system on the third seat if
it interferes with the lock mecha-
nism of the second seats. This can
cause severe injury to the child and
passengers sitting in second seats
in case of sudden braking or a col-
lision.
Fix both seats at
the same position.Fix both seat backs
at the same angle.
When installing a child restraint
system in the third seat center
position, adjust both seats to the
same position and seatbacks to the
same angle. Otherwise, the child re-
straint system can not be securely
restrained and this may cause seri-
ous injuries in a collision.
—Installation with 2−point
type seat belt
ProCarManuals.com

01 SIENNA_U (L/O0008)
972001 MY SIENNA (OM45406U)
1. Run the center lap belt through or
around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. While pressing the infant seat firmly
against the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.
ProCarManuals.com

01 SIENNA_U (L/O0008)
982001 MY SIENNA (OM45406U)

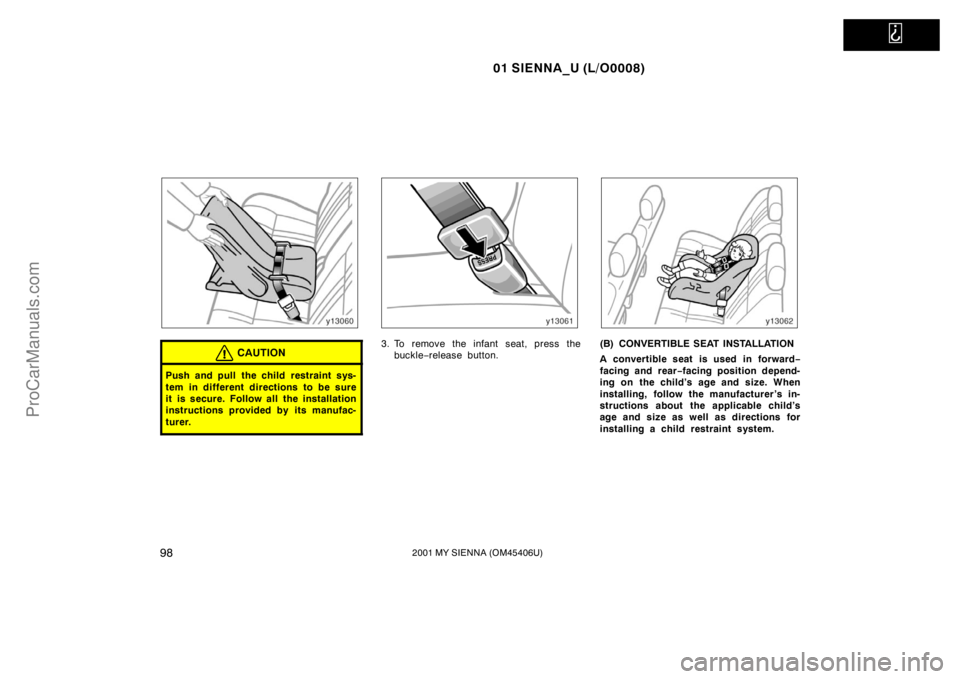

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the infant seat, press the
buckle−release button.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward−
facing and rear−facing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
structions about the applicable child’s
age and size as well as directions for
installing a child restraint system.
ProCarManuals.com

01 SIENNA_U (L/O0008)
992001 MY SIENNA (OM45406U)
CAUTION
Do not put a rear−facing child re-
straint system on the third seat if
it interferes with the lock mecha-
nism of the second seats. This can
cause severe injury to the child and
passengers sitting in second seats
in case of sudden braking or a col-
lision.
Fix both
seats at
the same
position.Fix both seat
backs at the
same angle.
When installing a child restraint
system in the third seat center
position, adjust both seats to the
same position and seatbacks to the
same angle. Otherwise, the child re-
straint system can not be securely
restrained and this may cause seri-
ous injuries in a collision.1. Run the center lap belt through or
around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.
ProCarManuals.com

01 SIENNA_U (L/O0008)
1002001 MY SIENNA (OM45406U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. While pressing the convertible seat
firmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
