2001 TOYOTA SIENNA Owners Manual

01 SIENNA_U (L/O0008)
2132001 MY SIENNA (OM45406U)
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “COMP” switch
until the zone number appears on the dis-
play. Then push the “COMP” switch, refer-
ring to the following map to select the
number of the zone where the vehicle is.
ProCarManuals.com

01 SIENNA_U (L/O0008)

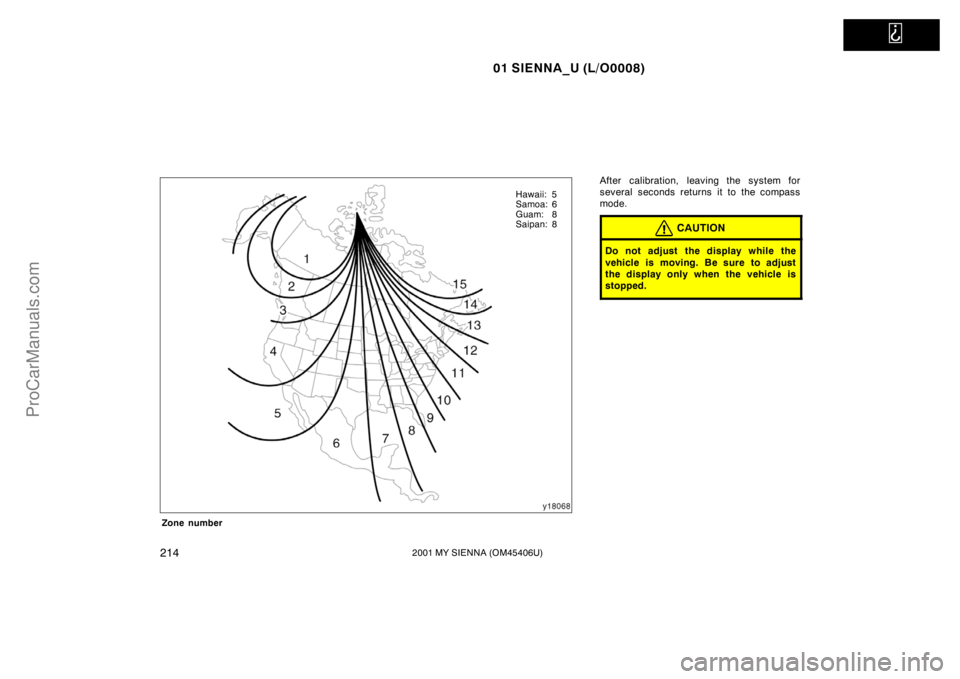

2142001 MY SIENNA (OM45406U) Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Hawaii: 5
Samoa: 6
Guam: 8
Saipan: 8
ProCarManuals.com

01 SIENNA_U (L/O0008)
2152001 MY SIENNA (OM45406U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “COMP” switch until “C” appears
on the display.
If “C” appears on the display because of
the drastic change of the magnetic field,
perform circling calibration.Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.
If you want to cancel the calibration be-
fore it is complete, push the “COMP”
switch again.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and pay attention to people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
ProCarManuals.com

01 SIENNA_U (L/O0008)
2162001 MY SIENNA (OM45406U)
Ty p e A
Type B (without moon roof)
Type C (with moon roof)
To use the box, open it as shown
above.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
In hot weather, inside of the vehicle
becomes very hot. Do not leave any-
thing flammable or deformable such
as a lighter, the glasses, etc. inside.
Auxiliary boxes—
—Front roof
ProCarManuals.com

01 SIENNA_U (L/O0008)
2172001 MY SIENNA (OM45406U)
—Instrument panel
To use the box, pull on the handle.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
—Front console
To use the box, pull the lock release
lever and open the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
—Rear lateral side
To use the box, pull up the lock release
lever and open the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
ProCarManuals.com

01 SIENNA_U (L/O0008)
2182001 MY SIENNA (OM45406U)
Cup holder
The cup holder is designed for holding
cups or drink−cans securely.
To use the holder, push the button.
CAUTION
Do not place anything else other
than cups or drink−cans on the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Bottle holders
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
ProCarManuals.com

01 SIENNA_U (L/O0008)
2192001 MY SIENNA (OM45406U)
The juice box holder is designed for
holding juice box securely in its holes.
CAUTION
Do not place anything else other
than juice box on the juice box
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
Do not spill water over the holder
or its surroundings. Water may get
into the electrical components and
cause malfunction. If you spill any
water, wipe it off immediately.
AUXILIARY BOX
Although the first−aid kit and warning
reflector themselves are not included as
original equipments, this auxiliary box
(rear left side) can be used to store
them.
To open the auxiliary box, push down the
lever and pull the lid.
Ju ice bo x ho ld er
(left and right side power
sliding door models)First−aid kit an d warn in g
reflector holder
(right side only
power sliding door models)
ProCarManuals.com

01 SIENNA_U (L/O0008)
2202001 MY SIENNA (OM45406U)
FIRST−AID KIT AND WARNING REFLEC-
TOR HOLDER
This belt is designed to hold the first−
aid kit and warning reflector.
To use the belt, do the following.
1. To loosen the belt, pull the buckle rear-
ward.
2. To tighten the belt, pull the belt for-
ward.
Make sure the first−aid kit and warning
reflector are securely held.
Floor mat
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
