± DIAGNOSTICSBODY CONTROL SYSTEM
DI±1687
1881 Author: Date:
2005 SEQUOIA (RM1146U)
WIRELESS DOOR LOCK CONTROL
SymptomSuspected AreaSee page
All functions of wireless door lock control system do not operate.
1. Transmitter
2. Wireless door lock receiver circuit
3. Key unlock warning switch circuit
4. Body ECUBE±99
DI±1737
DI±1715
IN±35
Lock (or unlock) function does not operate.
1. Door unlock detection switch circuit (Driver's)
(Passenger's)
(Rear Door)
(Back Door)
2. Any door ECU
3. Body ECUDI±1791
DI±1829
DI±1723
DI±1869
IN±35
IN±35
Automatic lock function operates even if any door is opened within
30 seconds after all doors are unlocked by wireless door lock
control system.1. Door courtesy light switch circuit
2. Any door ECU
3. Body ECUDI±1728
IN±35
IN±35
Wireless door lock function operates, but the buzzer does not
sound.1. Wireless door lock buzzer circuit
2. Body ECUDI±1741
IN±35
Buzzer sounds, but wireless door lock function does not operate.Body ECUIN±35
REAR WIPER AND WASHER
SymptomSuspected AreaSee page
Rear wiper does not operate.1. Rear wiper switch and motor circuit
2. Body ECUDI±1704
IN±35
Rear washer does not operate.1. Rear washer switch and motor circuit
2. Body ECUDI±1704
IN±35
LIGHT CONTROL
SymptomSuspected AreaSee page
Automatic light control does not operate.
1. Automatic light control sensor circuit
2. Light control switch circuit
3. Body ECUDI±1753
DI±1750
IN±35
Auto turn±off does not operate.
1. Door courtesy light switch circuit (Driver side)
2. Ignition switch
3. Driver door ECU
4. Body ECUDI±1728
BE±24
IN±35
IN±35
Daytime running light function does not operate.
1. Daytime running light relay circuit
2. Parking brake switch circuit
3. Body ECUDI±1712
DI±1744
IN±35
FOG LIGHT
SymptomSuspected AreaSee page
Fog lights do not come on.
1. Bulb
2. FOG fuse
3. Fog light relay and switch circuit
4. Body ECU±
BE±14
DI±1710
IN±35
OTHERS
SymptomSuspected AreaSee page
Illuminated entry function does not operate.1. Illumination circuit
2. Body ECUDI±1759
IN±35
All functions of the body control system do not operate.1. Power source circuit
2. Body ECUDI±1700
IN±35
Remote control mirror does not operate.
(w/ Driving position memory)1. Remote control mirror switch circuit
2. Driving position memory switch circuit
3. Body ECUDI±1767
DI±1772
IN±35

± BODY ELECTRICALTROUBLESHOOTING
BE±5
3409 Author: Date:
2005 SEQUOIA (RM1146U) Taillight does not go off when light control switch is in OFF posi-
tion.
1. TAILLIGHT Relay
2. Light Control Switch
3. Wire Harness
4. Body ECUBE±27
BE±27
±
±
Headlight does not come on when engine is running and light
control switch is in OFF position .
1. ECU±B Fuse
2. MAIN Fuse
3. HEAD Relay
4. DRL Fuse
5. DRL No. 4 Relay
6. DIMMER Relay
7. Parking Brake Switch
8. Wire Harness
9. Body ECUBE±14
BE±14
BE±27
BE±14
BE±27
BE±55
BE±55
±
±
FOG LIGHT SYSTEM
This system uses the multiplex communication system, so check diagnosis system of the multiplex commu-
nication system before you proceed with troubleshooting.
SymptomSuspect AreaSee page
Fog light does not come on with light control switch is in HEAD
position.
(Headlight is normal.)
1. FOG Fuse
2. FOG LIGHT Relay
3. Fog Light Switch
4. Wire Harness
5. Body ECUBE±14
BE±27
BE±34
±
±
Fog light does not come on with light control switch is in HEAD
position.
(Headlight does not light).1.*1 Other Parts
2. Wire Harness±
±
Only one light does not come on.1. Bulb
2. Wire Harness±
±
*1: Inspect Headlight System
TURN SIGNAL AND HAZARD WARNING SYSTEM
SymptomSuspect AreaSee page
ºHazardº and ºTurnº do not light up.
1. GAUGE Fuse
2. TURN±HAZ Fuse
3. Ignition Switch
4. Turn Signal Flasher Relay
5. Wire HarnessBE±14
BE±14
BE±24
BE±24
±
Hazard warning light does not light up.
(Turn is normal)1. Hazard Warning Switch
2. Wire Harness
3. Turn Signal Flasher RelayBE±36
±
BE±36
Turn signal does not light up.
(Hazard is normal)1. Turn Signal Switch
2. Wire Harness
3. Turn Signal Flasher RelayBE±36
±
BE±36
Turn signal does not light up in one direction.1. Bulb
2. Wire Harness±
±
Only one bulb does not light up.1. Bulb
2. Wire Harness±
±
INTERIOR LIGHT SYSTEM
This system uses the multiplex communication system, so check diagnosis system of the multiplex commu-
nication system before you proceed with troubleshooting.
SymptomSuspect AreaSee page
All the interior lights do not come on.
1. DOME Fuse
2. Illumination Circuit
3. Body ECUBE±14
DI±1759
±

05_SEQUOIA_U (L/O 0408)
444
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer 's directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle's paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION

To prevent burning yourself, do not
replace the light bulbs while they
are hot.

Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
Adding washer fluid Replacing light bulbsÐ

05_SEQUOIA_U (L/O 0408)
445
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Light bulbsBulb
No.WTy p e
HeadlightsÐ60/55A
Front fog lights900651B
Parking lights1685C
Front side marker
and front turn
signal lights3157
A27/8D
Rear turn signal
lights744021D
Stop/tail and rear
side marker lights744321/5C
Back±up lights92118C
Tail lights1943.8C
License plate lights1685C
High mounted
stoplight1758C
Interior lightsÐ8E
Personal lightsÐ3.8C
Glove box lightÐ1.2C
Luggage
compartment lightÐ8E
Vanity lightsÐ3C
Door courtesy
lights1943.8C
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbs
1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.
ÐHeadlights

05_SEQUOIA_U (L/O 0408)
446
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

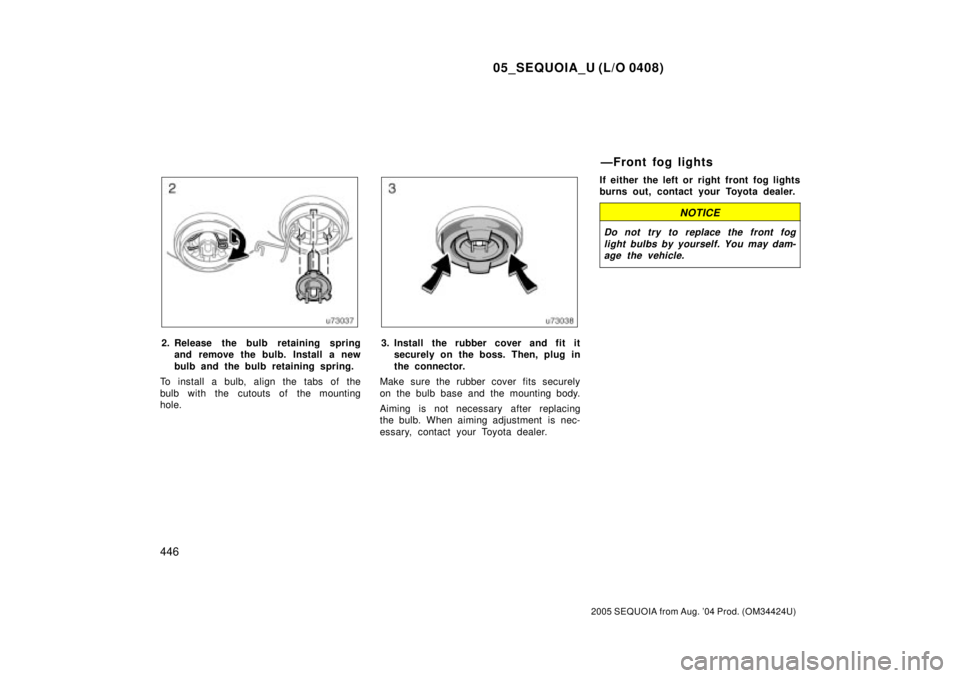

2. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover and fit it
securely on the boss. Then, plug in
the connector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.If either the left or right front fog lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
ÐFront fog lights
