2001 TOYOTA LAND CRUISER Owners Manual

’01 L/C U (L/O 0008)137
If “WAIT” appears on the display,
it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If “Err 1” appears on the display, it
indicates the disc is dirty, damaged. Clean
the disc or insert it correctly.
If “Err 3” appears on the display, it
indicates there is a trouble inside the sys-
tem. Eject the disc. Set the disc again.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR
If you are listening to a tape that was
recorded with Dolby B Noise Reduction,
push the button marked with the double −D
symbol. The double −D symbol will appear
on the display. Push the button again to
turn off Dolby B NR. The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM1·2
Push “FM1·2” to turn on the radio and
select the FM band. “FM1” or “FM2” will
appear on the display. This system allows
you to set twelve FM stations, two for
each button.
If the audio system is off, you can turn
on the radio by pushing “FM1·2”. Also,
push “FM1·2” to switch from cassette or
compact disc operation to radio operation. LOAD
This button is used to load the compact
discs in the compact disc auto changer
which is integrated with the radio and cas-
sette player. This compact disc auto
changer can store up to 6 di scs.
The key must be in the “ACC” or “ON”
position. Loading one compact disc only—
To load one compact disc only, quickly
push and release the button. If you hold
the button too long (if the audio system
is on at this time, you hear a beep.), the
mechanism will change to the mode for
loading multiple compact discs. After
pushing the button, insert a compact disc.
At this time, the indicators on both sides
of the slot are flashing. After the disc is
loaded, the shutter of the slot will close
and the indicators will stop flashing.
If no compact disc is inserted, the shutter
will close after 15 seconds.
Loading multiple compact di
scs—
To load multiple compact discs, push and
hold (until you hear a beep when the au-
dio system is on). After pushing the but-
ton, insert the first compact disc. At this
time, the indicators on both sides of the
slot are flashing. After the disc is loaded,
the shutter of the slot will close and the
indicators will stop flashing. After a few
seconds, the shutter will automatically
open again so the next disc can be in-
serted. The same process can be applied
for loading the rest of the di scs.
If no compact disc is inserted, the shutter
will close after 15 seconds.

’01 L/C U (L/O 0008)
138
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random)
There are two random features—you can
either listen to the tracks on all the com-
pact discs in the player in random order,
or only listen to the tracks on a specific
compact disc in random order.
To randomly play for the tracks on a disc:
Quickly push and release “
”. “”
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the player in random order. To
turn off the random feature, push this but-
ton again.
To randomly play for all the tracks in the
player:
Push and hold “
” until you hear a
beep. “
” will appear on the dis-
play and the player will perform all the
tracks on all the discs in the player in
random order. To turn off the random fea-
ture, push this button again. RPT (Repeat)
Cassette Player
Push “
” while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact Disc Player
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “
” while the
track is playing. “
” will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature. Repeating a disc:
Push and hold “
” until you hear a
beep. “
” will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the first track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature. SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
“SCAN” again.

’01 L/C U (L/O 0008)139
To scan all the frequencies:
Quickly push and release “SCAN”. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push “SCAN” again.
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
player.
Scanning the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the player. To select a track, push “SCAN”
again. If the player scanned all the tracks
on the disc, it will stop scanning.
Scanning the first track of all the discs in
the player:
Push “SCAN” until you hear a beep. “
·SCAN” will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the “SCAN” again. If the player has
scanned all the di scs, it will stop scan-
ning.
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the “ ” or “ ” under the “SEEK”.
Do this again to find another station.
Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
“FF 1” or “REW 1” will appear on the
display. Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until “REW
3” appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.

’01 L/C U (L/O 0008)
140
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the audio system.
Do not put anything other than a
cassette tape or Compact Disc into
the slot.
The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.Car audio system operating
hints

’01 L/C U (L/O 0008)141
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio: FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi
−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again. AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.) Use high
−quality cassettes.
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto −reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.

’01 L/C U (L/O 0008)
142
CARING FOR YOUR COMPACT DISC

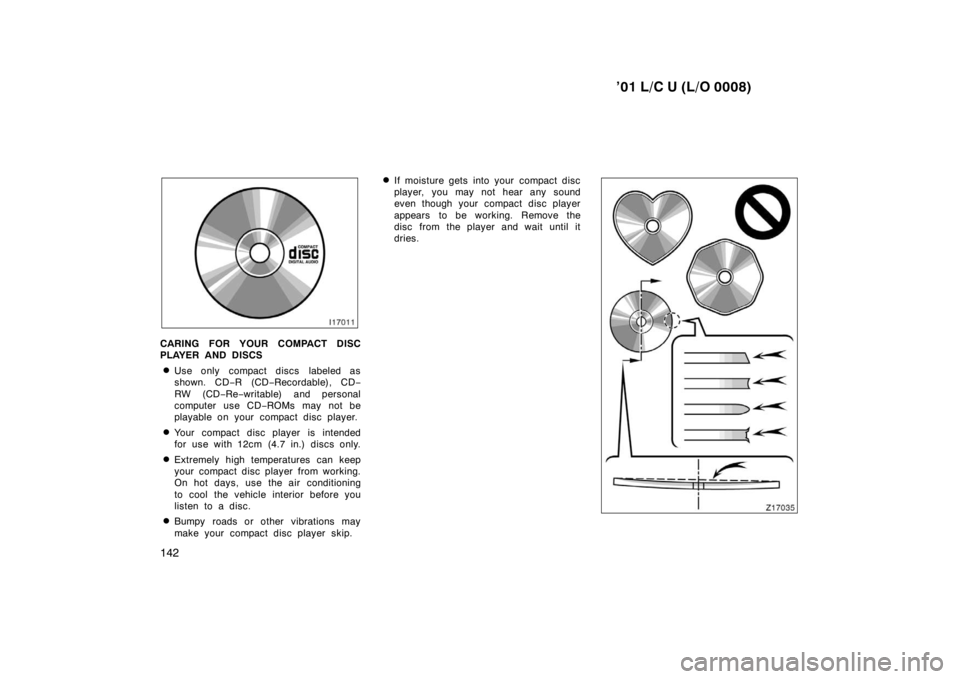

PLAYER AND DISCS Use only compact discs labeled as
shown. CD −R (CD −Recordable), CD −
RW (CD −Re −writable) and personal
computer use CD −ROMs may not be
playable on your compact disc player.
Your compact disc player is intended
for use with 12cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.

’01 L/C U (L/O 0008)143

Your automatic changer or compact
disc player cannot play special shaped
or low −quality compact discs such as
those shown here. Do not use them as
the player could be damaged.
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint −free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.

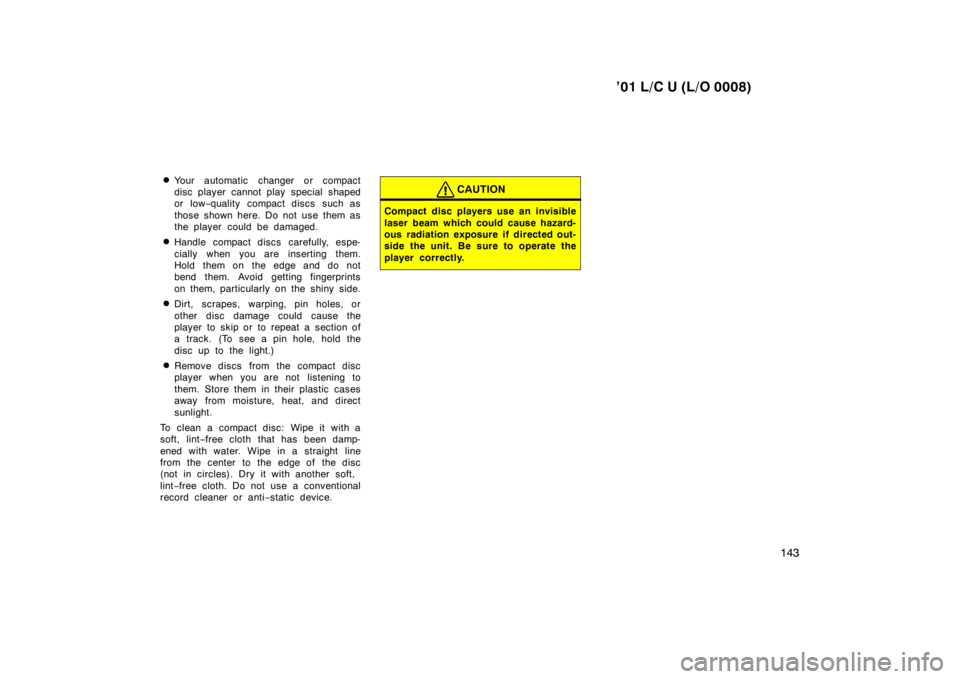

CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed out-
side the unit. Be sure to operate the
player correctly.

’01 L/C U (L/O 0008)
156 OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock157
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display157
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut −off system159
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box160
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener box164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes167
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie −down hooks171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 9
