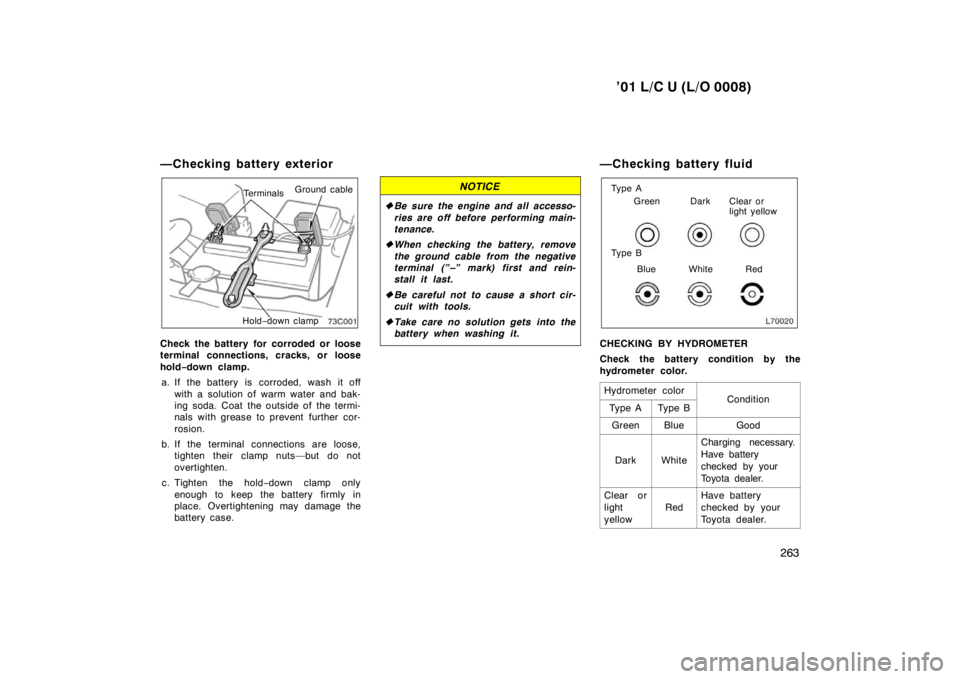

—Checking battery exterior
Terminals
Ground cable
Hold −down clamp
Check the battery for corroded or loose
terminal connections, cracks, or loose
hold −down clamp.
a. If the battery is corroded, wash it off with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose, tighten their clamp nuts—but do not
overtighten.
c. Tighten the hold −down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
When checking the battery, remove
the ground cable from the negative
terminal (”–” mark) first and rein-
stall it last.
Be careful not to cause a short cir-
cuit with tools.
Take care no solution gets into the
battery when washing it.
—Checking battery fluid
Ty p e A
Ty p e B Green Dark Clear or
light yellow
Blue White Red
CHECKING BY HYDROMETER
Check the battery condition by the
hydrometer color. Hydrometer color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery checked by your
Toyota dealer.
Clear or
light
yellow
Red
Have battery
checked by your
Toyota dealer.

’01 L/C U (L/O 0008)
264
Battery recharging precautions
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an
unconfined area. Do not charge
the battery in a garage or closed
room where there is not suffi-
cient ventilation.
Only do a slow charge (5 A or
less). Charging at a quicker rate
is dangerous. The battery may
explode, causing personal inju-
ries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.

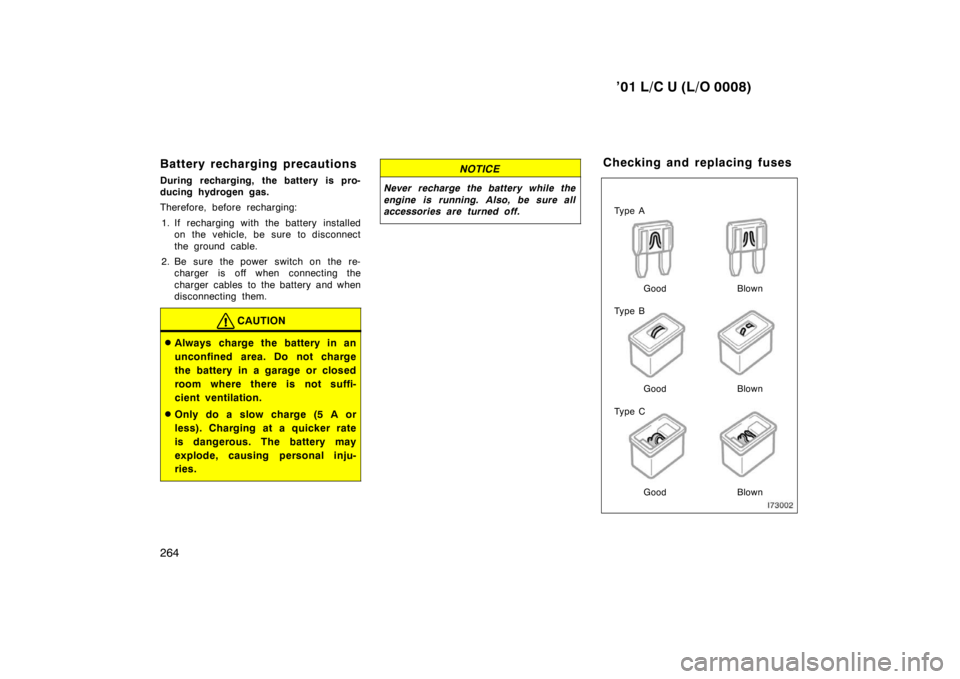

Ty p e A
Ty p e B
Ty p e C Good Blown
Good Blown
Good Blown
Checking and replacing fuses

’01 L/C U (L/O 0008)265
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See ”Fuse locations” in Section 7 −1 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions

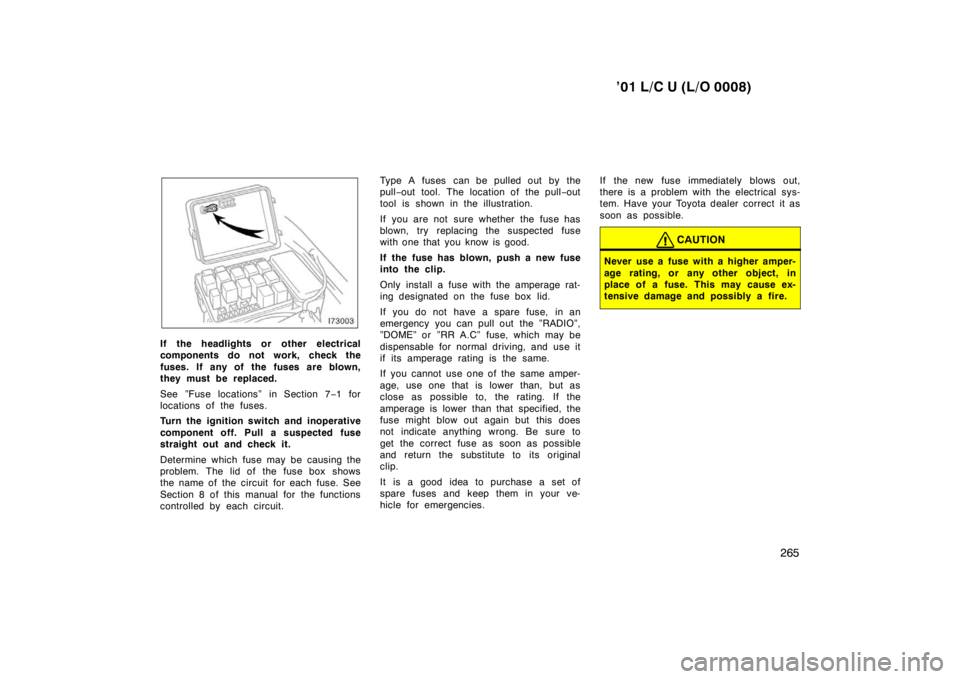

controlled by each circuit. Type A fuses can be pulled out by the
pull
−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the ”RADIO”,
”DOME” or ”RR A.C” fuse, which may be
dispensable for normal driving, and use it
if its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower than, but as
close as possible to, the rating. If the
amperage is lower than that specified, the
fuse might blow out again but this does
not indicate anything wrong. Be sure to
get the correct fuse as soon as possible
and return the substitute to its original
clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher amper-
age rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.

’01 L/C U (L/O 0008)
266
Adding washer fluid
If any washer does not work, the wash-
er tank may be empty. Add washer
fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE

Do not use engine antifreeze or any
other substitute because it may
damage your vehicle’s paint.
Do not fill washer fluid over the
”NORMAL” level.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if scratched
or dropped. Hold a bulb only by its
plastic or metal case. Do not touch
the glass part of a bulb with barehands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the wind-
shield fogged up in the rain. However, if
there is a large drop of water on the
inseide of the lens, or if there is water
pooled inside the light, contact your Toyo-
ta dealer.
Light bulbs
BulbNo.WTy p e
Headlights
(high)900560A
Headlights
(low)900651B
Front turn signal
and front side
marker lights1157NA27/8C
Front fog lights900651B
Parking lights—5D

’01 L/C U (L/O 0008)267
Light bulbs
Bulb
No.WTy p e
Rear turn signal
lights744021D
Stop/tail lights744321/5D
Back −up lights744021D
License plate lights—5D
Interior lights—8E
Personal lights
Ty p e A
Ty p e B
— —5 8F
E
Glove box light—1.4D
Door courtesy
lights—3D
Vanity lights—1.5E
A : HB3 halogen bulbs
B : HB4 halogen bulbs
C : Single end bulbs (amber)
D : Wedge base bulbs
E : Double end bulbs
F : Single end bulbs —Headlights

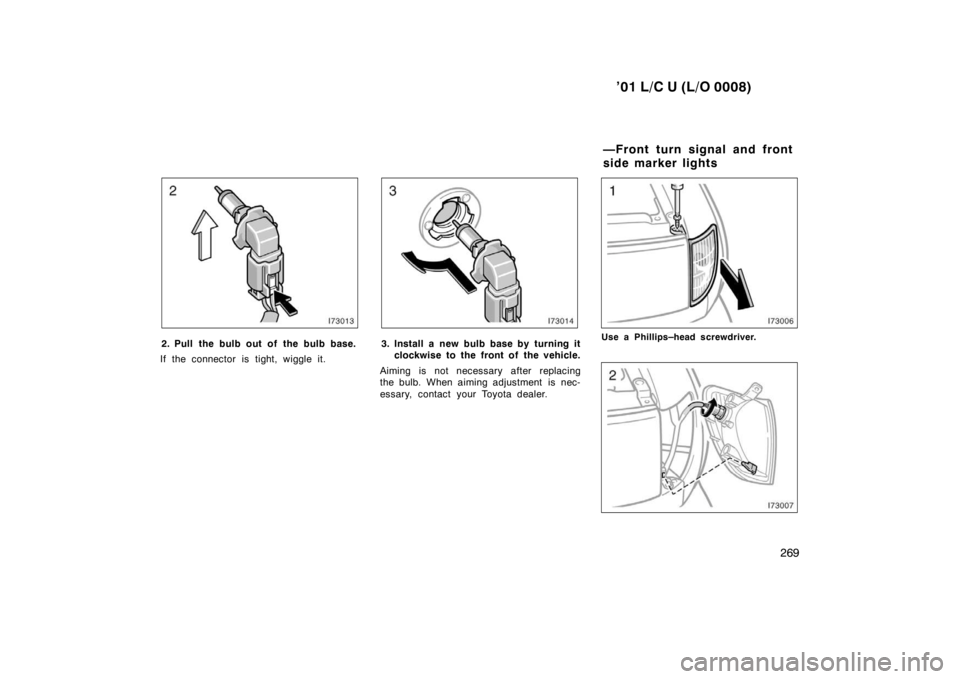

1. Open the hood.
LEFT–HAND HEADLIGHT: Remove the
washer inlet.
Be careful not to spill the washer fluid
over the ”NORMAL” level.
Do not place the washer inlet on the en-
gine or battery.2. Turn the bulb base counterclockwise to the front of the vehicle as shown.

’01 L/C U (L/O 0008)
268
3. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.4. Install a new bulb base by turning it clockwise to the front of the vehicle.
LEFT–HAND HEADLIGHT: Install the
washer inlet securely.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-

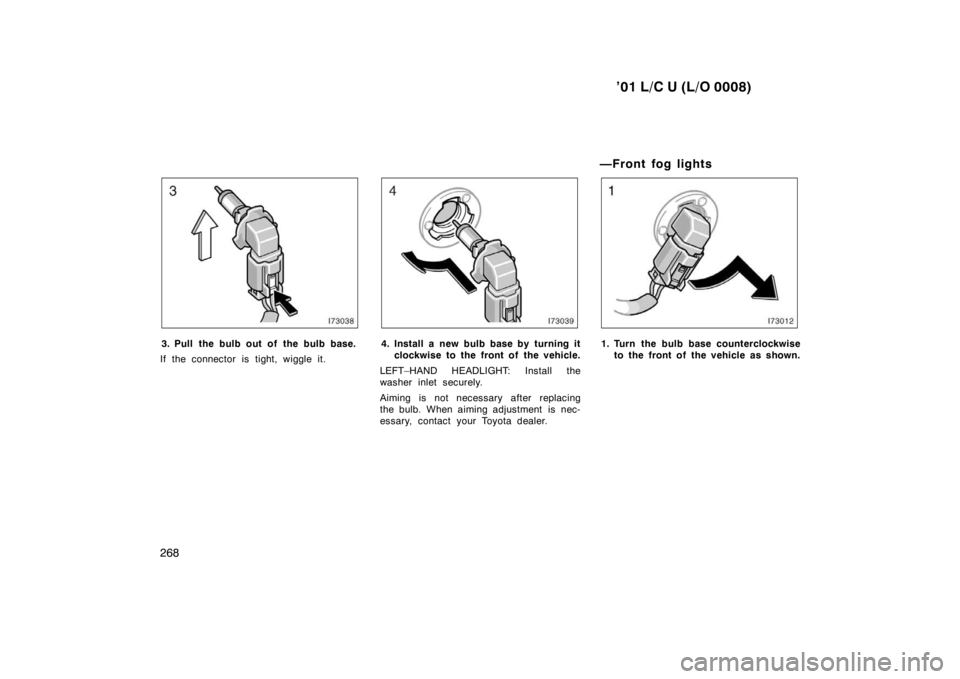

essary, contact your Toyota dealer. —Front fog lights1. Turn the bulb base counterclockwise
to the front of the vehicle as shown.

’01 L/C U (L/O 0008)269
2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.3. Install a new bulb base by turning it clockwise to the front of the vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillips –head screwdriver.

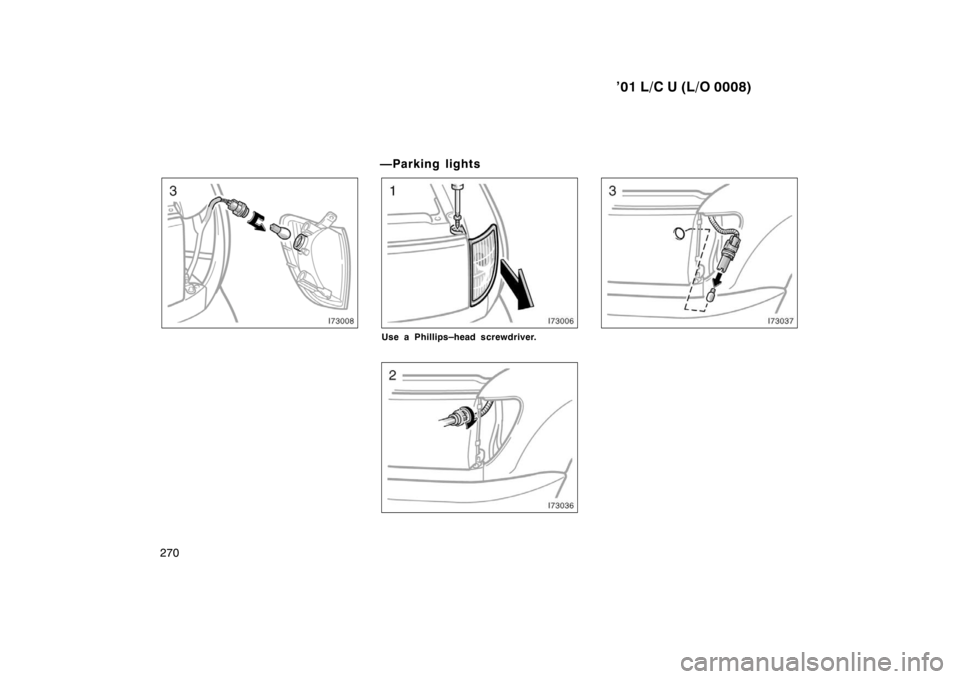

—Front turn signal and front
side marker lights

’01 L/C U (L/O 0008)
270
—Parking lights
Use a Phillips –head screwdriver.
