2001 TOYOTA LAND CRUISER Owners Manual

’01 L/C U (L/O 0008)23
CAUTION
To avoid serious personal injury, you
must do the following. Always make sure the hands and
other parts of the body of all oc-
cupants are kept completely in-
side the vehicle before you close
the power quarter windows. If
someone’s hands get caught in a
closing window, it could result in
a serious injury. When anyone
closes the power quarter win-
dows, make sure he/she operates
the windows safely.
Never leave small children alone
in the vehicle, especially with the
ignition key still inserted. They
could use the power quarter win-
dow switch and get trapped in a
window. Unattended children can
be involved in serious accidents.
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the key hole and
turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and back door. (See ”Side doors” in
this section.)Pull the handle and pull down the lower
side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” in
Section 2 for precautions in loading lug-gage.

’01 L/C U (L/O 0008)
24

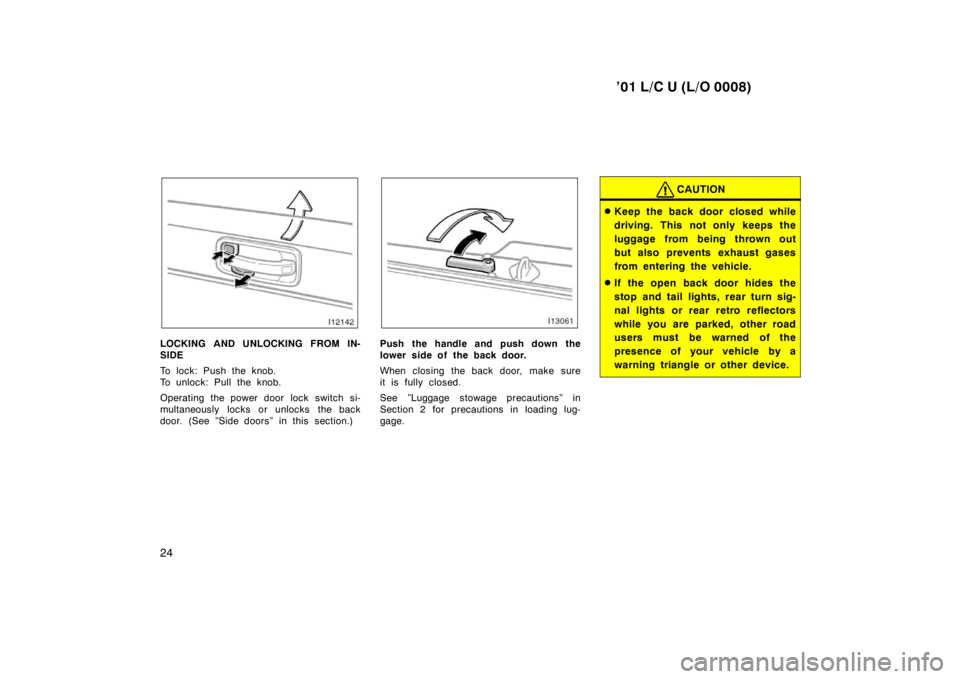

LOCKING AND UNLOCKING FROM IN-
SIDE
To lock: Push the knob.
To unlock: Pull the knob.
Operating the power door lock switch si-
multaneously locks or unlocks the back
door. (See ”Side doors” in this section.)Push the handle and push down the
lower side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” in
Section 2 for precautions in loading lug-gage.
CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out
but also prevents exhaust gases
from entering the vehicle.
If the open back door hides the
stop and tail lights, rear turn sig-
nal lights or rear retro reflectors
while you are parked, other road
users must be warned of the
presence of your vehicle by a
warning triangle or other device.

’01 L/C U (L/O 0008)25
BACK DOOR CHILD−PROTECTOR
Move the lock lever to the ”LOCK”
position as shown on the label.
This feature allows you to lock a back
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the back
door is closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Hood
To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.

’01 L/C U (L/O 0008)
26

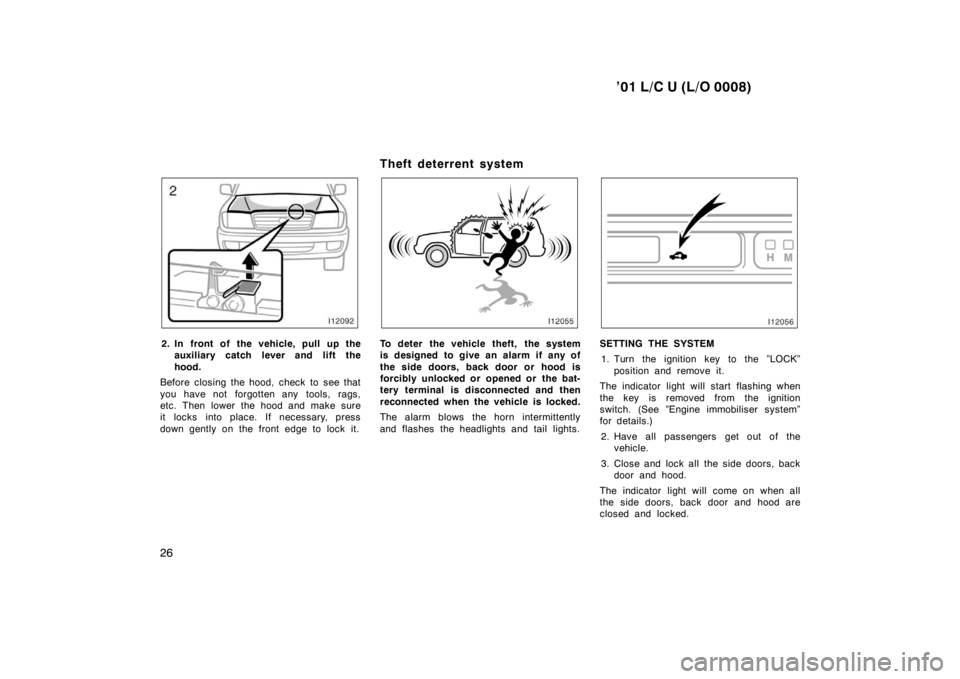

2. In front of the vehicle, pull up the auxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it. Theft deterrent systemTo deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM
1. Turn the ignition key to the ”LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ”Engine immobiliser system”
for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.

’01 L/C U (L/O 0008)27
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions: If any of the side doors is unlocked or
opened without the key or wireless re-
mote control key, or if the back door
or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating. If any of the side door or back door is
unlocked without the key or wireless re-
mote control key and the key is not in the
ignition switch, all the side doors and
back door will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
”Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the ”LOCK”
to ”ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control key.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control key. Be sure to wait until
the indicator light goes off or starts
flashing.
3. Unlock any side door or back door from the inside. The system should ac-
tivate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, back door and hood. When test-
ing on the hood, also check that the
system is activated when the battery
terminal is disconnected and then re-
connected.
If the system does not work properly,
have it checked by your Toyota dealer.

’01 L/C U (L/O 0008)
28
Fuel tank cap
12C005
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or
allow open flames when refuel-
ing. The fumes are flammable.
When opening the cap, do not
remove the cap quickly. In hot
weather, fuel under pressure
could cause injury by spraying
out of the filler neck if the cap
is suddenly removed.
12C006
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.

’01 L/C U (L/O 0008)29

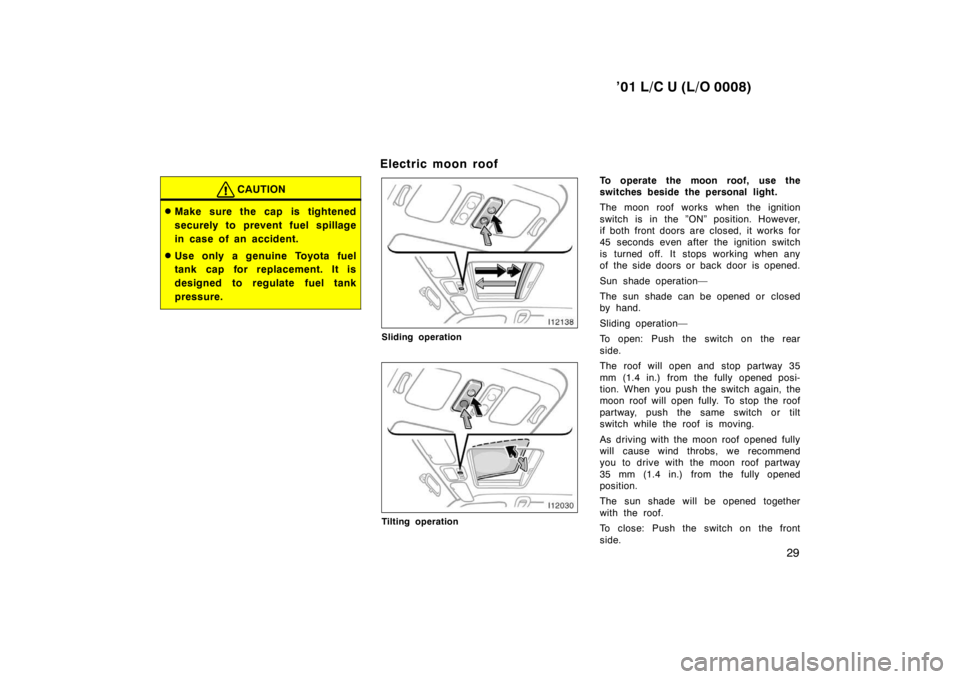

CAUTION
Make sure the cap is tightened
securely to prevent fuel sp illage
in case of an accident.
Use only a genuine Toyota fuel
tank cap for replacement. It is
designed to regulate fuel tank
pressure.
Electric moon roof
Sliding operation
Tilting operation To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ”ON” position. However,
if both front doors are closed, it works for
45 seconds even after the ignition switch
is turned off. It stops working when any
of the side doors or back door is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the rear
side.
The roof will open and stop partway 35
mm (1.4 in.) from the fully opened posi-
tion. When you push the switch again, the
moon roof will open fully. To stop the roof
partway, push the same switch or tilt
switch while the roof is moving.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
35 mm (1.4 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the front
side.

’01 L/C U (L/O 0008)
30
The roof will fully close. To stop the roof
partway, push the same switch or tilt
switch.
Tilting operation—
To tilt up: Push the switch on the ”UP”
side.
The roof will tilt up fully. To stop the roof
partway, push the same switch or slide
switch.
To lower: Push the switch on the opposite
side of the ”UP” side.
The roof will fully close. To stop the roof
partway, push the same switch or slide
switch.
Jam protection function (closing opera-
tion only):
During closing operation, the
moon roof stops and opens halfway if
something gets caught between the moon
roof and frame.
If an impact is given to the moon roof,
this function may work without anything
caught.

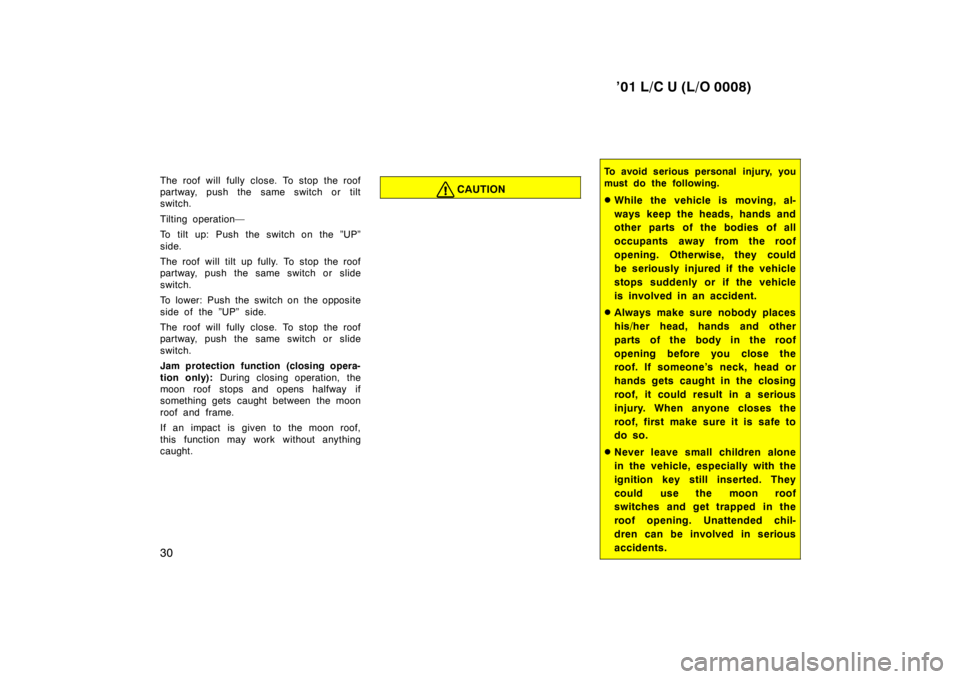

CAUTION
To avoid serious personal injury, you
must do the following. While the vehicle is moving, al-
ways keep the heads, hands and
other parts of the bodies of all
occupants away from the roof
opening. Otherwise, they could
be seriously injured if the vehicle
stops suddenly or if the vehicle
is involved in an accident.
Always make sure nobody places
his/her head, hands and other
parts of the body in the roof
opening before you close the
roof. If someone’s neck, head or
hands gets caught in the closing
roof, it could result in a serious
injury. When anyone closes the
roof, first make sure it is safe to
do so.
Never leave small children alone
in the vehicle, especially with the
ignition key still inserted. They
could use the moon roof
switches and get trapped in the
roof opening. Unattended chil-
dren can be involved in serious
accidents.
