H40938H42819H40938H42819H43094
DLC3
TC CGDTC B1162/81 Curtain Shield
Squib RHAirbag
Sensor
Assy
Center
DC FE
05-1394
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1584 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

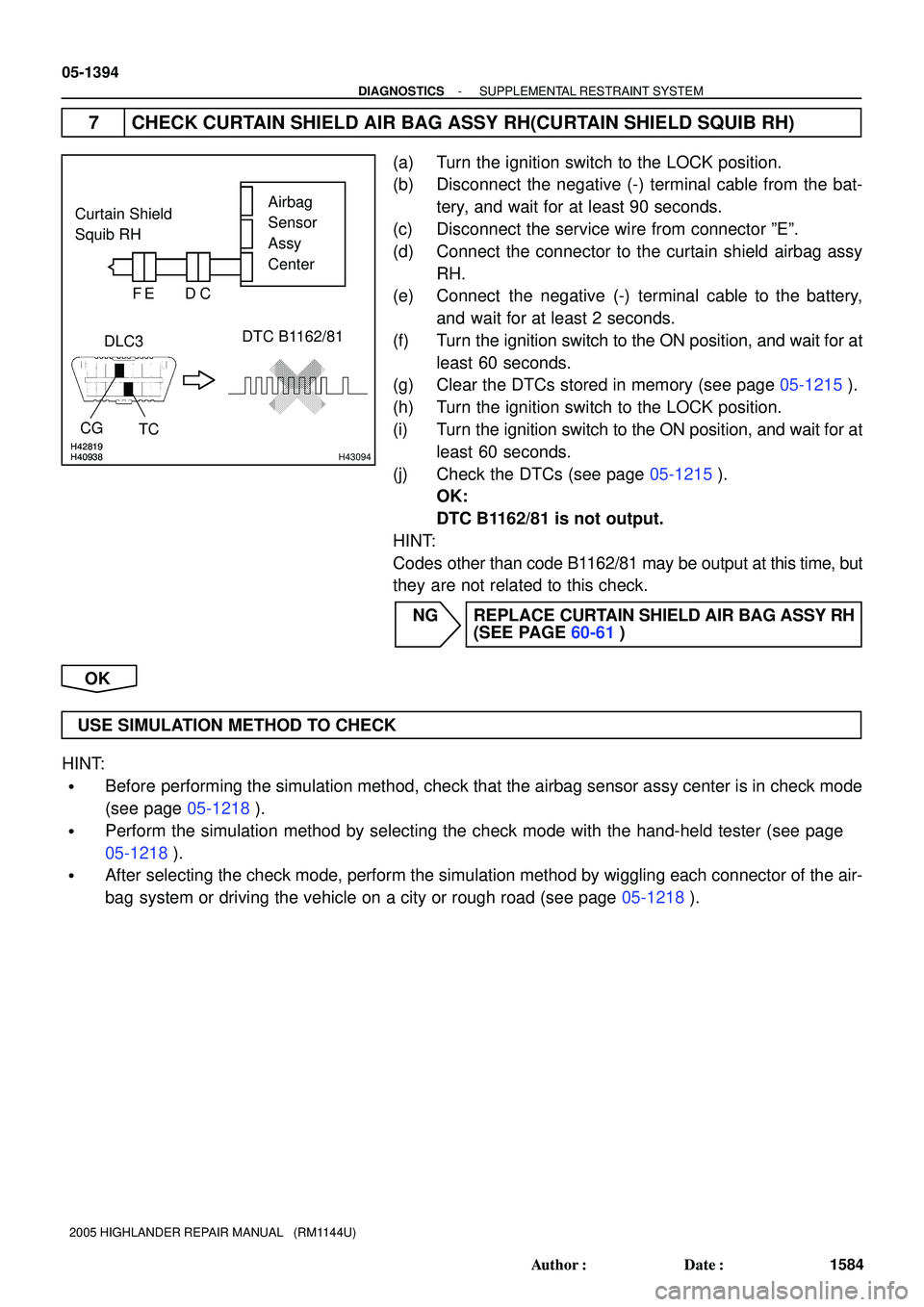

7 CHECK CURTAIN SHIELD AIR BAG ASSY RH(CURTAIN SHIELD SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºEº.
(d) Connect the connector to the curtain shield airbag assy
RH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1162/81 is not output.
HINT:
Codes other than code B1162/81 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY RH
(SEE PAGE 60-61)
OK
USE SIMULATION METHOD TO CHECK
HINT:

Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).

Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).

After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).

H42820H42497H42820H42497H42847
Roof Wire No.2
Airbag
Sensor
Assy
Center Floor Wire
A
B DC E F
ICR+
Curtain
Shield
Squib RH
ICR-
BK2
H42821C89244H42821C89244H43067
Roof Wire No.2
Airbag
Sensor
Assy
Center Floor Wire
ICR+
Curtain
Shield
Squib RH
A
B DC E F
ICR-
C19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1395
1585 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

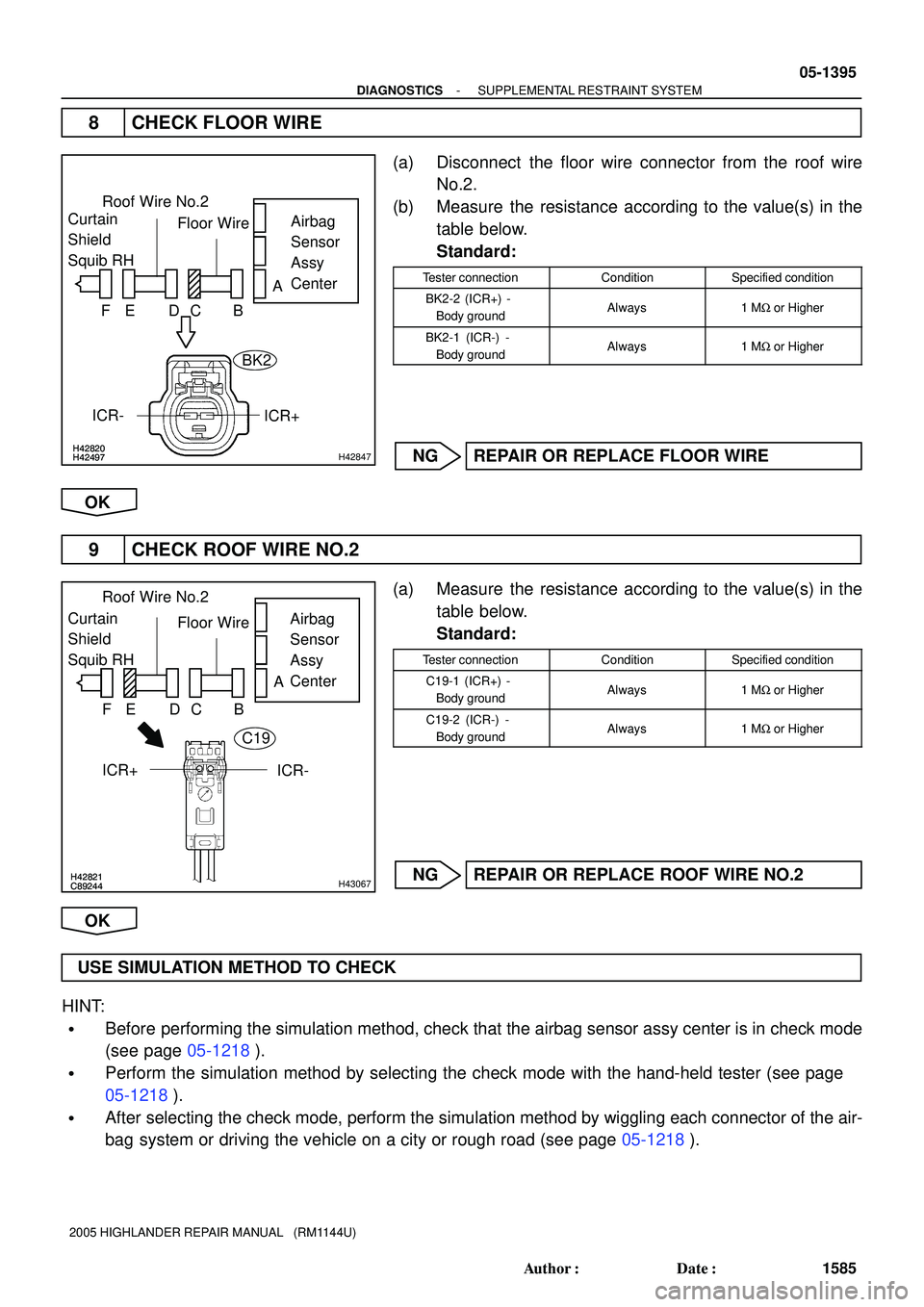

8 CHECK FLOOR WIRE
(a) Disconnect the floor wire connector from the roof wire
No.2.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
BK2-2 (ICR+) -
Body groundAlways1 MW or Higher
BK2-1 (ICR-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
9 CHECK ROOF WIRE NO.2
(a) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
C19-1 (ICR+) -
Body groundAlways1 MW or Higher
C19-2 (ICR-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE ROOF WIRE NO.2
OK
USE SIMULATION METHOD TO CHECK
HINT:

Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).

Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).

After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).

H41465H41465H43068
Curtain Shield
Squib RHAirbag
Sensor
Assy
Center Floor Wire
A
B
DC
ICR+
ICR-
C19
05-1396
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1586 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

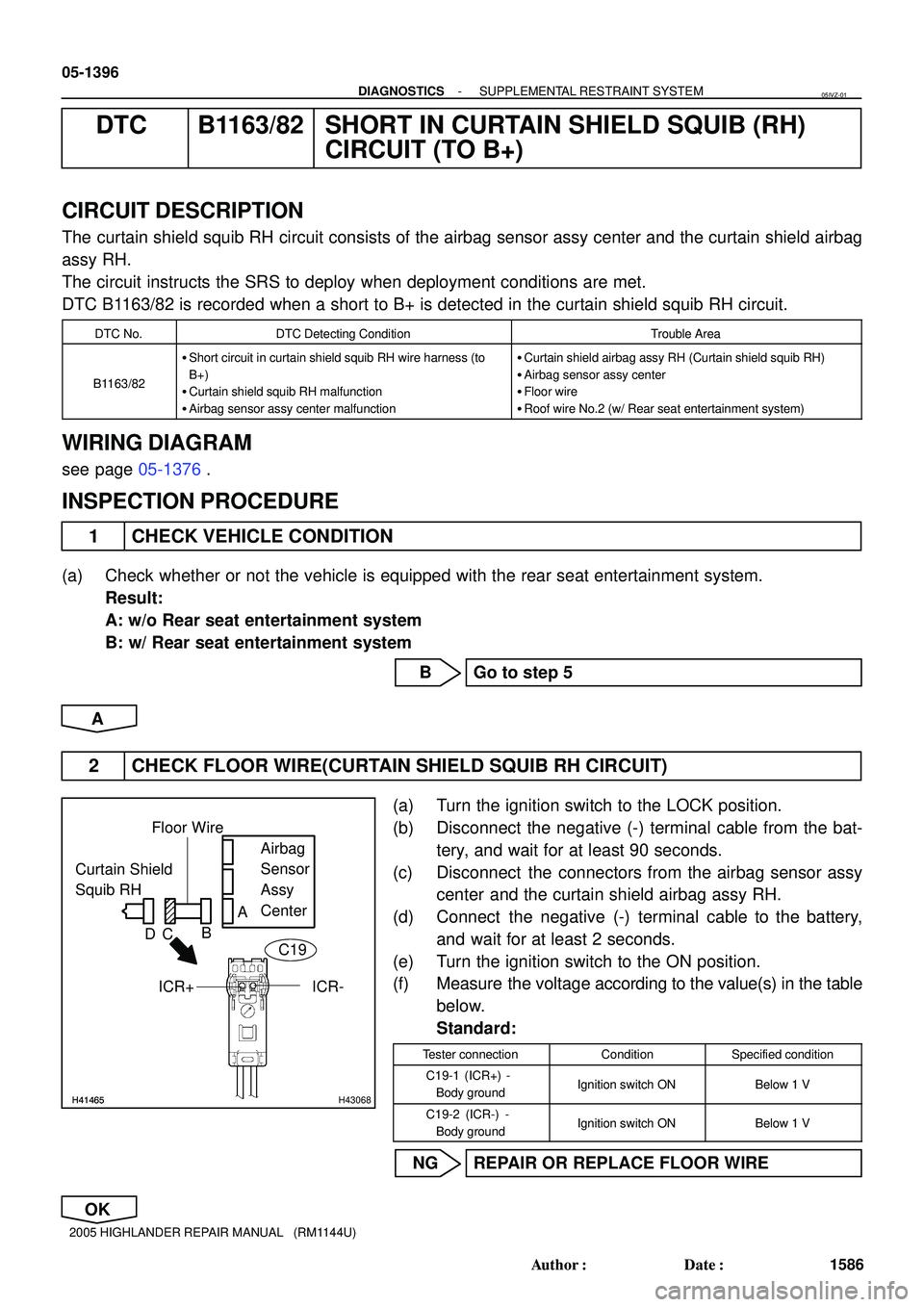

DTC B1163/82 SHORT IN CURTAIN SHIELD SQUIB (RH)
CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The curtain shield squib RH circuit consists of the airbag sensor assy center and the curtain shield airbag
assy RH.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B1163/82 is recorded when a short to B+ is detected in the curtain shield squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1163/82

Short circuit in curtain shield squib RH wire harness (to
B+)

Curtain shield squib RH malfunction

Airbag sensor assy center malfunction
Curtain shield airbag assy RH (Curtain shield squib RH)

Airbag sensor assy center

Floor wire

Roof wire No.2 (w/ Rear seat entertainment system)
WIRING DIAGRAM
see page 05-1376.
INSPECTION PROCEDURE
1 CHECK VEHICLE CONDITION
(a) Check whether or not the vehicle is equipped with the rear seat entertainment system.
Result:
A: w/o Rear seat entertainment system
B: w/ Rear seat entertainment system
B Go to step 5
A
2 CHECK FLOOR WIRE(CURTAIN SHIELD SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the curtain shield airbag assy RH.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
C19-1 (ICR+) -
Body groundIgnition switch ONBelow 1 V
C19-2 (ICR-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE
OK
05IVZ-01

H01020
C89252
H10600H11643
H01020
C89252
H10600H11643H42131
Curtain Shield
Squib RHAirbag
Sensor
Assy
Center
DLC3
CGTCDTC B1163/82
Floor Wire
Service Wire
ICR+ ICR-
C
D
C19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1397
1587 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

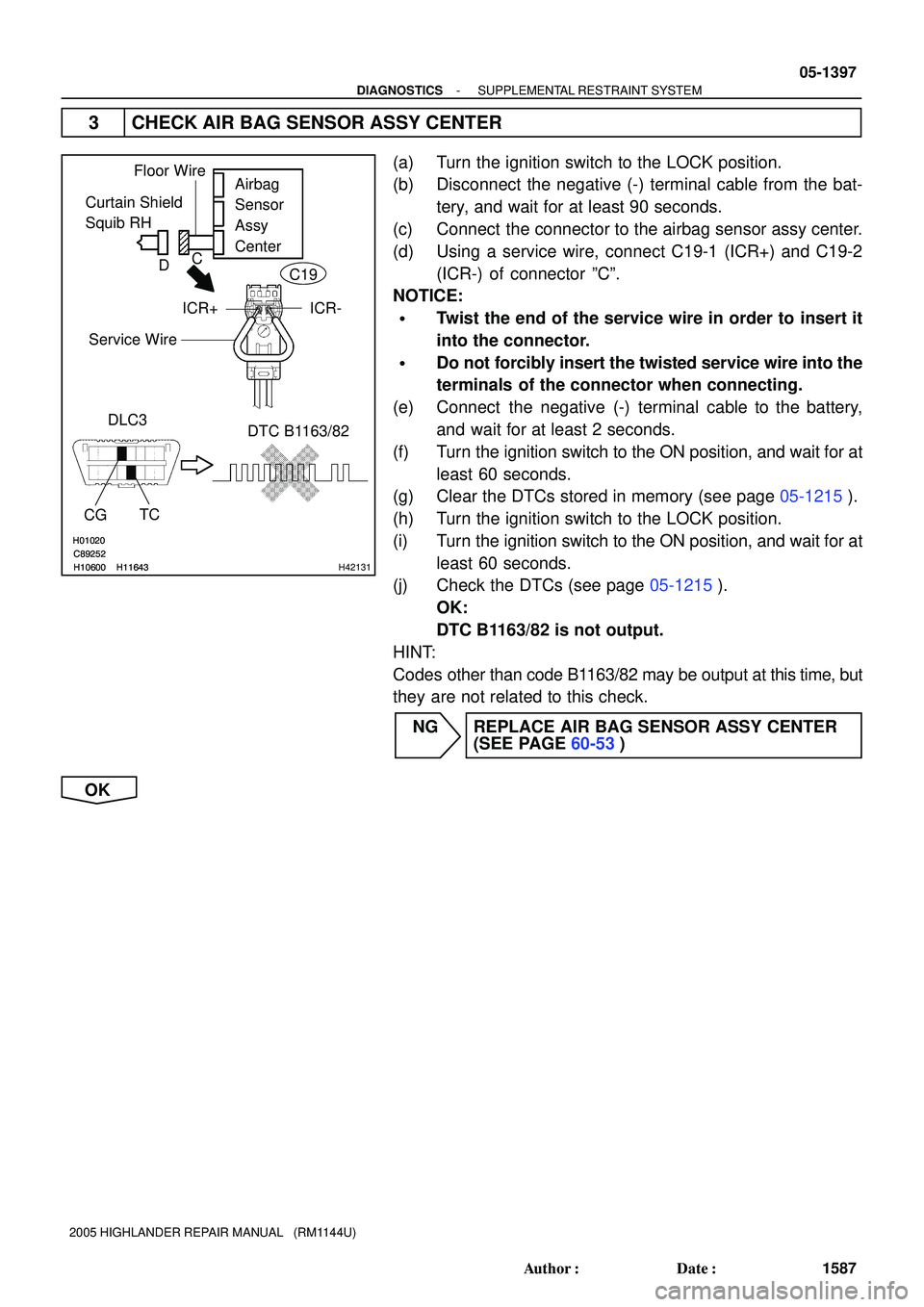

3 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect C19-1 (ICR+) and C19-2
(ICR-) of connector ºCº.
NOTICE:

Twist the end of the service wire in order to insert it
into the connector.

Do not forcibly insert the twisted service wire into the
terminals of the connector when connecting.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1163/82 is not output.
HINT:
Codes other than code B1163/82 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK

H01021
H10600 H11643H01021
H10600 H11643H40939
Airbag
Sensor
Assy
Center Curtain Shield
Squib RH
DLC3
TC CG
DTC B1163/82 DC
05-1398
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1588 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

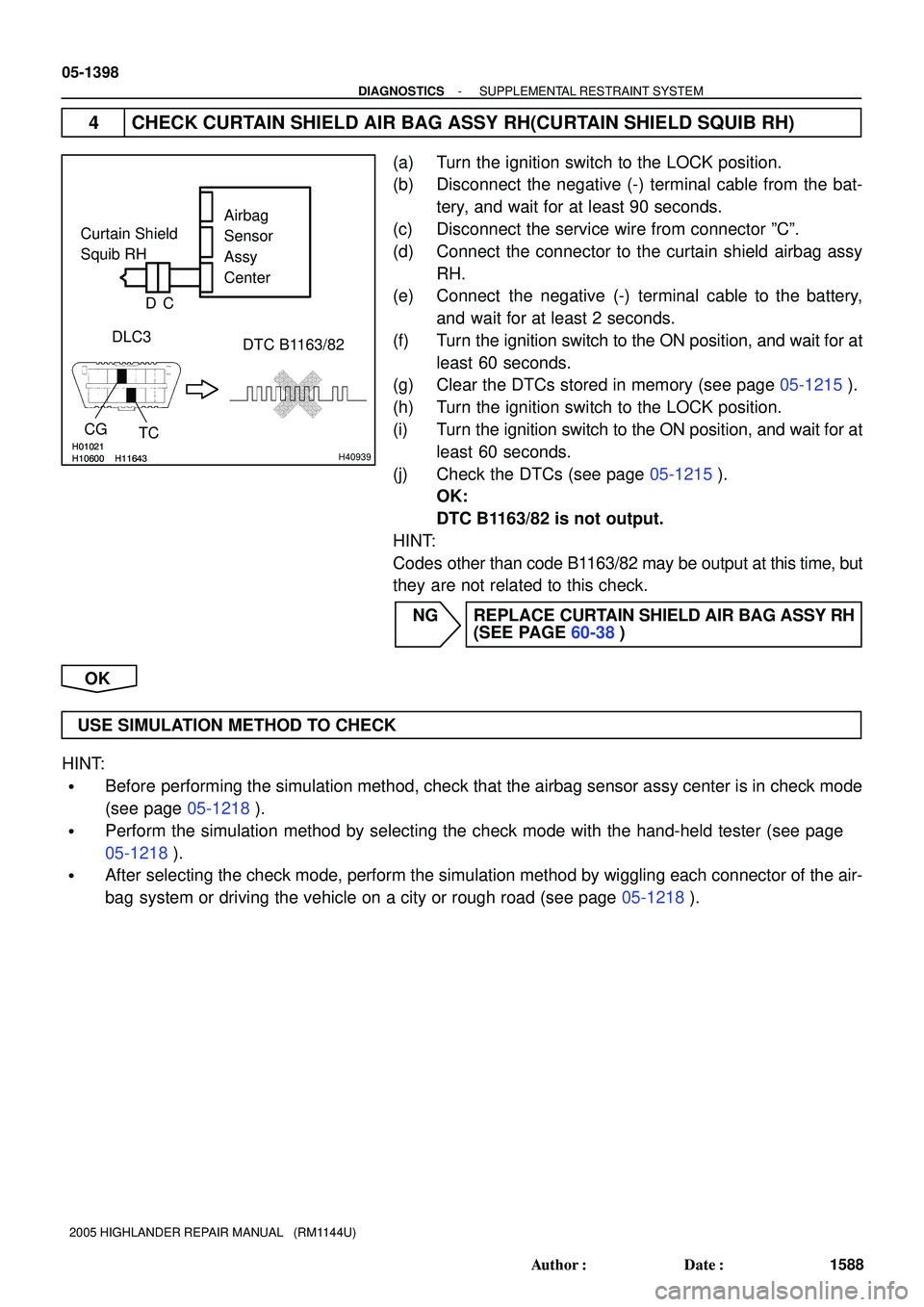

4 CHECK CURTAIN SHIELD AIR BAG ASSY RH(CURTAIN SHIELD SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the curtain shield airbag assy
RH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1163/82 is not output.
HINT:
Codes other than code B1163/82 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY RH
(SEE PAGE 60-38)
OK
USE SIMULATION METHOD TO CHECK
HINT:

Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).

Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).

After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).

H42818H43068H42818H43068H43091
Curtain Shield
Squib RHAirbag
Sensor
Assy
Center
A
B DC
ICR+
ICR-
FE
C19
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1399
1589 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

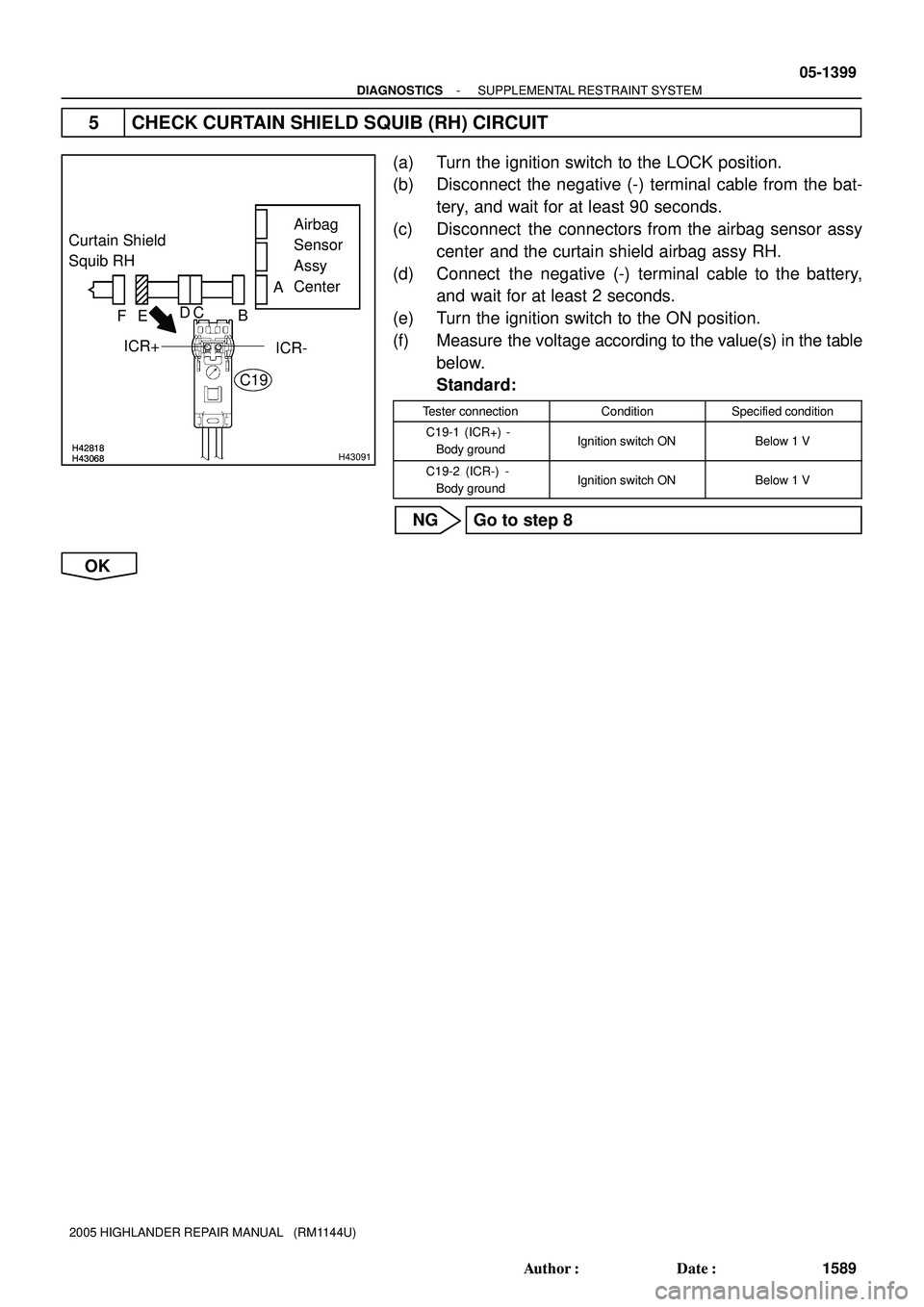

5 CHECK CURTAIN SHIELD SQUIB (RH) CIRCUIT
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the curtain shield airbag assy RH.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
C19-1 (ICR+) -
Body groundIgnition switch ONBelow 1 V
C19-2 (ICR-) -
Body groundIgnition switch ONBelow 1 V
NG Go to step 8
OK

C89252H10600H11643
H43102
C89252
H10600H11643
H43102
H43127
Curtain Shield
Squib RHAirbag
Sensor
Assy
Center
DLC3
CG TCDTC B1163/82
Service Wire
ICR+ICR-
FDC
E
C19
05-1400
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1590 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

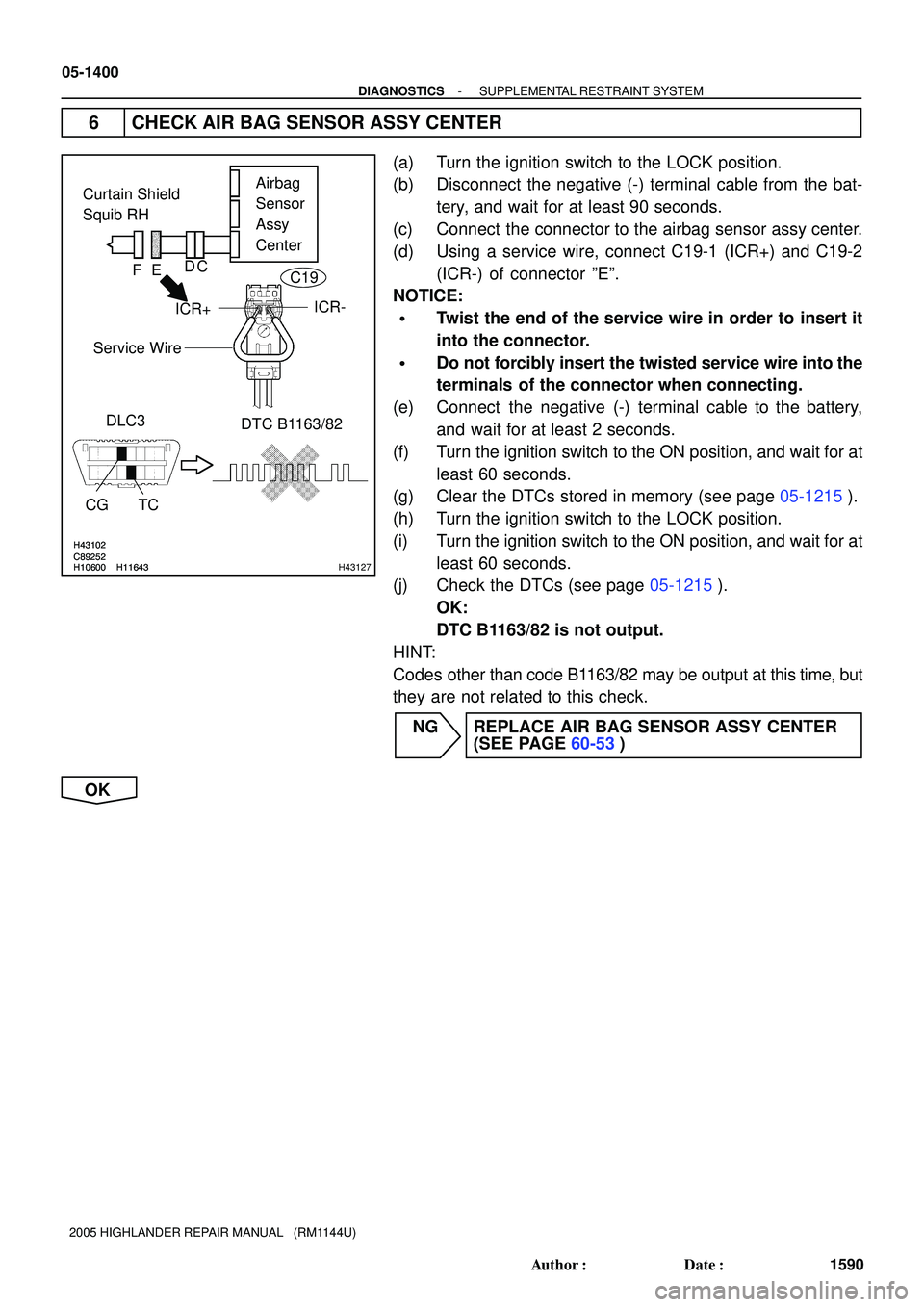

6 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect C19-1 (ICR+) and C19-2
(ICR-) of connector ºEº.
NOTICE:

Twist the end of the service wire in order to insert it
into the connector.

Do not forcibly insert the twisted service wire into the
terminals of the connector when connecting.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1163/82 is not output.
HINT:
Codes other than code B1163/82 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK

H40939H42819H40939H42819H43095
DLC3
TC CGDTC B1163/82 Curtain Shield
Squib RHAirbag
Sensor
Assy
Center
FDCE
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1401
1591 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

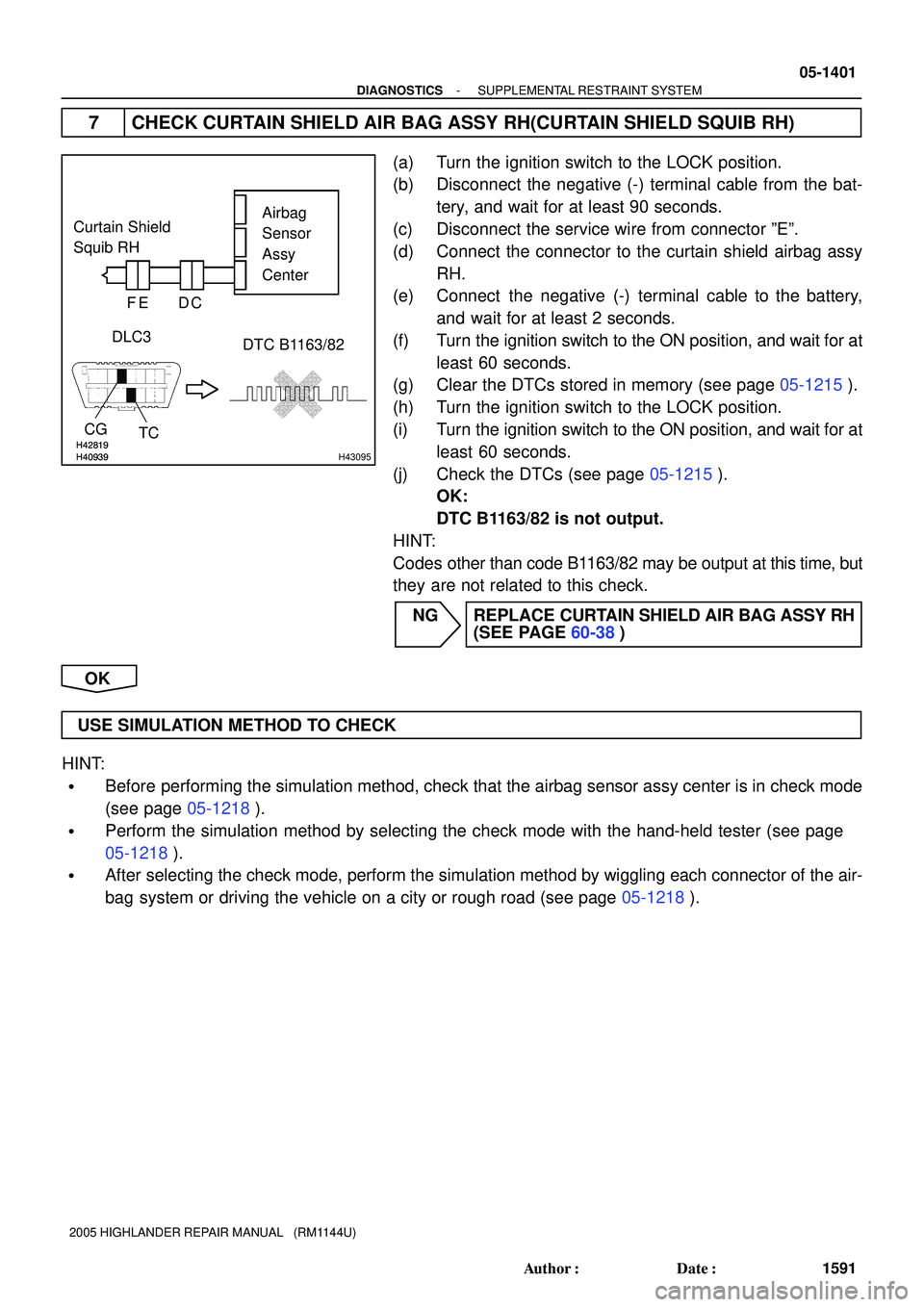

7 CHECK CURTAIN SHIELD AIR BAG ASSY RH(CURTAIN SHIELD SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºEº.
(d) Connect the connector to the curtain shield airbag assy
RH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B1163/82 is not output.
HINT:
Codes other than code B1163/82 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY RH
(SEE PAGE 60-38)
OK
USE SIMULATION METHOD TO CHECK
HINT:

Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).

Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).

After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
