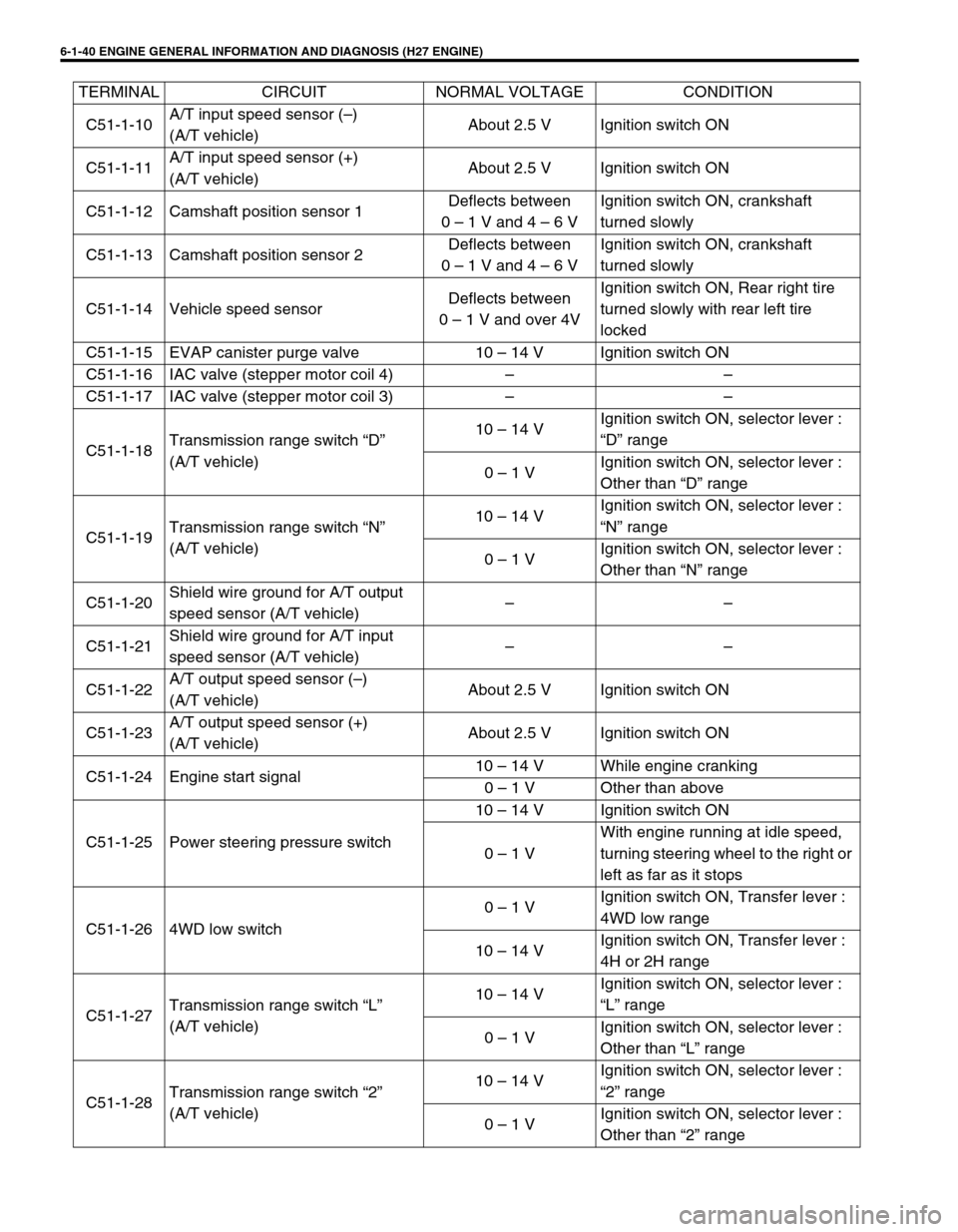

6-1-40 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
C51-1-10A/T input speed sensor (–)
(A/T vehicle)About 2.5 V Ignition switch ON
C51-1-11A/T input speed sensor (+)
(A/T vehicle)About 2.5 V Ignition switch ON
C51-1-12 Camshaft position sensor 1Deflects between
0 – 1 V and 4 – 6 VIgnition switch ON, crankshaft
turned slowly
C51-1-13 Camshaft position sensor 2Deflects between
0 – 1 V and 4 – 6 VIgnition switch ON, crankshaft
turned slowly
C51-1-14 Vehicle speed sensorDeflects between
0 – 1 V and over 4VIgnition switch ON, Rear right tire
turned slowly with rear left tire
locked
C51-1-15 EVAP canister purge valve 10 – 14 V Ignition switch ON
C51-1-16 IAC valve (stepper motor coil 4) – –
C51-1-17 IAC valve (stepper motor coil 3) – –
C51-1-18Transmission range switch “D”
(A/T vehicle)10 – 14 VIgnition switch ON, selector lever :
“D” range
0 – 1 VIgnition switch ON, selector lever :
Other than “D” range
C51-1-19Transmission range switch “N”
(A/T vehicle)10 – 14 VIgnition switch ON, selector lever :
“N” range
0 – 1 VIgnition switch ON, selector lever :
Other than “N” range
C51-1-20Shield wire ground for A/T output
speed sensor (A/T vehicle)––
C51-1-21Shield wire ground for A/T input
speed sensor (A/T vehicle)––
C51-1-22A/T output speed sensor (–)
(A/T vehicle)About 2.5 V Ignition switch ON
C51-1-23A/T output speed sensor (+)
(A/T vehicle)About 2.5 V Ignition switch ON
C51-1-24 Engine start signal10 – 14 V While engine cranking
0 – 1 V Other than above
C51-1-25 Power steering pressure switch10 – 14 V Ignition switch ON
0 – 1 VWith engine running at idle speed,
turning steering wheel to the right or
left as far as it stops
C51-1-26 4WD low switch0 – 1 VIgnition switch ON, Transfer lever :
4WD low range
10 – 14 VIgnition switch ON, Transfer lever :
4H or 2H range
C51-1-27Transmission range switch “L”
(A/T vehicle)10 – 14 VIgnition switch ON, selector lever :
“L” range
0 – 1 VIgnition switch ON, selector lever :
Other than “L” range
C51-1-28Transmission range switch “2”
(A/T vehicle)10 – 14 VIgnition switch ON, selector lever :
“2” range
0 – 1 VIgnition switch ON, selector lever :
Other than “2” range TERMINAL CIRCUIT NORMAL VOLTAGE CONDITION

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-41
C51-2-1 Fuel injector No.2
10 – 14 V Ignition switch ON
C51-2-2 Fuel injector No.1
C51-2-3 – – –
C51-2-4Heater of HO2S-1 (bank 1)
(if equipped)10 – 14 V Ignition switch ON
0 – 2 VAt specified idle speed after engine
warmed up
C51-2-5Heater of HO2S-1 (bank 2)
(if equipped)10 – 14 V Ignition switch ON
0 – 2 VAt specified idle speed after engine
warmed up
C51-2-6 – – –
C51-2-7 Ground – –
C51-2-8 Fuel injector No.4
10 – 14 V Ignition switch ON
C51-2-9 Fuel injector No.3
C51-2-10 – – –
C51-2-11 – – –
C51-2-12EGR valve (stepper motor coil 4)
(if equipped)0 – 1 V
Ignition switch ON C51-2-13EGR valve (stepper motor coil 3)
(if equipped)10 – 14 V
C51-2-14EGR valve (stepper motor coil 2)
(if equipped)10 – 14 V
C51-2-15EGR valve (stepper motor coil 1)
(if equipped)0 – 1 V
C51-2-16Heater of HO2S-2 (bank 1)
(if equipped)10 – 14 V Ignition switch ON
0 – 1 VAt specified idle speed after engine
warmed up
C51-2-17Heater of HO2S-2 (bank 2)
(if equipped)10 – 14 V Ignition switch ON
0 – 1 VAt specified idle speed after engine
warmed up
C51-2-18 – – –
C51-2-19Crankshaft position sensor (+)
(if equipped)––
C51-2-20Crankshaft position sensor (–)
(if equipped)––
C51-2-21 Fuel injector No.6
10 – 14 V Ignition switch ON
C51-2-22 Fuel injector No.5
C51-2-23 Ignition coil assembly for No.6 – –
C51-2-24 Ignition coil assembly for No.5 – –
C51-2-25 Ignition coil assembly for No.4 – –
C51-2-26 Ignition coil assembly for No.3 – –
C51-2-27 Ignition coil assembly for No.2 – –
C51-2-28 Ignition coil assembly for No.1 – –
C51-2-29 – – –
C51-2-30Ground for CKP sensor shield wire
(if equipped)–– TERMINAL CIRCUIT NORMAL VOLTAGE CONDITION

6-1-42 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
RESISTANCE CHECK
1) Disconnect couplers (1) from ECM/PCM with ignition switch
OFF.
2) Check resistance between each pair of terminals of discon-
nected couplers (1) as listed in following table. CAUTION:
Never touch terminals of ECM/PCM itself or connect volt-
meter or ohmmeter (2).
CAUTION:
Be sure to connect ohmmeter (2) probe from wire har-
ness side of coupler.
Be sure to turn OFF ignition switch for this check.
Resistance in table represents that when parts temper-
ature is 20°C (68°F).
TERMINALS CIRCUIT STANDARD
RESISTANCECONDITION
E61-9 and E61-2 Main relay 79 – 95 Ω–
E61-22 and C51-3-20 A/C fan motor relay (if equipped) 75 – 110 ΩBattery disconnected
and ignition switch ON
E61-23 and C51-3-20 Fuel pump relay 79 – 95 Ω–
C51-3-6 and Body ground Ground Continuity –
C51-3-17 and Body ground Ground Continuity –
C51-1-1 and Body ground Shift solenoid B (A/T) 11 – 15 Ω–
C51-1-2 and Body ground Shift solenoid A (A/T)
C51-1-4 and C51-3-4 IAC valve (stepper motor coil 2) 25.5 – 33.5 Ω–
C51-1-5 and C51-3-4 IAC valve (stepper motor coil 1)
C51-1-8 and Body ground TCC solenoid (A/T) 11 – 15 Ω–
C51-1-15 and C51-3-4 EVAP canister purge valve 28 – 35 Ω–
C51-1-16 and C51-3-4 IAC valve (stepper motor coil 4) 25.5 – 33.5 Ω–
C51-1-17 and C51-3-4 IAC valve (stepper motor coil 3)
C51-2-1 and C51-3-4 Fuel injector No.2 13 – 16 Ω–
C51-2-2 and C51-3-4 Fuel injector No.1
C51-2-4, C51-2-5 and E61-9 Heater of HO2S-1 5.0 – 6.4 Ω–
C51-2-7 and Body ground Ground Continuity –
C51-2-8 and C51-3-4 Fuel injector No.4 13 – 16 Ω–
C51-2-9 and C51-3-4 Fuel injector No.3
C51-2-12 and C51-3-4 EGR valve (stepper motor coil 4) 20 – 24 Ω–
C51-2-13 and C51-3-4 EGR valve (stepper motor coil 3)
C51-2-14 and C51-3-4 EGR valve (stepper motor coil 2)
C51-2-15 and C51-3-4 EGR valve (stepper motor coil 1)
C51-2-16, C51- 2-17 and
E61-9Heater of HO2S-2 11.7 – 14.3 Ω–
C51-2-21 and C51-3-4 Fuel injector No.6
13 – 16 Ω–
C51-2-22 and C51-3-4 Fuel injector No.5

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-43
Table A-1 Malfunction Indicator Lamp Circuit Check – Lamp Does Not Come
“ON” or Dims at Ignition Switch ON (But Engine at Stop)
WIRING DIAGRAM
CIRCUIT DESCRIPTION
When the ignition switch is turned ON, ECM causes the main relay to turn ON (close the contact point). Then,
ECM being supplied with the main power, turns ON the malfunction indicator lamp (MIL). When the engine
starts to run and no malfunction is detected in the system, MIL goes OFF but if a malfunction was or is detected,
MIL remains ON even when the engine is running.
INSPECTION
1. MIL
2. To ignition switch
3. Main fuse
4. Main relay
5. ECM (PCM)
6. Monitor connector (if equipped)
Step Action Yes No
1 MIL power supply check :
1) Turn ignition switch ON.
Do other indicator/warning lights in combination
meter comes ON?Go to Step 2. “IG METER” fuse blown,
main fuse blown, Ignition
switch malfunction, “BLK/
WHT” circuit between “IG
METER” fuse and combi-
nation meter or poor cou-
pler connection at
combination meter.

6-1-44 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
Table A-2 Malfunction Indicator Lamp Circuit Check – Lamp Remains “ON”
after Engine Starts
WIRING DIAGRAM/CIRCUIT DESCRIPTION
Refer to TABLE A-1.
INSPECTION
2 ECM power and ground circuit check :
Does engine start?Go to Step 3. Go to “TABLE A-3 ECM
(PCM) POWER AND
GROUND CIRCUIT
CHECK” in this section.
If engine is not cranked,
go to “DIAGNOSIS” in
Section 6G.
3 MIL circuit check :
1) Turn ignition switch OFF and disconnect
connectors from ECM.
2) Check for proper connection to ECM at ter-
minal E61-7.
3) If OK, then using service wire, ground termi-
nal E61-7 in connector disconnected.
Does MIL turn on at ignition switch ON?Substitute a known-good
ECM (PCM) and recheck.Bulb burned out or “PPL/
YEL” wire circuit open. Step Action Yes No
Step Action Yes No
1 DTC check :
1) With ignition switch OFF, install scan tool.
2) Start engine and check DTC.
Is there any malfunction DTC (s).Go to Step 2 of “ENGINE
DIAG. FLOW TABLE” in
this section.Go to Step 2.
2 MIL circuit check :
1) With ignition switch OFF, disconnect cou-
plers from ECM (PCM).
Does MIL turn ON at ignition switch ON?“PPL/YEL” wire shorted to
ground circuit.Substitute a known-good
ECM (PCM) and recheck.

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-45
Table A-3 Malfunction Indicator Lamp Check – MIL Flashes at Ignition Switch
ON (Vehicle with Monitor Connector)
WIRING DIAGRAM/CIRCUIT DESCRIPTION
Refer to TABLE A-1.
TROUBLESHOOTING
Table A-4 Malfunction Indicator Lamp Check – MIL Does Not Flash or Just
Remains ON Even with Grounding Diagnosis Switch Terminal (Vehicle with
Monitor Connector)
WIRING DIAGRAM/CIRCUIT DESCRIPTION
Refer to TABLE A-1.
TROUBLESHOOTING
Step Action Yes No
1 MIL Flashing Pattern check:
1) Turn ignition switch ON.
Does lamp flashing pattern indicate diagnostic
trouble code?Go to Step 2. Go to “Diagnosis” in Sec-
tion 8G.
2 Diag. Switch Circuit check:
Is diag. switch terminal connected to ground via
service wire?System is in good condi-
tion.“YEL” circuit shorted to
ground. If circuit is OK
substitute a known-good
ECM (PCM) and recheck.
Step Action Yes No
1 MIL Circuit check:
1) Turn ignition switch OFF and disconnect
connectors from ECM (PCM).
Does MIL turn ON at ignition switch ON?“PPL/YEL” circuit shorted
to ground.Go to Step 2.
2 ECM (PCM) Connection check:
1) Turn ignition switch OFF.
Is connector (E61-29 connection) connected to
ECM (PCM) properly?Go to Step 3. Poor connector connec-
tion.
3 Diag. switch Terminal Circuit check:
1) Connect connectors to ECM (PCM).
2) Using service wire, ground E61-29 terminal
with connectors connected to ECM (PCM).
3) Turn ignition switch ON.
Does MIL flash?“YEL” or “BLK” circuit
open.Substitute a known-good
ECM (PCM) and recheck.

6-1-46 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
Table A-5 ECM (PCM) Power and Ground Circuit Check – MIL Doesn’t Light at
Ignition Switch ON and Engine Doesn’t Start Though It Is Cranked Up
WIRING DIAGRAM
CIRCUIT DESCRIPTION
When the ignition switch is turned ON, the main relay turns ON (the contact point closes) and the main power is
supplied to ECM (PCM).
1. MIL
2. To ignition switch
3. Main fuse
4. Main relay
5. ECM (PCM)

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-47
INSPECTION
Step Action Yes No
1 Main relay operating sound check :
Is operating sound of main relay heard at igni-
tion switch ON?Go to Step 5. Go to Step 2.
2 Fuse check :
Is main “FI” fuse in good condition?Go to Step 3. Check for short in circuits
connected to this fuse.
3 Main relay check :
1) Turn OFF ignition switch and remove main
relay.
2) Check for proper connection to main relay
at terminal 3 and 4.
3) If OK, check main relay for resistance and
operation referring to “MAIN RELAY
INSPECTION” in Section 6E2.
Is check result satisfactory?Go to Step 4. Replace main relay.
4 ECM (PCM) power circuit check :
1) Turn OFF ignition switch, disconnect con-
nectors from ECM (PCM) and install main
relay.
2) Check for proper connection to ECM (PCM)
at terminals C51-3-20, E61-9, C51-3-15 and
C51-3-4.
3) If OK, then measure voltage between termi-
nal C51-3-20 and ground, E61-9 and
ground with ignition switch ON.
Is each voltage 10 – 14 V?Go to Step 5. “BLK/WHT”, “BLU” or
“BLK/RED” circuit open.
5 ECM power circuit check :
1) Using service wire, ground terminal E61-9
and measure voltage between terminal
C51-3-15 and ground at ignition switch ON.
Is it 10 – 14 V?Check ground circuits
“BLK/GRN” and “BLK/
ORN” for open.
If OK, then substitute a
known-good ECM (PCM)
and recheck.Go to Step 6.
6 Is operating sound of main relay heard in Step
1?Go to Step 7. “BLK/RED” or “BLU/BLK”
wire open.
7 Main relay check :
1) Check main relay according to procedure in
Step 3.
Is main relay in good condition?“BLK/RED” or “BLU/BLK”
wire open.Replace main relay.
