7B1-48 AUTOMATIC TRANSMISSION (4 A/T)
SELECT CABLE
ADJUSTMENT
1) Loosen manual shift lever (select cable side) nut (1).
2) Shift select lever to “N” range.
3) Align center line (2) on manual valve shaft (3) to “N” refer-
ence line (4) as shown.
4) Tighten manual shift lever nut (selector cable side) (1) as
specified torque.
Tightening torque
Manual shift lever nut (a) :
23 N·m (2.3 kg-m, 17.0 lb-ft)
5) After select cable was installed, check for the following.
•Push vehicle with selector lever shifted to “P” range.
Vehicle should not move.
•Vehicle can not be driven in “N” range.
•Vehicle can be driven in “D”, “2” and “L” ranges.
•Vehicle can be backed in “R” range.
1. Selector lever assembly 6. Washer 11. Transmission range switch assembly
2. Selector lever assembly mounting bolt 7. Clip 12. Transmission range switch mounting bolt
3. Selector cable 8. Manual select lever nut (transmission range switch side) 13. Manual select lever nut (selector cable side)
4. Cable bracket 9. Lock washer 14. Selector cable clip
5. Cable bracket mounting bolt 10. Manual select lever Tightening Torque
24
3
1, (a)

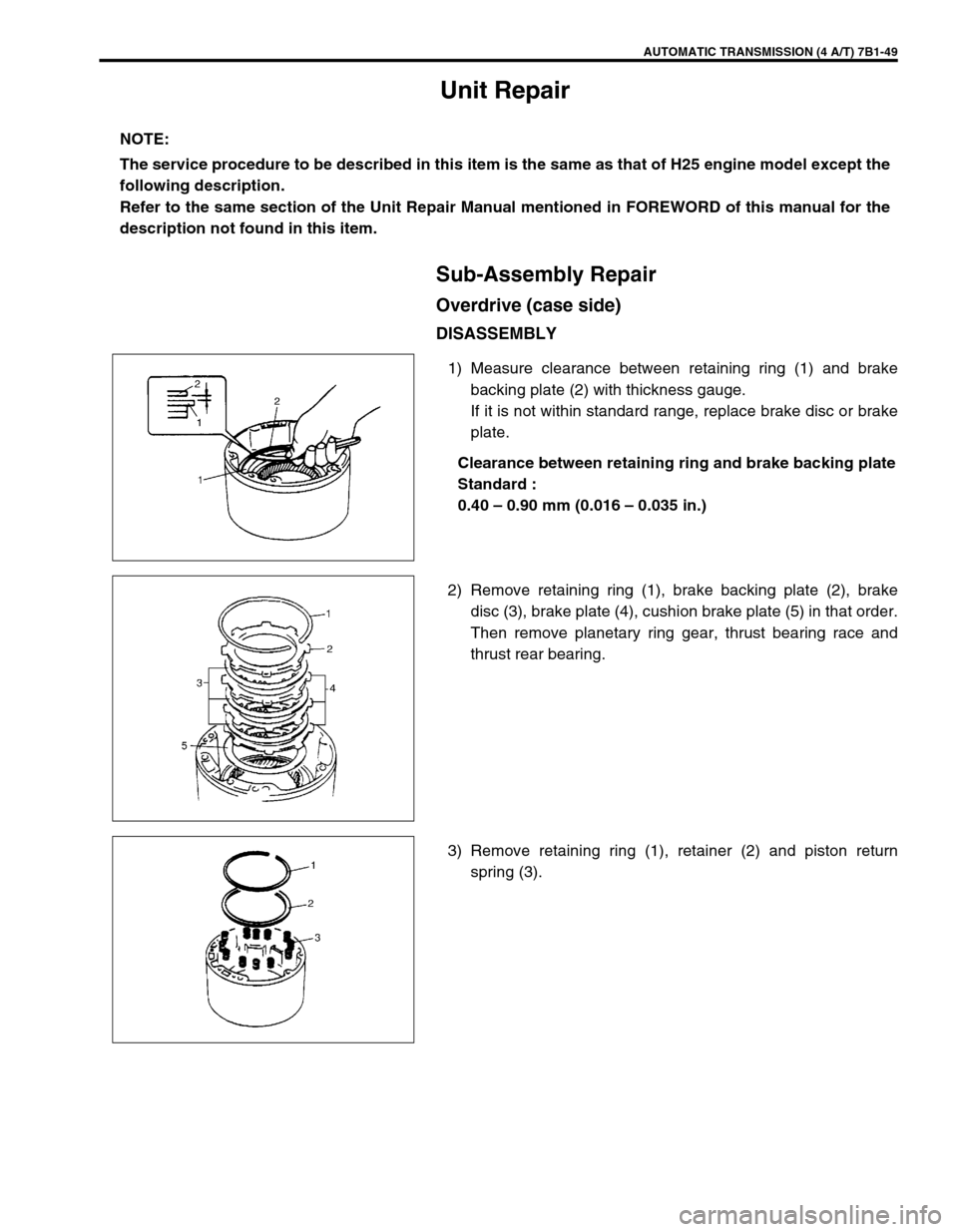

AUTOMATIC TRANSMISSION (4 A/T) 7B1-49
Unit Repair
Sub-Assembly Repair
Overdrive (case side)
DISASSEMBLY
1) Measure clearance between retaining ring (1) and brake
backing plate (2) with thickness gauge.
If it is not within standard range, replace brake disc or brake
plate.
Clearance between retaining ring and brake backing plate
Standard :
0.40 – 0.90 mm (0.016 – 0.035 in.)
2) Remove retaining ring (1), brake backing plate (2), brake
disc (3), brake plate (4), cushion brake plate (5) in that order.
Then remove planetary ring gear, thrust bearing race and
thrust rear bearing.
3) Remove retaining ring (1), retainer (2) and piston return
spring (3). NOTE:
The service procedure to be described in this item is the same as that of H25 engine model except the
following description.
Refer to the same section of the Unit Repair Manual mentioned in FOREWORD of this manual for the
description not found in this item.

7B1-50 AUTOMATIC TRANSMISSION (4 A/T)
4) Blow air into fluid hole in O/D case (2) and remove brake pis-
ton (1).
5) Remove brake piston inner ring and brake piston outer ring
from brake piston.
6) Unsnap seal ring (1).
7) Remove 2 seal rings (1).
Forward clutch
NOTE:
Be careful not to open seal ring more than necessary.
1. Input shaft 5. Retaining ring 9. Clutch disc
2. Piston 6. Bearing race 10. Froward clutch hub
3. Return spring 7. Bearing 11. Direct clutch input hub
4. O-ring 8. Clutch plate

AUTOMATIC TRANSMISSION (4 A/T) 7B1-51
DISASSEMBLY
1) After removing retaining ring (1), remove direct clutch input
hub (2) and forward clutch hub (3).
2) Remove bearing race and thrust bearing.
3) Install direct clutch input hub (1) and retaining ring (2).
4) Install forward clutch (2) to O/D case (1). Apply 4 – 8 kg/cm
2
air pressure into fluid hole at the right of cut in O/D case and
measure movement of forward clutch piston.
If measured value is not within standard range, use either
1.8 mm (0.071 in.) or 2.0 mm (0.079 in.) clutch disc to adjust
it to standard value.
Standard forward clutch piston movement :
1.40 – 1.70 mm (0.056 – 0.067 in.)
1. Thrust bearing No. 2
2. Thrust forward clutch bearing
3. Thrust rear race

7B1-52 AUTOMATIC TRANSMISSION (4 A/T)
5) Remove retaining ring (1) and then remove direct clutch
input hub.
6) Remove retaining ring and then remove all clutch discs.
7) Using special tool and hydraulic press, compress forward
clutch piston return spring and remove retaining return
spring.
Special tool
(A) : 09926-98310
8) Remove forward clutch piston return spring.
9) Install forward clutch to O/D case. Blow low pressure air into
fluid hole at the right of cut in O/D case to remove forward
clutch piston.
CAUTION:
Be careful when applying pressure, for overpressure will
cause plate section of piston return spring to deform.

AUTOMATIC TRANSMISSION (4 A/T) 7B1-53
DIRECT CLUTCH
DISASSEMBLY
1) Install direct clutch assembly (1) to center support (2) and
with 4 – 8 kg/cm
2 air pressure applied to second fluid hole
from the left, measure stroke of direct clutch piston as shown
in figure.
If it is not within standard range, use 3.55 mm, 3.75 mm or
4.0 mm (0.140 in., 0.147 in. or 0.157 in.) clutch backing plate
to adjust it to standard stroke.
Standard direct clutch piston stroke :
0.90 – 1.30 mm (0.035 – 0.051 in.)
2) Remove direct clutch assembly from center support and
then remove retaining ring.
3) Remove clutch backing plate (1) and then remove clutch
disc (3) and clutch plate (2).
4) Using special tool and hydraulic press (1), compress direct
clutch piston return spring (3) and remove retaining return
spring ring (2).
Special tool
(A) : 09926-98310
5) Remove direct clutch piston return spring.
CAUTION:
Be careful when applying pressure, for overpressure will
cause plate section of piston return spring to deform.

7B1-54 AUTOMATIC TRANSMISSION (4 A/T)
6) Install direct clutch cylinder to center support.
Remove direct clutch piston by blowing air into the second
hole from the left as shown in the figure. Also, remove direct
clutch inner piston by blowing air into hole at the extreme
right. And then remove O-rings from pistons.
Front upper valve body
ASSEMBLY
Assemble each component by reversing disassembly procedure
and noting the following points.
•Coil outer diameter and free length of each valve spring
should be as listed below. Be sure to use each one of correct
size.
Coil outer diameter and free length of each valve spring
•Install as many throttle valve compensating rings as written
down when disassembled.
•Tighten throttle cam bolt (1) to specified torque.
Tightening torque
Throttle cam bolt (a) : 7.5 N·m (0.75 kg-m, 5.5 lb-ft)
•Tighten pressure relief valve bolts (1) to specified torque.
Tightening torque
Pressure relief valve bolt (b) : 5.5 N·m (0.55 kg-m, 4.0 lb-ft)
Name of spring Outer diameter Free length
Secondary regulator
valve spring17.43 mm
(0.681 in.)71.27 mm
(2.806 in.)
Cut back valve spring 6.85 mm
(0.259 in.)23.0 mm
(0.906 in.)
Throttle valve
secondary spring8.56 mm
(0.337 in.)18.86 mm
(0.743 in.)
Throttle valve
primary spring10.90 mm
(0.429 in.)39.55 mm
(1.557 in.)

AUTOMATIC TRANSMISSION (4 A/T) 7B1-55
LOWER VALVE BODY
1. Lower valve body 7. TCC (Lock-up) control valve plate 13. Primary regulator valve sleeve
2. Spring 8. TCC (Lock-up) control valve gasket 14. Primary regulator valve plunger
3. Pressure relief valve ball 9. TCC (Lock-up) control sleeve 15. Primary regulator valve
4. Pressure relief valve retainer 10. TCC (Lock-up) control valve 16. Spacer
5. Lower valve body plate 11. Pin
6. Lower valve body gasket 12. Retainer
