6-1-104 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
TROUBLESHOOTING
Step Action Yes No
1Was “ENGINE DIAG. FLOW TABLE” per-
formed?Go to Step 2. Go to “ENGINE DIAG.
FLOW TABLE” in this
section.
2 Does fuel level meter in combination meter indi-
cate “E” (Empty)?Replenish fuel tank with
fuel and go to Step 3.Go to Step 3.
3 Check fuel level sensor and its circuit:
1) Check voltage between terminal E61-28 and
ground with ignition switch ON.
Is it about 7.1 V or more?Go to Step 4. Intermittent trouble or
faulty ECM (PCM).
Check for intermittent
referring to “INTERMIT-
TENT AND POOR CON-
NECTION” in Section
0A.
4 Is voltage in Step 3 “9 – 14 V”?“BLU/WHT” wire shorted
to power circuit or fuel
level meter malfunction.Go to Step 5.
5 Check Fuel Level Sensor:
1) Turn ignition switch OFF and disconnect fuel
level sensor connector (L15 – R01).
2) Check for proper connection to fuel level
sensor at L15-4 and L15-3 terminals.
3) If OK, then check resistance between R01-4
and R01-3 terminals. (Refer to “FUEL LEVEL
GAUGE (SENDER GAUGE)” in Section 8C.)
Is value close to one of above values indicated?“BLU/WHT” or “BLK/YEL”
circuit open.
If wire and connection are
OK, substitute a known-
good ECM (PCM) and
recheck.Check “BLU/WHT” and
“BLK/YEL” wires
between R01 and R02
connections.
If OK, replace fuel level
sensor.

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-105
DTC P0500 (DTC No.24) Vehicle Speed Sensor Malfunction
WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
1. Speedometer
2. Vehicle speed sensor
3. Cruise control module (if equipped)
4. ECM (PCM)
DTC DETECTING CONDITION TROUBLE AREA
Vehicle speed signal not inputted although fuel is kept
cut for longer than 5 seconds
(2 driving cycle detection logic)•Vehicle speed sensor circuit open or short
•Vehicle speed sensor
•Vehicle speed sensor drive gear or driven gear
•Speedometer malfunction
•Cruise control module malfunction (if equipped)
•ECM (PCM)

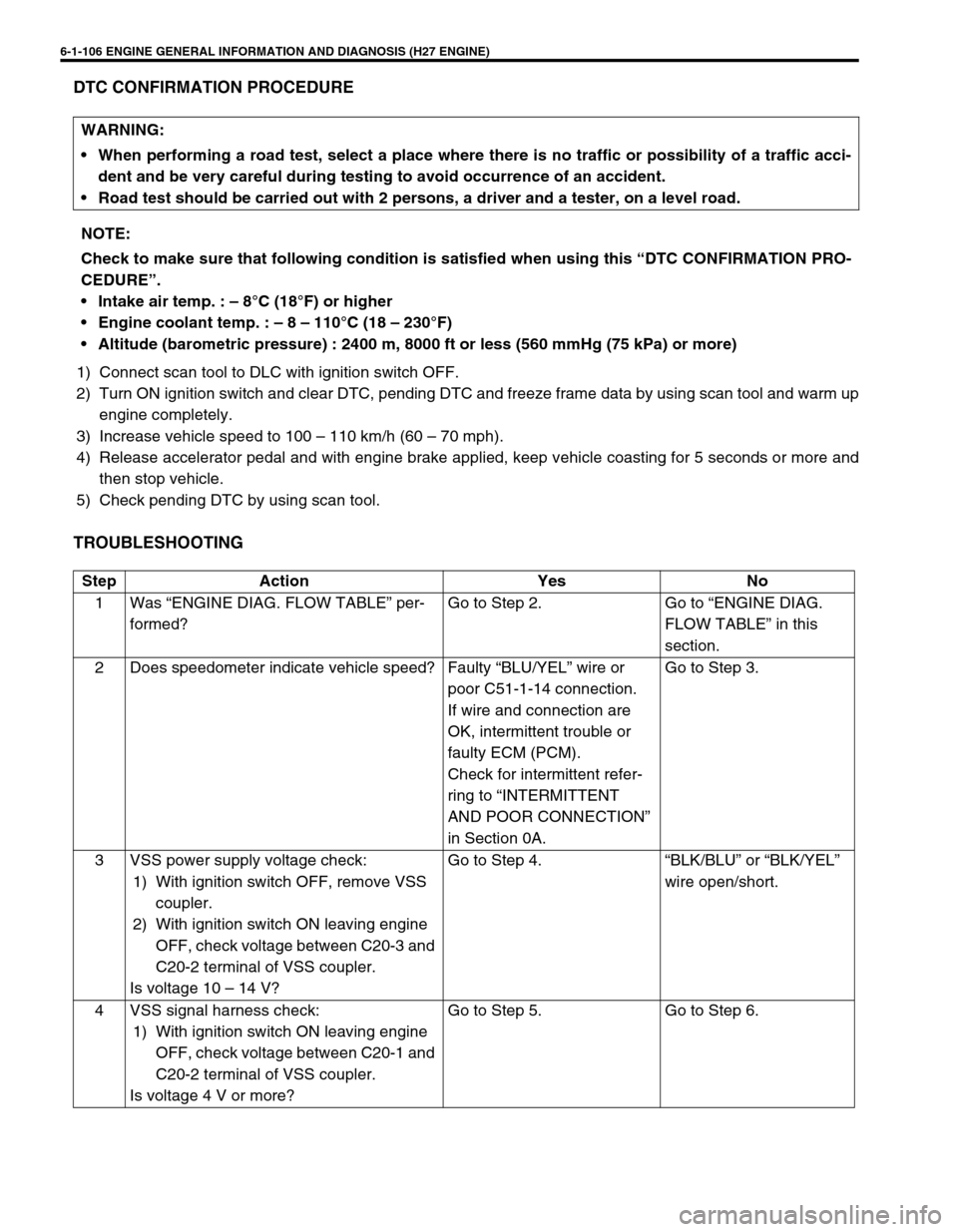

6-1-106 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and warm up
engine completely.
3) Increase vehicle speed to 100 – 110 km/h (60 – 70 mph).
4) Release accelerator pedal and with engine brake applied, keep vehicle coasting for 5 seconds or more and
then stop vehicle.
5) Check pending DTC by using scan tool.
TROUBLESHOOTING
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic acci-
dent and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
NOTE:
Check to make sure that following condition is satisfied when using this “DTC CONFIRMATION PRO-
CEDURE”.
Intake air temp. : – 8°C (18°F) or higher
Engine coolant temp. : – 8 – 110°C (18 – 230°F)
Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
Step Action Yes No
1Was “ENGINE DIAG. FLOW TABLE” per-
formed?Go to Step 2. Go to “ENGINE DIAG.
FLOW TABLE” in this
section.
2 Does speedometer indicate vehicle speed? Faulty “BLU/YEL” wire or
poor C51-1-14 connection.
If wire and connection are
OK, intermittent trouble or
faulty ECM (PCM).
Check for intermittent refer-
ring to “INTERMITTENT
AND POOR CONNECTION”
in Section 0A.Go to Step 3.
3 VSS power supply voltage check:
1) With ignition switch OFF, remove VSS
coupler.
2) With ignition switch ON leaving engine
OFF, check voltage between C20-3 and
C20-2 terminal of VSS coupler.
Is voltage 10 – 14 V?Go to Step 4.“BLK/BLU” or “BLK/YEL”
wire open/short.
4 VSS signal harness check:
1) With ignition switch ON leaving engine
OFF, check voltage between C20-1 and
C20-2 terminal of VSS coupler.
Is voltage 4 V or more?Go to Step 5. Go to Step 6.

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-107
[A] Fig. for Step 3 / [B] Fig. for Step 4, 6, 7
Fig. for Step 55 VSS visual inspection:
1) Remove VSS referring to “TRANSFER”
section.
2) Check VSS drive and driven gears for
damage and excessive wear.
Are they in good condition?Poor VSS connection or VSS
malfunction.
If connection is OK, substi-
tute a known-good VSS and
recheck.Replace VSS.
6 Speedometer circuit check:
1) With ignition switch OFF, disconnect
G11 coupler from combination meter.
2) With ignition switch ON leaving engine
OFF, check voltage between C20-1 and
C20-2 terminal of VSS coupler.
Is voltage 4 V or more?Substitute a known-good
combination meter and
recheck.Go to Step 7.
7 Cruise control module circuit check (if
equipped):
1) With ignition switch OFF, disconnect
E132 coupler from cruise control mod-
ule.
2) With ignition switch ON leaving engine
OFF, check voltage between C20-1 and
C20-2 terminal of VSS coupler.
Is voltage 4 V or more?Substitute a known-good
cruise control module and
recheck.“BLU/YEL” wire open/
short or faulty ECM
(PCM).
If wire and connection are
OK, substitute a known-
good ECM (PCM) and
recheck.
1. VSS coupler
2.“BLU/YEL” (C20-1) terminal
3.“BLK/YEL” (C20-2) terminal
4.“BLU/BLK” (C20-3) terminal
Step Action Yes No
1. VSS coupler
2. VSS driven gear
3. VSS drive gear

6-1-108 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
DTC P0505 Idle Air Control System Malfunction
SYSTEM/WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
1. Throttle body 3. ECM (PCM) 5. FIA valve 7. Main relay
2. Idle air control valve 4. Sensed information 6. Main fuse
DTC DETECTING CONDITION TROUBLE AREA
•Engine idle speed is 100 r/min. or more lower than target idle
speed for longer than 20 sec. continuously.
or
•Engine idle speed is 200 r/min or more higher than target
idle speed for longer than 20 sec. continuously.
(2 driving cycle detection logic)•IAC valve or its circuit
•Abnormal air drawn in air intake system
•FIA (fast idle air) valve

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-109
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and warm up
engine completely.
3) Run engine at idle speed for 1 min.
4) Check pending DTC by using scan tool.
TROUBLESHOOTING
NOTE:
Check to make sure that following condition is satisfied when using this “DTC CONFIRMATION PRO-
CEDURE”.
Intake air temp. : – 8°C (18°F) or higher
Engine coolant temp. : – 8 – 110°C (18 – 230°F)
Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
Step Action Yes No
1Was “ENGINE DIAG. FLOW TABLE” per-
formed?Go to Step 2. Go to “ENGINE DIAG.
FLOW TABLE” in this
section.
2 Idle speed check:
1) Check engine idle speed referring to “IDLE
SPEED/IDLE AIR CONTROL DUTY
INSPECTION” in Section 6E2.
Is engine idle speed within specification?Intermittent trouble or
faulty ECM (PCM).
Check for intermittent
referring to “INTERMIT-
TENT AND POOR CON-
NECTION” in Section 0A.Go to Step 3.
3 IAC valve check:
1) Check IAC valve referring to “IAC VALVE
INSPECTION” in Section 6E2.
Is check result as specified?Go to Step 6. Go to Step 4.
4 IAC valve circuit check:
1) With ignition switch OFF, disconnect ECM
(PCM) couplers.
2) Check for proper connection to IAC valve at
C51-1-4, C51-1-5, C51-1-16 and C51-1-17
terminals.
3) If OK, check resistance between C51-1-4
and C51-1-5, C51-1-16 and C51-1-17.
Is each resistance 51 – 67 Ω?Go to Step 5.“LT GRN/BLK”, “PPL/
BLK”, “GRY/BLU” or
“PPL/YEL” wire open or
short.
If wire and connections
are OK, replace IAC
valve.
5 IAC valve power supply voltage check:
1) Connect ECM (PCM) couplers.
2) With ignition switch OFF, disconnect C29
coupler of IAC valve.
3) With ignition switch ON, check voltage
between C29-2 and ground, C29-5 and
ground.
Is each voltage 10 – 14 V?IAC valve or ECM (PCM)
malfunction.Open “BLU/BLK” wire.

6-1-110 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
DTC P0601 (DTC No.71) Internal Control Module Memory Check Sum Error
SYSTEM DESCRIPTION
Internal control module is installed in ECM (PCM).
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool.
3) Start engine and run it at idle if possible.
4) Check DTC by using scan tool.
TROUBLESHOOTING
Substitute a known-good ECM (PCM) and recheck.6 Was idle speed higher than specification in
Step 2?Check FIA valve for mal-
function.
Check abnormal air inhal-
ing from intake manifold,
throttle body, PCV valve
and EVAP canister purge
control system.Check parts or system
which can cause engine
low idle.
Check FIA valve for stuck.
Air inhaling from between
throttle body and MAF
sensor, EGR valve mal-
function (leakage from
valve seat), accessory
engine load, clog of idle
air passage, engine
mechanical, engine over-
heat and etc. Step Action Yes No
DTC DETECTING CONDITION TROUBLE AREA
Data write error or check sum error ECM (PCM)

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-111
DTC P1408 Manifold Absolute Pressure Sensor Circuit Malfunction
WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
1. MAP sensor
2. ECM (PCM)
DTC DETECTING CONDITION TROUBLE AREA
•While engine is running after being warmed up and
with throttle opening smaller than specification,
higher than 4.6 V manifold absolute pressure sen-
sor output voltage is detected for specified time or
with throttle opening larger than specification, lower
than 0.2 V manifold absolute pressure output volt-
age is detected for specified time.
(2 driving cycle detection logic)•Manifold absolute pressure sensor
•Manifold absolute pressure sensor vacuum pas-
sage
•ECM (PCM)
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic acci-
dent and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
NOTE:
Check to make sure that following condition is satisfied when using this “DTC CONFIRMATION PRO-
CEDURE”.
Intake air temp. : – 8°C (18°F) or higher
Engine coolant temp. : – 8 – 110°C (18 – 230°F)
Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
