TROUBLE DIAGNOSIS
EC-487
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC*1 The following emission-related diagnostic information is cleared when the ECM memory is erased.
1. Diagnostic trouble codes
2. 1st trip diagnostic trouble codes
3. Freeze frame data
4. 1st trip freeze frame data
5. Others
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
ECM part number ECM part number can be read.Diagnostic test mode Function
ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TEST
DTC*1FREEZE
FRAME
DATA*2
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor (PHASE)×
Mass air flow sensor×××
Engine coolant temperature sensor×××××
Heated oxygen sensor 1×××
Heated oxygen sensor 2××
Wheel sensor (Vehicle speed signal)××××
Accelerator pedal position sensor×××
Throttle position sensor×××
Intake air temperature sensor××
Knock sensor×
Refrigerant pressure sensor××
Ignition switch (start signal)××
Closed throttle position switch (accelera-
tor pedal position sensor signal)××
Air conditioner switch××
Park/neutral position (PNP) switch××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Load signal××

EC-488
[QR25(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-455
.
CONSULT-II INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “CONSULT-II” to data link connector, which is located
under LH dash panel near the fuse box cover.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “ENGINE”.
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Injectors×× ×
Power transistor (Ignition timing)×× ×
Throttle control motor relay×××
EVAP canister purge volume control sole-
noid valve×× ×
Air conditioner relay××
Fuel pump relay××××
Cooling fan relay××××
Heated oxygen sensor 1 heater××
Heated oxygen sensor 2 heater××
Intake valve timing control solenoid valve×× ×
Calculated load value×××
VIAS control solenoid valve×× × ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TEST
DTC*1FREEZE
FRAME
DATA*2
PBIB0376E
MBIB0233E

TROUBLE DIAGNOSIS
EC-489
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
If “ENGINE” is not indicated, go to GI-34, "CONSULT-II Data
Link Connector (DLC) Circuit" .
6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of “DTC and 1st trip DTC”, refer to EC-1119, "INDEX FOR DTC" .)
Freeze Frame Data and 1st Trip Freeze Frame Data
SEF995X
SEF824Y
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE
●FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN
●THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT
●THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When releasing fuel pressure
from fuel line
TARGET IDLE RPM ADJ*
●IDLE CONDITION When setting target idle speed
TARGET IGNITION TIMING ADJ*
●IDLE CONDITION When adjusting target ignition tim-
ing
Freeze frame data
item*1Description
DIAG TROUBLE
CODE
[PXXXX]
●The engine control component part/control system has a trouble code, it is displayed as “PXXXX”. (Refer
to EC-1119, "
INDEX FOR DTC" .)
FUEL SYS-B1
●“Fuel injection system status” at the moment a malfunction is detected is displayed.
●One mode in the following is displayed.
“MODE 2”: Open loop due to detected system malfunction
“MODE 3”: Open loop due to driving conditions (power enrichment, deceleration enrichment)
“MODE 4”: Closed loop - using oxygen sensor(s) as feedback for fuel control
“MODE 5”: Open loop - has not yet satisfied condition to go to closed loop

EC-490
[QR25(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
*1: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
×: Applicable CAL/LD VALUE [%]
●The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C]
or [°F]
●The engine coolant temperature at the moment a malfunction is detected is displayed.
S-FUEL TRIM-B1 [%]
●“Short-term fuel trim” at the moment a malfunction is detected is displayed.
●The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule.
L-FUEL TRIM-B1 [%]
●“Long-term fuel trim” at the moment a malfunction is detected is displayed.
●The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim.
ENGINE SPEED
[rpm]
●The engine speed at the moment a malfunction is detected is displayed.
VHCL SPEED [km/h]
or [mph]
●The vehicle speed at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]
●The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C]
or [°F]
●The intake air temperature at the moment a malfunction is detected is displayed. Freeze frame data
item*1Description
Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
ENG SPEED [rpm]××
●Indicates the engine speed computed
from the signals of the crankshaft posi-
tion sensor (POS) and camshaft posi-
tion sensor (PHASE).●Accuracy becomes poor if engine
speed drops below the idle rpm.
●If the signal is interrupted while the
engine is running, an abnormal
value may be indicated.
MAS A/F SE-B1 [V]××
●The signal voltage of the mass air flow
sensor is displayed.●When the engine is stopped, a
certain value is indicated.
COOLAN TEMP/S
[°C] or [°F]××
●The engine coolant temperature (deter-
mined by the signal voltage of the
engine coolant temperature sensor) is
displayed.
●When the engine coolant tempera-
ture sensor is open or short-cir-
cuited, ECM enters fail-safe mode.
The engine coolant temperature
determined by the ECM is dis-
played.
HO2S1 (B1) [V]××
●The signal voltage of heated oxygen
sensor 1 is displayed.
HO2S2 (B1) [V]××
●The signal voltage of heated oxygen
sensor 2 is displayed.
HO2S1 MNTR (B1)
[RICH/LEAN]××
●Display of heated oxygen sensor 1 sig-
nal during air-fuel ratio feedback control:
RICH ... means the mixture became
“rich”, and control is being affected
toward a leaner mixture.
LEAN ... means the mixture became
“lean”, and control is being affected
toward a rich mixture.●After turning ON the ignition
switch, “RICH” is displayed until
air-fuel mixture ratio feedback
control begins.
●When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continu-
ously.

TROUBLE DIAGNOSIS
EC-491
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
HO2S2 MNTR (B1)
[RICH/LEAN]×
●Display of heated oxygen sensor 2 sig-
nal:
RICH ... means the amount of oxygen
after three way catalyst is relatively
small.
LEAN ... means the amount of oxygen
after three way catalyst is relatively
large.
●When the engine is stopped, a
certain value is indicated.
VHCL SPEED SE
[km/h] or [mph]××
●The vehicle speed computed from the
vehicle speed signal is displayed.
BATTERY VOLT
[V]××
●The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]××
●The accelerator pedal position sensor
signal voltage is displayed.
ACCEL SEN 2 [V]×
THRTL SEN 1 [V]××
●The throttle position sensor signal volt-
age is displayed.
THRTL SEN 2 [V]×
INT/A TEMP SE
[°C] or [°F]××
●The intake air temperature (determined
by the signal voltage of the intake air
temperature sensor) is indicated.
START SIGNAL
[ON/OFF]××
●Indicates [ON/OFF] condition from the
starter signal.●After starting the engine, [OFF] is
displayed regardless of the starter
signal.
CLSD THL POS
[ON/OFF]××
●Indicates idle position [ON/OFF] com-
puted by ECM according to the acceler-
ator pedal position sensor signal.
AIR COND SIG
[ON/OFF]××
●Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF]××
●Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch sig-
nal.
PW/ST SIGNAL
[ON/OFF]××
●[ON/OFF] condition of the power steer-
ing system (determined by the signal
voltage of the power steering pressure
sensor signal) is indicated.
LOAD SIGNAL
[ON/OFF]××
●Indicates [ON/OFF] condition from the
electrical load signal.
ON ... Rear window defogger switch is
ON and/or lighting switch is in 2nd posi-
tion.
OFF ... Both rear window defogger
switch and lighting switch are OFF.
IGNITION SW
[ON/OFF]××
●Indicates [ON/OFF] condition from igni-
tion switch.
HEATER FAN SW
[ON/OFF]×
●Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]×
●Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec]×
●Indicates the actual fuel injection pulse
width compensated by ECM according
to the input signals.●When the engine is stopped, a
certain computed value is indi-
cated. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks

EC-492
[QR25(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
B/FUEL SCHDL
[msec]×
●“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
IGN TIMING
[BTDC]×
●Indicates the ignition timing computed
by ECM according to the input signals.●When the engine is stopped, a
certain value is indicated.
A/F ALPHA-B1 [%]×
●The mean value of the air-fuel ratio
feedback correction factor per cycle is
indicated.
●When the engine is stopped, a
certain value is indicated.
●This data also includes the data
for the air-fuel ratio learning con-
trol.
CAL/LD VALUE [%]
●“Calculated load value” indicates the
value of the current airflow divided by
peak airflow.
MASS AIRFLOW
[g·m/s]
●Indicates the mass airflow computed by
ECM according to the signal voltage of
the mass air flow sensor.
PURG VOL C/V
[%]
●Indicates the EVAP canister purge vol-
ume control solenoid valve control value
computed by the ECM according to the
input signals.
●The opening becomes larger as the
value increases.
INT/V TIM (B1)
[°CA]
●Indicates [°CA] of intake camshaft
advanced angle.
INT/V SOL (B1) [%]
●The control condition of the intake valve
timing control solenoid valve (deter-
mined by ECM according to the input
signals) is indicated.
ON ... intake valve timing control is oper-
ating.
OFF ... Intake valve timing control is not
operating.
VIAS S/V
[ON/OFF]
●The control condition of the VIAS control
solenoid valve (determined by ECM
according to the input signals) is indi-
cated.
ON ... VIAS control solenoid valve is
operating.
OFF ... VIAS control solenoid valve is
not operating.
AIR COND RLY
[ON/OFF]×
●The air conditioner relay control condi-
tion (determined by ECM according to
the input signals) is indicated.
FUEL PUMP RLY
[ON/OFF]×
●Indicates the fuel pump relay control
condition determined by ECM according
to the input signals.
THRTL RELAY
[ON/OFF]
●Indicates the throttle control motor relay
control condition determined by the
ECM according to the input signals. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks

TROUBLE DIAGNOSIS
EC-493
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
NOTE:
●Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically. COOLING FAN
[HI/LOW/OFF]
●Indicates the condition of the cooling fan
(determined by ECM according to the
input signals).
HI ... High speed operation
LOW ... Low speed operation
OFF ... Stop
HO2S1 HTR (B1)
[ON/OFF]
●Indicates [ON/OFF] condition of heated
oxygen sensor 1 heater determined by
ECM according to the input signals.
HO2S2 HTR (B1)
[ON/OFF]
●Indicates [ON/OFF] condition of heated
oxygen sensor 2 heater determined by
ECM according to the input signals.
IDL A/V LEARN
[YET/CMPLT]
●Display the condition of idle air volume
learning
YET ... Idle air volume learning has not
been performed yet.
CMPLT ... Idle air volume learning has
already been performed successfully.
TRVL AFTER MIL
[km] or [mile]
●Distance traveled while MI is activated.
AC PRESS SEN
[V]
●The signal voltage from the refrigerant
pressure sensor is displayed.
Voltage [V]
●Voltage, frequency, duty cycle or pulse
width measured by the probe.
●Only “#” is displayed if item is
unable to be measured.
●Figures with “#”s are temporary
ones. They are the same figures
as an actual piece of data which
was just previously measured. Frequency
[msec], [Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOW
CAN COMM
[OK/NG]×
●Indicates the communication condition
of CAN communication line.●These items are not displayed in
“SELECTION FROM MENU”
mode. CAN CIRC 1
[OK/UNKWN]×
CAN CIRC 2
[OK/UNKWN]×
CAN CIRC 3
[OK/UNKWN]×
CAN CIRC 4
[OK/UNKWN]×
CAN CIRC 5
[OK/UNKWN]× Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks

EC-506
[QR25(WITHOUT EURO-OBD)]

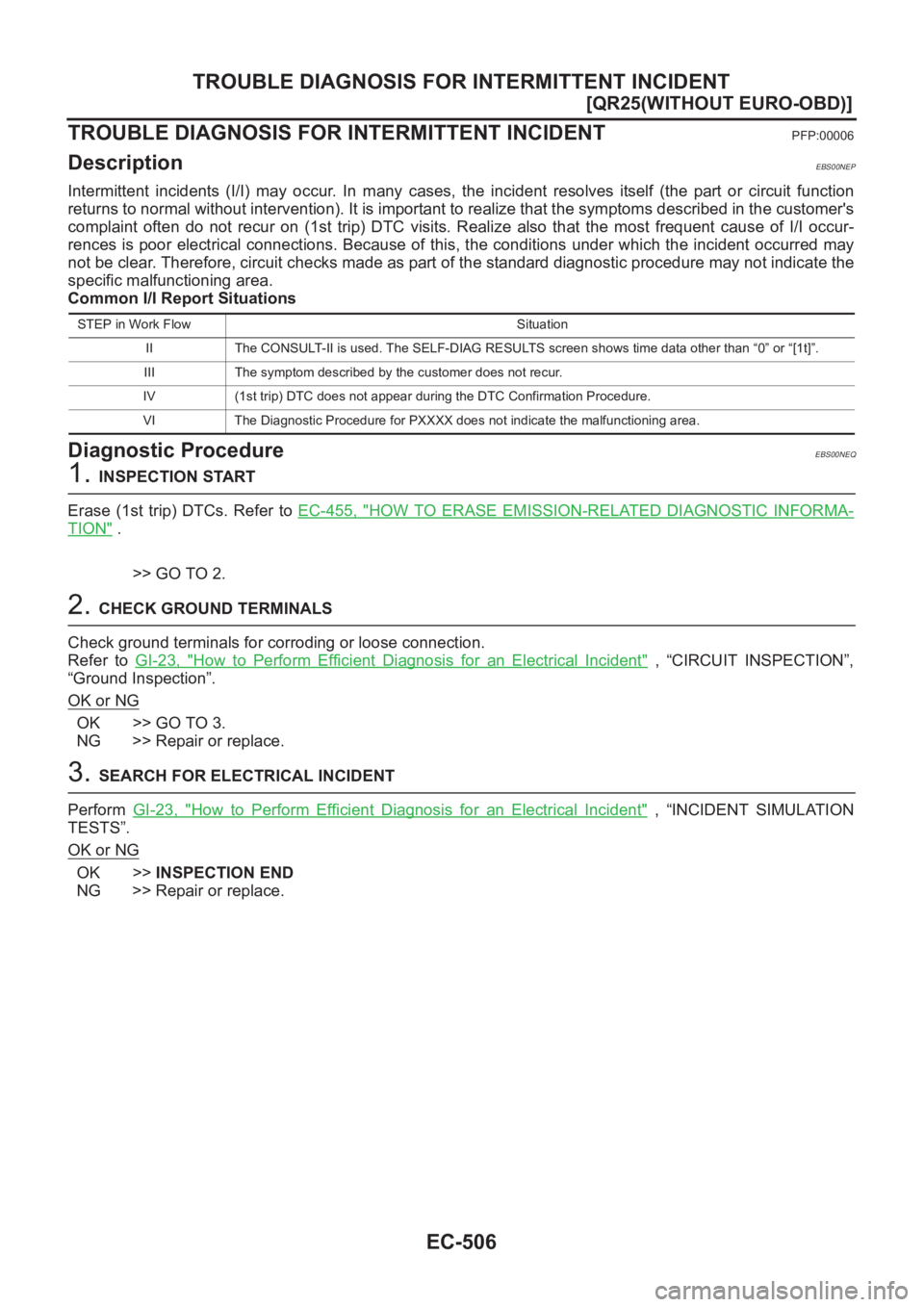

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
PFP:00006
DescriptionEBS00NEP
Intermittent incidents (I/I) may occur. In many cases, the incident resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of I/I occur-
rences is poor electrical connections. Because of this, the conditions under which the incident occurred may
not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the
specific malfunctioning area.
Common I/I Report Situations
Diagnostic ProcedureEBS00NEQ
1. INSPECTION START
Erase (1st trip) DTCs. Refer to EC-455, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-
TION" .
>> GO TO 2.
2. CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer to GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “CIRCUIT INSPECTION”,
“Ground Inspection”.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. SEARCH FOR ELECTRICAL INCIDENT
Perform GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “INCIDENT SIMULATION
TESTS”.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace.
STEP in Work Flow Situation
II The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0” or “[1t]”.
III The symptom described by the customer does not recur.
IV (1st trip) DTC does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.
