2001 NISSAN X-TRAIL diagram

BRC-118
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Symptom 7: SLIP Indicator Lamp Does Not Illuminate
EFS001AY
Inspection procedure
1. SLIP INDICATOR LAMP BURNED-OUT BULB INSPECTION
Check for continuity between the power supply terminal of meter and terminal of ABS warning lamp.
Is inspection result OK?
YES >> GO TO 2.
NO >> Circuit malfunction in SLIP indicator lamp or combination meter
2. SLIP INDICATOR LAMP POWER CIRCUIT INSPECTION
Disconnect the meter connector. Check that the voltage between the vehicle-side harness terminal and body
ground is battery voltage (Approx. 12V).
Is inspection result OK?
YES >> GO TO 3.
NO >>
●Fuse inspection
●Inspection for harness and connectors between fuse block and meter
●Check the power supply circuit (battery and ignition switch circuit).
3. SLIP INDICATOR LAMP HARNESS INSPECTION
1. Disconnect connectors for the ESP/TCS/ABS control unit and meter vehicle-side harness.
2. Check the harness between the meter and the ESP/TCS/ABS control unit for an open/shorted circuit.
Is inspection result OK?
YES >> GO TO 4.
NO >> Repair or replace the disconnected harness.
4. SLIP INDICATOR LAMP CONNECTOR INSPECTION
Check connectors for the ESP/TCS/ABS control unit and meter vehicle-side harness.
Is inspection result OK?
YES >> Connect connectors, and perform the self-diagnosis. The vehicle harness has the intermediate
connector. Refer to the vehicle wiring diagram, always check it.
NO >> Repair or replace the disconnected connector.
Symptom 8: During ESP/TCS/ABS Control, Vehicle Behavior is Jerky.EFS001AZ
Inspection procedure
1. ENGINE SPEED SIGNAL INSPECTION
Perform “DATA MONITOR” with CONSULT-II for the ESP/TCS/ABS control unit.
Is the engine speed at idle 400 rpm or higher?
YES >> Normal
NO >> GO TO 2.
2. SELF-DIAGNOSIS RESULT CHECK 1
Perform the ESP/TCS/ABS control unit self-diagnosis.
Is the self-diagnosis results displayed?
YES >> After checking and repairing the applicable item, perform the ESP/TCS/ABS control unit self-
diagnosis again.
NO >> GO TO 3.

STEERING COLUMN
PS-9
C
D
E
F
H
I
J
K
L
MA
B
PS

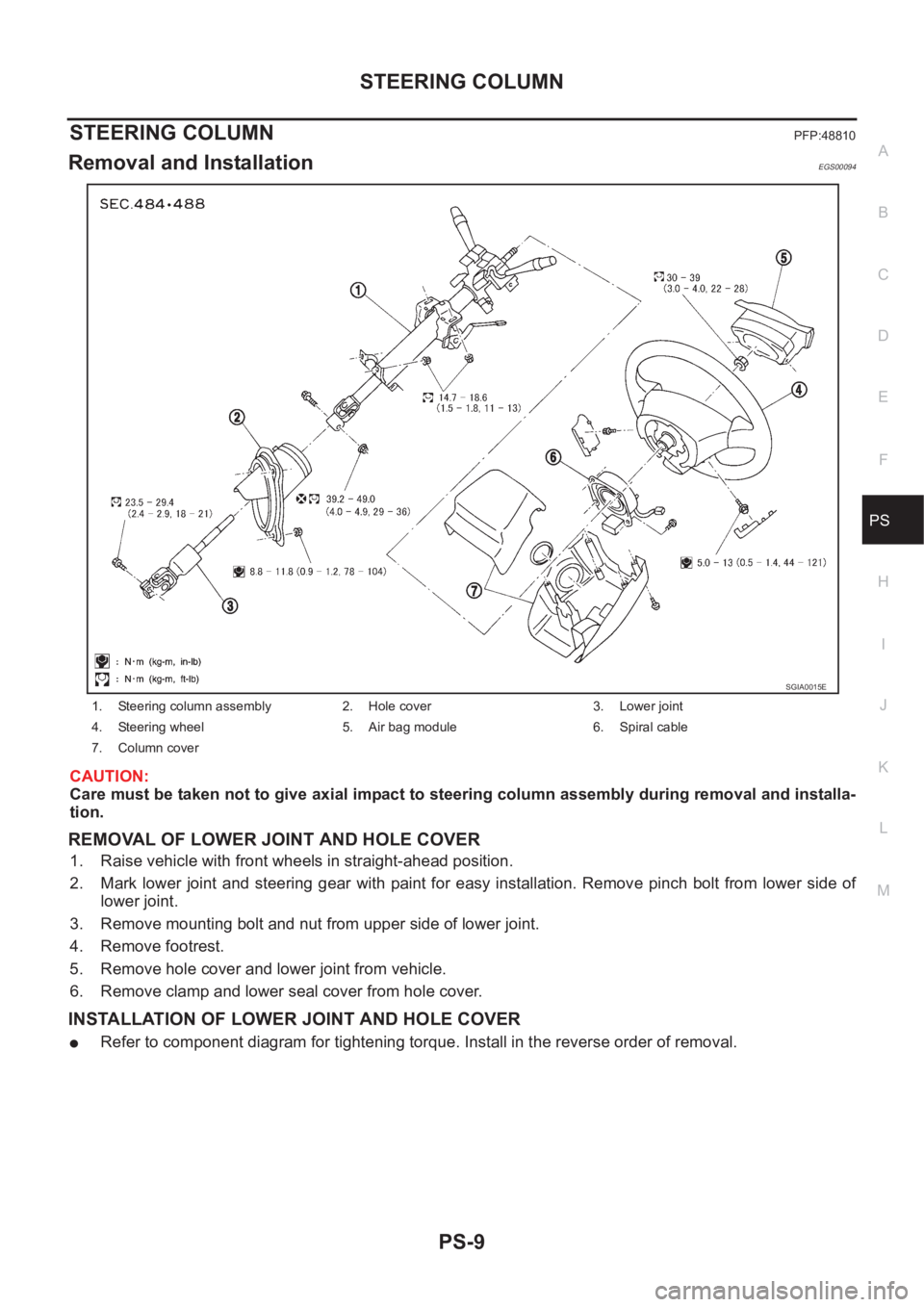

STEERING COLUMNPFP:48810
Removal and InstallationEGS00094
CAUTION:
Care must be taken not to give axial impact to steering column assembly during removal and installa-
tion.
REMOVAL OF LOWER JOINT AND HOLE COVER
1. Raise vehicle with front wheels in straight-ahead position.
2. Mark lower joint and steering gear with paint for easy installation. Remove pinch bolt from lower side of
lower joint.
3. Remove mounting bolt and nut from upper side of lower joint.
4. Remove footrest.
5. Remove hole cover and lower joint from vehicle.
6. Remove clamp and lower seal cover from hole cover.
INSTALLATION OF LOWER JOINT AND HOLE COVER
●Refer to component diagram for tightening torque. Install in the reverse order of removal.
1. Steering column assembly 2. Hole cover 3. Lower joint
4. Steering wheel 5. Air bag module 6. Spiral cable
7. Column cover
SGIA0015E

SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION
A
B
SB
SEAT BELTS
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precaution for Seat Belt Service .............................. 2
AFTER A COLLISION ........................................... 2
SEAT BELTS .............................................................. 3
Removal and Installation of Front Seat Belt ............. 3
REMOVAL ............................................................. 3
INSTALLATION ..................................................... 3
Removal and Installation of Rear Seat Belt ............. 4
REMOVAL/WITH 2-POINT TYPE REAR CEN-
TER SEAT BELT ................................................... 4
INSTALLATION/WITH 2-POINT TYPE REAR
CENTER SEAT BELT ........................................... 4
REMOVAL/WITH 3-POINT TYPE REAR CEN-
TER SEAT BELT ................................................... 4
INSTALLATION /WITH 3-POINT TYPE REAR
CENTER SEAT BELT ........................................... 5
SEAT BELT WARNING SYSTEM ............................... 6Component Parts and Harness Connector Location ..... 6
System Description ................................................... 6
DRIVER SIDE ....................................................... 6
PASSENGER SIDE ............................................... 6
SEAT BELT WARNING CHIME AND SEAT BELT
WARNING LAMP .................................................. 6
Time Chart for Seat Belt Warning Lamp and Chime ..... 7
Wiring Diagram — S/WARN—/LHD models ............. 8
Wiring Diagram-S/WARN-/RHD models ................... 9
Terminal and Reference Value for Time Control Unit ... 10
Symptom Chart ....................................................... 10
Seat Belt Warning Lamp Inspection (Driver side) ... 11
Seat belt Warning Lamp Inspection (Passenger
Side) ....................................................................... 13
Seat Belt Buckle Switch Inspection (Driver side) .... 14
Seat Belt Buckle Switch Inspection (Passenger
Side) ....................................................................... 15
Seat Pressure Switch Inspection ............................ 16
Vehicle Speed Signal Inspection ............................ 18

SB-8
SEAT BELT WARNING SYSTEM
Wiring Diagram — S/WARN—/LHD models
EHS000GR
THWA0007E

SEAT BELT WARNING SYSTEM
SB-9
C
D
E
F
G
I
J
K
L
MA
B
SB
Wiring Diagram-S/WARN-/RHD modelsEHS000H1
THWA0008E

SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION
A
B
SRS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ..................................... 3
Trouble Diagnosis Precaution .................................. 3
PREPARATION ........................................................... 4
Special Service Tool ................................................. 4
Commercial Service Tool ......................................... 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) ....... 5
SRS Configuration ................................................... 5
Front Seat Belt Pre-tensioner with Load Limiter ...... 5
Front Side Air Bag .................................................... 6
TROUBLE DIAGNOSIS .............................................. 7
Trouble Diagnosis Introduction ................................. 7
DIAGNOSIS FUNCTION ....................................... 7
HOW TO PERFORM TROUBLE DIAGNOSES
FOR QUICK AND ACCURATE REPAIR ............... 7
WORK FLOW ........................................................ 7
SRS Components Parts Location ............................. 9
Wiring Diagram — SRS — /LHD models ............... 10
Wiring Diagram-SRS-/RHD models ....................... 12
CONSULT-II Function ............................................ 14
DIAGNOSIS MODE FOR CONSULT-II ............... 14
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II .............................................. 14
HOW TO ERASE SELF-DIAGNOSIS RESULTS ... 15
Self-Diagnosis Function (Without CONSULT-II) ..... 15
HOW TO CHANGE SELF-DIAGNOSIS MODE ... 15
HOW TO ERASE SELF-DIAGNOSIS RESULTS ... 15
SRS Operation Check ............................................ 16
DIAGNOSTIC PROCEDURE 1 ........................... 16
Trouble Diagnoses With CONSULT–II ................... 18
DIAGNOSTIC PROCEDURE 2 ........................... 18
DIAGNOSTIC PROCEDURE 3 ........................... 20
DIAGNOSTIC CODE CHART ................................ 21
Trouble Diagnoses Without CONSULT-II ............... 23
DIAGNOSTIC PROCEDURE 4 ........................... 23
WARNING LAMP FLASH CODE CHART ........... 24Trouble Diagnoses: “AIR BAG” Warning Lamp Does
Not Turn Off ............................................................ 27
DIAGNOSTIC PROCEDURE 5 ........................... 27
Trouble Diagnoses: “AIR BAG” Warning Lamp Does
Not Turn On ............................................................ 28
DIAGNOSTIC PROCEDURE 6 ........................... 28
DRIVER AIR BAG MODULE .................................... 29
Removal and Installation/With 4-Spoke Steering
Wheel ..................................................................... 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 30
Removal and Installation/With 3-Spoke Steering
Wheel ..................................................................
... 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 32
SPIRAL CABLE ........................................................ 33
Removal and Installation ........................................ 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 34
Components Inspection .......................................... 34
FRONT PASSENGER AIR BAG MODULE .............. 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 35
INSTALLATION ................................................... 35
FRONT SIDE AIR BAG MODULE ............................ 36
Removal and Installation ........................................ 36
REMOVAL ........................................................... 36
INSTALLATION ................................................... 36
SIDE AIR BAG (SATELLITE) SENSOR ................... 38
Removal and Installation ........................................ 38
REMOVAL ........................................................... 38
INSTALLATION ................................................... 38
FRONT SEAT BELT PRE-TENSIONER ................... 39
Removal and Installation ........................................ 39
DIAGNOSIS SENSOR UNIT ..................................... 40
Removal and Installation ........................................ 40
REMOVAL ........................................................... 40
INSTALLATION ................................................... 40
ECU DISCRIMINATED NO. ................................ 40
DISPOSAL OF AIR BAG MODULE AND SEAT BELT

PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS000QI
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceEHS000BH
●Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
●Before servicing the SRS, turn ignition switch “OFF”, disconnect both battery cables and wait at least 3
minutes.
For approximately 3 minutes after the cables is removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
●Diagnosis sensor unit must always be installed with their arrow marks “⇐” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before instal-
lation and replace as required.
●The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.
●Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and place front side air bag module standing with stud bolt side setting bottom.
●Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
●After air bag inflates, the front instrument panel assembly should be replaced if damaged.
Trouble Diagnosis PrecautionEHS000BI
When you read wiring diagrams, refer to the followings:
●“HOW TO READ WIRING DIAGRAMS” in GI section
●PG-2, "POWER SUPPLY ROUTING" in PG section
When you perform trouble diagnosis, refer to the followings:
●“HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSIS” in GI section
●“HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT” in GI section
Check for any service bulletins before servicing the vehicle.

SRS-10
TROUBLE DIAGNOSIS
Wiring Diagram — SRS — /LHD models
EHS000CO
THWA0001E
