INTAKE MANIFOLD
EM-123
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
INTAKE MANIFOLDPFP:14003
Removal and InstallationEBS00LRF
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the engine coolant when the engine is hot.
1. Drain engine coolant. Refer to CO-29, "
Changing Engine Coolant" .
2. Remove air duct. Refer to EM-120, "
Removal and Installation" .
3. Remove charge air cooler and bracket. Refer to EM-122, "
Removal and Installation" .
4. Remove air inlet pipes. Refer to EM-127, "
Removal and Installation" .
5. Remove exhaust manifold cover.
6. Disconnect electronic EGR control valve water hoses and harness.
7. Disconnect heater hose.
8. Remove EGR Cooler.
PBIC0675E
1. Vacuum & fuel gallery 2. Water hose 3. Electronic EGR volume control valve
4. Gasket 5. EGR passage 6. EGR support
7. Water pipe 8. EGR Cooler 9. Intake manifold

EM-126
[YD22DDTi]
CATALYST
CATALYST
PFP:20905
Removal and InstallationEBS00LRG
REMOVAL
1. Remove engine undercover.
2. Drain engine coolant. Refer to CO-29, "
Changing Engine Coolant" .
3. Remove radiator upper and lower hoses.
4. Remove radiator fan. Refer to CO-33, "
Disassembly and Assembly Radiator Fan" .
5. Remove radiator mount bracket and radiator. Refer to CO-32, "
Removal and Installation" .
6. Remove water inlet pipe.
7. Remove insulators.
8. Disconnect exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
9. Remove catalyst.
CAUTION:
Do not disassemble.
Install two locking pins into both sides of the catalyst. Be careful not to confuse locking pins with insulator
mounting bolts.
INSTALLATION
Install in reverse order of removal.
●Pushing gussets against the oil pan and the catalyst, temporarily tighten the mounting bolt. And then
tighten it to the specified torque.
SBIA0157E
1. Catalyst insulator 2. Catalyst 3. Catalyst rear diffuser
4. Gasket
Catalyst locking pin : Flange bolt (black)

EXHAUST MANIFOLD AND TURBOCHARGER
EM-127
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
EXHAUST MANIFOLD AND TURBOCHARGERPFP:14004
Removal and InstallationEBS00LRH
REMOVAL
1. Drain engine coolant. Refer to CO-29, "Changing Engine Coolant" .
2. Remove charge air cooler. Refer to EM-122, "
Removal and Installation" .
3. Remove air duct and air inlet pipe. Refer to EM-120, "
Removal and Installation" .
4. Remove engine undercover.
5. Remove radiator upper and lower hoses.
6. Remove radiator fan. Refer to CO-33, "
Disassembly and Assembly Radiator Fan" .
7. Remove radiator mount bracket and radiator. Refer to CO-32, "
Removal and Installation" .
8. Remove water inlet pipe.
9. Disconnect exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
10. Remove catalyst. Refer to EM-126, "
Removal and Installation" .
11. Remove exhaust manifold cover.
12. Remove insulator.
13. Each wiring and piping (disconnect/move)
PBIC1228E
1. Electronic EGR volume control valve 2. Gasket 3. EGR Cooler
4. Air inlet pipe 5.Exhaust manifold & turbocharger
assembly6. Oil return hose
7. Turbo insulator 8. Exhaust manifold insulator 9. Air inlet pipe

EM-140
[YD22DDTi]
VACUUM PUMP
MODELS PRODUCED SINCE APRIL 2001
INSPECTION BEFORE REMOVAL
1. Disconnect vacuum hose, and connect a vacuum gauge via 3-way connector.
●Disconnect point where vacuum from vacuum pump can be measured directly and install 3-way con-
nector.
2. Start engine and measure generated vacuum at idle speed.
●If out of standard, check for air suction in vacuum route, and measure again.
●If still outside of standard, replace vacuum pump.
REMOVAL
1. Drain engine coolant. Refer to CO-29, "Changing Engine Coolant" .
2. Remove air duct and air cleaner case. Refer to EM-120, "
Removal and Installation" .
3. Remove charge air cooler and bracket. Refer to EM-122, "
Removal and Installation" .
4. Disconnect harness connector from fuel injector.
5. Remove injection tube. Refer to EM-144, "
Removal and Installation" .
6. Remove fuel injector oil seal.
7. Remove rocker cover. Refer to EM-156, "
Removal and Installation" .
8. Remove spill tube. Refer to EM-144, "
Removal and Installation" .
9. Remove nozzle support from NO.2 cylinder and fuel injector. Refer to EM-144, "
Removal and Installation"
.
10. Remove air inlet pipes. Refer to EM-127, "
Removal and Installation" .
11. Remove exhaust manifold cover.
12. Disconnect electronic EGR volume control valve water hose and harness.
13. Disconnect heater hose.
14. Remove EGR cooler.
SBIA0325E
Standard:
– 86.6 to – 101.3 kPa (– 866 to – 1,013 mbar, – 650 to – 760 mmHg, – 25.59 to – 29.92 inHg)

FUEL SUPPLY PUMP
EM-147
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

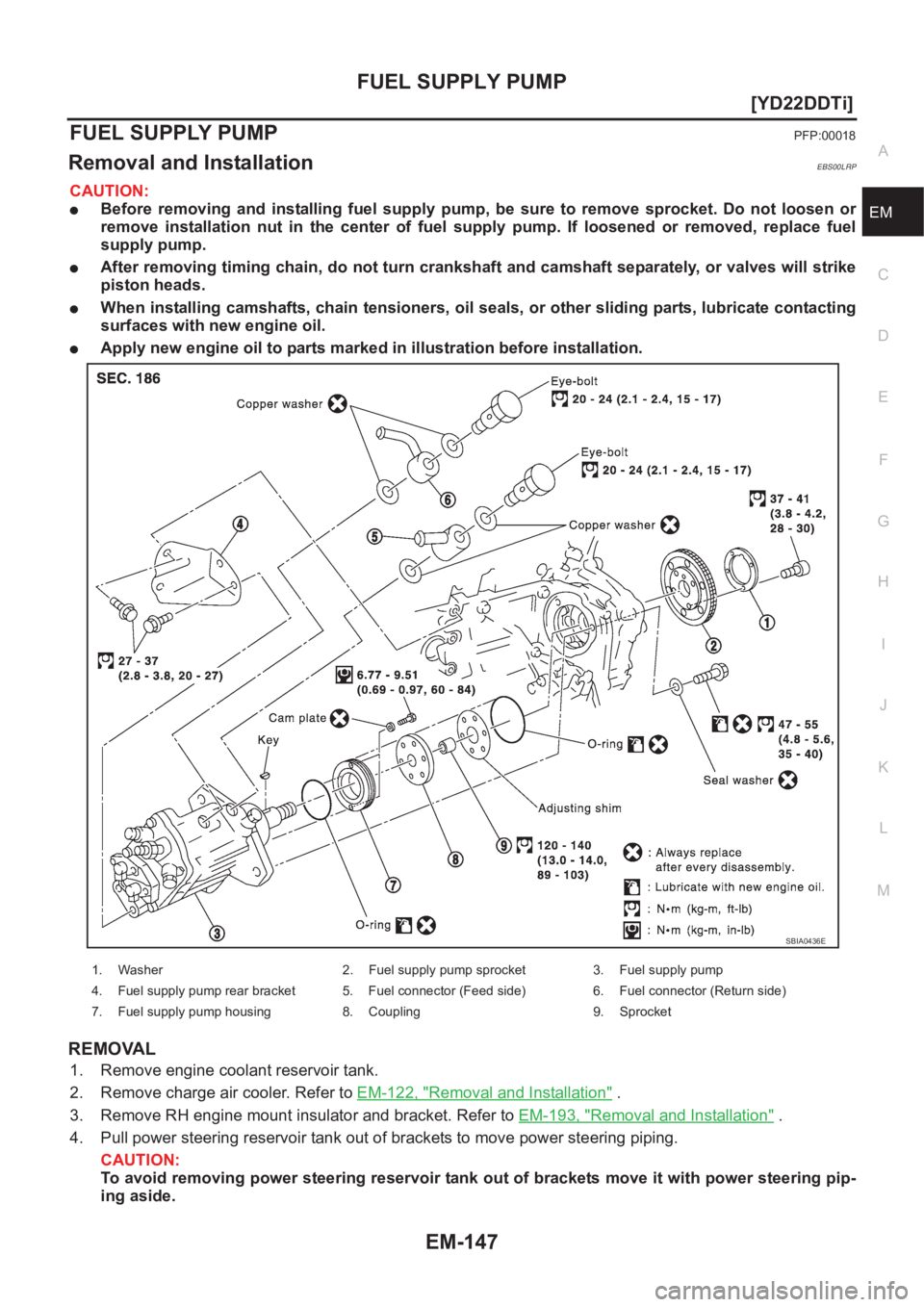

FUEL SUPPLY PUMPPFP:00018
Removal and InstallationEBS00LRP
CAUTION:
●Before removing and installing fuel supply pump, be sure to remove sprocket. Do not loosen or
remove installation nut in the center of fuel supply pump. If loosened or removed, replace fuel
supply pump.
●After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
●When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting
surfaces with new engine oil.
●Apply new engine oil to parts marked in illustration before installation.
REMOVAL
1. Remove engine coolant reservoir tank.
2. Remove charge air cooler. Refer to EM-122, "
Removal and Installation" .
3. Remove RH engine mount insulator and bracket. Refer to EM-193, "
Removal and Installation" .
4. Pull power steering reservoir tank out of brackets to move power steering piping.
CAUTION:
To avoid removing power steering reservoir tank out of brackets move it with power steering pip-
ing aside.
1. Washer 2. Fuel supply pump sprocket 3. Fuel supply pump
4. Fuel supply pump rear bracket 5. Fuel connector (Feed side) 6. Fuel connector (Return side)
7. Fuel supply pump housing 8. Coupling 9. Sprocket
SBIA0436E

EM-158
[YD22DDTi]
CAMSHAFT
CAMSHAFT
PFP:13001
Removal and InstallationEBS00LRR
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
●This engine will have a different valve arrangement from normal
DOHC 4-valve type engines. As both camshafts on this engine
have intake and exhaust camshafts, in this chapter they are
named as follows:
●Refer to the figure for intake and exhaust valve arrangement.
(The camshafts have, alternately, either an intake valve or an
exhaust valve.)
REMOVAL
1. Drain engine coolant. Refer to CO-29, "Changing Engine Coolant" .
2. Remove charge air cooler. Refer to EM-122, "
Removal and Installation" .
3. Remove air duct and air inlet pipe. Refer to EM-120, "
Removal and Installation" .
4. Remove rocker cover. Refer to EM-156, "
Removal and Installation" .
5. Remove vacuum pump. Refer to EM-139, "
Removal and Installation" .
6. Remove injection tube and fuel injector. Refer to EM-144, "
Removal and Installation" .
7. Remove secondary timing chain. Refer to EM-167, "
Removal and Installation" .
SBIA0177E
1. Camshaft bracket 2. Camshaft (right side) 3. Camshaft (left side)
4. Camshaft sprocket (right side) 5. Camshaft sprocket (left side)6. Adjusting shim
7. Valve lifter 8. Cylinder head
Camshaft (Right side) : Intake manifold side
Camshaft (Left side) : Exhaust manifold side
SBIA0178E

CAMSHAFT
EM-163
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Va l v e C l e a r a n c eEBS00LRS
INSPECTION
●When the camshaft or parts in connection with valves are
removed or replaced, and a malfunction has occurred (poor
starting, idling, or other malfunction) due to the misadjustment of
the valve clearance, inspect as follows.
●Inspect and adjust when the engine is cool (at normal tempera-
ture).
●Be careful of the intake and exhaust valve arrangement. The
valve arrangement is different from that in a normal engine.
NOTE:
The camshafts have, alternately, either an intake valve or an
exhaust valve.(Refer to illustration)
1. Drain engine coolant. Refer to CO-29, "
Changing Engine Coolant" .
2. Remove charge air cooler. Refer to EM-122, "
Removal and Installation" .
3. Remove air duct and air inlet pipe. Refer to EM-120, "
Removal and Installation" .
4. Remove rocker cover. Refer to EM-156, "
Removal and Installation" .
5. Remove vacuum pump. Refer to EM-139, "
Removal and Installation" .
6. Remove injection tube and fuel injector. Refer to EM-144, "
Removal and Installation" .
7. Remove secondary timing chain. Refer to EM-167, "
Removal and Installation"
Check valve clearance while engine is cold and not running.
8. Set the No. 1 piston to TDC on its compression stroke.
●Turn crankshaft pulley clockwise so that the knock pin on
camshaft LH faces straight above. (No position indicator, etc.
is provided on the crankshaft pulley.)
9. Put an alignment mark with paint, etc. on the crankshaft pulley
and on the oil pump as an angle indicator.
10. While referring to the figure, measure the valve clearance
marked in the table below.
●The injection order is 1-3-4-2.
SBIA0178E
SBIA0179E
JEM177G
Measuring pointNo. 1 No. 2 No. 3 No. 4
INT EXH INT EXH INT EXH INT EXH
When the No. 1
cylinder is in the
TDCXXX X
SBIA0180E

SECONDARY TIMING CHAIN
EM-167
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

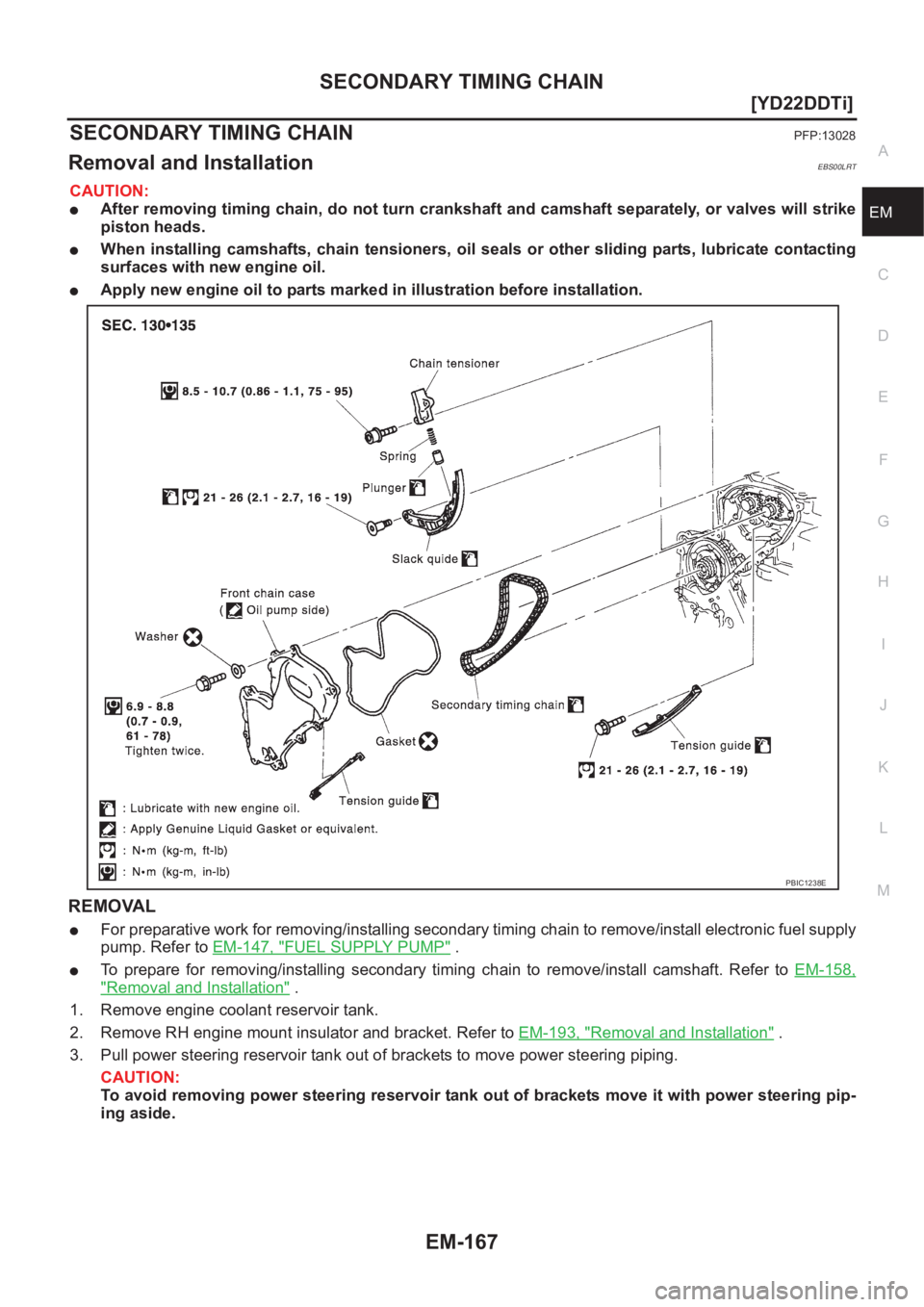

SECONDARY TIMING CHAINPFP:13028
Removal and InstallationEBS00LRT
CAUTION:
●After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
●When installing camshafts, chain tensioners, oil seals or other sliding parts, lubricate contacting
surfaces with new engine oil.
●Apply new engine oil to parts marked in illustration before installation.
REMOVAL
●For preparative work for removing/installing secondary timing chain to remove/install electronic fuel supply
pump. Refer to EM-147, "
FUEL SUPPLY PUMP" .
●To prepare for removing/installing secondary timing chain to remove/install camshaft. Refer to EM-158,
"Removal and Installation" .
1. Remove engine coolant reservoir tank.
2. Remove RH engine mount insulator and bracket. Refer to EM-193, "
Removal and Installation" .
3. Pull power steering reservoir tank out of brackets to move power steering piping.
CAUTION:
To avoid removing power steering reservoir tank out of brackets move it with power steering pip-
ing aside.
PBIC1238E
