2001 NISSAN X-TRAIL sensor

AT-232
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Lock-up Is Not Released
ECS004T7
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage accelerator pedal position (APP) sensor
circuit?
Without CONSULT-II
Does self-diagnosis show damage to accelerator pedal position
(APP) sensor circuit?
Ye s o r N o
Yes >> Check accelerator pedal position (APP) sensor circuit.
Refer to AT- 2 4 1 , "
TCM Self-diagnosis Does Not Acti-
vate" .
No >> GO TO 2.
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT367J

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-233
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )ECS004T8
SYMPTOM:
●Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 .
●Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
●Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer to AT-
185, "DTC P1760 OVERRUN CLUTCH SOLENOID
VA LV E" (Euro-OBD).
No >> GO TO 2.
2.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor. (AT- 1 8 0 , "
DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" : Euro-OBD)
3.CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
SCIA0774E
PBIB0498E
SAT171B

AT-234
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT- 1 8 5 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE" : Euro-
OBD)
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT- 1 8 5 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE" : Euro-
OBD)
3. Disassemble A/T.
4. Check the following item:
–Overrun clutch assembly
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
Vehicle Does Not Start From D1ECS004T9
SYMPTOM:
Vehicle does not start from D
1 on Cruise test — Part 2.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (rev-
olution sensor), shift solenoid valve A, B or vehicle speed sen-
sor·MTR after cruise test?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Euro-OBD
–AT- 1 2 2 , "DTC P0720 VEHICLE SPEED SENSOR·A/
T (REVOLUTION SENSOR)"
–AT- 1 7 0 , "DTC P0750 SHIFT SOLENOID VALVE A"
–AT- 1 7 5 , "DTC P0755 SHIFT SOLENOID VALVE B"
–AT- 1 9 9 , "DTC VEHICLE SPEED SENSOR MTR"
No >> GO TO 2.
SCIA0775E

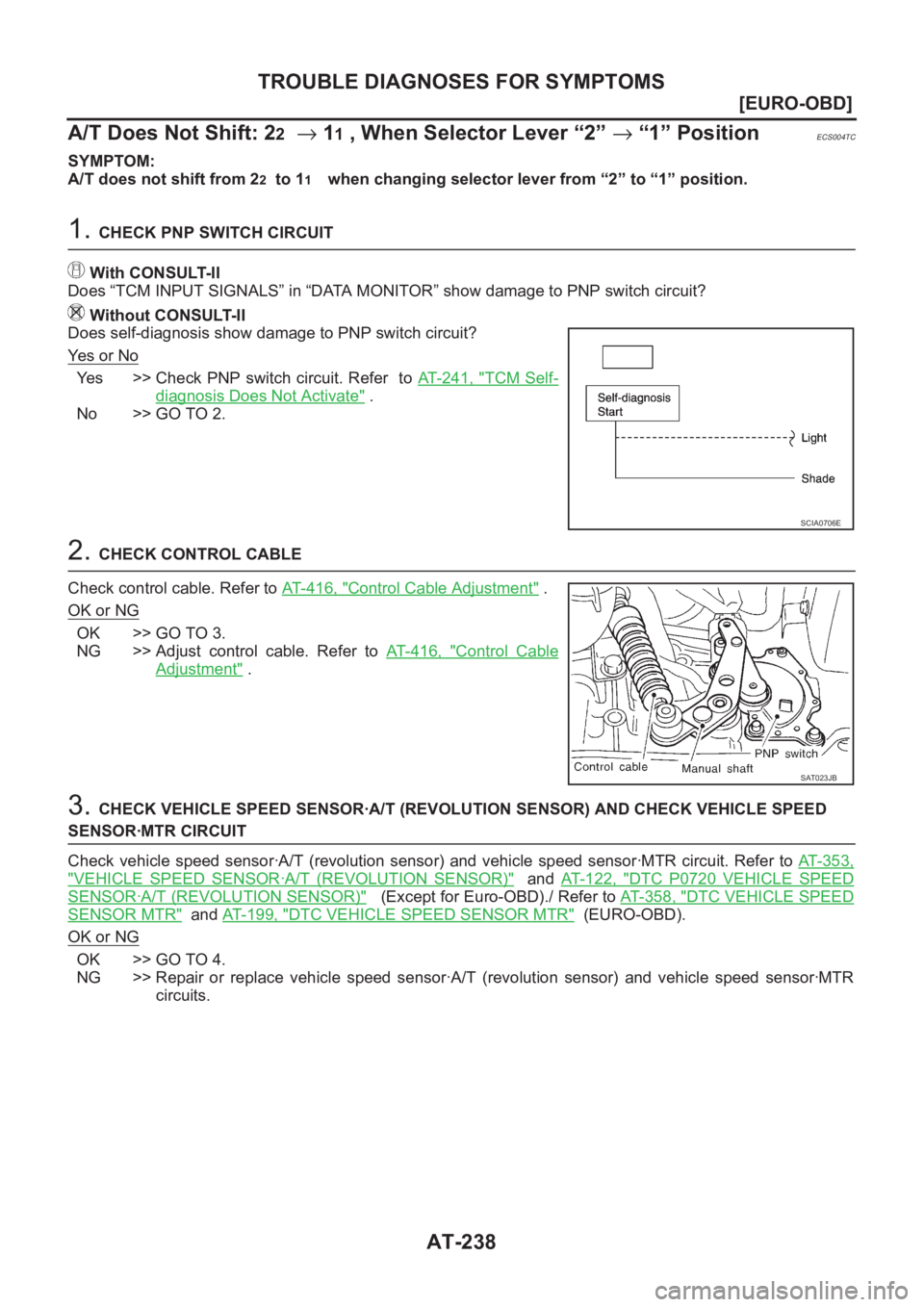

AT-238
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” PositionECS004TC
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT-241, "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2.
2. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB

AT-240
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Vehicle Does Not Decelerate By Engine Brake
ECS004TD
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12 ) to 11 .
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT-241, "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2.
2. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB

AT-242
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position
switch. The transmission position switch detects the selector
lever position and sends a signal to the TCM.
●Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and
sends a signal to the TCM.
●Closed throttle position signal and wide-open throttle position
signal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communi-
cation to TCM.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:
●PNP switch (Refer to AT- 2 4 6 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and
TCM
●Diode (P, N positions)
SCIA0752E
SCIA0776E
PBIB0498E
SAT701J

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-245
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5.CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for A/T with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 7.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.
●Accelerator pedal position sensor — Refer to AT- 1 8 0 , "DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
6.CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITHOUT CONSULT-II)
Without CONSULT-II
Check the following items:
●Accelerator pedal position sensor — Refer to AT- 1 8 0 , "DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7.CHECK DTC
Perform “TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)”. Refer to AT- 5 1 , "
TCM SELF-DIAGNOSTIC
PROCEDURE (NO TOOLS)" .
OK or NG
OK >>INSPECTION END
NG >>
●Perform TCM input/output signal inspection.
●If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-247
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS004NW
After performing AT- 2 4 7 , "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" , place check marks for
results on the AT-259, "
DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 3 0 6 , "
TCM Terminals and Reference Value" . If
result is NG, refer to PG-2, "
POWER SUPPLY ROUTING" .
2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “REAL TIME DIAG”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SELF-DIAGNOSTIC RESULT TEST MODE
SAT014K
SAT987J
Detected items
(Screen terms for CONSULT-II, “SELF DIAGNOSIS”
test mode)Malfunction is detected when... Remarks
Item Display
No failure
(NO SELF DIAGNOSTIC FAILURE INDICATED FUR-
THER TESTING MAY BE REQUIRED)
●No failure has been detected.
Initial start INITIAL START
●This is not a malfunction message (Whenever
shutting off a power supply to the TCM, this
message appears on the screen.)
