2001 NISSAN X-TRAIL sensor

DTC VEHICLE SPEED SENSOR MTR
AT-201
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

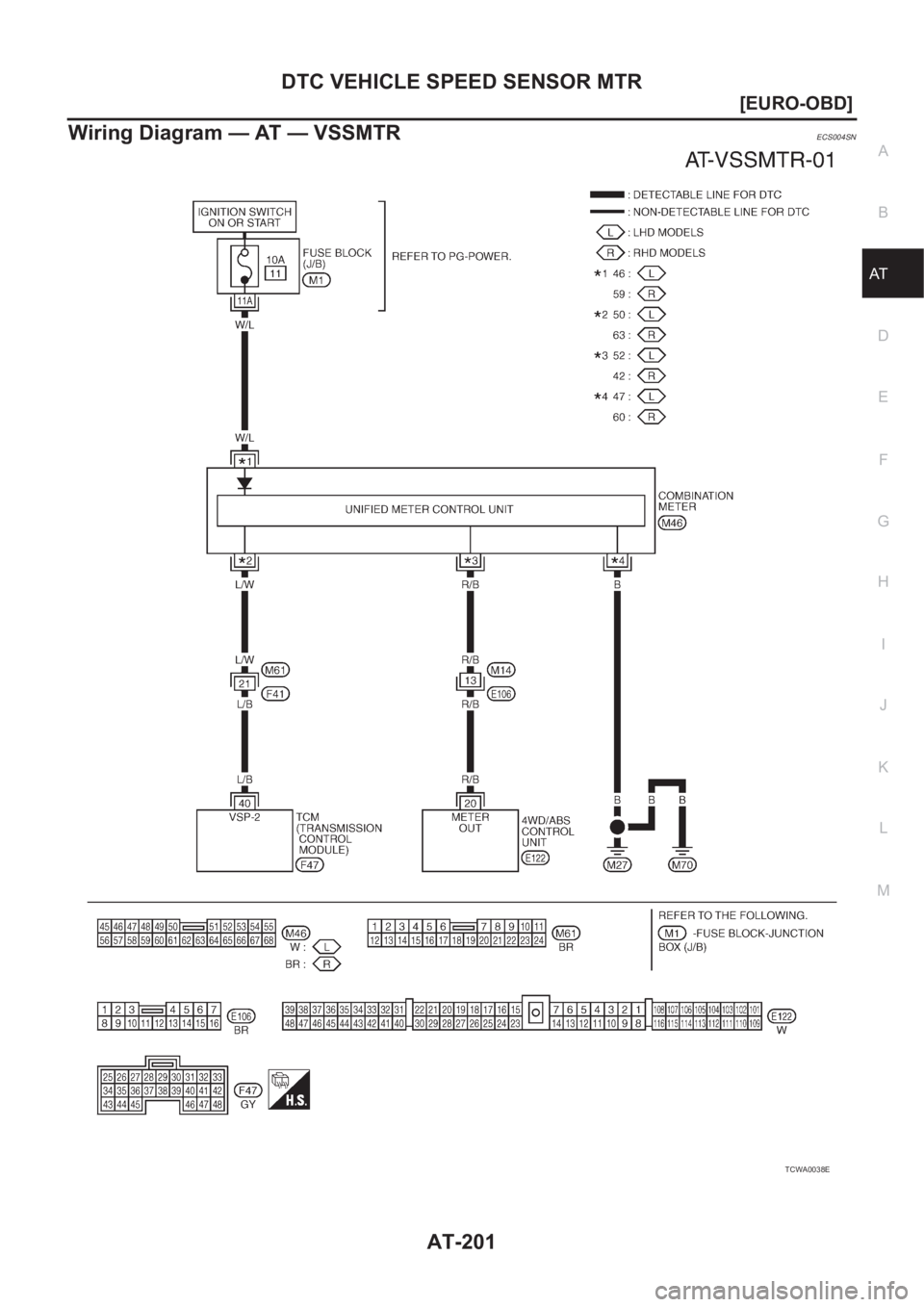

Wiring Diagram — AT — VSSMTRECS004SN
TCWA0038E

AT-202
[EURO-OBD]
DTC VEHICLE SPEED SENSOR MTR
Diagnostic Procedure
ECS004SO
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·MTR” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 40 and ground while driv-
ing at 2 to 3 km/h (1 to 2 MPH) for 1 m (3 ft) or more.
OK or NG
OK >> GO TO 2.
NG >> Check the following items. If any items are damaged,
repair or replace damaged parts.
●Combination meter
Refer to DI-4, "
COMBINATION METERS (LHD MODELS)" or DI-24, "COMBINATION
METERS (RHD MODELS)" .
●Harness for short or open between TCM and combination meter
●4WD/ABS control unit
Refer to BRC-24, "
SELF-DIAGNOSIS" .
●Harness for short or open between 4WD/ABS control unit and combination meter
2. CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to AT- 2 0 0 , "
DIAGNOSTIC TROUBLE
CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT614J
Voltage: Voltage varies between less than 1V and
more than 4.5V.
SCIA0717E

AT-214
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Large Shock. “N” → “R” Position
ECS004SY
SYMPTOM:
There is large shock when changing from “N” to “R” position.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor,
line pressure solenoid valve or throttle position sensor circuit?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Euro-OBD
–AT- 1 6 3 , "DTC P0745 LINE PRESSURE SOLENOID
VA LV E"
–AT- 1 8 0 , "DTC P1705 ACCELERATOR PEDAL POSI-
TION (APP) SENSOR"
–AT- 1 9 3 , "DTC BATT/FLUID TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)"
No >> GO TO 2
2. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT-67, "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >> 1. Remove control valve assembly. Refer to AT- 4 1 3 ,
"Installation" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve
3. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0769E
SAT494G

AT-220
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

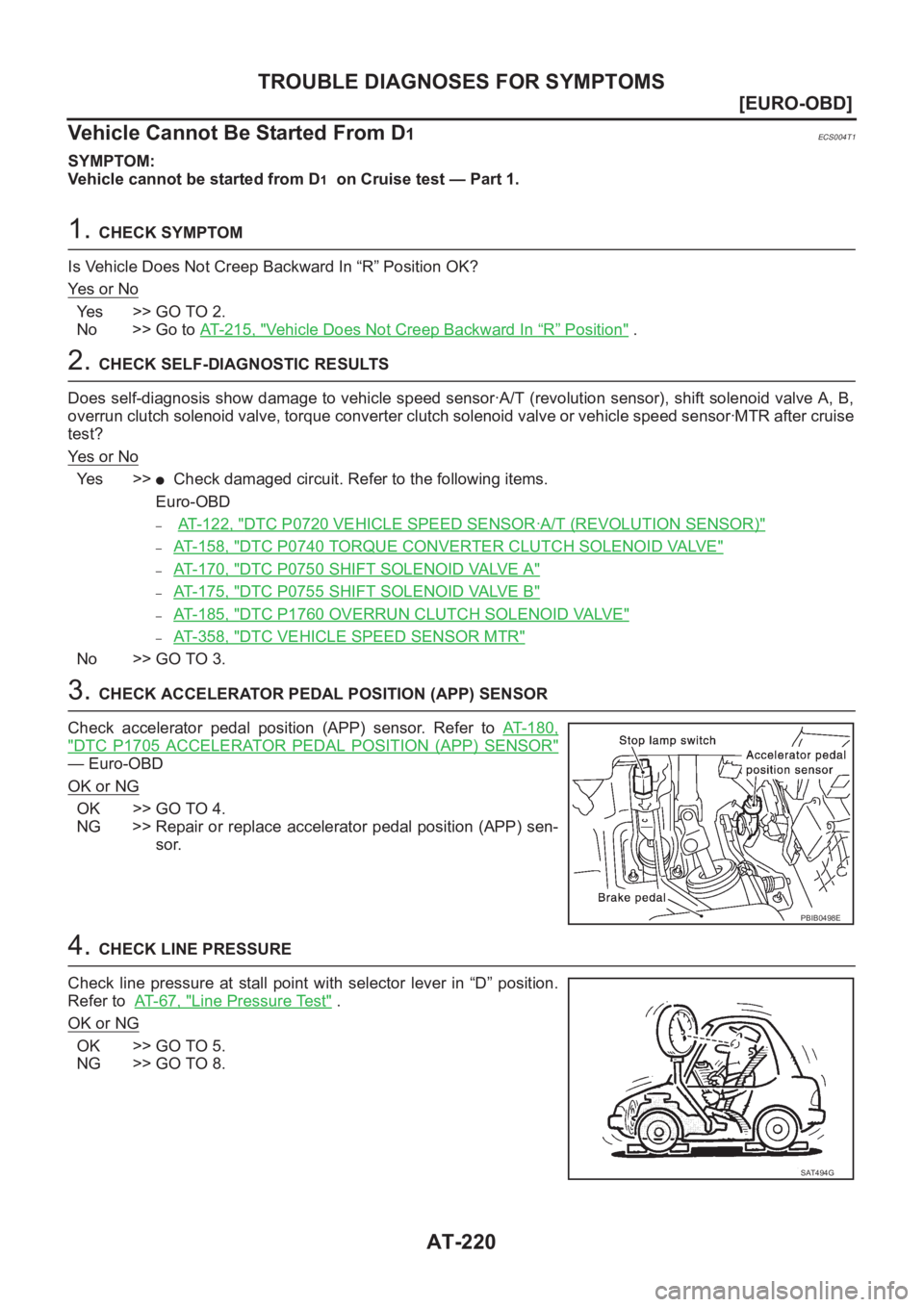

Vehicle Cannot Be Started From D
1ECS004T1
SYMPTOM:
Vehicle cannot be started from D
1 on Cruise test — Part 1.
1. CHECK SYMPTOM
Is Vehicle Does Not Creep Backward In “R” Position OK?
Ye s o r N o
Yes >> GO TO 2.
No >> Go to AT- 2 1 5 , "
Vehicle Does Not Creep Backward In “R” Position" .
2. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (revolution sensor), shift solenoid valve A, B,
overrun clutch solenoid valve, torque converter clutch solenoid valve or vehicle speed sensor·MTR after cruise
test?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Euro-OBD
–AT- 1 2 2 , "DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)"
–AT- 1 5 8 , "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
–AT- 1 7 0 , "DTC P0750 SHIFT SOLENOID VALVE A"
–AT- 1 7 5 , "DTC P0755 SHIFT SOLENOID VALVE B"
–AT- 1 8 5 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE"
–AT- 3 5 8 , "DTC VEHICLE SPEED SENSOR MTR"
No >> GO TO 3.
3. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
4. CHECK LINE PRESSURE
Check line pressure at stall point with selector lever in “D” position.
Refer to AT- 6 7 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 8.
PBIB0498E
SAT494G

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-223
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

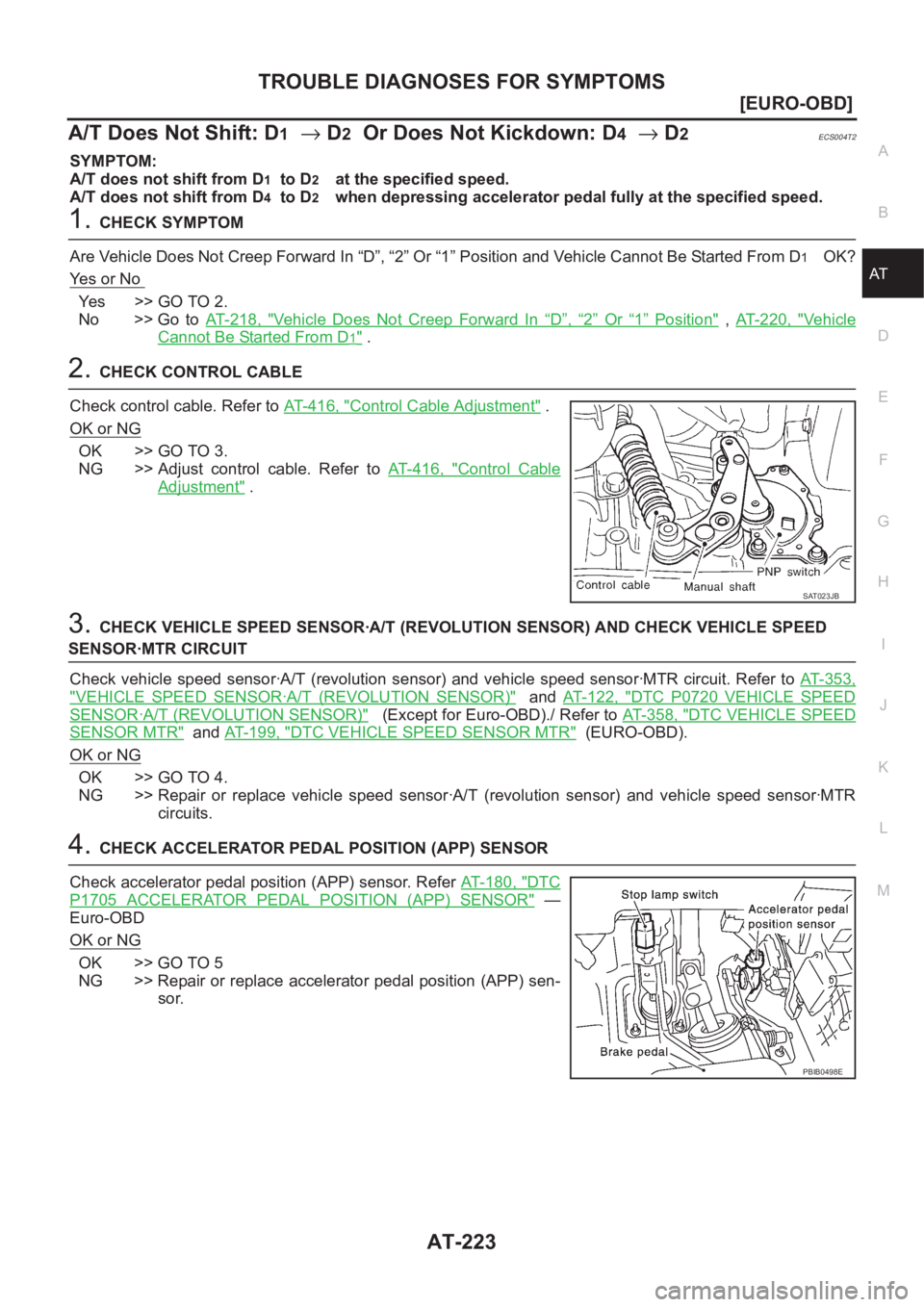

A/T Does Not Shift: D1→ D2 Or Does Not Kickdown: D4→ D2ECS004T2
SYMPTOM:
A/T does not shift from D
1 to D2 at the specified speed.
A/T does not shift from D
4 to D2 when depressing accelerator pedal fully at the specified speed.
1.CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Go to AT- 2 1 8 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 0 , "Ve h i c l e
Cannot Be Started From D1" .
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer AT- 1 8 0 , "
DTC
P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR" —
Euro-OBD
OK or NG
OK >> GO TO 5
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-225
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: D2→ D3ECS004T3
SYMPTOM:
A/T does not shift from D
2 to D3 at the specified speed.
1.CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Go to AT- 2 1 8 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 0 , "Ve h i c l e
Cannot Be Started From D1" .
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-227
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: D3→ D4ECS004T4
SYMPTOM:
●A/T does not shift from D3 to D4 at the specified speed.
●A/T must be warm before D3 to D4 shift will occur.
1.CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Go to AT- 2 1 8 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 0 , "Ve h i c l e
Cannot Be Started From D1" .
2.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
●PNP switch
●Overdrive control switch
●A/T fluid temperature sensor
●Vehicle speed sensor·A/T (revolution sensor)
●Shift solenoid valve A or B
●Vehicle speed sensor·MTR
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR): AT- 1 2 2 , "
DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A: AT- 1 7 0 , "DTC P0750
SHIFT SOLENOID VALVE A"
–SHIFT SOLENOID VALVE B: AT- 1 7 5 , "DTC P0755
SHIFT SOLENOID VALVE B"
–BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE): AT-193, "
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT
AND TCM POWER SOURCE)"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR: AT- 1 9 9 , "DTC VEHICLE SPEED
SENSOR MTR"
–TCM Self-diagnosis Does Not Activate): AT-241, "TCM Self-diagnosis Does Not Activate"
No >> GO TO 3.
3.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SCIA0771E
PBIB0498E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-229
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Perform Lock-upECS004T5
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, vehicle speed sensor·A/T (revolution sen-
sor), engine speed signal or torque converter clutch solenoid valve circuit after cruise test?
Ye s o r N o
Yes >> Check damaged circuit. Refer to AT- 1 5 8 , "DTC P0740 TORQUE CONVERTER CLUTCH SOLE-
NOID VALVE" , AT- 11 6 , "DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT" , AT- 1 2 2 ,
"DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" , AT- 1 2 7 , "DTC P0725
ENGINE SPEED SIGNAL" .— Euro-OBD
No >> GO TO 2.
2.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT-413, "
Installation" .
2. Check the following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
PBIB0498E
