2001 NISSAN ALMERA N16 differential

Tool number
Tool nameDescription
ST30621000
Drift
NT073
Installing differential side bearing outer race
(Use with ST30611000.)
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.
ST30611000
Drift handle
NT419
Installing differential side bearing outer race
(Use with ST30621000.)
a: 15 mm (0.59 in)
b: 335 mm (13.19 in)
c: 25 mm (0.98 in) dia.
d: M12 x 1.5P
Commercial Service ToolsNJMT0031
Tool name Description
Puller
NT077
Removing input shaft front bearing
Drift
NT065
Installing mainshaft front bearing inner race
a: 26 mm (1.02 in) dia.
b: 21 mm (0.83 in) dia.
Drift
NT065
Installing differential side bearing inner race
a: 56 mm (2.20 in) dia.
b: 50.5 mm (1.988 in) dia.
Drift
NT065
Installing striking rod oil seal
a: 38 mm (1.50 in) dia.
b: 32 mm (1.26 in) dia.
PREPARATIONRS5F30A
Special Service Tools (Cont'd)
MT-6

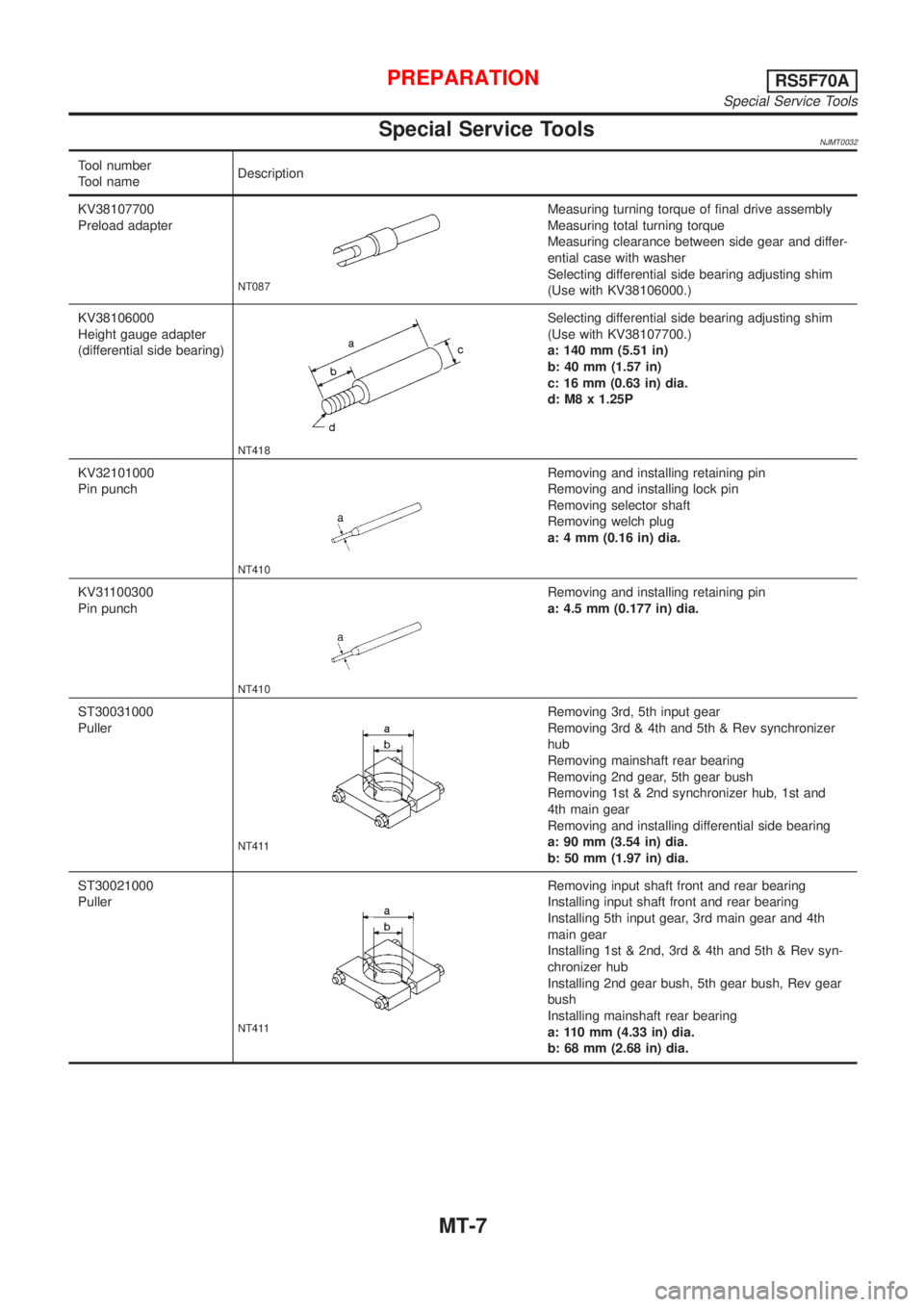

Special Service ToolsNJMT0032
Tool number
Tool nameDescription
KV38107700
Preload adapter
NT087
Measuring turning torque of final drive assembly
Measuring total turning torque
Measuring clearance between side gear and differ-
ential case with washer
Selecting differential side bearing adjusting shim
(Use with KV38106000.)
KV38106000
Height gauge adapter
(differential side bearing)
NT418
Selecting differential side bearing adjusting shim
(Use with KV38107700.)
a: 140 mm (5.51 in)
b: 40 mm (1.57 in)
c: 16 mm (0.63 in) dia.
d: M8 x 1.25P
KV32101000
Pin punch
NT410
Removing and installing retaining pin
Removing and installing lock pin
Removing selector shaft
Removing welch plug
a: 4 mm (0.16 in) dia.
KV31100300
Pin punch
NT410
Removing and installing retaining pin
a: 4.5 mm (0.177 in) dia.
ST30031000
Puller
NT411
Removing 3rd, 5th input gear
Removing 3rd & 4th and 5th & Rev synchronizer
hub
Removing mainshaft rear bearing
Removing 2nd gear, 5th gear bush
Removing 1st & 2nd synchronizer hub, 1st and
4th main gear
Removing and installing differential side bearing
a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia.
ST30021000
Puller
NT411
Removing input shaft front and rear bearing
Installing input shaft front and rear bearing
Installing 5th input gear, 3rd main gear and 4th
main gear
Installing 1st & 2nd, 3rd & 4th and 5th & Rev syn-
chronizer hub
Installing 2nd gear bush, 5th gear bush, Rev gear
bush
Installing mainshaft rear bearing
a: 110 mm (4.33 in) dia.
b: 68 mm (2.68 in) dia.
PREPARATIONRS5F70A
Special Service Tools
MT-7

Tool number
Tool nameDescription

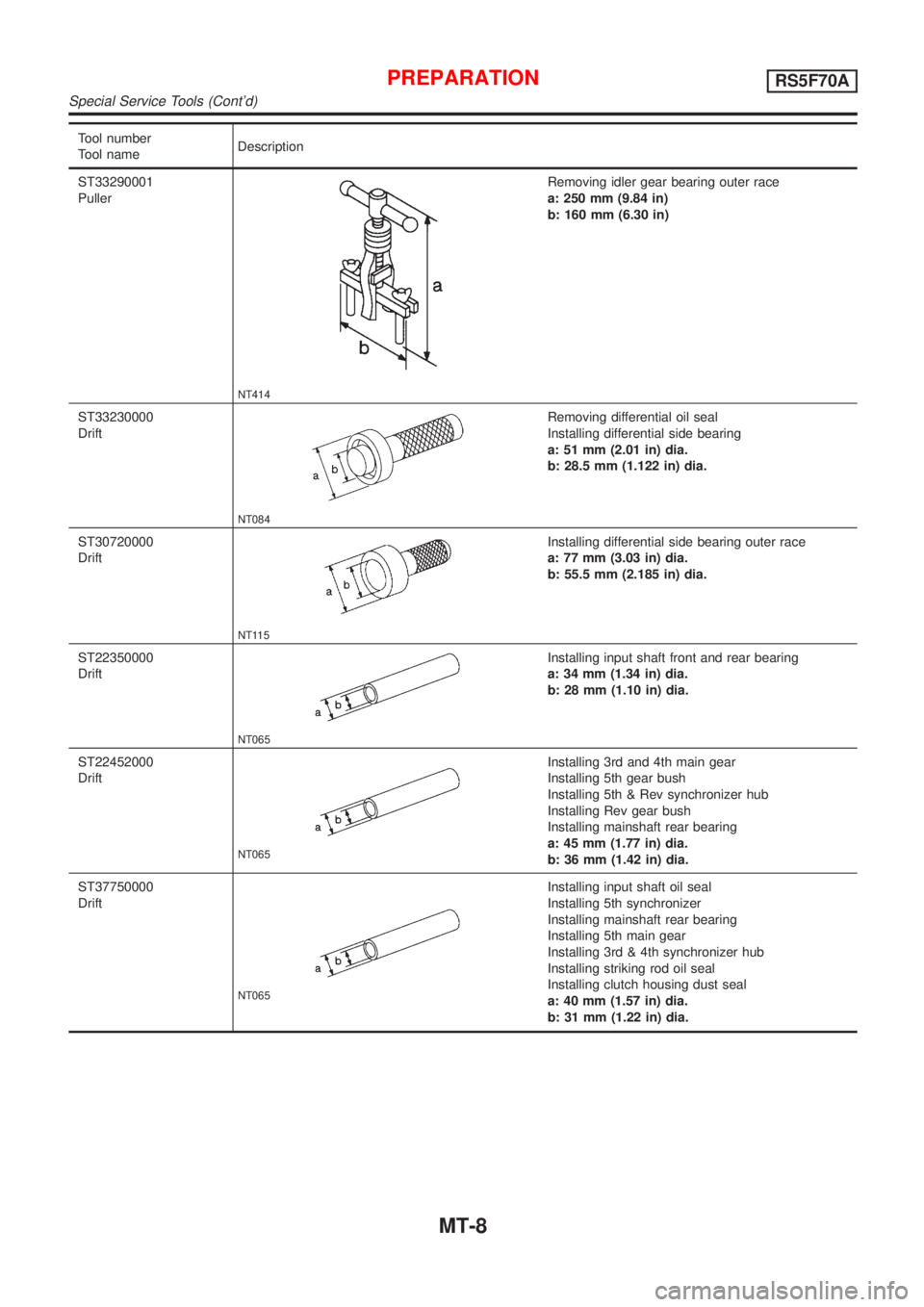

ST33290001
Puller
NT414
Removing idler gear bearing outer race
a: 250 mm (9.84 in)
b: 160 mm (6.30 in)
ST33230000
Drift
NT084
Removing differential oil seal
Installing differential side bearing
a: 51 mm (2.01 in) dia.
b: 28.5 mm (1.122 in) dia.
ST30720000
Drift
NT115
Installing differential side bearing outer race
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.
ST22350000
Drift
NT065
Installing input shaft front and rear bearing
a: 34 mm (1.34 in) dia.
b: 28 mm (1.10 in) dia.
ST22452000
Drift
NT065
Installing 3rd and 4th main gear
Installing 5th gear bush
Installing 5th & Rev synchronizer hub
Installing Rev gear bush
Installing mainshaft rear bearing
a: 45 mm (1.77 in) dia.
b: 36 mm (1.42 in) dia.
ST37750000
Drift
NT065
Installing input shaft oil seal
Installing 5th synchronizer
Installing mainshaft rear bearing
Installing 5th main gear
Installing 3rd & 4th synchronizer hub
Installing striking rod oil seal
Installing clutch housing dust seal
a: 40 mm (1.57 in) dia.
b: 31 mm (1.22 in) dia.
PREPARATIONRS5F70A
Special Service Tools (Cont'd)
MT-8

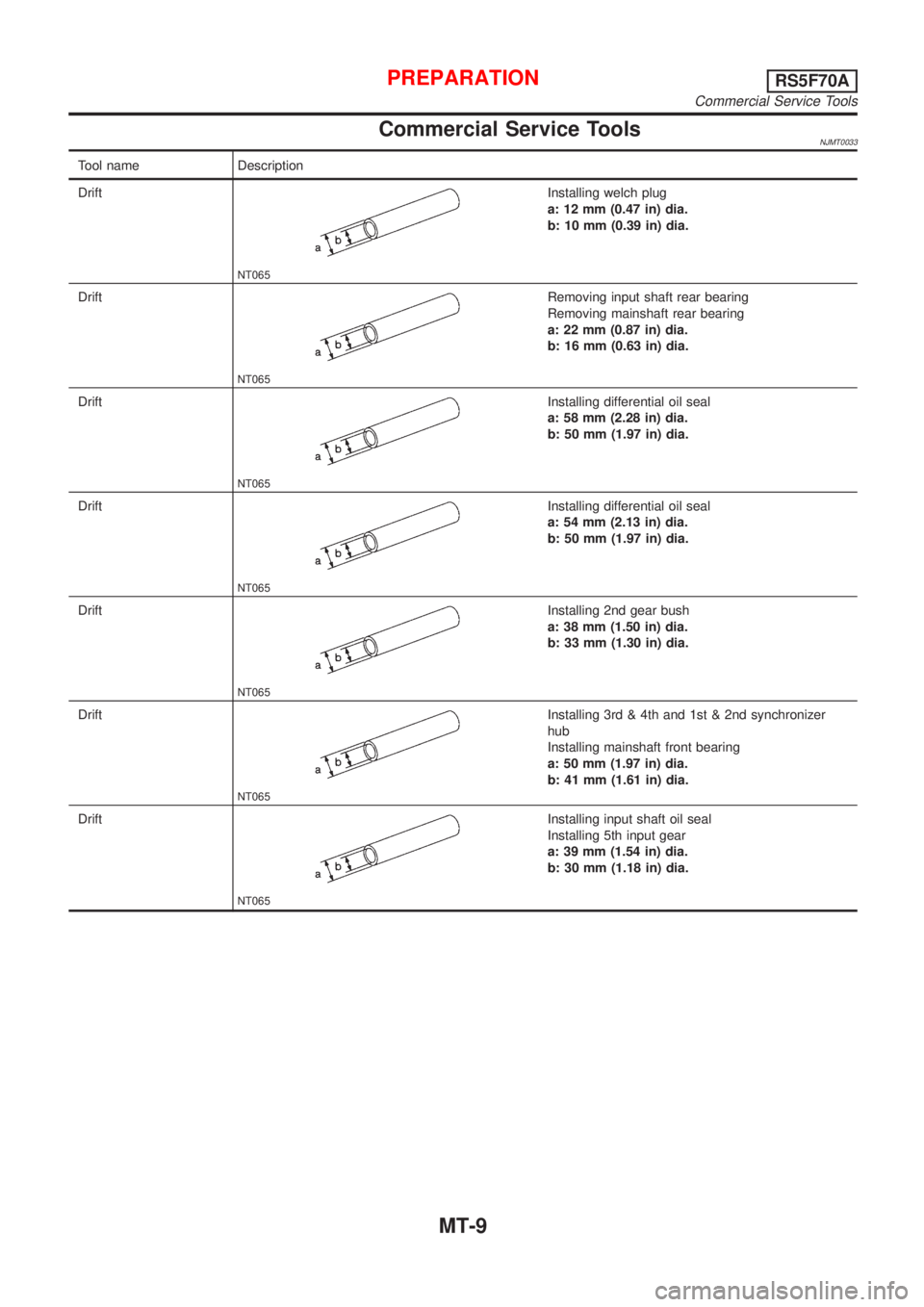

Commercial Service ToolsNJMT0033
Tool name Description
Drift
NT065
Installing welch plug
a: 12 mm (0.47 in) dia.
b: 10 mm (0.39 in) dia.
Drift
NT065
Removing input shaft rear bearing
Removing mainshaft rear bearing
a: 22 mm (0.87 in) dia.
b: 16 mm (0.63 in) dia.
Drift
NT065
Installing differential oil seal
a: 58 mm (2.28 in) dia.
b: 50 mm (1.97 in) dia.
Drift
NT065
Installing differential oil seal
a: 54 mm (2.13 in) dia.
b: 50 mm (1.97 in) dia.
Drift
NT065
Installing 2nd gear bush
a: 38 mm (1.50 in) dia.
b: 33 mm (1.30 in) dia.
Drift
NT065
Installing 3rd & 4th and 1st & 2nd synchronizer
hub
Installing mainshaft front bearing
a: 50 mm (1.97 in) dia.
b: 41 mm (1.61 in) dia.
Drift
NT065
Installing input shaft oil seal
Installing 5th input gear
a: 39 mm (1.54 in) dia.
b: 30 mm (1.18 in) dia.
PREPARATIONRS5F70A
Commercial Service Tools
MT-9

Special Service ToolsNJMT0001
Tool number
Tool nameDescription
KV38105210
Preload adapter
NT075
Measuring turning torque of final drive assembly
Measuring total turning torque
KV32101000
Pin punch
NT410
Removing and installing retaining pin
a: 4 mm (0.16 in) dia.
ST22730000
Puller
NT411
Removing mainshaft front and rear bearing inner
race
a: 82 mm (3.23 in) dia.
b: 30 mm (1.18 in) dia.
ST30031000
Puller
NT411
Removing input shaft front and rear bearing
Removing 4th & 5th main gear
a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia.
ST30021000
Puller
NT411
Removing 5th synchronizer
Removing 3rd & 4th synchronizer
Removing 2nd & 3rd main gear
a: 110 mm (4.33 in) dia.
b: 68 mm (2.68 in) dia.
ST3306S001
Differential side bearing
puller set
1 ST33051001
Puller
2 ST33061000
Adapter
NT675
Removing differential side bearing inner race
a: 38 mm (1.50 in) dia.
b: 28.5 mm (1.122 in) dia.
c: 130 mm (5.12 in)
d: 135 mm (5.31 in)
e: 100 mm (3.94 in)
PREPARATIONRS5F50A
Special Service Tools
MT-10

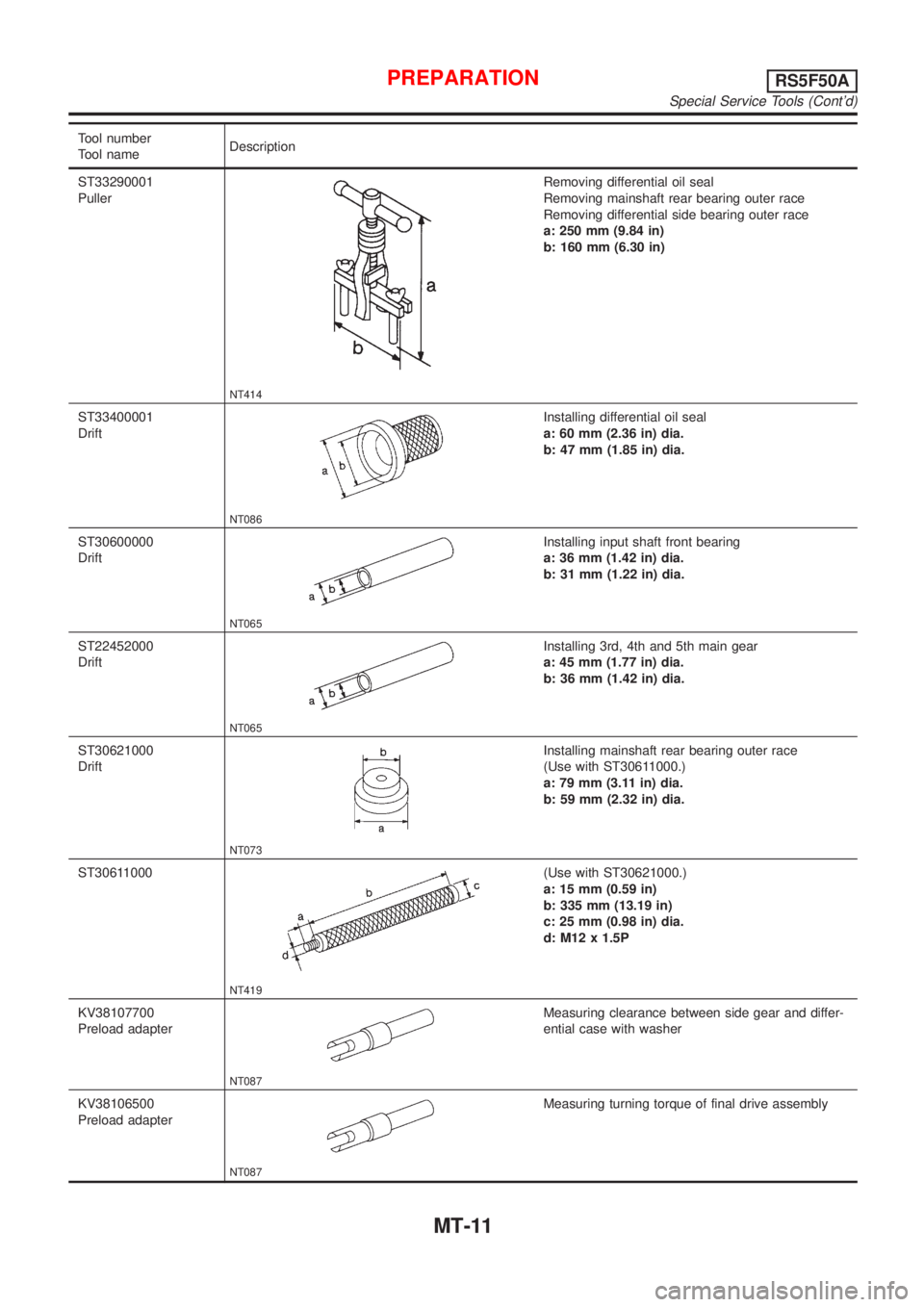

Tool number
Tool nameDescription
ST33290001
Puller
NT414
Removing differential oil seal
Removing mainshaft rear bearing outer race
Removing differential side bearing outer race
a: 250 mm (9.84 in)
b: 160 mm (6.30 in)
ST33400001
Drift
NT086
Installing differential oil seal
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.
ST30600000
Drift
NT065
Installing input shaft front bearing
a: 36 mm (1.42 in) dia.
b: 31 mm (1.22 in) dia.
ST22452000
Drift
NT065
Installing 3rd, 4th and 5th main gear
a: 45 mm (1.77 in) dia.
b: 36 mm (1.42 in) dia.
ST30621000
Drift
NT073
Installing mainshaft rear bearing outer race
(Use with ST30611000.)
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.
ST30611000
NT419
(Use with ST30621000.)
a: 15 mm (0.59 in)
b: 335 mm (13.19 in)
c: 25 mm (0.98 in) dia.
d: M12 x 1.5P
KV38107700
Preload adapter
NT087
Measuring clearance between side gear and differ-
ential case with washer
KV38106500
Preload adapter
NT087
Measuring turning torque of final drive assembly
PREPARATIONRS5F50A
Special Service Tools (Cont'd)
MT-11

Commercial Service ToolsNJMT0002
Tool name Description
Drift
NT065
Installing differential side bearing inner race
a: 45 mm (1.77 in) dia.
b: 41 mm (1.61 in) dia.
Drift
NT065
Installing differential side bearing outer race
a: 69 mm (2.72 in) dia.
b: 64 mm (2.52 in) dia.
Drift
NT065
Installing striking rod oil seal
a: 38 mm (1.50 in) dia.
b: 20 mm (0.79 in) dia.
PREPARATIONRS5F50A
Commercial Service Tools
MT-12

SMT563AA
Replacing Oil SealNJMT0035DIFFERENTIAL OIL SEALNJMT0035S011. Drain gear oil from transaxle.
2. Remove drive shafts. Refer to AX-11, ªRemovalº.
3. Remove differential oil seal.
SMT564AB
SMT925DA
4. Install differential oil seal.
+Apply multi-purpose grease to seal lip of oil seal before
installing.
5. Install drive shafts. Refer to AX-12, ªInstallationº.
SMT926DA
SMT927D
+Install differential oil seal so that dimension ªAº and ªBº
are within specifications.
Unit: mm (in)
Item Model A B
DimensionRS5F30A
þ0.5 (þ0.020) to 0.5 (0.020) RS5F70A
RS5F50A
ON-VEHICLE SERVICE
Replacing Oil Seal
MT-20
