Page 1040 of 2321
INSTRUMENT PANEL SWITCH BANK - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 P7 20LG/DG (RHD) DRIVER HEATED SEAT SWITCH
3 P8 20LG/WT (LHD) PASSENGER HEATED SEAT SWITCH
4 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
5 P8 20LG/WT (RHD) PASSENGER HEATED SEAT SWITCH
5 P7 20LG/DG (LHD) DRIVER HEATED SEAT SWITCH
6- -
7- -
8 L91 20WT/DB HAZARD SWITCH SENSE
9 W26 20BR/DB REAR WIPER SWITCH MUX
10 Z406 20BK/BR GROUND
11 G926 20VT/WT REAR WIPER SWITCH MUX RETURN
12 E14 20OR/TN PANEL LAMPS DRIVER
13 - -
INTELLIGENT POWER MODULE C1 - LT. GREEN/RED 20 WAY
CAV CIRCUIT FUNCTION
1 F301 18VT/PK FUSED ACCESSORY RELAY OUTPUT
2- -
3- -
4 L43 18WT/DB LEFT LOW BEAM DRIVER
5 Z344 16BK/TN GROUND
6 L34 16WT/GY RIGHT HIGH BEAM DRIVER
7 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
8 L33 18WT/LG LEFT HIGH BEAM DRIVER
9 G31 18VT/LG (EXCEPT BASE) AMBIENT TEMPERATURE SENSOR SIGNAL
10 L44 16WT/TN RIGHT LOW BEAM DRIVER
11 F300 18OR/PK FUSED ACCESSORY RELAY OUTPUT
12 - -
13 Z343 18BK/LG GROUND
14 - -
15 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
16 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
17 - -
18 G931 18VT/BR (EXCEPT BASE) AMBIENT TEMPERATURE SENSOR RETURN
19 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
20 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-67
ProCarManuals.com
Page 1041 of 2321
INTELLIGENT POWER MODULE C2 - GREEN/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1 N173 16DB/VT (BUILT-UP-EXPORT/
GAS)RADIATOR FAN RELAY CONTROL
1 N173 18DB/VT (EXCEPT BUILT-UP-
EXPORT/GAS)RADIATOR FAN RELAY CONTROL
2 V53 12BR/OR (BUILT-UP-EXPORT) HEADLAMP WASHER RELAY OUTPUT
3 L60 18WT/TN (EXCEPT BUILT-UP-EX-
PORT)RIGHT FRONT TURN SIGNAL DRIVER
3 L60 16WT/TN (BUILT-UP-EXPORT) RIGHT FRONT TURN SIGNAL DRIVER
4 L13 18WT/YL (BUILT-UP-EXPORT) HEADLAMP ADJUST SIGNAL
5 X2 18DG/OR HORN RELAY OUTPUT
6 L90 18WT/OR (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
7 L61 18WT/LG (EXCEPT BUILT-UP-EX-
PORT)LEFT FRONT TURN SIGNAL DRIVER
7 L61 16WT/LG (BUILT-UP-EXPORT) LEFT FRONT TURN SIGNAL DRIVER
8- -
9 A112 12OR/RD FUSED B(+)
10 L89 18WT/YL (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
INTELLIGENT POWER MODULE C3 (DIESEL) - YELLOW/RED 20 WAY
CAV CIRCUIT FUNCTION
1 N21 20DB/TN LIFT PUMP RELAY CONTROL
2- -
3 T751 20YL IGNITION SWITCH OUTPUT (START)
4 T2 18DG/WT TRS REVERSE SENSE
5 N2 18DB/YL LIFT PUMP RELAY OUTPUT
6 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
7 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
8 Z114 18BK/LG GROUND
9 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
10 A119 16RD/OR FUSED B(+)
11 C41 20LB/DG CABIN HEATER ASSIST CONTROL
12 T753 20DG/YL IGNITION SWITCH OUTPUT (START)
13 - -
14 T752 20DG/OR ENGINE STARTER MOTOR RELAY CONTROL
15 Z116 18BK/VT GROUND
16 K51 20BR/WT ECM/PCM RELAY CONTROL
17 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
18 - -
19 K342 16BR/WT ECM/PCM RELAY OUTPUT
20 - -
8Wa - 80 - 68 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1042 of 2321
INTELLIGENT POWER MODULE C3 (GAS) - NATURAL/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Z115 20BK/OR (EATX) (3.3L/3.8L) GROUND
1 Z115 18BK/OR (EATX) (2.4L) GROUND
2 F1 18PK/WT (EATX) FCM OUTPUT (UNLOCK-RUN-START)
3 T751 18YL (EATX) IGNITION SWITCH OUTPUT (START)
4 T2 18DG/WT TRS REVERSE SENSE
5 T16 18YL/OR (EATX) TRANSMISSION CONTROL RELAY OUTPUT
6 T15 18YL/BR (EATX) TRANSMISSION CONTROL RELAY CONTROL
7 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
8 K31 18BR FUEL PUMP RELAY CONTROL
9 C13 18LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
10 A104 18YL/RD (EATX) FUSED B(+)
11 - -
12 - -
13 D25 18WT/VT (EATX) PCI BUS (EATX)
14 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
15 Z116 18BK/VT GROUND
16 K51 18BR/WT AUTOMATIC SHUTDOWN RELAY CONTROL
17 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
18 K173 18BR/VT RADIATOR FAN RELAY CONTROL
19 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
20 A109 18OR/RD FUSED B(+)
INTELLIGENT POWER MODULE C4 - BLUE 10 WAY
CAV CIRCUIT FUNCTION
1 Z127 12BK/DG (GAS) GROUND
2 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT
3 K342 16BR/WT (DIESEL) ECM/PCM RELAY OUTPUT
3 K342 16BR/WT (GAS) AUTOMATIC SHUTDOWN RELAY OUTPUT
4 F500 16DG/PK (EXCEPT MTX)) FUSED IGNITION SWITCH OUTPUT (RUN)
5- -
6 D25 16WT/VT (ANTILOCK BRAKES) PCI BUS
7 A107 12TN/RD (ANTILOCK BRAKES) FUSED B(+)
8 A111 12DG/RD (ANTILOCK BRAKES) FUSED B(+)
9 A701 14BR/RD (GAS) B(+) (HAZARD FEED)
9 A710 14BR/RD (DIESEL) B(+) (HAZARD FEED)
10 - -
INTELLIGENT POWER MODULE C5 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 A1 4RD B(+)
2- -
3- -
4- -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-69
ProCarManuals.com
Page 1043 of 2321
INTELLIGENT POWER MODULE C6 - NATURAL 10 WAY
CAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 Z117 16BK/WT GROUND
3 Z118 16BK/YL GROUND
4 A110 12OR/RD (POWER SEAT) FUSED B(+)
5- -
6- -
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 F307 16LB/PK (BATTERY POSITION) FUSED B(+)
8 F307 16LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESORY RELAY OUTPUT
9 A113 12WT/RD (POWER SLIDING
DOOR)FUSED B(+)
10 - -
INTELLIGENT POWER MODULE C7 - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 C16 18DB/GY (BUILT-UP-EXPORT) FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
1 C16 20DB/GY (EXCEPT BUILT-UP-EX-
PORT)FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 T751 20YL (EXCEPT BUILT-UP-EX-
PORT)IGNITION SWITCH OUTPUT (START)
2 T141 20YL/OR (BUILT-UP-EXPORT) IGNITION SWITCH OUTPUT (START)
3 D25 20WT/VT PCI BUS
4 L13 20WT/YL (BUILT-UP-EXPORT) HEADLAMP ADJUST SIGNAL
5 K32 18DB/YL (GAS) BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
6- -
7 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
8 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
9 F201 18PK/OR FCM OUTPUT (RUN-START)
10 F214 18PK/LG FCM OUTPUT (RUN-START)
11 A106 20LB/RD FUSED B(+)
12 - -
13 F2 18PK/WT (GAS) FCM OUTPUT (UNLOCK-RUN-START)
14 - -
15 A114 16GY/RD FUSED B(+) (I.O.D.)
16 D23 20WT/BR FLASH PROGRAM ENABLE
17 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
18 X1 16DG/BR (PREMIUM 8 SPEAKER) NAME BRAND SPEAKER RELAY OUTPUT
19 X3 20DG/VT HORN SWITCH SENSE
20 F100 18PK/VT FCM OUTPUT (RUN)
8Wa - 80 - 70 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1044 of 2321
INTELLIGENT POWER MODULE C8 - ORANGE 10 WAY
CAV CIRCUIT FUNCTION
1 W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT-
PUT
2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT
2 N1 16DB/OR (GAS) FUEL PUMP RELAY OUTPUT
3 A108 18LG/RD FUSED B(+)
3 A108 18LG/RD (BUILT-UP-EXPORT) FUSED B(+)
4 A103 18GY/RD FUSED B(+)
5 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
6 W4 12BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUT-
PUT
7 C51 12LB/BR (AUTOMATIC TEMPERA-
TURE CONTROL) (3 ZONE HVAC)FUSED REAR BLOWER MOTOR RELAY OUTPUT
8- -
9 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
10 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
INTELLIGENT POWER MODULE C9 - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 A102 12WT/RD FUSED B(+)
2 F20 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)
3 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 A105 18DB/RD FUSED B(+)
5 L61 18WT/LG LEFT FRONT TURN SIGNAL DIVER
6 A701 16BR/RD FUSED B(+) (HAZARD)
6 A701 16BR/RD FUSED B(+) (HAZARD)
7 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
8 F30 12PK/YL (POWER WINDOWS) FUSED ACCESSORY RELAY OUTPUT
9 A115 12YL/RD (POWER LIFTGATE) FUSED B(+)
10 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
KNOCK SENSOR (2.4L) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K42 18DB/YL KNOCK SENSOR SIGNAL
2 K900 18DB/DG SENSOR GROUND
KNOCK SENSOR (3.3L/3.8L) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K42 18DB/YL KNOCK SENSOR SIGNAL
2 K900 18DB/DG SENSOR GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-71
ProCarManuals.com
Page 1045 of 2321
LEAK DETECTION PUMP (EXCEPT BUILT-UP-EXPORT) - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 K107 18VT/WT LEAK DETECTION PUMP SWITCH SENSE
2 K106 18VT/LB LEAK DETECTION PUMP SOLENOID CONTROL
3 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
4- -
LEFT B-PILLAR SWITCH - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z61 20BK/DG GROUND
2 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
3 G41 20VT/DG LEFT SLIDING DOOR PILLAR SWITCH MUX
LEFT CINCH/RELEASE MOTOR (POWER SLIDING DOOR) - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Q49 18TN/WT LEFT CINCH/RELEASE MOTOR UNLATCH DRIVER
2 Z249 18BK/WT GROUND
3 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
4 Q47 18TN/GY LEFT CINCH/RELEASE MOTOR LATCH DRIVER
LEFT COMBINATION RELAY (TRAILER TOW) - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
2 Z1 18BK/DG GROUND
2 Z1 18BK/DG GROUND
3 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
3 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
4 L615 18OR LEFT STOP/TURN SIGNAL
5- -
LEFT CYLINDER LOCK SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z463 20BK/LB GROUND
2 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX
8Wa - 80 - 72 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1047 of 2321
LEFT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER
2 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 Z377 18BK/BR GROUND
LEFT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
LEFT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q53 20OR LEFT FULL OPEN SWITCH SENSE
2 Z77 20BK/GY GROUND
LEFT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L43 18WT/DB LEFT LOW BEAM DRIVER
2 Z343 18BK/LG GROUND
3 L33 18WT/LG LEFT HIGH BEAM DRIVER
LEFT HEADLAMP LEVELING MOTOR (BUILT-UP-EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L77 16BK FUSED HEADLAMP SWITCH OUTPUT (LEFT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
8Wa - 80 - 74 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1049 of 2321

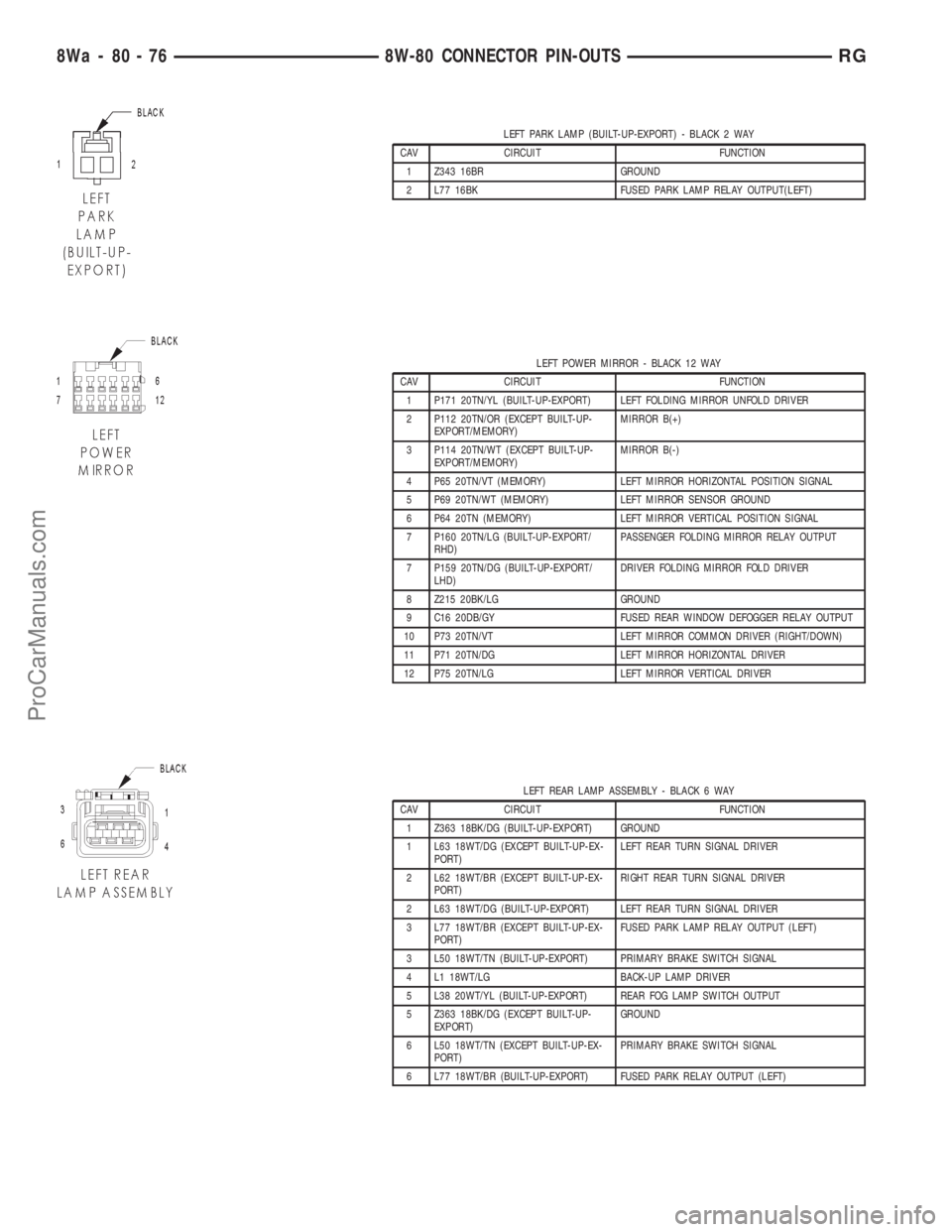

LEFT PARK LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT(LEFT)
LEFT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P171 20TN/YL (BUILT-UP-EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 20TN/OR (EXCEPT BUILT-UP-
EXPORT/MEMORY)MIRROR B(+)
3 P114 20TN/WT (EXCEPT BUILT-UP-
EXPORT/MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (BUILT-UP-EXPORT/
RHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (BUILT-UP-EXPORT/
LHD)DRIVER FOLDING MIRROR FOLD DRIVER
8 Z215 20BK/LG GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR HORIZONTAL DRIVER
12 P75 20TN/LG LEFT MIRROR VERTICAL DRIVER
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z363 18BK/DG (BUILT-UP-EXPORT) GROUND
1 L63 18WT/DG (EXCEPT BUILT-UP-EX-
PORT)LEFT REAR TURN SIGNAL DRIVER
2 L62 18WT/BR (EXCEPT BUILT-UP-EX-
PORT)RIGHT REAR TURN SIGNAL DRIVER
2 L63 18WT/DG (BUILT-UP-EXPORT) LEFT REAR TURN SIGNAL DRIVER
3 L77 18WT/BR (EXCEPT BUILT-UP-EX-
PORT)FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L50 18WT/TN (BUILT-UP-EXPORT) PRIMARY BRAKE SWITCH SIGNAL
4 L1 18WT/LG BACK-UP LAMP DRIVER
5 L38 20WT/YL (BUILT-UP-EXPORT) REAR FOG LAMP SWITCH OUTPUT
5 Z363 18BK/DG (EXCEPT BUILT-UP-
EXPORT)GROUND
6 L50 18WT/TN (EXCEPT BUILT-UP-EX-
PORT)PRIMARY BRAKE SWITCH SIGNAL
6 L77 18WT/BR (BUILT-UP-EXPORT) FUSED PARK RELAY OUTPUT (LEFT)
8Wa - 80 - 76 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
