Page 984 of 2321
BODY CONTROL MODULE C2 - BLACK/GREEN 34 WAY
CAV CIRCUIT FUNCTION
1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER
2 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
4 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
5 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
6 G25 20VT/TN (HIGH LINE) LIFTGATE SWITCH MUX
7 A114 20GY/RD FUSED B(+) (I.O.D.)
8- -
9 L1 18WT/LG BACK-UP LAMP DRIVER
10 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
11 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
12 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER
13 - -
14 - -
15 Z15 18BK/TN GROUND
16 G920 20VT/YL (MEMORY) MEMORY SEAT SWITCH RETURN
17 G153 20VT/YL (POWER LIFTGATE) LIFTGATE MODULE WAKE UP SIGNAL
18 P32 20TN/VT LEFT SLIDING DOOR LOCK DRIVER
19 Z10 18BK/TN GROUND
20 P5 20TN/OR LEFT SLIDING DOOR UNLOCK DRIVER
21 P164 18LG/DB (BUILT-UP-EXPORT) PASSENGER FOLDING MIRROR RELAY INPUT
22 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
23 - -
24 G200 20VT/BR (MEMORY) MEMORY SEAT SET SWITCH MUX
25 M22 20YL/OR COURTESY LAMPS DRIVER
26 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
27 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER
28 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
29 P159 20TN/DG (BUILT-UP-EXPORT) DRIVER FOLDING MIRROR FOLD DRIVER
30 P174 20TN/LB (BUILT-UP-EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
31 P171 20TN/YL (BUILT-UP-EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
32 W13 18BR/LG REAR WIPER MOTOR CONTROL
33 M24 20YL/WT COURTESY LAMPS DRIVER
34 L38 20WT/YL (BUILT-UP-EXPORT) REAR FOG LAMP SWITCH OUTPUT
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-11
ProCarManuals.com
Page 985 of 2321
BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAY
CAV CIRCUIT FUNCTION
1 G23 20VT/DB (POWER SLIDING
DOOR)SLIDING DOORS OVERHEAD SWITCH MUX
2 D23 20WT/BR FLASH PROGRAM ENABLE
3 G152 20VT/GY (POWER SLIDING
DOOR)RIGHT SLIDING DOOR WAKE UP SIGNAL
4 G151 20VT/BR (POWER SLIDING
DOOR)LEFT SLIDING DOOR WAKE UP SIGNAL
5 G76 20VT/YL RIGHT SLIDING DOOR AJAR SWITCH SENSE
6 G75 20VT (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
6 G74 20VT/WT (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G74 20VT/WT (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G75 20VT (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
8 G77 20VT/GY LEFT SLIDING DOOR AJAR SWITCH SENSE
9 E10 20OR/GY (ATC ) (3 ZONE HVAC) PANEL LAMPS DRIVER (REAR BLOWER SWITCH)
10 - -
11 L162 20WT/VT (BUILT-UP-EXPORT) RIGHT SIDE REPEATER LAMP FEED
12 G42 20VT/YL (POWER SLIDING
DOOR)RIGHT SLIDING DOOR PILLAR SWITCH MUX
13 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
14 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX
15 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX
16 - -
17 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
18 G41 20VT/DG (POWER SLIDING
DOOR)LEFT SLIDING DOOR PILLAR SWITCH MUX
19 L163 20WT/BR (BUILT-UP-EXPORT) LEFT SIDE REPEATER LAMP FEED
20 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL
21 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
21 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
22 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
22 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
23 D25 20WT/VT PCI BUS
24 - -
25 M11 20YL/VT COURTESY LAMPS DRIVER
26 P31 20TN/YL (POWER RELEASE)
(EXCEPT BUILT-UP-EXPORT LHD SWB
GAS)LIFTGATE RELEASE DRIVER
26 P31 20TN/DG (POWER RELEASE)
(BUILT-UP-EXPORT LHD SWB GAS)LIFTGATE RELEASE DRIVER
27 - -
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 G70 20VT/LB HOOD AJAR SWITCH SENSE
31 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
32 - -
33 M21 20YL/BR COURTESY LAMPS DRIVER
34 M27 20YL/LB READING LAMPS DRIVER
8Wa - 80 - 12 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

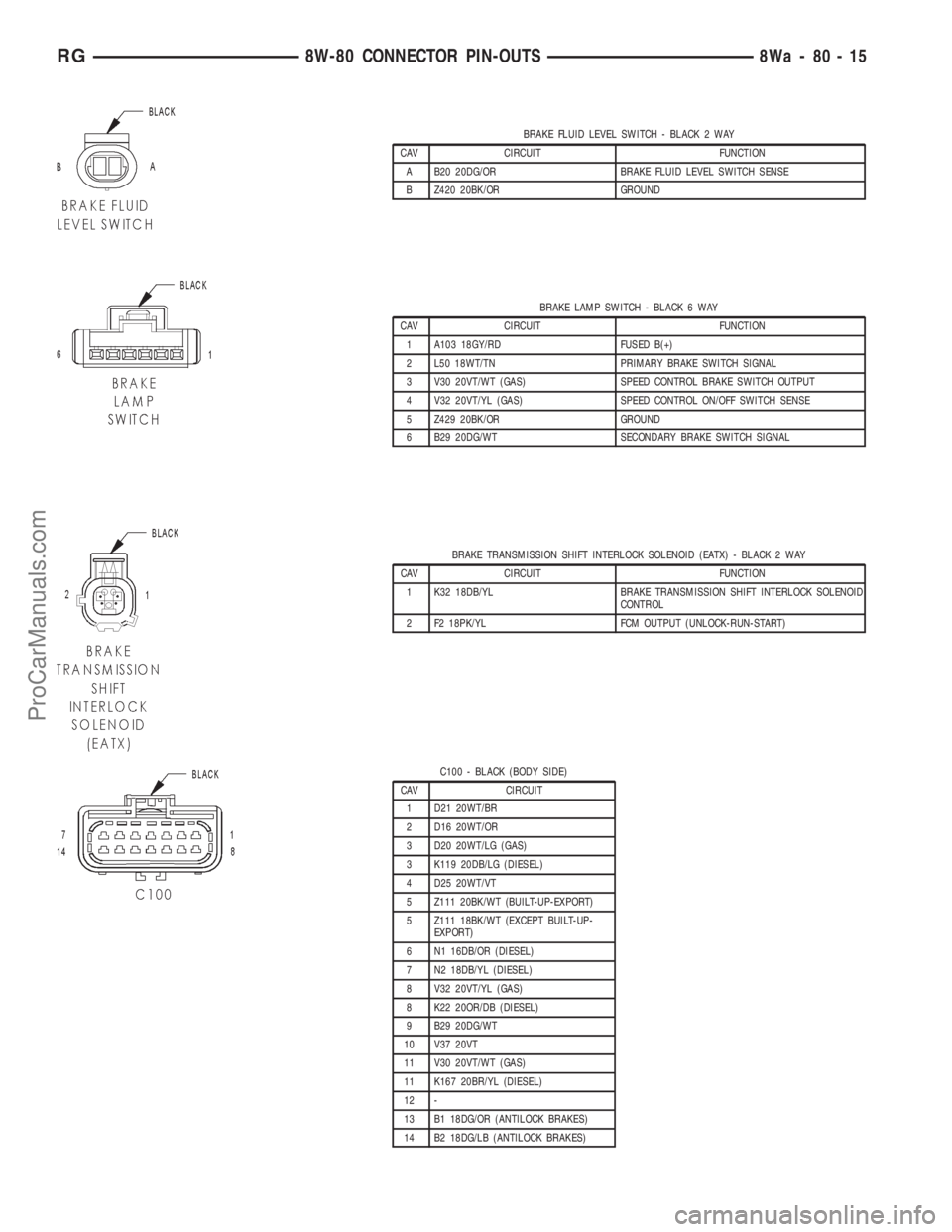

Page 988 of 2321
BRAKE FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
B Z420 20BK/OR GROUND
BRAKE LAMP SWITCH - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A103 18GY/RD FUSED B(+)
2 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
3 V30 20VT/WT (GAS) SPEED CONTROL BRAKE SWITCH OUTPUT
4 V32 20VT/YL (GAS) SPEED CONTROL ON/OFF SWITCH SENSE
5 Z429 20BK/OR GROUND
6 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID (EATX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K32 18DB/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
2 F2 18PK/YL FCM OUTPUT (UNLOCK-RUN-START)
C100 - BLACK (BODY SIDE)
CAV CIRCUIT
1 D21 20WT/BR
2 D16 20WT/OR
3 D20 20WT/LG (GAS)
3 K119 20DB/LG (DIESEL)
4 D25 20WT/VT
5 Z111 20BK/WT (BUILT-UP-EXPORT)
5 Z111 18BK/WT (EXCEPT BUILT-UP-
EXPORT)
6 N1 16DB/OR (DIESEL)
7 N2 18DB/YL (DIESEL)
8 V32 20VT/YL (GAS)
8 K22 20OR/DB (DIESEL)
9 B29 20DG/WT
10 V37 20VT
11 V30 20VT/WT (GAS)
11 K167 20BR/YL (DIESEL)
12 -
13 B1 18DG/OR (ANTILOCK BRAKES)
14 B2 18DG/LB (ANTILOCK BRAKES)
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-15
ProCarManuals.com
Page 1017 of 2321
CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND
2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 24GY/WT (BUILT-UP-EXPORT) AUDIO OUT RIGHT
1 X40 20GY/WT (EXCEPT BUILT-UP-EX-
PORT)AUDIO OUT RIGHT
2 E14 24OR/TN (BUILT-UP-EXPORT) PANEL LAMPS DRIVER
2 E14 18OR/TN (EXCEPT BUILT-UP-EX-
PORT)PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT BUILT-UP-EX-
PORT)PCI BUS
3 D25 24VT/YL (BUILT-UP-EXPORT) PCI BUS
4 X112 24RD (BUILT-UP-EXPORT) IGNITION SWITCH OUTPUT
4 X112 20RD (EXCEPT BUILT-UP-EX-
PORT)IGNITION SWITCH OUTPUT
5 X41 20DG/WT (EXCEPT BUILT-UP-EX-
PORT)AUDIO OUT LEFT
5 X41 24DG/WT (BUILT-UP-EXPORT) AUDIO OUT LEFT
6 Z140 24BK/OR (BUILT-UP-EXPORT) GROUND
6 Z140 18BK/OR (EXCEPT BUILT-UP-
EXPORT)GROUND
7 Z141 18BK/TN (EXCEPT BUILT-UP-
EXPORT)GROUND
7 Z141 22BK/TN (BUILT-UP-EXPORT) GROUND
8 X160 22GY/YL (BUILT-UP-EXPORT) B(+)
8 X160 20GY/YL (EXCEPT BUILT-UP-
EXPORT)B(+)
8Wa - 80 - 44 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1020 of 2321
CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z107 12BK/DG (OTHER) GROUND
1 Z107 12BK/TN (EXCEPT BUILT-UP-
EXPORT/ 2.4L)GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
24 A107 12TN/RD FUSED B(+)
CRANK CASE VENTILATION HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z153 18BK/GY GROUND
2 N1 18DB/OR FUEL HEATER RELAY OUTPUT
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-47
ProCarManuals.com
Page 1021 of 2321
CRANKSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
2 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
3 Z122 18WT GROUND (DRAIN)
CRANKSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT (EXCEPT BUILT-UP-
EXPORT)GROUND
5 Z111 20BK/WT (BUILT-UP-EXPORT) GROUND
6 D20 20WT/LG (GAS) SCI RECEIVE
7 D21 20WT/BR SCI TRANSMIT
8- -
9 D23 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D16 20WT/OR (GAS) SCI RECEIVE
15 - -
16 A105 20DB/RD FUSED B(+)
8Wa - 80 - 48 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

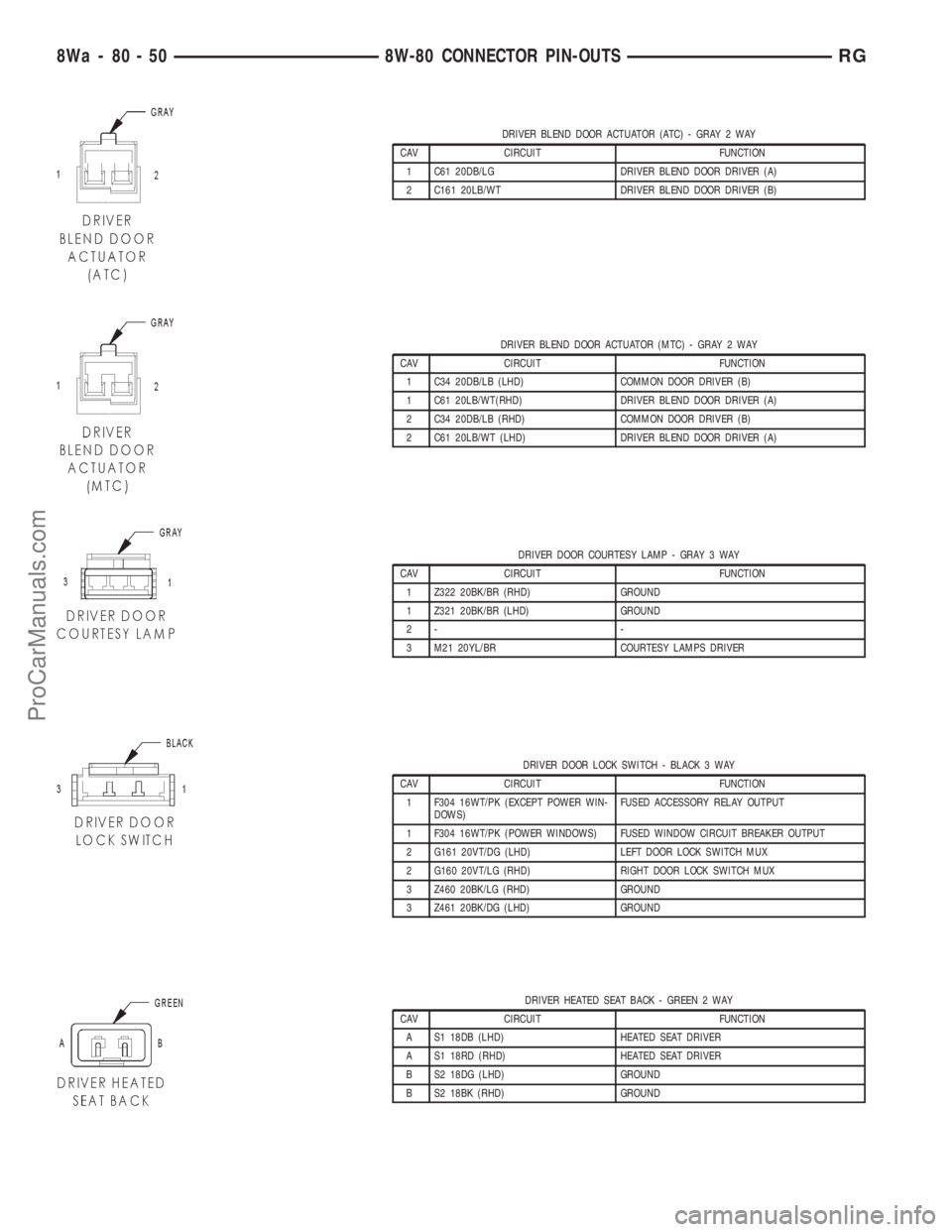

Page 1023 of 2321
DRIVER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
DRIVER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C61 20LB/WT(RHD) DRIVER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
2 C61 20LB/WT (LHD) DRIVER BLEND DOOR DRIVER (A)
DRIVER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (RHD) GROUND
1 Z321 20BK/BR (LHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (RHD) GROUND
3 Z461 20BK/DG (LHD) GROUND
DRIVER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18DB (LHD) HEATED SEAT DRIVER
A S1 18RD (RHD) HEATED SEAT DRIVER
B S2 18DG (LHD) GROUND
B S2 18BK (RHD) GROUND
8Wa - 80 - 50 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1024 of 2321
DRIVER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A P87 16LG/OR HEATED SEAT DRIVER
B P88 16LG/LB HEATED SEAT DRIVER
C P89 20LG/BR HEATED SEAT BACK
D Z848 18BK/OR GROUND
DRIVER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z849 18BK/OR GROUND
2 P7 20LG/DG DRIVER HEATED SEAT SWITCH
3 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED SEAT SWITCH DRIVER
DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18RD (RHD) HEATED SEAT DRIVER
1 S1 18DB (LHD) HEATED SEAT DRIVER
2 S2 18DG (LHD) GROUND
2 S2 18BK (RHD) GROUND
DRIVER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
A P87 16LG/OR HEATED SEAT DRIVER
B P88 16LG/LB HEATED SEAT DRIVER
C P89 20LG/BR HEATED SEAT BACK
D Z848 18BK/OR GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-51
