2001 DODGE TOWN AND COUNTRY fuse

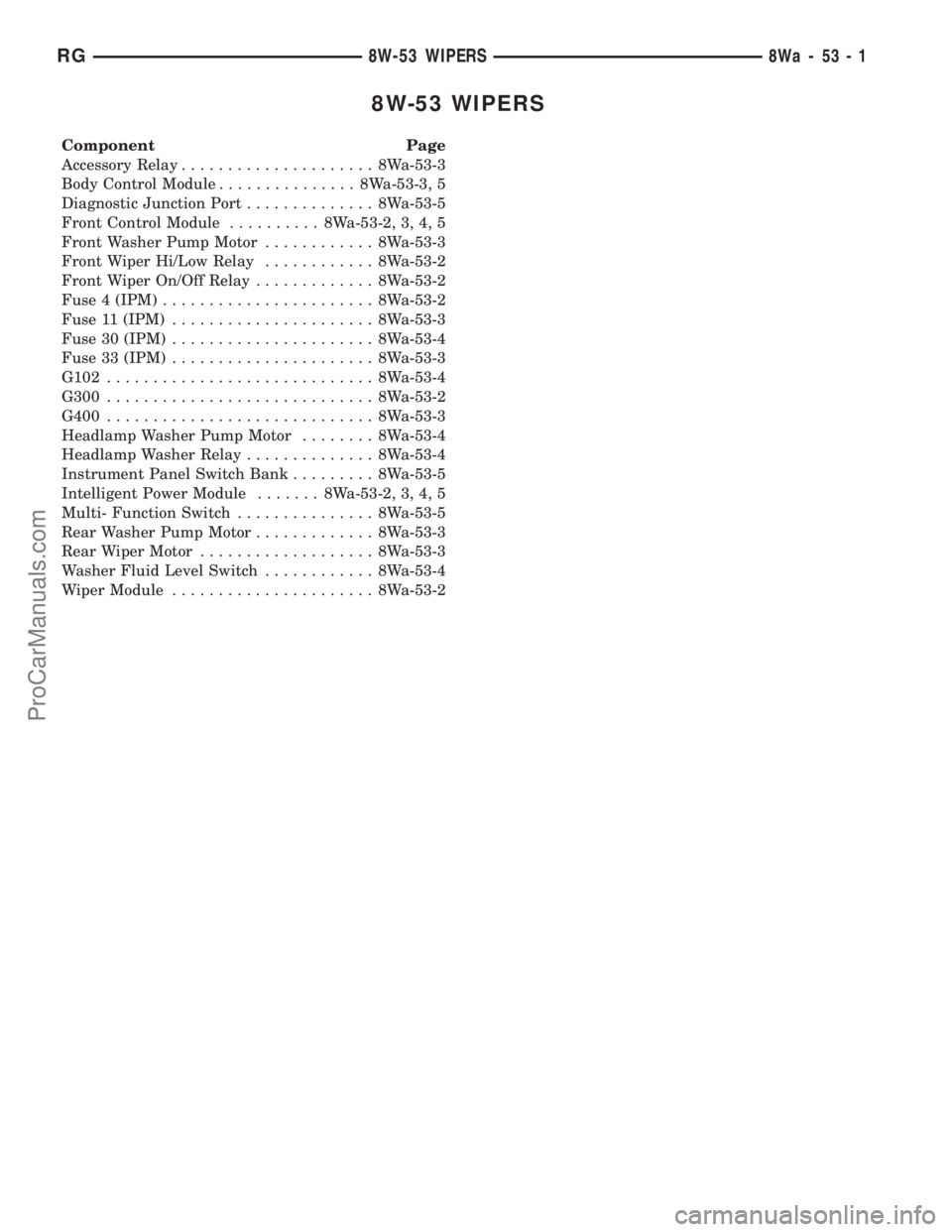

8W-53 WIPERS
Component Page
Accessory Relay..................... 8Wa-53-3
Body Control Module............... 8Wa-53-3, 5
Diagnostic Junction Port.............. 8Wa-53-5
Front Control Module.......... 8Wa-53-2, 3, 4, 5
Front Washer Pump Motor............ 8Wa-53-3
Front Wiper Hi/Low Relay............ 8Wa-53-2
Front Wiper On/Off Relay............. 8Wa-53-2
Fuse 4 (IPM)....................... 8Wa-53-2
Fuse 11 (IPM)...................... 8Wa-53-3
Fuse 30 (IPM)...................... 8Wa-53-4
Fuse 33 (IPM)...................... 8Wa-53-3
G102............................. 8Wa-53-4
G300............................. 8Wa-53-2
G400............................. 8Wa-53-3
Headlamp Washer Pump Motor........ 8Wa-53-4
Headlamp Washer Relay.............. 8Wa-53-4
Instrument Panel Switch Bank......... 8Wa-53-5
Intelligent Power Module....... 8Wa-53-2, 3, 4, 5
Multi- Function Switch............... 8Wa-53-5
Rear Washer Pump Motor............. 8Wa-53-3
Rear Wiper Motor................... 8Wa-53-3
Washer Fluid Level Switch............ 8Wa-53-4
Wiper Module...................... 8Wa-53-2
RG8W-53 WIPERS8Wa-53-1
ProCarManuals.com

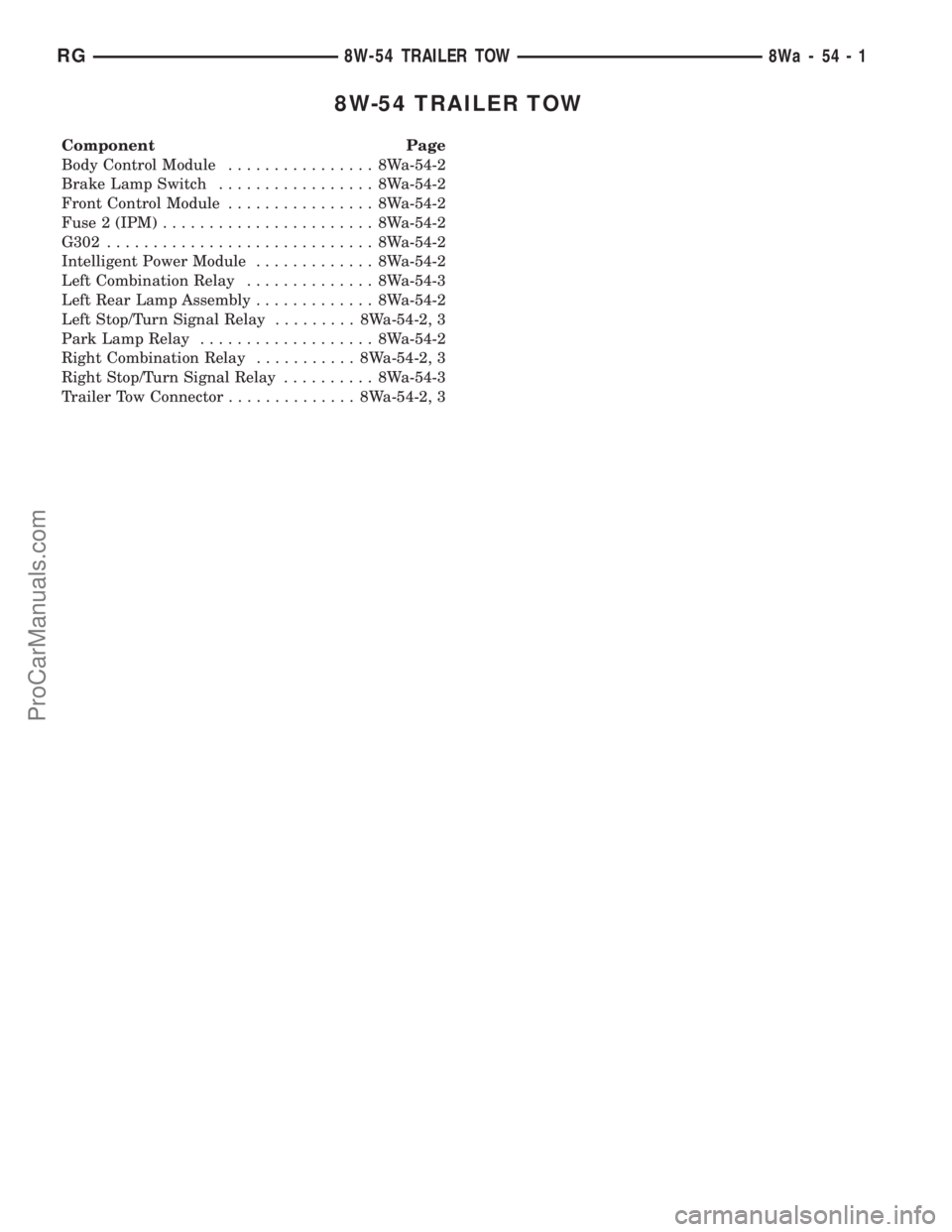

8W-54 TRAILER TOW
Component Page
Body Control Module................ 8Wa-54-2
Brake Lamp Switch................. 8Wa-54-2
Front Control Module................ 8Wa-54-2
Fuse 2 (IPM)....................... 8Wa-54-2
G302............................. 8Wa-54-2
Intelligent Power Module............. 8Wa-54-2
Left Combination Relay.............. 8Wa-54-3
Left Rear Lamp Assembly............. 8Wa-54-2
Left Stop/Turn Signal Relay......... 8Wa-54-2, 3
Park Lamp Relay................... 8Wa-54-2
Right Combination Relay........... 8Wa-54-2, 3
Right Stop/Turn Signal Relay.......... 8Wa-54-3
Trailer Tow Connector.............. 8Wa-54-2, 3
RG8W-54 TRAILER TOW8Wa-54-1
ProCarManuals.com

8W-60 POWER WINDOWS
Component Page
Accessory Relay................... 8Wa-60-2, 4
Driver Power Window Motor......... 8Wa-60-2, 4
Driver Power Window Switch.... 8Wa-60-2, 3, 4, 5
Fuse 28 (IPM).................... 8Wa-60-2, 4
G300........................... 8Wa-60-2, 5
G301........................... 8Wa-60-3, 4
Intelligent Power Module........... 8Wa-60-2, 4
Left Rear Vent Motor.............. 8Wa-60-2, 4
Passenger Power Window Motor...... 8Wa-60-3, 5
Passenger Power Window Switch..... 8Wa-60-3, 5
Power Window Circuit Breaker....... 8Wa-60-2, 4
Right Rear Vent Motor............. 8Wa-60-2, 4
RG8W-60 POWER WINDOWS8Wa-60-1
ProCarManuals.com

8W-61 POWER DOOR LOCKS
Component Page
Accessory Relay............... 8Wa-61-2, 3, 4, 7
Body Control Module . 8Wa-61-2, 3, 4, 5, 6, 7, 10, 13,
14, 15, 16, 19
Diagnostic Junction Port........ 8Wa-61-7, 10, 16
Driver Door Lock Switch.......... 8Wa-61-2, 3, 4
Front Control Module................ 8Wa-61-7
Fuse 11 (IPM).................... 8Wa-61-4, 7
Fuse 14 (IPM)...................... 8Wa-61-6
Fuse 19 (IPM)................ 8Wa-61-5, 13, 14
Fuse 20 (IPM)................ 8Wa-61-5, 13, 14
Fuse 28 (IPM).................... 8Wa-61-2, 3
Fuse 31 (IPM)...................... 8Wa-61-7
Fuse 32 (IPM)..................... 8Wa-61-16
G200............................. 8Wa-61-6
G300.............. 8Wa-61-2, 3, 4, 5, 7, 8, 9, 14
G301............ 8Wa-61-2, 3, 4, 5, 10, 11, 12, 14
G302............................ 8Wa-61-16
G400......................... 8Wa-61-15, 19
Intelligent Power Module . . . 8Wa-61-2, 3, 4, 5, 6, 7,
13, 14, 16
Left B-Pillar Switch................. 8Wa-61-7
Left Cinch/Release Motor............. 8Wa-61-8
Left Front Door Lock Motor/Ajar Switch . . 8Wa-61-5
Left Full Open Switch................ 8Wa-61-8
Left Sliding Door Control Module . . . 8Wa-61-7, 8, 9,
13
Left Sliding Door Latch Sensing Switch . . 8Wa-61-7,
9
Left Sliding Door Lock Motor......... 8Wa-61-13
Left Sliding Door Lock Motor/Ajar Switch. 8Wa-61-14
Left Sliding Door Motor.............. 8Wa-61-8
License Lamp.................. 8Wa-61-18, 19
Liftgate Ajar Switch................ 8Wa-61-15
Liftgate Cinch/Release Motor......... 8Wa-61-18
Liftgate Left Pinch Sensor........... 8Wa-61-18
Liftgate Right Pinch Sensor.......... 8Wa-61-18
Passenger Door Lock Switch....... 8Wa-61-2, 3, 4
Power Liftgate Module...... 8Wa-61-16, 17, 18, 19
Power Liftgate Motor............... 8Wa-61-17
Power Window Circuit Breaker....... 8Wa-61-2, 3
Remote Keyless Entry Antenna......... 8Wa-61-6
Remote Keyless Entry Module......... 8Wa-61-6
Right B-Pillar Switch............. 8Wa-61-7, 10
Right Cinch/Release Motor........... 8Wa-61-11
Right Front Door Lock Motor/Ajar Switch . 8Wa-61-5
Right Full Open Switch.............. 8Wa-61-11
Right Sliding Door Control Module . . 8Wa-61-10, 11,
12, 13
Right Sliding Door Latch Sensing Switch. 8Wa-61-10,
12
Right Sliding Door Lock Motor........ 8Wa-61-13
Right Sliding Door Lock Motor/Ajar Switch. 8Wa-61-14Component Page
Right Sliding Door Motor............ 8Wa-61-11
RG8W-61 POWER DOOR LOCKS8Wa-61-1
ProCarManuals.com

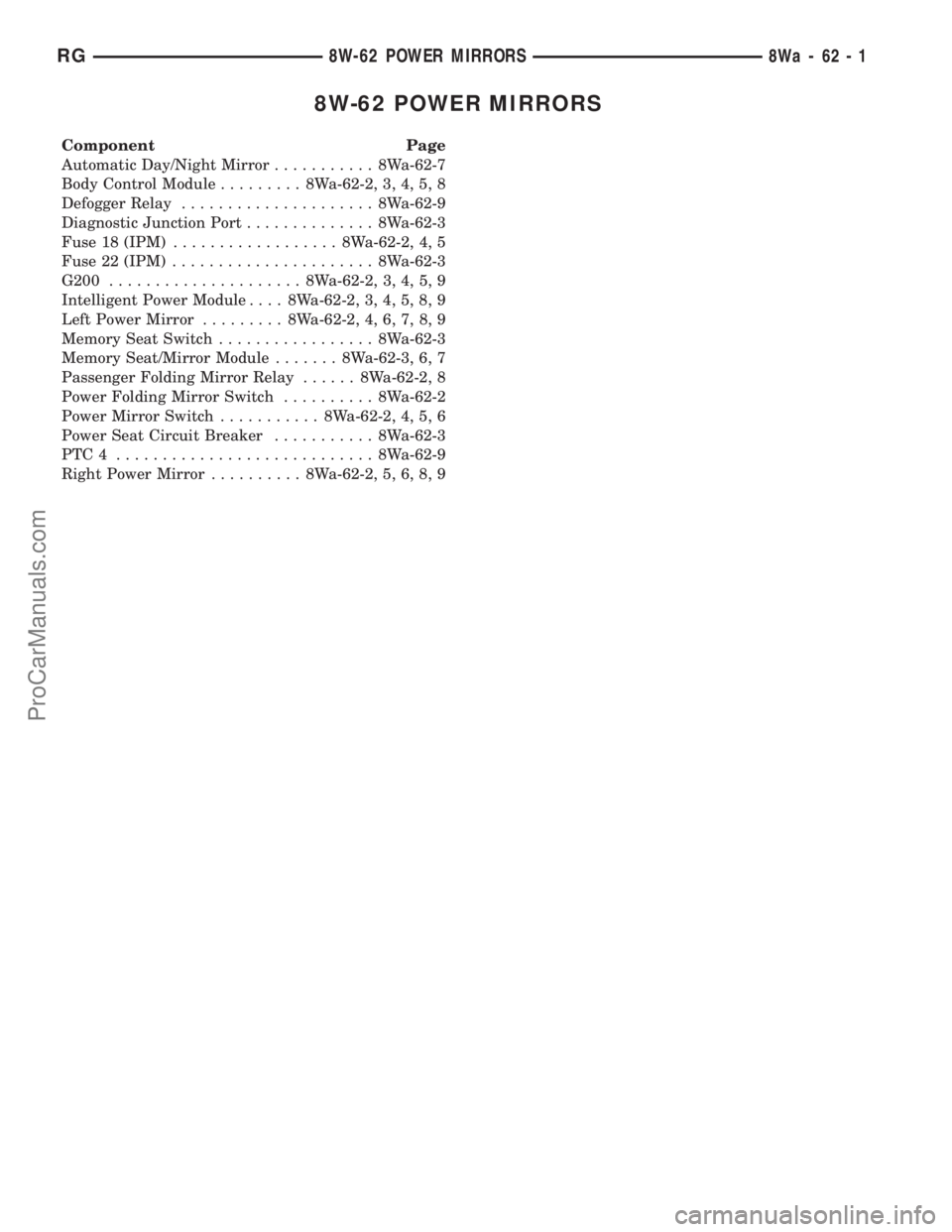

8W-62 POWER MIRRORS
Component Page
Automatic Day/Night Mirror........... 8Wa-62-7
Body Control Module......... 8Wa-62-2, 3, 4, 5, 8
Defogger Relay..................... 8Wa-62-9
Diagnostic Junction Port.............. 8Wa-62-3
Fuse 18 (IPM).................. 8Wa-62-2, 4, 5
Fuse 22 (IPM)...................... 8Wa-62-3
G200..................... 8Wa-62-2, 3, 4, 5, 9
Intelligent Power Module.... 8Wa-62-2, 3, 4, 5, 8, 9
Left Power Mirror......... 8Wa-62-2, 4, 6, 7, 8, 9
Memory Seat Switch................. 8Wa-62-3
Memory Seat/Mirror Module....... 8Wa-62-3, 6, 7
Passenger Folding Mirror Relay...... 8Wa-62-2, 8
Power Folding Mirror Switch.......... 8Wa-62-2
Power Mirror Switch........... 8Wa-62-2, 4, 5, 6
Power Seat Circuit Breaker........... 8Wa-62-3
PTC4 ............................ 8Wa-62-9
Right Power Mirror.......... 8Wa-62-2, 5, 6, 8, 9
RG8W-62 POWER MIRRORS8Wa-62-1
ProCarManuals.com

8W-63 POWER SEATS
Component Page
Body Control Module............... 8Wa-63-4, 7
Diagnostic Junction Port.............. 8Wa-63-4
Driver Heated Seat Back............. 8Wa-63-7
Driver Heated Seat Cushion........... 8Wa-63-7
Driver Heated Seat Module........ 8Wa-63-3, 4, 7
Driver Power Seat Front Riser Motor.... 8Wa-63-2
Driver Power Seat Horizontal Motor..... 8Wa-63-2
Driver Power Seat Rear Riser Motor..... 8Wa-63-2
Driver Power Seat Recliner Motor...... 8Wa-63-2
Driver Power Seat Switch............. 8Wa-63-2
Fuse 22 (IPM).................... 8Wa-63-2, 4
G200....................... 8Wa-63-2, 4, 5, 7
G301........................... 8Wa-63-3, 8
Instrument Panel Switch Bank......... 8Wa-63-7
Intelligent Power Module........... 8Wa-63-2, 4
Memory Power Seat Switch........... 8Wa-63-5
Memory Seat Front Vertical Motor...... 8Wa-63-5
Memory Seat Front Vertical Position Sensor. 8Wa-63-6
Memory Seat Horizontal Motor......... 8Wa-63-5
Memory Seat Horizontal Position Sensor . 8Wa-63-6
Memory Seat Rear Vertical Motor....... 8Wa-63-5
Memory Seat Rear Vertical Position Sensor. 8Wa-63-6
Memory Seat Recliner Motor........... 8Wa-63-5
Memory Seat Recliner Position Sensor . . . 8Wa-63-6
Memory Seat Switch................. 8Wa-63-4
Memory Seat/Mirror Module....... 8Wa-63-4, 5, 6
Passenger Heated Seat Back........... 8Wa-63-8
Passenger Heated Seat Cushion........ 8Wa-63-8
Passenger Heated Seat Module......... 8Wa-63-8
Passenger Power Seat Front Riser Motor . 8Wa-63-3
Passenger Power Seat Horizontal Motor . . 8Wa-63-3
Passenger Power Seat Rear Riser Motor . . 8Wa-63-3
Passenger Power Seat Recliner Motor.... 8Wa-63-3
Passenger Power Seat Switch.......... 8Wa-63-3
Power Seat Circuit Breaker........ 8Wa-63-2, 3, 4
RG8W-63 POWER SEATS8Wa-63-1
ProCarManuals.com

AUTO TEMP CONTROL C2 - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 20GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 20DB/LB BLOWER MOTOR CONTROL
8 C59 20DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN KDB CLOCK
10 D17 20WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 C200 20LB/DG TXV SOLENOID FEED
13 C900 18LB/VT WIPER DE-ICER DRIVER
AUTO TEMP CONTROL C3-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO.2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
BACK-UP LAMP SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T2 18DG/WT TRS REVERSE SENSE
2 Z252 18BK/WT GROUND
BATTERY TEMPERATURE SENSOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-9
ProCarManuals.com

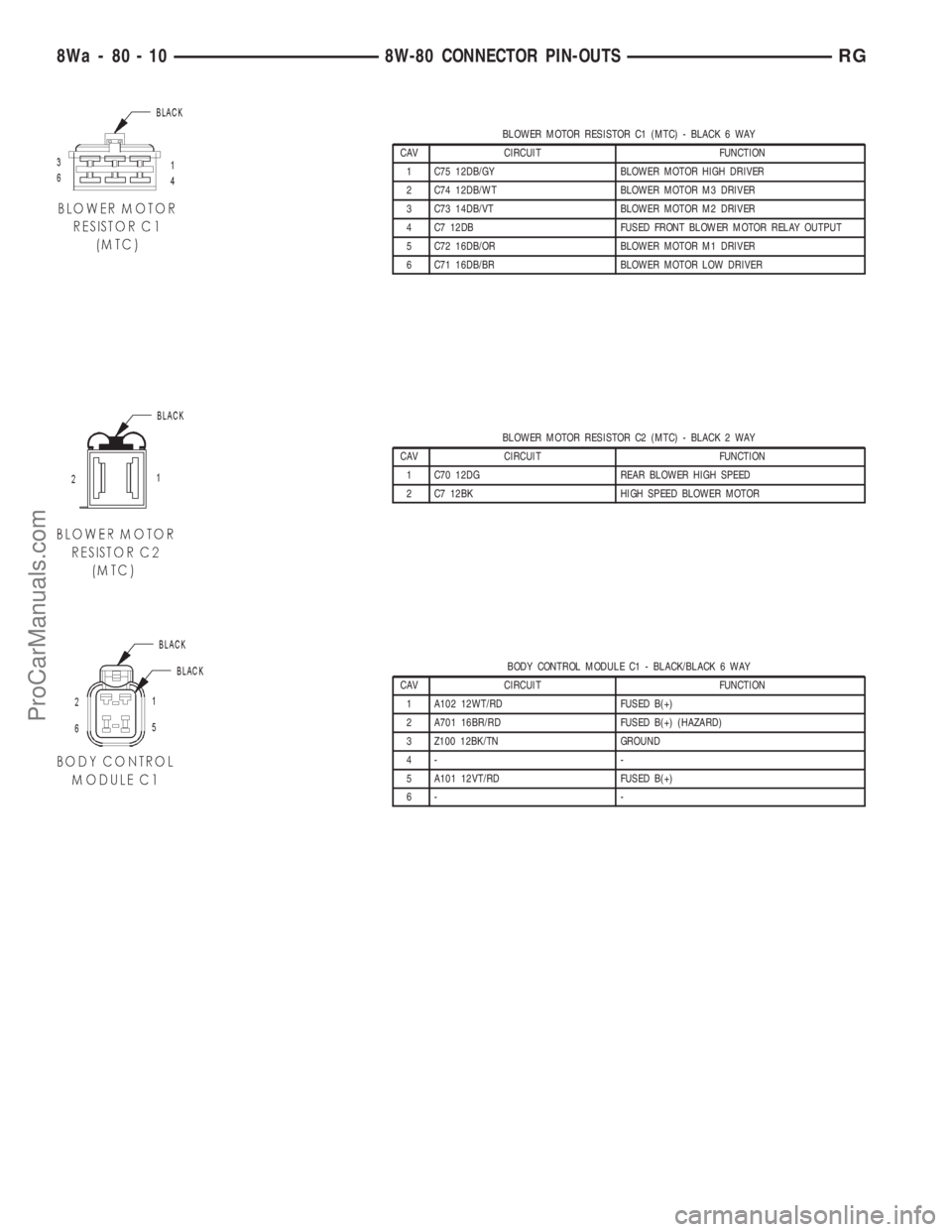

BLOWER MOTOR RESISTOR C1 (MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
2 C74 12DB/WT BLOWER MOTOR M3 DRIVER
3 C73 14DB/VT BLOWER MOTOR M2 DRIVER
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
5 C72 16DB/OR BLOWER MOTOR M1 DRIVER
6 C71 16DB/BR BLOWER MOTOR LOW DRIVER
BLOWER MOTOR RESISTOR C2 (MTC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C70 12DG REAR BLOWER HIGH SPEED
2 C7 12BK HIGH SPEED BLOWER MOTOR
BODY CONTROL MODULE C1 - BLACK/BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A102 12WT/RD FUSED B(+)
2 A701 16BR/RD FUSED B(+) (HAZARD)
3 Z100 12BK/TN GROUND
4- -
5 A101 12VT/RD FUSED B(+)
6- -
8Wa - 80 - 10 8W-80 CONNECTOR PIN-OUTSRG
