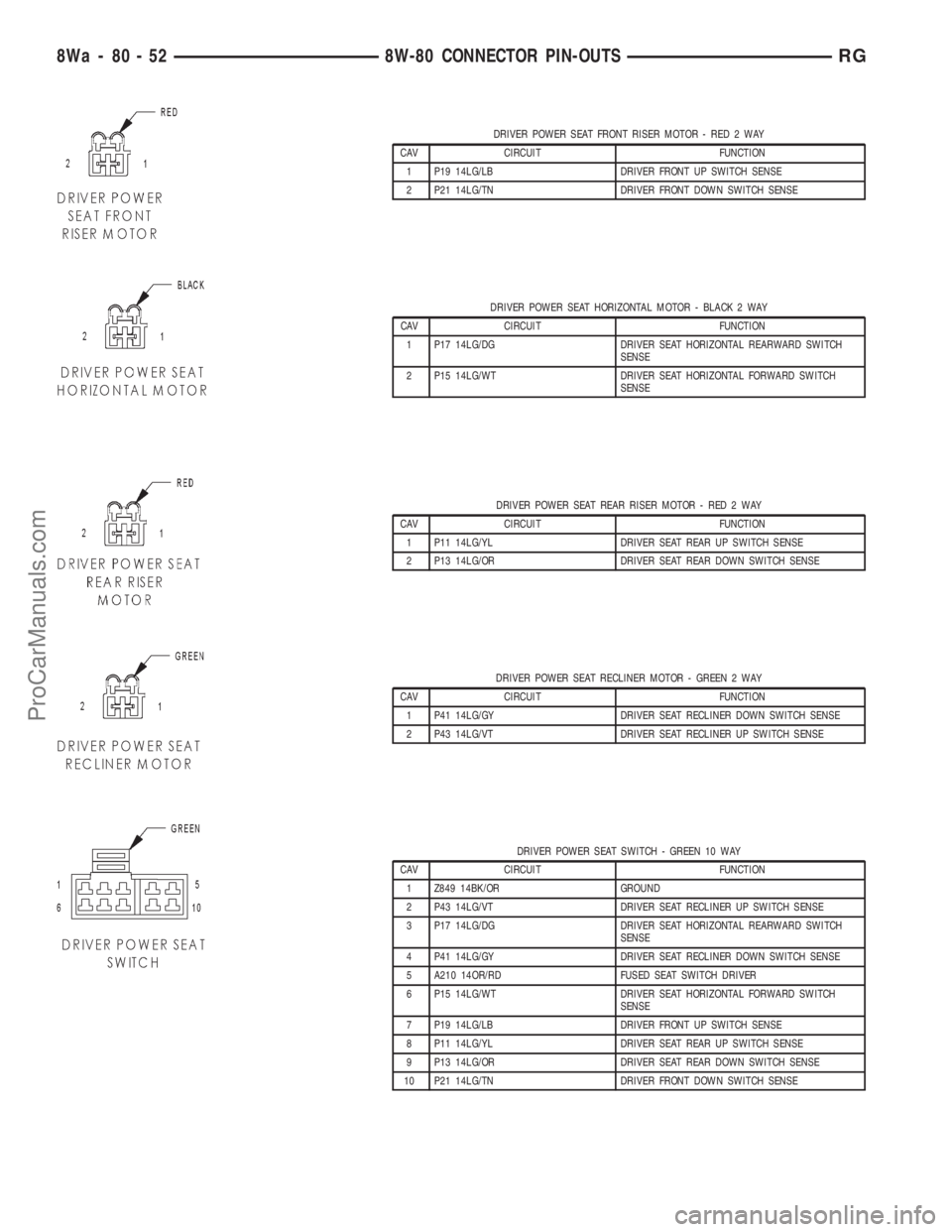

Page 1025 of 2321
DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P19 14LG/LB DRIVER FRONT UP SWITCH SENSE
2 P21 14LG/TN DRIVER FRONT DOWN SWITCH SENSE
DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
2 P15 14LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
DRIVER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P11 14LG/YL DRIVER SEAT REAR UP SWITCH SENSE
2 P13 14LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
DRIVER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P41 14LG/GY DRIVER SEAT RECLINER DOWN SWITCH SENSE
2 P43 14LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
DRIVER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR GROUND
2 P43 14LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
3 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
4 P41 14LG/GY DRIVER SEAT RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD FUSED SEAT SWITCH DRIVER
6 P15 14LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
7 P19 14LG/LB DRIVER FRONT UP SWITCH SENSE
8 P11 14LG/YL DRIVER SEAT REAR UP SWITCH SENSE
9 P13 14LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P21 14LG/TN DRIVER FRONT DOWN SWITCH SENSE
8Wa - 80 - 52 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

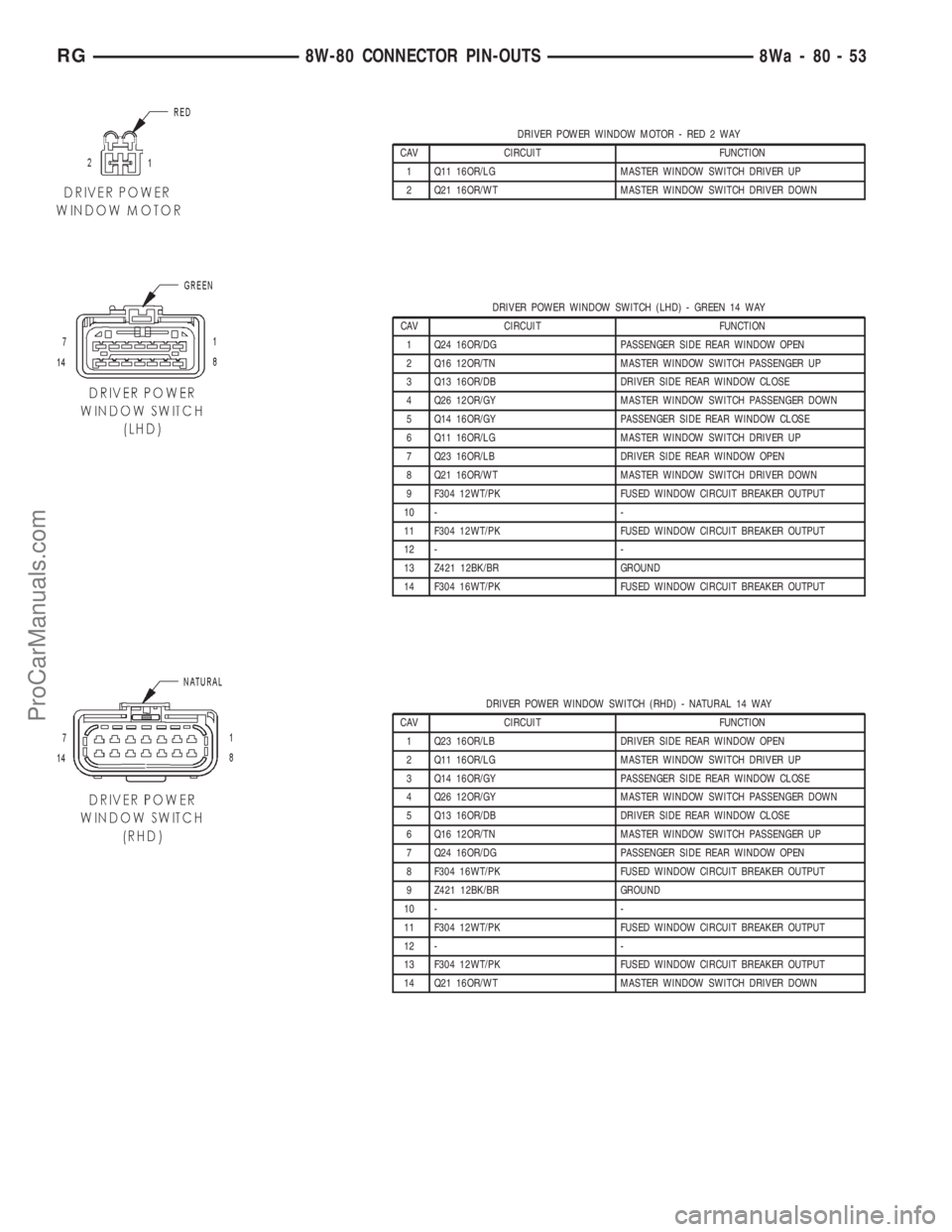

Page 1026 of 2321
DRIVER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
2 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
DRIVER POWER WINDOW SWITCH (LHD) - GREEN 14 WAY
CAV CIRCUIT FUNCTION
1 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
2 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
3 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
4 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
5 Q14 16OR/GY PASSENGER SIDE REAR WINDOW CLOSE
6 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
7 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
8 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
9 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 Z421 12BK/BR GROUND
14 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
DRIVER POWER WINDOW SWITCH (RHD) - NATURAL 14 WAY
CAV CIRCUIT FUNCTION
1 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
2 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
3 Q14 16OR/GY PASSENGER SIDE REAR WINDOW CLOSE
4 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
5 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
6 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
7 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
8 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
9 Z421 12BK/BR GROUND
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
14 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-53
ProCarManuals.com
Page 1027 of 2321
DRIVER SEAT BELT SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
2 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
DRIVER SEAT BELT TENSIONER-2WAY
CAV CIRCUIT FUNCTION
1 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
2 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
EGR SOLENOID (DIESEL) - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K35 20GY/YL EGR SOLENOID CONTROL
2 K342 16BR/WT ECM/PCM RELAY OUTPUT
EGR SOLENOID (GAS) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K35 18DB/VT EGR SOLENOID CONTROL
2 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
ELECTRIC WIPER DE-ICER C1 - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
2- -
8Wa - 80 - 54 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1032 of 2321
EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
FLOOR CONSOLE LAMP- BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M27 18OR (FRONT CONSOLE) READING LAMPS DRIVER
1 F307 18OR (REAR CONSOLE) (BAT-
TERY POSITION)FUSED B(+)
1 F307 18OR (REAR CONSOLE) (ACCES-
SORY RELAY POSITION)FUSED ACCESSORY RELAY OUTPUT
2 Z746 16BK (FRONT CONSOLE) GROUND
2 Z747 16BK (REAR CONSOLE) GROUND
FLOOR CONSOLE POWER OUTLET- RED 3 WAY
CAV CIRCUIT FUNCTION
1 A105 16RD (FRONT POSITION) FUSED B(+)
1 F307 16RD (REAR POSITION) (BAT-
TERY POSITION)FUSED B(+)
1 F307 16RD (REAR POSITION) (ACCES-
SORY RELAY POSITION)FUSED ACCESSORY RELAY OUTPUT
2- -
3 Z746 16BK (FRONT POSITION) GROUND
3 Z747 16BK (REAR POSITION) GROUND
FRONT BLOWER MODULE C1 (ATC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z134 12BK/OR GROUND
3 C56 20DB/LB BLOWER MOTOR CONTROL
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
FRONT BLOWER MODULE C2 (ATC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C7 12DG (BUILT-UP-EXPORT) HIGH SPEED BLOWER MOTOR
1 C7 12DB (EXCEPT BUILT-UP-EXPORT) HIGH SPEED BLOWER MOTOR
2 C70 12BK (BUILT-UP-EXPORT) REAR BLOWER HIGH SPEED
2 C70 12DB/YL (EXCEPT BUILT-UP-EX-
PORT)REAR BLOWER HIGH SPEED
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-59
ProCarManuals.com

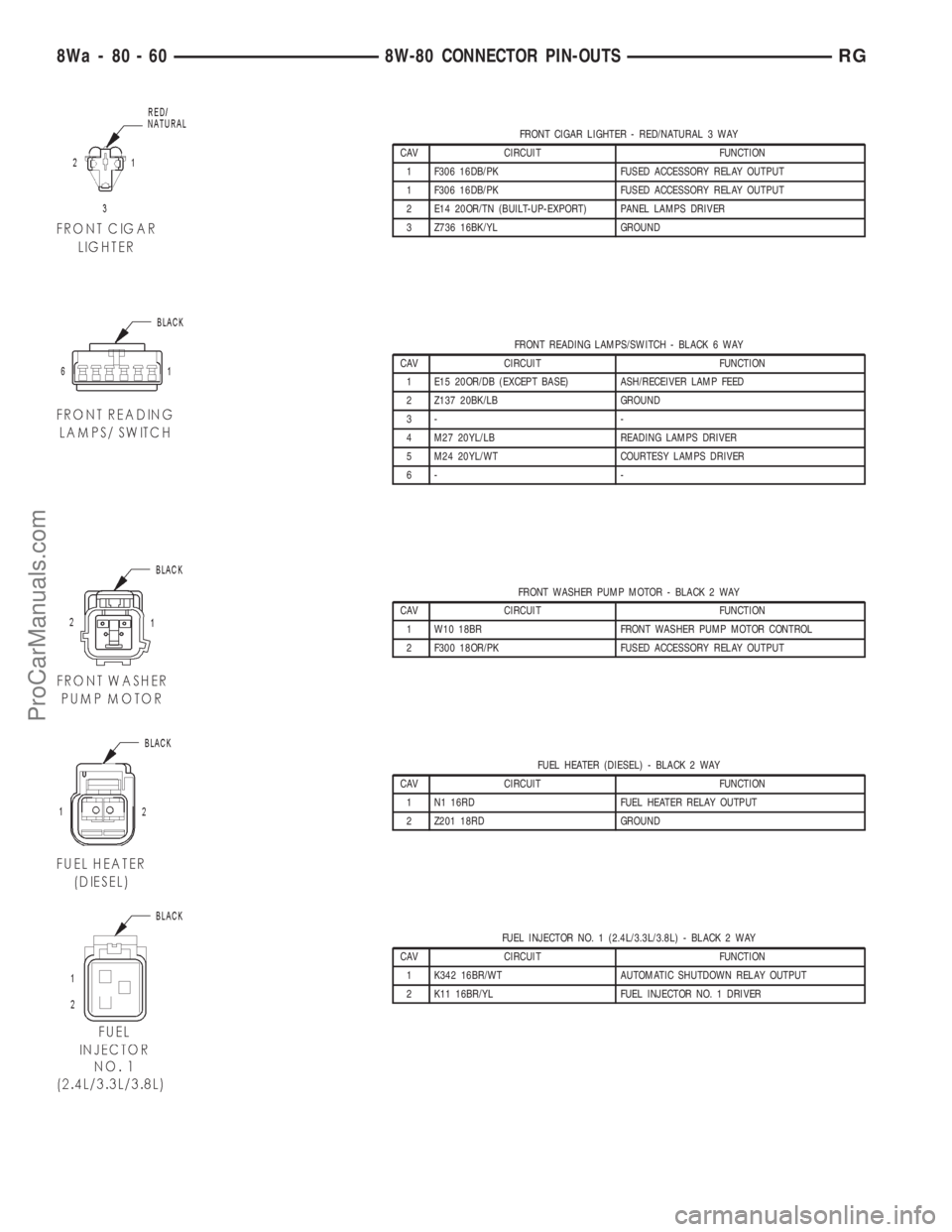

Page 1033 of 2321
FRONT CIGAR LIGHTER - RED/NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
2 E14 20OR/TN (BUILT-UP-EXPORT) PANEL LAMPS DRIVER
3 Z736 16BK/YL GROUND
FRONT READING LAMPS/SWITCH - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 E15 20OR/DB (EXCEPT BASE) ASH/RECEIVER LAMP FEED
2 Z137 20BK/LB GROUND
3- -
4 M27 20YL/LB READING LAMPS DRIVER
5 M24 20YL/WT COURTESY LAMPS DRIVER
6- -
FRONT WASHER PUMP MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
2 F300 18OR/PK FUSED ACCESSORY RELAY OUTPUT
FUEL HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N1 16RD FUEL HEATER RELAY OUTPUT
2 Z201 18RD GROUND
FUEL INJECTOR NO. 1 (2.4L/3.3L/3.8L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
2 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
8Wa - 80 - 60 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

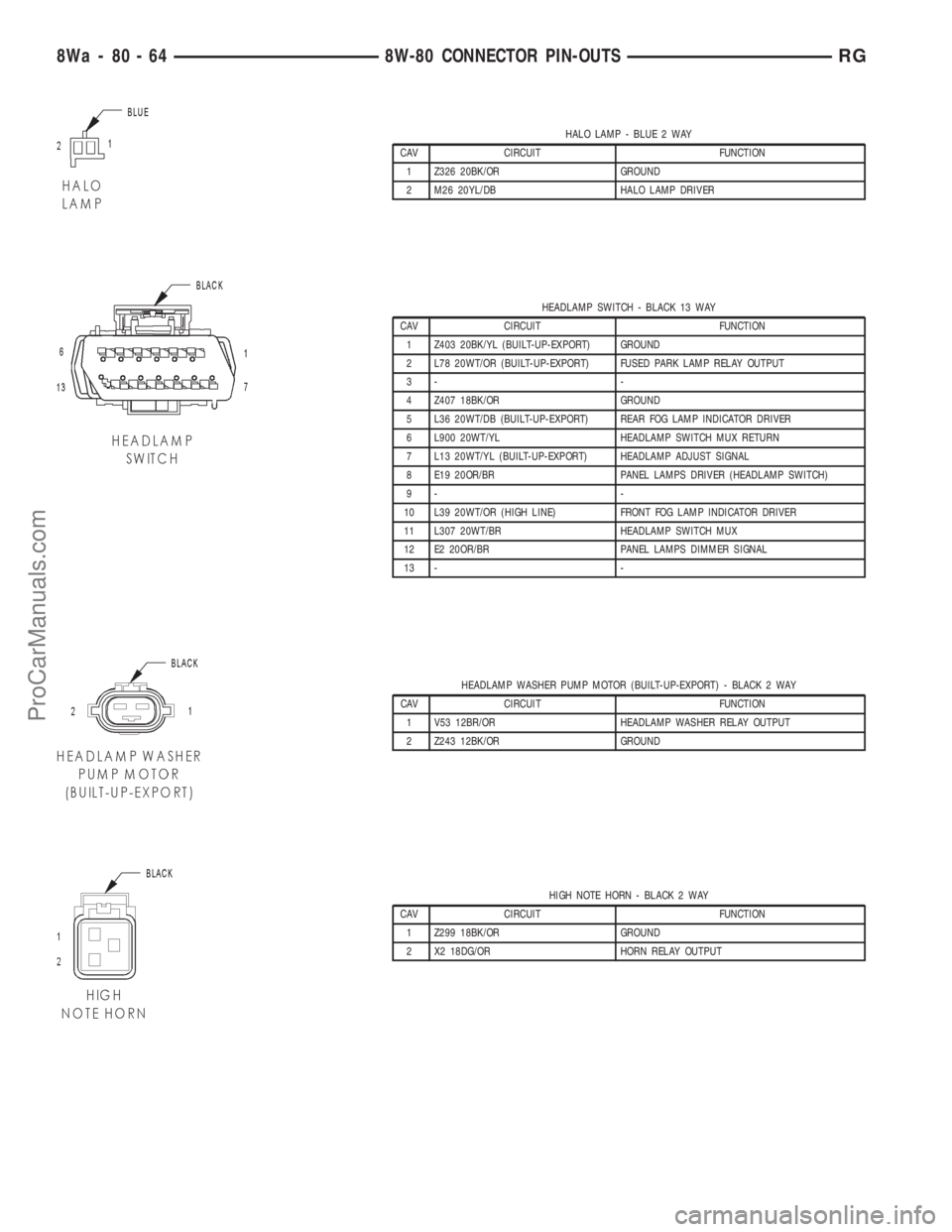

Page 1036 of 2321
FUEL PRESSURE SOLENOID (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ECM/PCM RELAY OUTPUT
2 K87 16BR FUEL PRESSURE SOLENOID CONTROL
FUEL PUMP MODULE - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z201 16BK/OR (GAS) GROUND
2 Z201 18BK/OR (RHD/DIESEL) GROUND
2 Z201 20BK/DB (LHD/DIESEL) (GAS) GROUND
3 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL
4 N1 16DB/OR (GAS) FUEL PUMP RELAY OUTPUT
GENERATOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT (DIESEL) ECM/PCM RELAY OUTPUT
1 K342 16BR/WT (GAS) AUTOMATIC SHUTDOWN RELAY OUTPUT
2 K20 18BR/GY (GAS) GENERATOR FIELD CONTROL
2 K20 14BR/GY (DIESEL) GENERATOR FIELD CONTROL
GLOVE BOX LAMP - BLUE 2 WAY
CAV CIRCUIT FUNCTION
1 M28 20YL/TN GLOVE BOX LAMP DRIVER
2 Z328 20BK/TN GROUND
GLOW PLUG RELAY (DIESEL) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 A202 10RD/WT FUSED B(+)
2 K152 20DB/WT GLOW PLUG RELAY CONTROL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
4 K154 10BR/OR GLOW PLUG RELAY OUTPUT
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-63
ProCarManuals.com
Page 1037 of 2321
HALO LAMP - BLUE 2 WAY
CAV CIRCUIT FUNCTION
1 Z326 20BK/OR GROUND
2 M26 20YL/DB HALO LAMP DRIVER
HEADLAMP SWITCH - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 Z403 20BK/YL (BUILT-UP-EXPORT) GROUND
2 L78 20WT/OR (BUILT-UP-EXPORT) FUSED PARK LAMP RELAY OUTPUT
3- -
4 Z407 18BK/OR GROUND
5 L36 20WT/DB (BUILT-UP-EXPORT) REAR FOG LAMP INDICATOR DRIVER
6 L900 20WT/YL HEADLAMP SWITCH MUX RETURN
7 L13 20WT/YL (BUILT-UP-EXPORT) HEADLAMP ADJUST SIGNAL
8 E19 20OR/BR PANEL LAMPS DRIVER (HEADLAMP SWITCH)
9- -
10 L39 20WT/OR (HIGH LINE) FRONT FOG LAMP INDICATOR DRIVER
11 L307 20WT/BR HEADLAMP SWITCH MUX
12 E2 20OR/BR PANEL LAMPS DIMMER SIGNAL
13 - -
HEADLAMP WASHER PUMP MOTOR (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 V53 12BR/OR HEADLAMP WASHER RELAY OUTPUT
2 Z243 12BK/OR GROUND
HIGH NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z299 18BK/OR GROUND
2 X2 18DG/OR HORN RELAY OUTPUT
8Wa - 80 - 64 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com
Page 1039 of 2321
IGNITION SWITCH - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 G900 20VT/OR IGNITION SWITCH SENSE RETURN
2 G20 20VT/BR IGNITION SWITCH SENSE
3 F20 20PK/WT (LHD) IGNITION SWITCH OUTPUT (RUN-START)
3 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 T751 20YL IGNITION SWITCH OUTPUT (START)
5 A106 20LB/RD FUSED B(+)
INLET AIR TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
2 K900 18DB/DG SENSOR GROUND
INSTRUMENT CLUSTER - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 E13 20OR/YL PANEL LAMPS DRIVER
2 L160 20WT/TN (LOW LINE) RIGHT TURN INDICATOR DRIVER
3 G7 20VT/GY (HIGH LINE) LOW OIL PRESSURE INDICATOR DRIVER
4 G3 20VT/LB (HIGH LINE) MALFUNCTION INDICATOR LAMP DRIVER
5 L134 20WT/GY (HIGH LINE) HIGH BEAM INDICATOR DRIVER
6 A701 16BR/RD FUSED B(+) (HAZARD)
7 Z108 18BK/LG GROUND
8 L161 20WT/LG (LOW LINE) LEFT TURN INDICATOR DRIVER
9 D25 20WT/VT PCI BUS
10 B25 20DG/WT (RHD) PARK BRAKE SWITCH SENSE
10 B25 16DG/WT (LHD) PARK BRAKE SWITCH SENSE
11 G26 20VT/OR CHIME DRIVER
12 G150 20VT/BR INSTRUMENT CLUSTER WAKE UP SENSE
13 Z18 18BK/LB GROUND
8Wa - 80 - 66 8W-80 CONNECTOR PIN-OUTSRG
