2001 CHRYSLER VOYAGER engine

TEST ACTION APPLICABILITY
4 Turn the ignition off.
Disconnect the EGR Solenoid harness connector.
Disconnect the ECM harness connectors.
Remove the ECM/PCM Relay from the PDC.
Connect a jumper wire between cavity 30 and cavity 87 of the ECM/PCM Relay
connector.
Turn the ignition on.
Measure the voltage of the EGR Solenoid Control circuit.
Is the voltage below 0.5 volt?All
Ye s®Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No®Repair the EGR Solenoid Control circuit for a short to voltage.
Perform ROAD TEST VERIFICATION - VER-2.
5WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
91
DRIVEABILITY - DIESEL

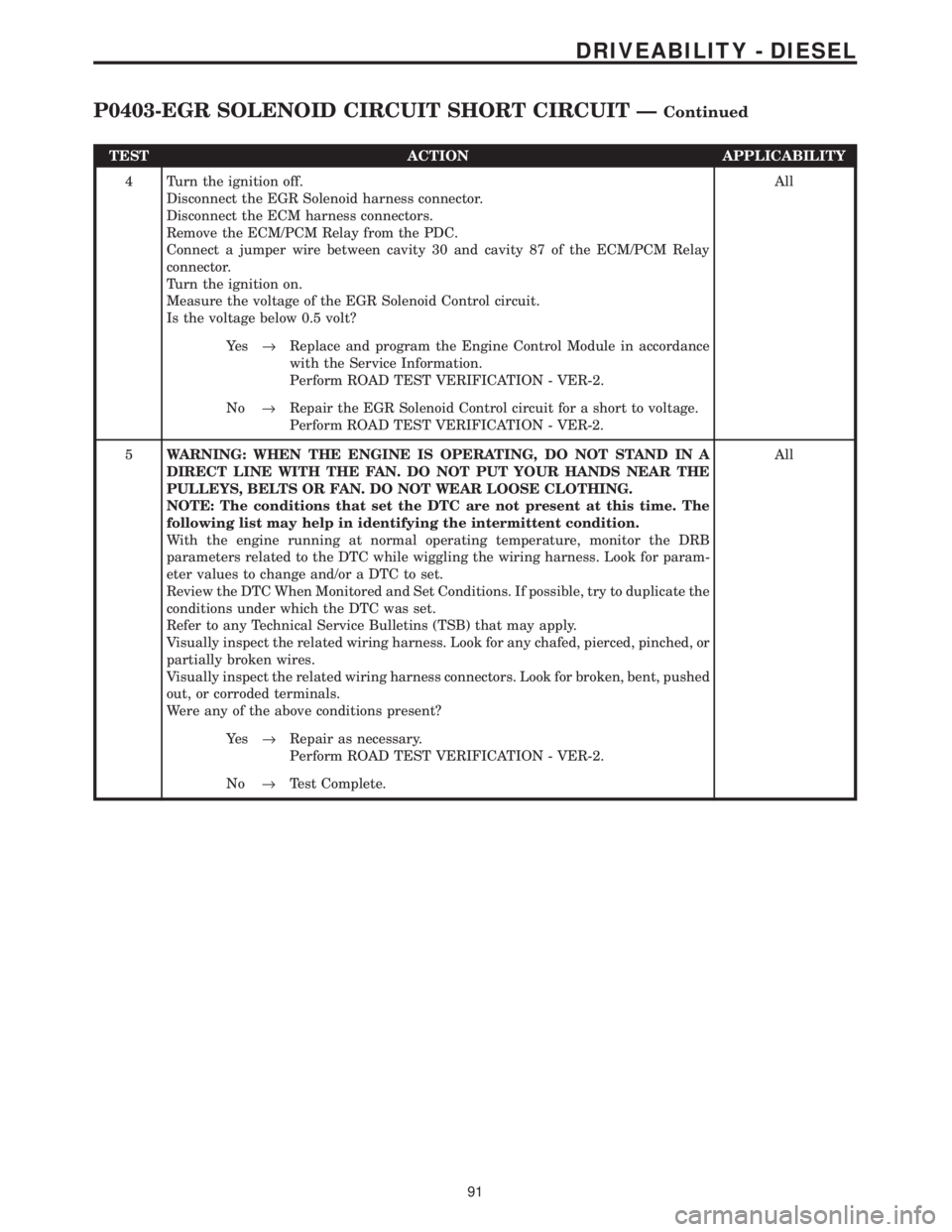

P0403-EGR SOLENOID CIRCUIT SHORT CIRCUIT ÐContinued

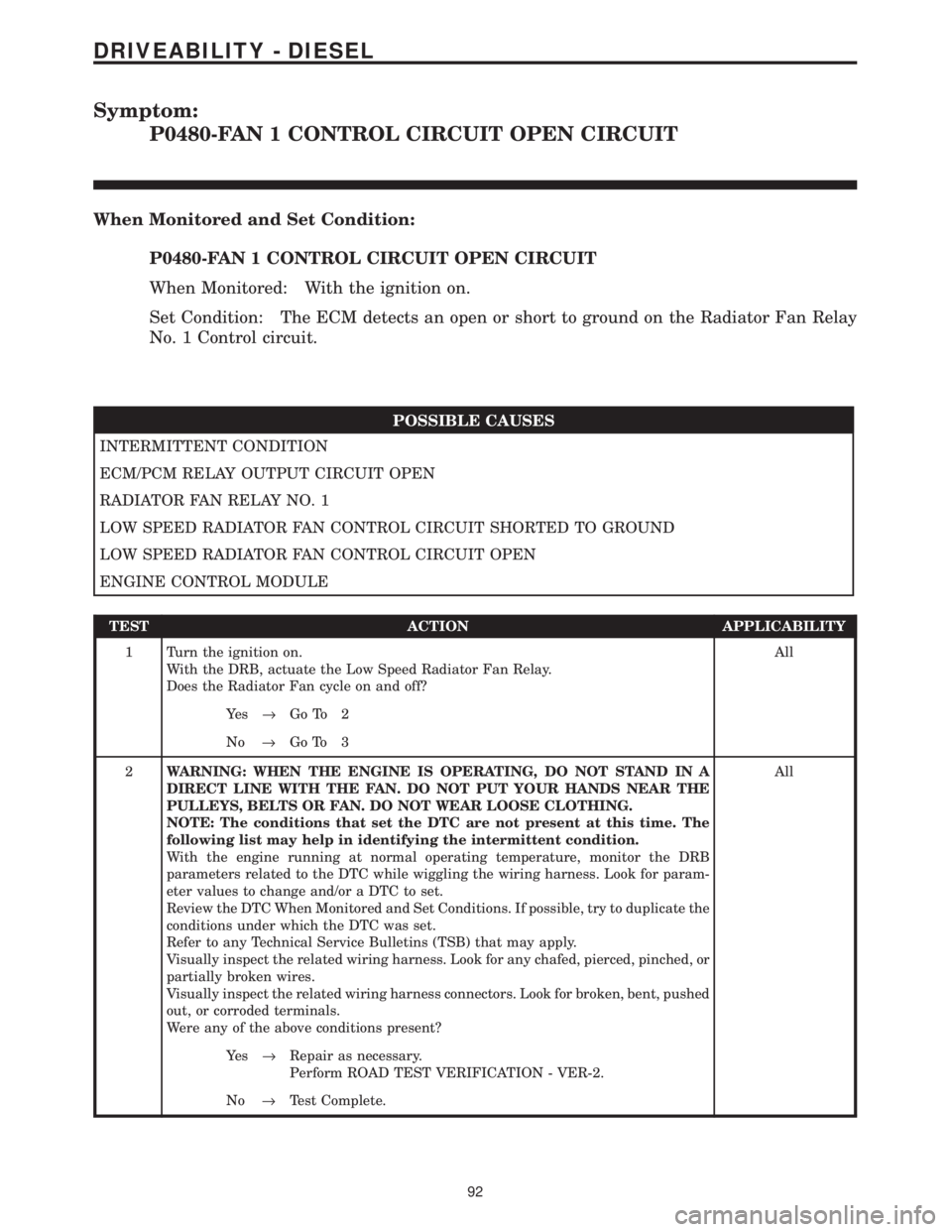

Symptom:
P0480-FAN 1 CONTROL CIRCUIT OPEN CIRCUIT
When Monitored and Set Condition:
P0480-FAN 1 CONTROL CIRCUIT OPEN CIRCUIT
When Monitored: With the ignition on.
Set Condition: The ECM detects an open or short to ground on the Radiator Fan Relay
No. 1 Control circuit.
POSSIBLE CAUSES
INTERMITTENT CONDITION
ECM/PCM RELAY OUTPUT CIRCUIT OPEN
RADIATOR FAN RELAY NO. 1
LOW SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO GROUND
LOW SPEED RADIATOR FAN CONTROL CIRCUIT OPEN
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, actuate the Low Speed Radiator Fan Relay.
Does the Radiator Fan cycle on and off?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
92
DRIVEABILITY - DIESEL

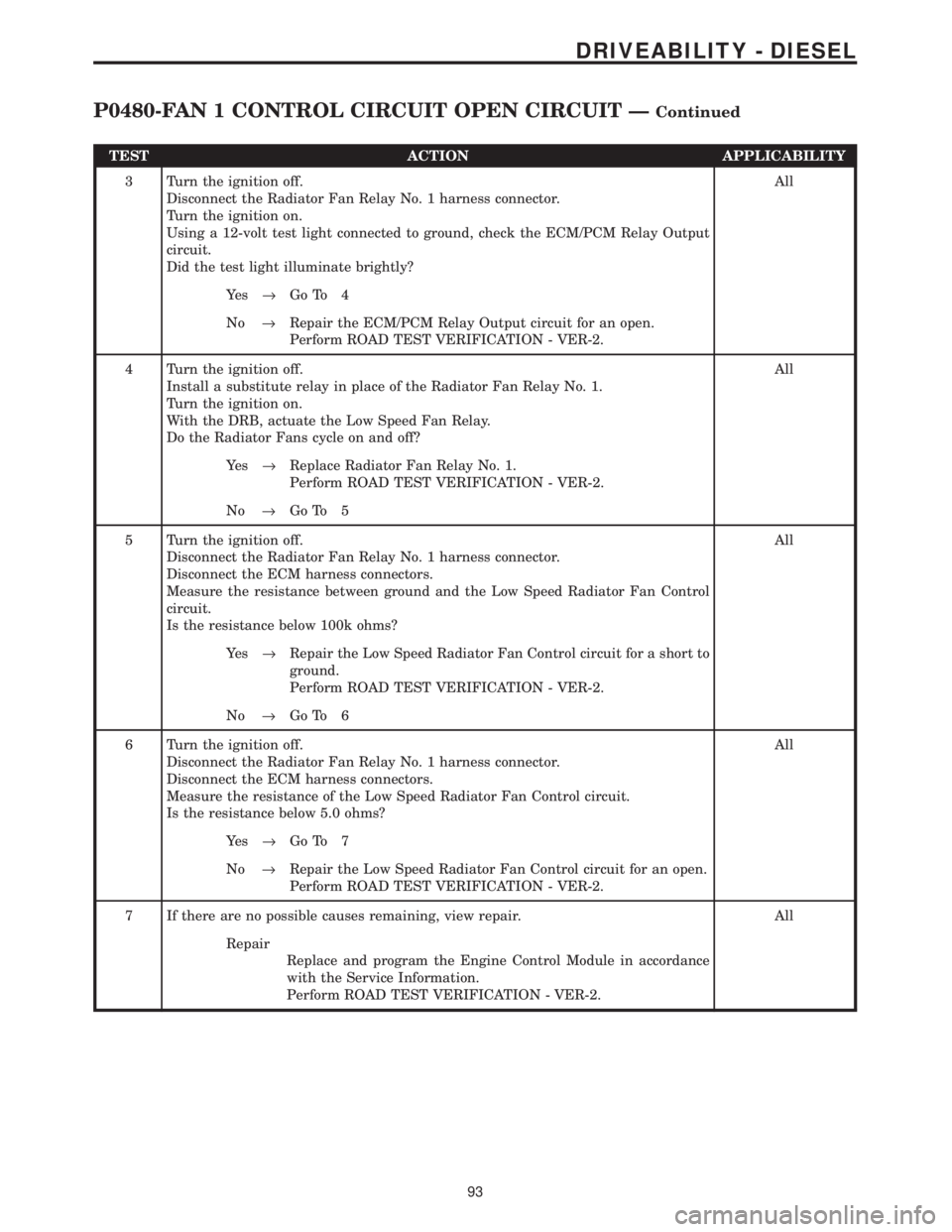

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Radiator Fan Relay No. 1 harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the ECM/PCM Relay Output
circuit.
Did the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the ECM/PCM Relay Output circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
4 Turn the ignition off.
Install a substitute relay in place of the Radiator Fan Relay No. 1.
Turn the ignition on.
With the DRB, actuate the Low Speed Fan Relay.
Do the Radiator Fans cycle on and off?All
Ye s®Replace Radiator Fan Relay No. 1.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 5
5 Turn the ignition off.
Disconnect the Radiator Fan Relay No. 1 harness connector.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the Low Speed Radiator Fan Control
circuit.
Is the resistance below 100k ohms?All
Ye s®Repair the Low Speed Radiator Fan Control circuit for a short to
ground.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 6
6 Turn the ignition off.
Disconnect the Radiator Fan Relay No. 1 harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the Low Speed Radiator Fan Control circuit.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the Low Speed Radiator Fan Control circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
7 If there are no possible causes remaining, view repair. All
Repair
Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
93
DRIVEABILITY - DIESEL
P0480-FAN 1 CONTROL CIRCUIT OPEN CIRCUIT ÐContinued

Symptom:
P0480-FAN 1 CONTROL CIRCUIT SHORT CIRCUIT
When Monitored and Set Condition:
P0480-FAN 1 CONTROL CIRCUIT SHORT CIRCUIT
When Monitored: With the ignition on.
Set Condition: The ECM detects a short to voltage on the Radiator Fan Relay No. 1
Control circuit.
POSSIBLE CAUSES
INTERMITTENT CONDITION
RADIATOR FAN RELAY NO. 1
LOW SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO VOLTAGE
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, actuate the Low Speed Radiator Fan Relay.
Does the Radiator Fan cycle on and off?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
94
DRIVEABILITY - DIESEL

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Install a substitute relay in place of the Radiator Fan Relay No. 1.
Turn the ignition on.
With the DRB, actuate the Low Speed Radiator Fan Relay.
Do the Radiator Fans cycle on and off?All
Ye s®Replace Radiator Fan Relay No. 1.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 4
4 Turn the ignition off.
Disconnect the Radiator Fan Relay No. 1 harness connector.
Remove the ECM/PCM Relay from the IPM.
Connect a jumper wire between cavity 30 and cavity 87 of the ECM/PCM Relay
connector.
Turn the ignition on.
Measure the voltage of the Low Speed Radiator Fan Control circuit.
Is the voltage below 1.0 volt?All
Ye s®Go To 5
No®Repair the Low Speed Radiator Fan Control circuit for a short to
voltage.
Perform ROAD TEST VERIFICATION - VER-2.
5 If there are no possible causes remaining, view repair. All
Repair
Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
95
DRIVEABILITY - DIESEL
P0480-FAN 1 CONTROL CIRCUIT SHORT CIRCUIT ÐContinued

Symptom:
P0481-FAN 2 CONTROL CIRCUIT OPEN CIRCUIT
When Monitored and Set Condition:
P0481-FAN 2 CONTROL CIRCUIT OPEN CIRCUIT
When Monitored: With the ignition on.
Set Condition: The ECM detects an open or short to ground on the Radiator Fan Relay
No. 2 Control circuit.
POSSIBLE CAUSES
INTERMITTENT CONDITION
ECM/PCM RELAY OUTPUT CIRCUIT OPEN
RADIATOR FAN RELAY NO. 2 OR 3
HIGH SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO GROUND
HIGH SPEED RADIATOR FAN CONTROL CIRCUIT OPEN
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, actuate the High Speed Radiator Fan Relay.
Does the Radiator Fan cycle on and off?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
96
DRIVEABILITY - DIESEL

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Radiator Fan Relay No. 2 harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the ECM/PCM Relay Output
circuit.
Did the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the ECM/PCM Relay Output circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
4 Turn the ignition off.
One at a time, install a substitute relay in place of Radiator Fan Relays No. 2 and No.
3.
Turn the ignition on.
With the DRB, actuate the High Speed Fan Relay.
Does one Radiator Fan cycle on and off?All
Ye s®Replace the Radiator Fan Relay that the substitute relay caused
the radiator fan to cycle on and off.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 5
5 Turn the ignition off.
Disconnect the Radiator Fan Relays No. 2 and No. 3 harness connectors.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the High Speed Radiator Fan Control
circuit.
Is the resistance above 100k ohms?All
Ye s®Go To 6
No®Repair the High Speed Radiator Fan Control circuit for a short to
ground.
Perform ROAD TEST VERIFICATION - VER-2.
6 Turn the ignition off.
Disconnect the Radiator Fan Relay No. 2 harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the High Speed Radiator Fan Control circuit.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the High Speed Radiator Fan Control circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
7 If there are no possible causes remaining, view repair. All
Repair
Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
97
DRIVEABILITY - DIESEL
P0481-FAN 2 CONTROL CIRCUIT OPEN CIRCUIT ÐContinued

Symptom:
P0481-FAN 2 CONTROL CIRCUIT SHORT CIRCUIT
When Monitored and Set Condition:
P0481-FAN 2 CONTROL CIRCUIT SHORT CIRCUIT
When Monitored: With the ignition on.
Set Condition: The ECM detects a short to voltage on the Radiator Fan Relay No. 2
Control circuit.
POSSIBLE CAUSES
INTERMITTENT CONDITION
RADIATOR FAN RELAY NO. 1 OR 3
HIGH SPEED RADIATOR FAN CONTROL CIRCUIT SHORTED TO VOLTAGE
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, actuate the High Speed Radiator Fan Relay.
Does the Radiator Fan cycle on and off?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
98
DRIVEABILITY - DIESEL
