2001 CADILLAC ELDORADO Owners Manual

2-4

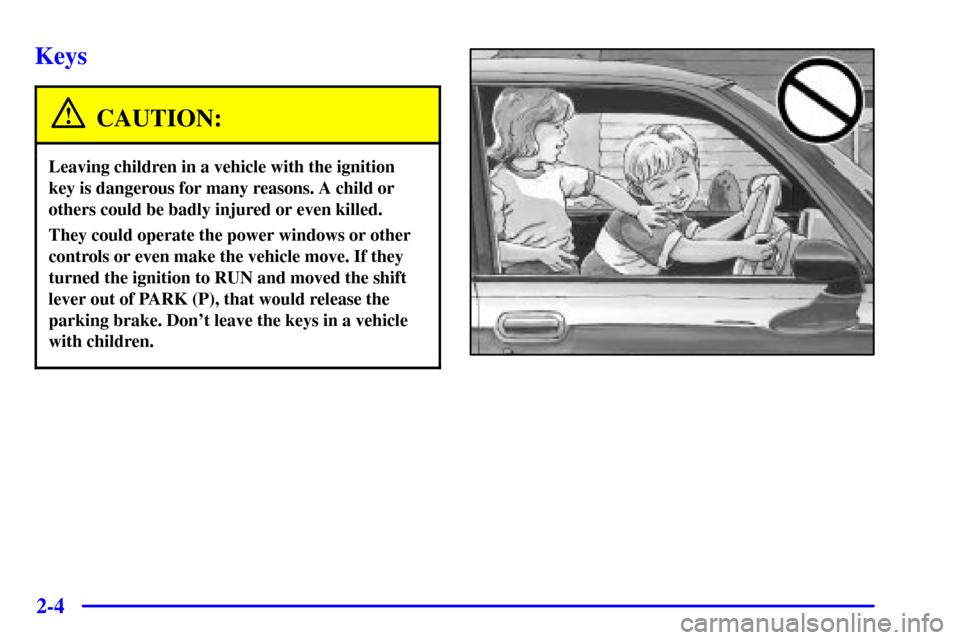

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. If they
turned the ignition to RUN and moved the shift
lever out of PARK (P), that would release the
parking brake. Don't leave the keys in a vehicle
with children.

2-5
Ignition Key Door/Locks Key
The square key is for the ignition only. It has a
resistor pellet which is part of the vehicle's
PASS
-Key
II system.
The oval key is for the doors and all other locks.When a new vehicle is delivered, the dealer removes the
plug from the door key. The plug has a code on it that
tells the dealer or a qualified locksmith how to make
extra keys. The ignition key has a bar code tag attached
to it rather than a knock out plug. Your dealer or
qualified locksmith can make extra ignition keys by
reading the bar code tag.
There are 15 alternative ignition PASS
-Key
II blanks
to help discourage theft. Keep the bar code tag and the
door key plugs in a safe place. If you lose your keys,
you will be able to have new ones made using the plug
or bar code tag.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside and you may have to
damage your vehicle to get in. Be sure you
have extra keys.

2-6
Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use either the door key or the remote
keyless entry transmitter.
If your vehicle is equipped with the theft
-deterrent
system, you must unlock the doors with the key or
remote keyless entry transmitter to avoid setting off
the alarm.
Slide the manual lock lever down to lock the door from
the inside. To unlock the door, slide the lock lever up.

2-7 Central Door Unlocking System
Your vehicle will have this feature if it is equipped with
the theft
-deterrent system. When unlocking either door,
you can also unlock the other door by holding the key in
the turned position for a few seconds or by quickly
turning the door key twice in the lock cylinder.
Power Door Locks
Press the power door lock switch to lock or unlock both
doors at once.
Automatic Door Locks
Your vehicle is programmed to lock both doors when
the ignition is on and the shift lever is moved out of
PARK (P). The doors will unlock every time you stop
the vehicle and move the shift lever back into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual or power
door lock. When the door is closed again, it will not lock
automatically. Use the manual or power door lock to
lock the door again. If you need to lock the doors before
shifting out of PARK (P), use the manual or power
door lock.
Programmable Automatic Door Locks
(If Equipped)
With the ignition in RUN, the door locks can be
programmed through prompts displayed by the Driver
Information Center (DIC). These prompts allow the
driver to choose various lock settings. For programming
information, see ªMemory and Personalization
Featuresº in the Index.

2-8 Anti-Lockout Feature
Leaving your key in any ignition position with either
door open will disable the use of the power door lock
switches as well as the lock button on the remote keyless
entry transmitter. If you close the doors, you can lock
them using the remote keyless entry transmitter. It is
always recommended that you remove your ignition key
when locking your vehicle.
The anti
-lockout feature can be overridden by holding
the driver's power door lock switch for three seconds
or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.
Remote Keyless Entry System
With this feature, you can lock and unlock the doors,
unlock the trunk, open the fuel door and turn on your
vehicle's interior lamps from about 10 feet (3 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your remote keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.

2-9
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
The average range of this system is about 10 feet (3 m).
At times you may notice a decrease in range. This is
normal for any remote keyless entry transmitter. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
When you press
this button to unlock
the driver's door, the
parking lamps on your
vehicle will blink twice.
(You can program your
vehicle so the parking
lamps will not flash.
For more information,
see ªLock/Unlock
Confirmationº in
the Index.
Pressing it again within five seconds will unlock the
other doors. Pressing this button will also disarm the
theft
-deterrent system (if equipped) and turn on the
interior lamps at night.
When you press this button to lock the doors, the
parking lamps will blink once. (You can program your
vehicle so the parking lamps will not flash. For more
information, see ªLock/Unlock Confirmationº in
the Index.) This also arms the theft
-deterrent system
(if equipped).

2-10
Press this symbol to open the trunk.
(The VALET lockout button must be off.)
Press this button to open the fuel door.
(The VALET lockout button must be off.)
The remote keyless entry transmitter can also be used
to recall the memory seats for up to two drivers. For
more information, see ªMemory Seat and Mirrorsº
in the Index.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only up to four
transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to
touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.

2-11
1. Use the round end of the door key or a coin to pry
open the transmitter.2. Once the transmitter is separated, use a pencil
(or similar object) to remove the old battery.
Do not use a metal object.
3. Remove and replace the battery. Insert the new
battery as the instructions under the cover indicate.
Do not use a metal object.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Check the operation of the transmitter.
