2001 CADILLAC ELDORADO Owners Manual

2-52 Center Console Storage
The console includes a storage compartment for CDs or
tapes, an armrest and a cupholder. The cupholder can be
opened by pressing on the surface panel located in front
of the armrest. Close the lid to secure.
The console may have a lock. To lock the console, insert
the oval key into the lock cylinder and turn it clockwise.
Turn the key counterclockwise to unlock the door.
Rear Storage Armrest (If Equipped)
Your vehicle may be equipped with a rear seat armrest
which includes an open storage compartment and a dual
cupholder that unfolds for use. To open, lift the front
edge. (This feature is available on vehicles with leather
interiors only.)
Convenience Net
The convenience net is located inside the back wall of
the trunk. Put small loads, like grocery bags, behind the
net. It can help keep them from falling over during sharp
turns or quick starts and stops.
The net is not for larger, heavier loads. Store them in the
trunk as far forward as you can. When not using the net,
hook the net to the tabs securing it to the sill plate.

2-53
Ashtrays and Cigarette Lighter
NOTICE:
Don't put papers or other flammable items
into your ashtrays. Hot cigarettes or other
smoking materials could ignite them, causing a
damaging fire.
Front Ashtray
The front ashtray is located below the climate control
system. To open, press on the lower edge of the cover.
Rear Ashtray
The rear ashtray is located on the armrest; to use,
lift the lid.
Cigarette Lighter
The cigarette lighter is located near the ashtray. Press it
all the way in and release. It will pop back out by itself
when it's ready to light. You may also have a lighter
located at the rear seat air outlet.Power to the cigarette lighter will shut off 10 minutes
after the ignition is turned off. This helps to prevent
battery drainage. For more information, see ªInadvertent
Power Battery Saverº in the Index.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
Sun Visors
Swing down the visor to block out glare. It can also be
detached from the center mount and moved to the side.
The driver's sun visor is also equipped with a storage
flap that can be used for maps or toll tickets.
Lighted Visor Vanity Mirror
Move the sun visor down and lift the cover to see the
mirror. Move the slide switch up or down to brighten or
dim the lamp.

2-54

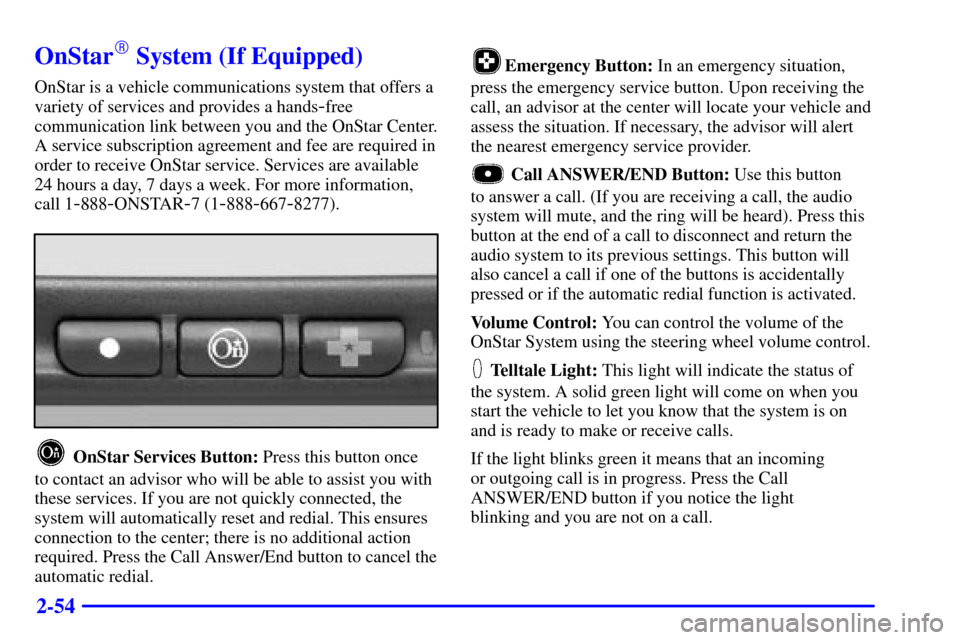

OnStar
System (If Equipped)
OnStar is a vehicle communications system that offers a
variety of services and provides a hands
-free
communication link between you and the OnStar Center.
A service subscription agreement and fee are required in
order to receive OnStar service. Services are available
24 hours a day, 7 days a week. For more information,
call 1
-888-ONSTAR-7 (1-888-667-8277).
OnStar Services Button: Press this button once
to contact an advisor who will be able to assist you with
these services. If you are not quickly connected, the
system will automatically reset and redial. This ensures
connection to the center; there is no additional action
required. Press the Call Answer/End button to cancel the
automatic redial.
Emergency Button: In an emergency situation,
press the emergency service button. Upon receiving the
call, an advisor at the center will locate your vehicle and
assess the situation. If necessary, the advisor will alert
the nearest emergency service provider.
Call ANSWER/END Button: Use this button
to answer a call. (If you are receiving a call, the audio
system will mute, and the ring will be heard). Press this
button at the end of a call to disconnect and return the
audio system to its previous settings. This button will
also cancel a call if one of the buttons is accidentally
pressed or if the automatic redial function is activated.
Volume Control: You can control the volume of the
OnStar System using the steering wheel volume control.
Telltale Light: This light will indicate the status of
the system. A solid green light will come on when you
start the vehicle to let you know that the system is on
and is ready to make or receive calls.
If the light blinks green it means that an incoming
or outgoing call is in progress. Press the Call
ANSWER/END button if you notice the light
blinking and you are not on a call.

2-55
The light will be red in the event of an OnStar system
malfunction. If this occurs press the OnStar button to
attempt to contact an advisor. If the connection is made,
the advisor will assist you with steps to take to make
sure that the system is functioning properly. If you
cannot contact the advisor, take your vehicle to your
dealership as soon as possible for assistance.
Safety and Security Services

Automatic Notification of Air Bag
Deployment
-- If an air bag deploys, a priority
emergency signal is automatically sent to the center.
An advisor will locate your vehicle's position, try to
contact you and assist you in the situation. If the
center is unable to contact you, an emergency service
provider will be contacted.

Stolen Vehicle Tracking
-- Call the center at
1
-888-4-ONSTAR (1-888-466-7827) to report your
vehicle stolen. The system can then locate and track
your vehicle and the advisor will be able to notify
the proper authorities.

Roadside Assistance with Location
-- For vehicle
breakdowns, press the OnStar button. An advisor
will contact the appropriate help.
Remote Diagnostics
-- If an instrument panel light
comes on, the center can perform a check of the
engine on
-board computer. An advisor can then
recommend what action needs to be taken.

OnStar MED
-NET -- Med-Net can store your
personal medical history and provide it to emergency
personnel if necessary. (Requires activation and
additional fee.)

Accident Assist
-- An advisor can provide
step
-by-step guidance following an accident.

Remote Door Unlock
-- To contact the center,
call 1
-888-4-ONSTAR. You will be required to
provide your security information. An advisor will
send a command to your vehicle to unlock itself.
The advisor can delay unlocking your vehicle.
Remote Door Unlock is disabled 48 hours after the
vehicle is parked to maintain the battery charge.

Vehicle Locator Service
-- To contact the center,
call 1
-888-4-ONSTAR. You will be required to
provide your security information. An advisor will
send a command to your vehicle to sound the horn
and/or flash the lamps.
In order to provide you with excellent service, calls with
the OnStar Center may be monitored or recorded.

2-56 Premium Services (Includes Safety and
Security Services)

Route Support -- An advisor can provide directions
or guidance to anywhere you want to go. In addition,
they can help you locate gas stations, rest areas,
ATMs, hospitals, hotels, stores, eateries and more.

Concierge Services
-- The concierge advisor can
obtain tickets, reservations, or help with vacation/trip
planning and other unique items and services.

Ride Assist
-- An advisor can locate transportation
in the event that you are unable to drive.
OnStar System Limitations
Complete limitations can be found on the Subscriber
Services Agreement.
OnStar Service is:

available in the 48 contiguous United States, Alaska,
Hawaii and Canada;

available when the vehicle is within the operating
range of a cellular provider;

subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;
subject to cellular carrier equipment limitations.
Global positioning capabilities used to deliver
OnStar service will not be available if satellite signals
are obstructed.
OnStar will not function if the vehicle's battery is
discharged or disconnected. It may also be inoperative if
the vehicle is in an accident and the OnStar or vehicle
electrical system components are damaged.
Safety and security services are provided by existing
government emergency service providers. OnStar will
use reasonable efforts to contact the appropriate
emergency service provider and request assistance but
cannot promise that they will respond to the call in a
timely manner or at all.
Assist Handles
A handle, located on each side pillar, can be used when
getting out of your vehicle.
Garment Hooks
For your convenience, a garment hook is attached to the
casing around the reading lamps in the rear of the
vehicle. To use, push the lower edge of the hook.

2-57
Floor Mats
Your vehicle is equipped with rubber-backed front and
rear floor mats. Keep them clean by vacuuming and
using a spot cleaner, if necessary. Do not machine wash.

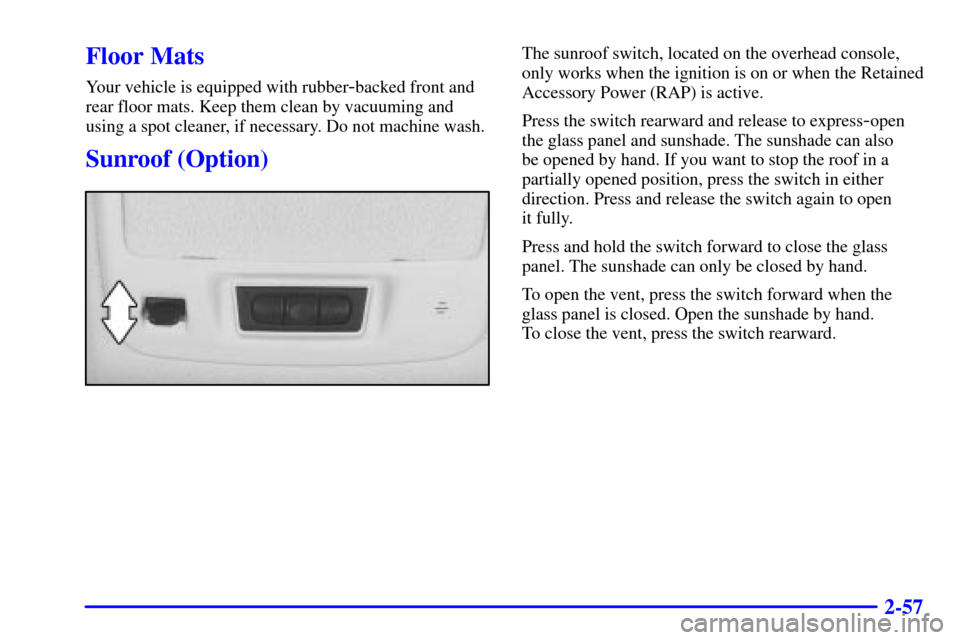

Sunroof (Option)
The sunroof switch, located on the overhead console,
only works when the ignition is on or when the Retained
Accessory Power (RAP) is active.
Press the switch rearward and release to express
-open
the glass panel and sunshade. The sunshade can also
be opened by hand. If you want to stop the roof in a
partially opened position, press the switch in either
direction. Press and release the switch again to open
it fully.
Press and hold the switch forward to close the glass
panel. The sunshade can only be closed by hand.
To open the vent, press the switch forward when the
glass panel is closed. Open the sunshade by hand.
To close the vent, press the switch rearward.

2-58
HomeLink
Transmitter (Option)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including interference
that may cause undesired operation of the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the HomeLink Transmitter
Do not use the HomeLink Transmitter with any garage
door opener that does not have the ªstop and reverseº
safety feature. This includes any garage door opener
model manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have previously programmed a transmitter
channel, proceed to Step 2. Otherwise, hold down
the two outside buttons on the HomeLink
Transmitter until the indicator light begins to flash
rapidly (after 20 seconds). Then release the buttons.
This procedure initializes the memory and erases any
previous settings for all three channels.
2. Decide which one of the three channels you want to
program. Hold the end of the hand
-held transmitter
about 2 to 5 inches (5 to 13) away from the surface
of the HomeLink Transmitter so that you can still see
the indicator light.

2-59
3. Using both hands, press the hand-held transmitter
button and the desired button on the HomeLink
Transmitter. Continue to press both buttons
through Step 4.
4. Hold down both buttons until you see the indicator
light on the HomeLink Transmitter flash slowly and
then rapidly. The rapid flashing indicates that the
HomeLink Transmitter has been programmed.
Release both buttons once the indicator light starts to
flash rapidly.
If you have trouble programming the HomeLink
Transmitter, make sure that you have followed the
directions exactly as described. The HomeLink
Transmitter may not work with older garage
door openers that do not meet current Federal
Consumer Safety Standards. If you cannot program
the transmitter after repeated attempts, refer to
ªRolling Code Programmingº later in this section
or contact the HomeLink Transmitter manufacturer
at 1
-800-355-3515.
Be sure to keep the original hand
-held transmitter
in case you need to erase and reprogram the
HomeLink Transmitter.Canadian Owners: During programming, the
hand
-held transmitter may automatically stop
transmitting after one or two seconds. In this case, you
should press and re
-press the button on the hand-held
transmitter every two seconds without ever releasing the
button on the HomeLink Transmitter. Release both
buttons when the indicator light on the HomeLink
Transmitter begins to flash rapidly.
Operating the HomeLink Transmitter
Press and release the appropriate button on the
HomeLink Transmitter. The indicator light comes on
while the signal is being transmitted.
The HomeLink Transmitter is disabled when the
VALET lockout button inside the glove box is activated.
For more information, see ªValet Lockout Buttonº
in the Index.
If the hand
-held transmitter appears to program the
HomeLink Transmitter but does not open your garage
door, and if the garage door opener was manufactured
after 1996, the garage door opener may have a ªrolling
codeº system. A rolling code system changes the code
of the garage door opener every time you open or close
the garage door.
