2001 CADILLAC CATERA Owners Manual

Page 281 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-30
Battery
Your new vehicle comes with a maintenance free
ACDelco battery. When its time for a new battery, get
one that has the replacement number shown on the
original batterys label. We recomm

Page 282 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-31 High Intensity Discharge (HID) Lighting
(If Equipped)
CAUTION:
The low beam High Intensity Discharge lighting
system operates at a very high voltage. If you try
to service any of the system comp

Page 283 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-32

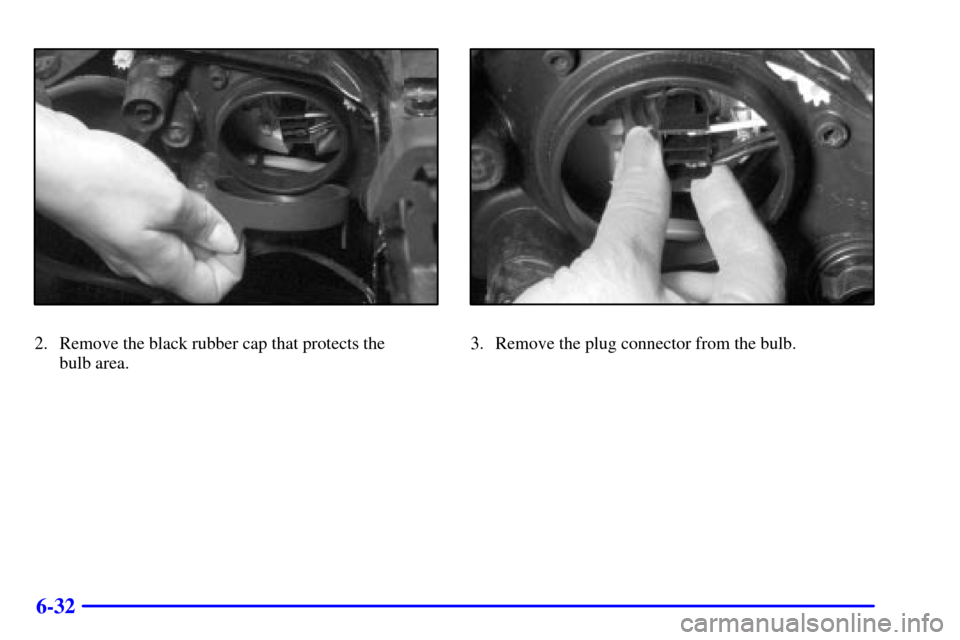

2. Remove the black rubber cap that protects the
bulb area.3. Remove the plug connector from the bulb.

Page 284 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-33

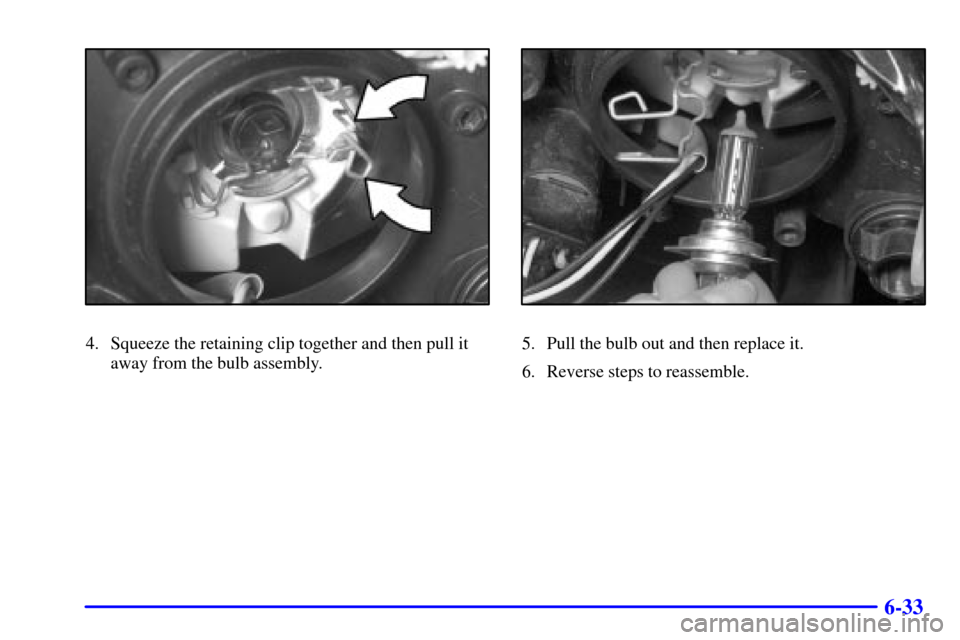

4. Squeeze the retaining clip together and then pull it
away from the bulb assembly.5. Pull the bulb out and then replace it.
6. Reverse steps to reassemble.

Page 285 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-34
Headlamp Aiming
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the low beam
may be necessary if it is difficult to see lane markers
(for horizontal

Page 286 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-35
2. On the outboard side of each low-beam headlamp,
you will find the turn signal bulbs. Turn the lamp
assembly counterclockwise to remove it.3. Pull the bulb out, replace it and then reassemble.

Page 287 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-36
3. Turn the socket counterclockwise to remove it.
4. To remove the bulb, turn it counterclockwise. When
you replace the bulb, you need to push it in and twist
it clockwise into place.
5. Reinstal

Page 288 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-37
Wiper Blade Replacement
Windshield wiper blades should be inspected at least twice
a year for wear or cracking. See ªWiper Blade Checkº in
the Maintenance Schedule booklet under Part B ªOwner
