Page 17 of 328

1-5 Memory Seat and Mirrors (If Equipped)
After adjusting the driver's seat to a comfortable position,
also adjust the interior and exterior mirrors. To program
the memory seat and mirrors, press memory button ªMº
and memory button ª1º at the same time and hold for
five seconds.These buttons are located on the outboard side of
the driver's seat. Seat and mirror positions may be
programmed for two additional drivers by repeating
the above steps and pressing memory button ª2º
or ª3º instead of memory button ª1.º
If your vehicle is in PARK (P), you can recall mirror and
seating positions by pressing and holding one of the
three memory buttons. This will adjust the seat and
mirrors to where you have previously programmed
them. Seat and mirror movement is immediately stopped
if the memory button is released or if a seat or mirror
control is moved.
If you try to adjust the driver's memory seat and it
doesn't move, try opening the driver's door. This
will reactivate power to the driver's seat. (Power to
the driver's seat ªtimes outº after 30 seconds.
Power to the passenger's seat is always present.)
Page 18 of 328

1-6 Heated Front Seats (Option)
The controls for the heated
front seats are located next
to the climate controls on
either side of the center
console. Turning the
driver or passenger side
thumbwheel control
counterclockwise from
the off position activates
the heated seat.
The control can be adjusted to one of five heat settings,
numbered ª1 through 5º, with 1 being the lowest setting
and 5 being the highest setting.
An indicator light in the control reminds you that the
heating system is in use. The heated seats can only be
used when the ignition is turned on.
To turn the heated seat off, turn the thumbwheel control
clockwise to the off position.
Reclining Front Seatbacks
The manual recliner
control is located
on the side of the
seatback closet to
the door, below the
lumbar control.
To move the seatback forward, turn the hand
-wheel control
forward. Turn the control rearward to recline the seatback.
If you have a power
recliner, the power control
is located on the outboard
side of each front seatback.
Press the control forward
or rearward to adjust
the seatback.
Page 19 of 328
1-7
But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Page 20 of 328

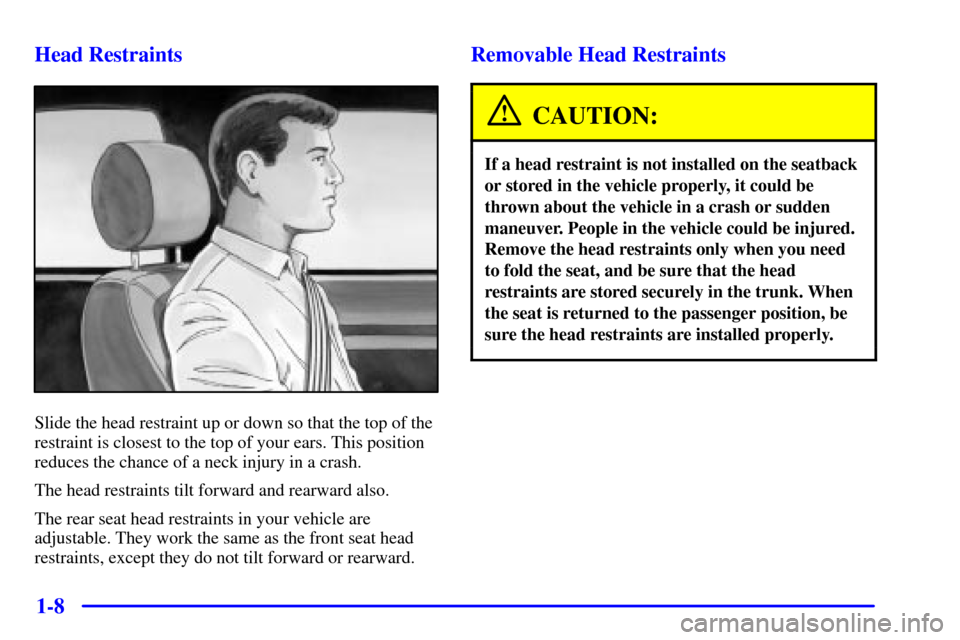

1-8 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
The head restraints tilt forward and rearward also.
The rear seat head restraints in your vehicle are
adjustable. They work the same as the front seat head
restraints, except they do not tilt forward or rearward.
Removable Head Restraints
CAUTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you need
to fold the seat, and be sure that the head
restraints are stored securely in the trunk. When
the seat is returned to the passenger position, be
sure the head restraints are installed properly.
Page 21 of 328
1-9
For more cargo space or to fold down the front
passenger's seat, you may need to remove the head
restraint. Press both release buttons at the top of the
seatback and slide the head restraint out of the height
adjust tubes.The head restraint should be stored securely on the
driver's side of the trunk as shown.
Replace the head restraint when you have finished
carrying cargo or when the passenger's seat is returned
to its normal upright position.
Page 22 of 328

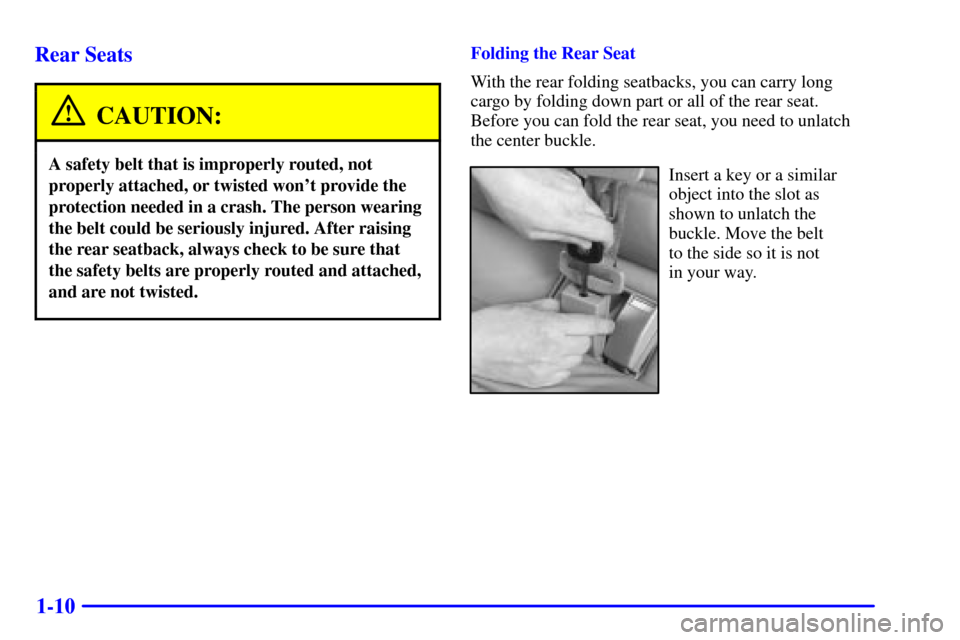

1-10 Rear Seats
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After raising
the rear seatback, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
Folding the Rear Seat
With the rear folding seatbacks, you can carry long
cargo by folding down part or all of the rear seat.
Before you can fold the rear seat, you need to unlatch
the center buckle.
Insert a key or a similar
object into the slot as
shown to unlatch the
buckle. Move the belt
to the side so it is not
in your way.
Page 23 of 328
1-11

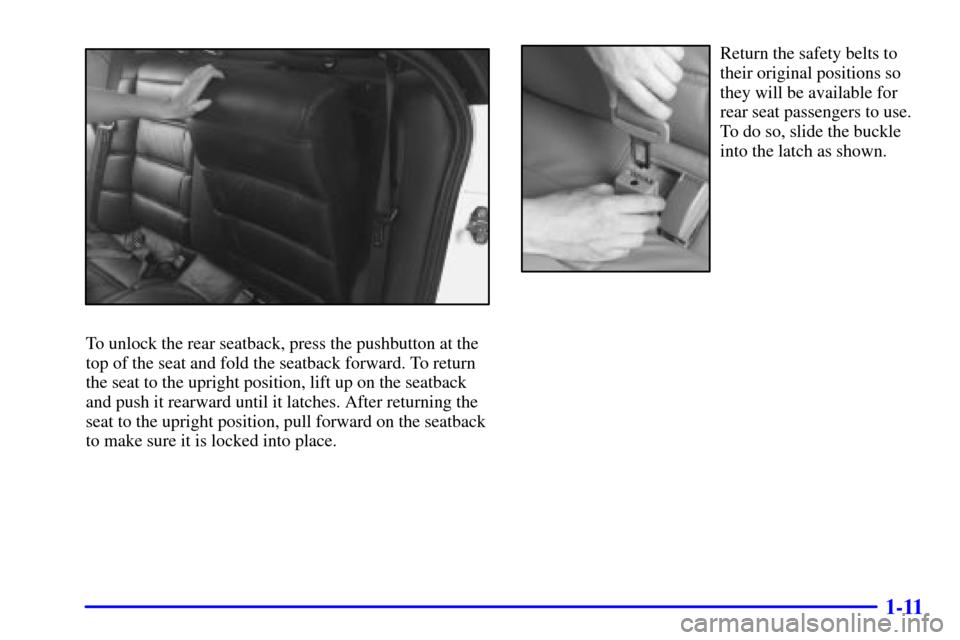

To unlock the rear seatback, press the pushbutton at the
top of the seat and fold the seatback forward. To return
the seat to the upright position, lift up on the seatback
and push it rearward until it latches. After returning the
seat to the upright position, pull forward on the seatback
to make sure it is locked into place.
Return the safety belts to
their original positions so
they will be available for
rear seat passengers to use.
To do so, slide the buckle
into the latch as shown.
Page 24 of 328
1-12
The panel behind the rear seat armrest also folds down.
Turn the knob counterclockwise and pull the panel
forward to gain access to the trunk. When finished using
the panel, return it to its original position and turn the
knob clockwise to secure.
Heated Rear Seat (Option)
The heated rear seat
controls are located on the
rear center console under
the air outlets. Press the
button once to turn on the
heating system. Press the
button again to turn the
system off.
A telltale light in the button indicates the system is in
use. The heated seats can only be used when the ignition
is turned on. The heating system shuts off automatically
when the ignition is turned off.
