2001 CADILLAC CATERA Owners Manual

Page 273 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-22

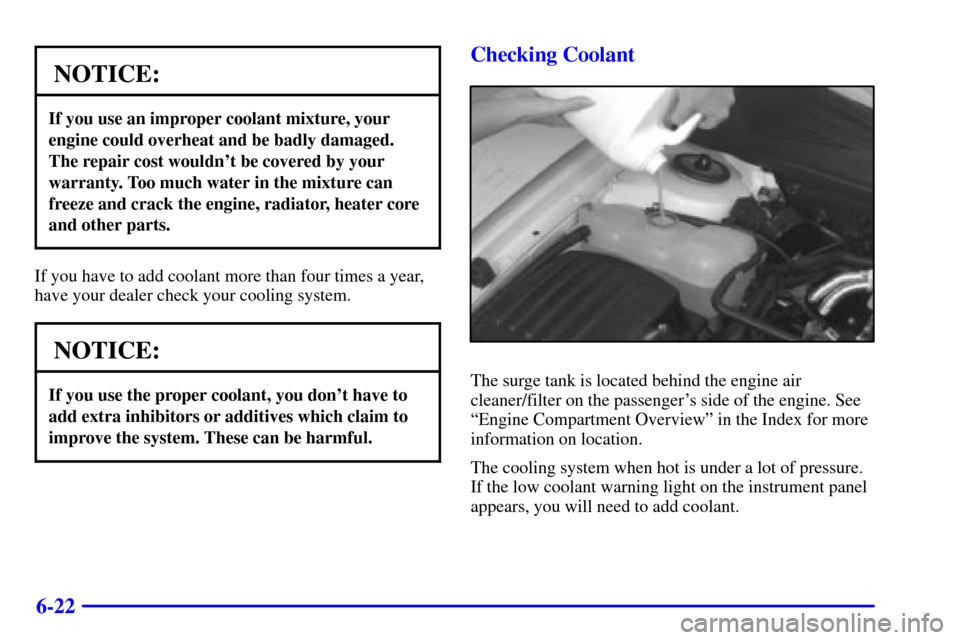

NOTICE:
If you use an improper coolant mixture, your
engine could overheat and be badly damaged.
The repair cost wouldnt be covered by your
warranty. Too much water in the mixture can
freeze and

Page 274 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-23
CAUTION:
Turning the surge tank pressure cap when the
engine and radiator are hot can allow steam and
scalding liquids to blow out and burn you badly.
Never turn the surge tank pressure cap
-- e

Page 275 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-24
Surge Tank Pressure Cap
NOTICE:
The surge tank cap is a 14 psi (97 kPa)
pressure
-type cap and must be tightly installed to
prevent coolant loss and possible engine damage
from overheating.
Power

Page 276 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-25 When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this

Page 277 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-26

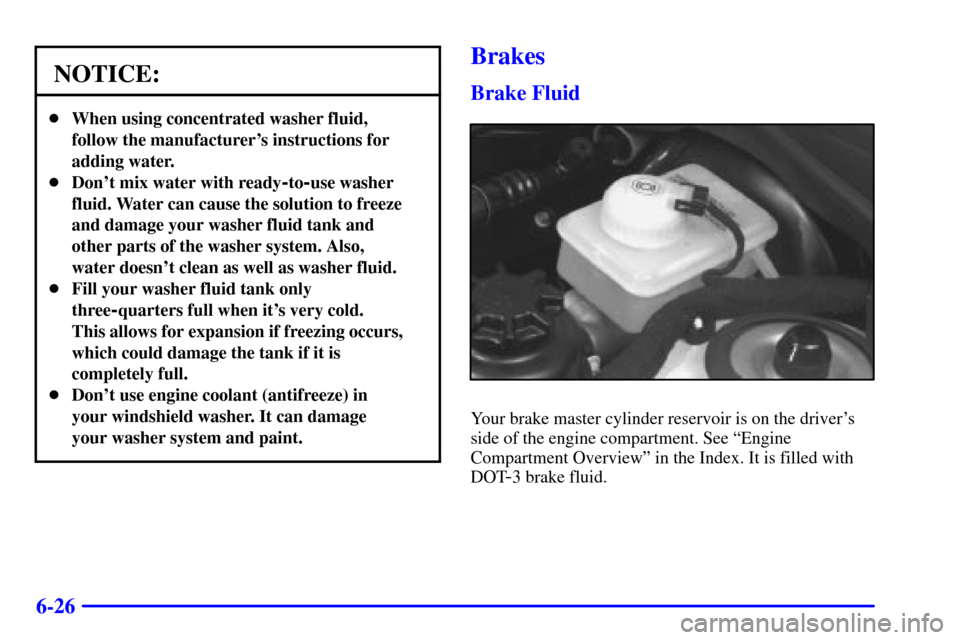

NOTICE:
When using concentrated washer fluid,
follow the manufacturers instructions for
adding water.
Dont mix water with ready
-to-use washer
fluid. Water can cause the solution to freeze
an

Page 278 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-27

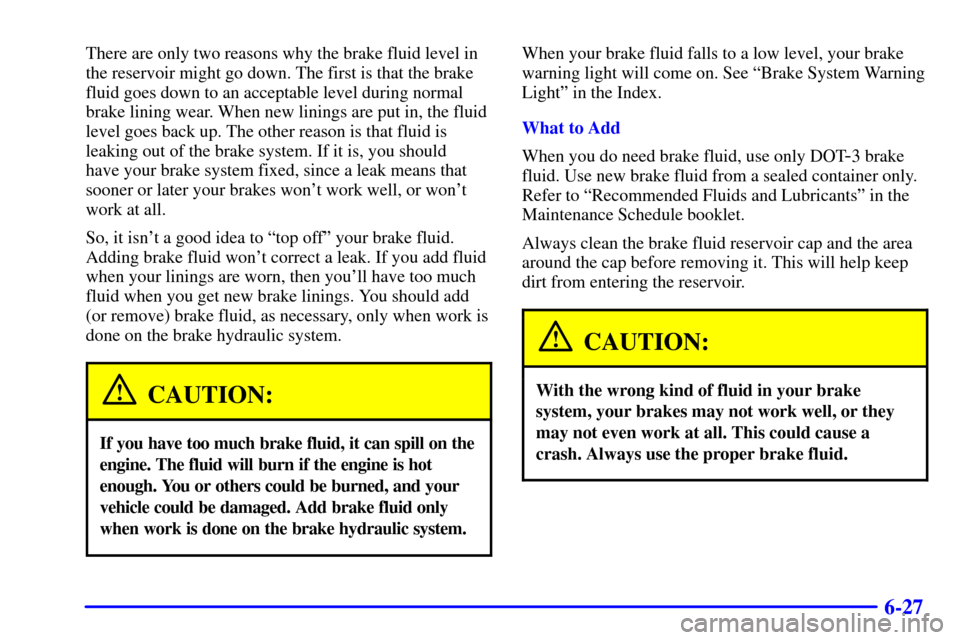

There are only two reasons why the brake fluid level in
the reservoir might go down. The first is that the brake
fluid goes down to an acceptable level during normal
brake lining wear. When new l

Page 279 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-28
NOTICE:
Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral
-based oil, such as engine
oil, in your brake system can damage brake
system parts so

Page 280 of 328

CADILLAC CATERA 2001 1.G Owners Manual 6-29
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
