2001 Acura Integra Owner's Manual

Fuse
s

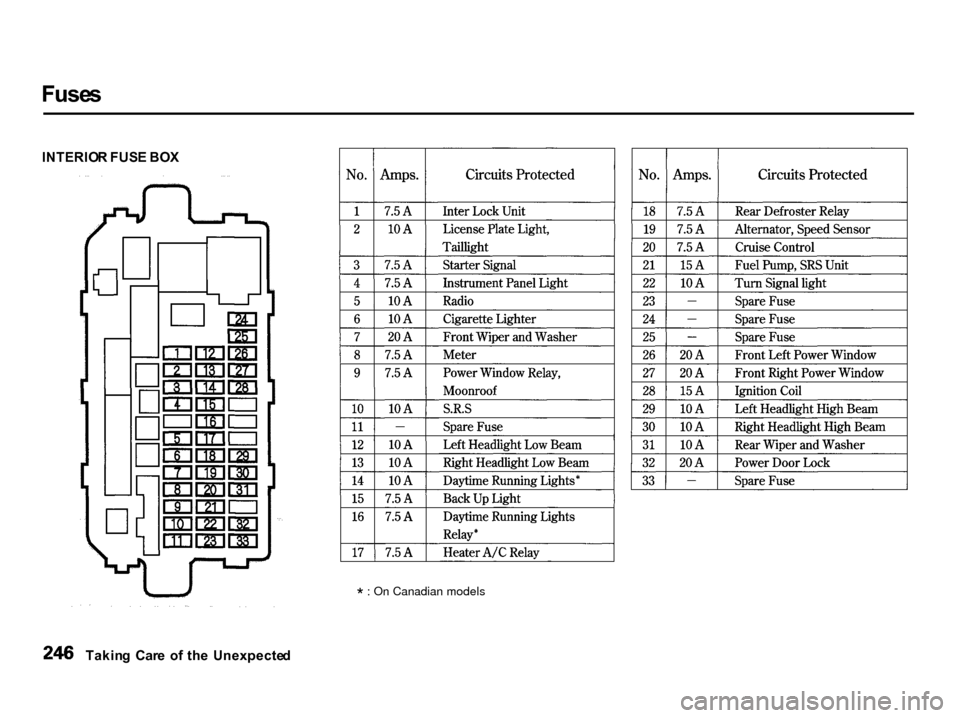

INTERIO R FUS E BO X
* : On Canadian models
Takin g Car e o f th e Unexpecte d

Fuse
s
UNDER-HOO D FUS E BO X
AB S FUS E BO X

Taking Car e o f th e Unexpecte d

Emergenc
y Towin g

If your car needs to be towed, call a
professional towing service or, if you
belong to one, an organization that
provides roadside assistance. Never
tow your car behind another vehicle
with just a rope or chain. It is very
dangerous.

There are three popular types of professional towing equipment.

Flat-bed Equipment — The operator

loads your car on the back of a truck.

Thi s is th e bes t wa y to transpor t

you r Acura .

Wheel-lift Equipment — The tow

truck uses two pivoting arms that go under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground. Thi s is

a n acceptabl e wa y to to w you r

Acura .
Sling-type Equipment — The tow

truck uses metal cables with hooks on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the car off
the ground. Your car's suspension and body can be seriously damaged.
Thi s metho d o f towin g is
unacceptable .
If your Acura cannot be transported
by flat-bed, it should be towed by
wheel-lift equipment with the front
wheels off the ground. If, due to damage, your car must be towed
with the front wheels on the ground, do the following.

5-speed Manual Transmission
Release the parking brake.
Shift the transmission to Neutral.
Automatic Transmission
Release the parking brake.
Start the engine.
Shift to D4, then to N.
Turn off the engine.

Improper towing preparation will damage the transmission. Follow the
above procedure exactly. If you cannot
shift the transmission or start the engine (automatic transmission), your
car must be transported with the front
wheels off the ground.

With the front wheels on the ground, it is best to tow the vehicle no farther
than 50 miles (80 km), and keep thespeed below 35 mph (55 km/h).

Takin g Car e o f th e Unexpecte d
NOTIC
E

Emergenc
y Towin g

If you decide to tow your car with all
four wheels on the ground, make sure you use a properly-designed and
attached tow bar. Prepare the car for
towing as described above, and leave the ignition switch in Accessory (I)so the steering wheel does not lock.
Make sure the radio and anyelectrical accessories are turned off
so they do not run down the battery.

The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in Accessory (I), and
make sure the steering wheel turns
freely before you begin towing. Trying to lift or tow your car by the
bumpers will cause serious damage. The bumpers are not designed to
support the car's weight.

Taking Car e o f th e Unexpecte d
NOTIC
E

NOTIC E

250

Technica
l Informatio n
The diagrams in this section give you the dimensions and capacities of
your Acura, and the locations of the identification numbers. It alsoincludes information you should
know about your vehicle's tires and emissions control systems. Identification Numbers................. 252
Specifications................................. 254
DOT Tire Quality Grading

(U.S. Cars)..............................256

Treadwear.................................. 256
Traction — AA, A, B, C............ 256
Temperature — A, B, C..........
257

Oxygenated Fuels.........................
. 258
Driving in Foreign Countries....... 259 Emissions Controls........................ 260
The Clean Air Act...................... 260
Crankcase Emissions Control System..................................... 260
Evaporative Emissions Control System..................................... 260
Onboard Refueling Vapor Recovery................................. 261
Exhaust Emissions Controls.... 261 PGM-FI System..................... 261
Ignition Timing ControlSystem................................. 261
Three Way Catalytic Converter............................ 261
Replacement Parts..................... 261
Three Way Catalytic Converter... 262 State Emissions Testing............... 263
Technical Informatio n

Identificatio
n Number s

Your car has several identifying numbers located in various places.
The Vehicle Identification Number (VIN) is the 17-digit number your
Acura dealer uses to register your car for warranty purposes. It is also
necessary for licensing and insuring
your car. The easiest place to find the VIN is on a plate fastened to the
top of the dashboard. You can see itby looking through the windshield on the driver's side. It is also on theCertification label attached to the
driver's doorjamb, and is stamped on
the engine compartment bulkhead.
The VIN is also provided in bar code on the Certification label. VEHICL
E IDENTIFICATIO N NUMBE R
CERTIFICATIO N LABE L

Technica l Informatio n

Identificatio
n Number s

The Engine Number is stamped into the engine block.
The Transmission Number is on a label on top of the transmission.

Technical Informatio n

MANUA
L TRANSMISSIO N NUMBE RAUTOMATI
C TRANSMISSIO N NUMBE R
ENGIN E NUMBE R
