Page 113 of 121
SPECIFICATIONS
9-3
9
Maximum load* 190 kg
Air pressure (cold tire)
Up to 90 kg load*
Front 250 kPa (2.50 kg/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
90 kg load ~ maximum
load*
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 280 kPa (2.80 kg/cm2, 2.80 bar)
* Load is total weight of cargo, rider, passenger and accessories.
Wheels
Front
Ty p e C a s t
Size 16 ´ MT 3.50
Rear
Ty p e C a s t
Size 15M/C ´ MT 4.00
Brakes
Front
Type Dual disc brake
Operation Right hand operation
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Fr o n t
Ty p e Te l e s c o p i c f o r k
Rear
Type Swingarm (link suspension)
Shock absorber
Front Coil-air spring/oil damper
Rear Coil-air spring/oil damper
Wheel travel
Front 140 mm
Rear 105 mm
Electrical
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 29 A @ 5,000 r/min
Battery
Type YTX20L-BS
Voltage, capacity 12 V, 18 AH
E_5jc_Spec.fm Page 3 Saturday, October 16, 1999 1:12 PM
Page 114 of 121
SPECIFICATIONS
9-4
9
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 4 W ´ 1
Licence light 12 V, 5 W ´ 2
Neutral indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 1.7 W ´ 1
Oil level indicator light 12 V, 1.7 W ´ 1
Turn indicator light 12 V, 1.7 W ´ 2
Fuel level indicator light 14 V, 3 W ´ 1
Coolant temperature indicator
light 12 V, 1.7 W ´ 1
Engine trouble indicator light 12 V, 1.7 W ´ 1
Overdrive indicator light 12 V, 1.7 W ´ 1
Cruise control “SET” indicator
light 12 V, 1.7 W ´ 1
Cruise control “RES” indicator
light 12 V, 1.7 W ´ 1
Cruise control “ON” indicator
light 12 V, 1.7 W ´ 1Audio system amplifier
Output power
Speaker 14 W ´ 4
Headset 1 W ´ 2
Auto-volume range 5 steps
Output impedance
Speaker 4 W
Headset 8 W ~ 16 W
Fuses
Main fuse 30 A
Headlight fuse 15 A
Signaling system fuse 15 A
Ignition fuse 10 A
Radiator fan fuse 10 A
Odometer fuse 10 A
Cruise control fuse 10 A
Carburetor heater fuse 10 A
Audio system fuse 10 A
Auxiliary DC jack fuse 5 A
Auxiliary DC terminal fuse 5 A
E_5jc_Spec.fm Page 4 Saturday, October 16, 1999 1:12 PM
Page 115 of 121
SPECIFICATIONS
9-5
9
EAU01064
HOW TO USE THE CONVERSION TABLECS-02E All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
Ex.METRIC MULTIPLIER IMPERIAL
**mm´ 0.03937 = **in
2 mm´ 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/hr 0.6214 mph
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume /
Capacitycc (cm3)
cc (cm3)
lt (liter)
lt (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Misc.kg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_5jc_Spec.fm Page 5 Saturday, October 16, 1999 1:12 PM
Page 116 of 121

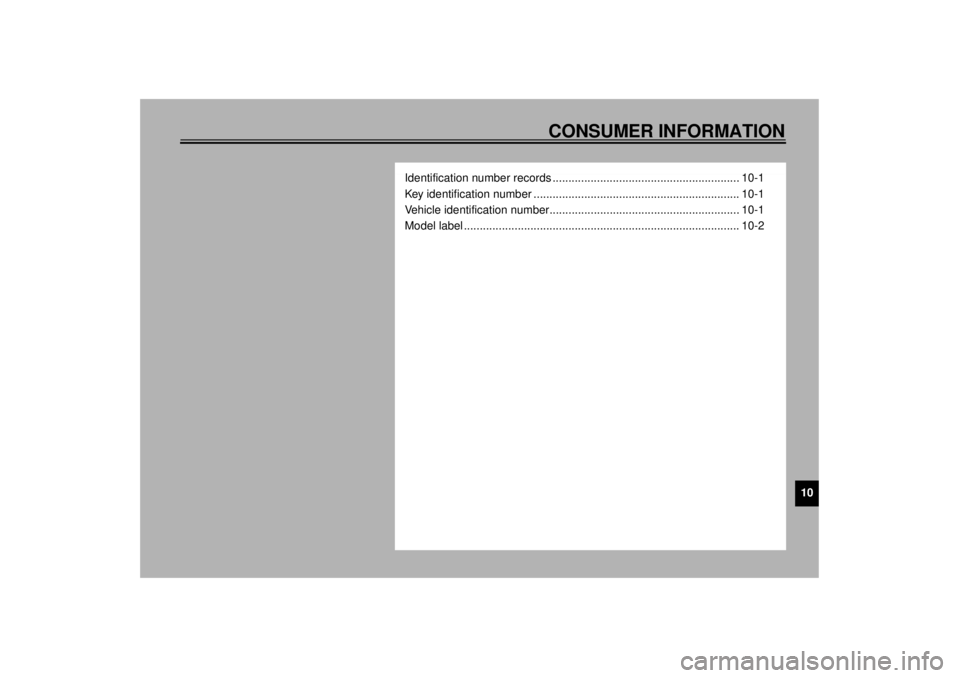

CONSUMER INFORMATION
10
Identification number records ........................................................... 10-1
Key identification number ................................................................. 10-1
Vehicle identification number............................................................ 10-1
Model label ....................................................................................... 10-2
E_5jc_ConsumerTOC.fm Page 1 Saturday, October 16, 1999 1:12 PM
Page 117 of 121
10-1
10
EAU01039
10-CONSUMER INFORMATION
EAU02944
Identification number recordsRecord the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification numberThe key identification number is
stamped on the key tag. Record this
number in the space provided and use
it for reference when obtaining a new
key.
EAU01043
Vehicle identification numberThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your state. @
1. Key identification number
1. Vehicle identification number
E_5jc_Consumer.fm Page 1 Saturday, October 16, 1999 1:12 PM
Page 118 of 121
CONSUMER INFORMATION
10-2
10
EAU01804
Model labelThe model label is affixed to the frame
under the rider seat. (See page 3-15 for
rider seat removal and installation pro-
cedures.)
Record the information on this label in
the space provided. This information
will be needed to order spare parts
from your Yamaha dealer.1. Model label
E_5jc_Consumer.fm Page 2 Saturday, October 16, 1999 1:12 PM
Page 119 of 121
11-INDEXAAir filters................................................. 7-15
Antitheft alarm (optional) ..........................3-8
Auxiliary audio source operation ............ 4-17
Auxiliary DC jack and terminal ............... 3-23BBattery ................................................... 7-29
Brake and clutch lever lubrication........... 7-27
Brake and shift pedal lubrication ............ 7-27
Brake fluid replacement ......................... 7-26
Brake light switch adjustment ................. 7-24CCarburetor adjustment ........................... 7-17
Care.........................................................8-1
Cassette deck operation ..........................4-8
CD changer (optional) operation ............ 4-16
Checking the front and
rear brake pads ................................... 7-25
Clutch lever ............................................ 3-10
Clutch lever free play adjustment ........... 7-22
Controls/Instruments ................................2-3
Control unit ..............................................4-3
Coolant .................................................. 7-14
Coolant temperature indicator light...........3-4
Cowling A .................................................. 7-6
Cowling B .................................................. 7-7
Cowling and panel removal and
installation .............................................7-6
Cruise control indicator lights ...................3-4
Cruise control switches .......................... 3-10
Cruise control system ..............................3-7
DDimmer switch ......................................... 3-9EEngine break-in ....................................... 6-4
Engine oil .............................................. 7-11
Engine stop switch................................. 3-10
Engine trouble indicator light.................... 3-4FFinal gear oil .......................................... 7-13
Front brake lever ................................... 3-11
Front brake lever free play
adjustment .......................................... 7-23
Front fork adjustment............................. 3-19
Front fork inspection .............................. 7-28
Fuel ....................................................... 3-13
Fuel cock ............................................... 3-14
Fuel gauge .............................................. 3-9
Fuel level indicator light ........................... 3-4
Fuel tank breather hose ......................... 3-13
Fuel tank cap ......................................... 3-12
Fuse replacement.................................. 7-31GGive safety the right of way ..................... 1-1HHandlebar switches ................................. 3-9
Cruise control switches .................... 3-10
Dimmer switch ................................... 3-9
Engine stop switch ........................... 3-10
Horn switch ........................................ 3-9
Light switch ...................................... 3-10
Pass switch ........................................ 3-9
Start switch .......................................3-10
Turn signal switch ...............................3-9
Headlight bulb replacement....................7-32
Headsets (optional) ..................................4-2
Helmet holders .......................................3-16
High beam indicator light ..........................3-3
Horn switch ..............................................3-9
IIdentification number records .................10-1
Idle speed adjustment ............................7-17
Indicator lights ..........................................3-3
Coolant temperature indicator light .....3-4
Cruise control indicator lights ..............3-4
Engine trouble indicator light ...............3-4
Fuel level indicator light ......................3-4
High beam indicator light ....................3-3
Neutral indicator light ..........................3-4
Oil level indicator light .........................3-3
Overdrive indicator light ......................3-4
Turn indicator lights ............................3-3
Inspecting the brake fluid level ...............7-25KKey identification number .......................10-1LLeft view...................................................2-1
License light bulb replacement ...............7-34
Light switch ............................................3-10
Location of parts ......................................4-1MMain switch/steering lock .........................3-1
Making basic settings ...............................4-4
E_5jcIX.fm Page 1 Saturday, October 16, 1999 1:12 PM
Page 120 of 121
INDEX
Making mode settings.............................. 4-5
Model label ............................................ 10-2NNeutral indicator light ............................... 3-4OOil level indicator light .............................. 3-3
Overdrive indicator light ........................... 3-4PPanel C ................................................... 7-8
Panel D ................................................... 7-8
Panel E.................................................... 7-9
Parking .................................................... 6-5
Pass switch ............................................. 3-9
Periodic maintenance and lubrication ...... 7-3
Pre-operation check list ............................ 5-1RRadio operation ..................................... 4-12
Rear brake pedal ................................... 3-11
Rear brake pedal height adjustment ...... 7-23
Rear shock absorber adjustment ........... 3-21
Recommended shift points
(for Switzerland only)............................. 6-4
Rider seat .............................................. 3-15
Right view................................................ 2-2SSaddlebags and travel trunk .................. 3-17
Shifting .................................................... 6-3
Shift pedal ............................................. 3-11
Sidestand .............................................. 3-21
Sidestand/clutch switch operation
check .................................................. 3-22
Sidestand lubrication ............................. 7-28
Spark plug inspection ............................ 7-10
Specifications .......................................... 9-1
Speedometer .......................................... 3-5
Starter (choke) knob.............................. 3-15
Starting a warm engine ........................... 6-3
Starting the engine .................................. 6-1
Start switch ........................................... 3-10
Steering inspection................................ 7-29
Storage ................................................... 8-4TThrottle cable free play inspection ......... 7-18
Tips for reducing fuel consumption .......... 6-4
Tires...................................................... 7-19
Tool kit .................................................... 7-1
Troubleshooting .................................... 7-34
Troubleshooting charts .......................... 7-35
Turn indicator lights ................................. 3-3
Turn signal and tail/brake light bulb
replacement ........................................ 7-33
Turn signal switch ................................... 3-9VValve clearance adjustment .................. 7-18
Vehicle identification number................. 10-1WWheels .................................................. 7-21
E_5jcIX.fm Page 2 Saturday, October 16, 1999 1:12 PM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
