Page 19 of 121

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU01775*
SpeedometerThis speedometer is equipped with:l
an odometer
l
two trip odometers
l
a fuel reserve trip meter
l
a clockOdometer and trip meter modes
Use the trip meters to estimate how far
you can ride on a tank of fuel.
Use the fuel reserve trip meter to see
the distance traveled from when the
fuel level dropped to the reserve level.
Selecting a mode
Push the “SELECT” button to change
between the odometer mode “ODO”
and the trip odometer modes “TRIP 1”
and “TRIP 2” in the following order:
“ODO”
® “TRIP 1”
® “TRIP 2”
®
“ODO”
If the fuel level indicator light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve trip meter mode “TRIP F” and
start counting the distance traveled
from that point. Push the “SELECT”
button to change between the fuel re-
serve trip meter, trip odometers and
odometer modes in the following order:
“TRIP F”
® “TRIP 1”
® “TRIP 2”
®
“ODO”
® “TRIP F”Resetting a meter
To reset a trip odometer to 0.0, select it
by pushing the “SELECT” button and
push the “RESET” button. To reset the
fuel reserve trip meter, select it by
pushing the “SELECT” button and
push the “RESET” button. The display
will return to “TRIP 1”. If you do not re-
set the fuel reserve trip meter manual-
ly, it will automatically reset and return
to “TRIP 1” after refueling and traveling
5 km.NOTE:@ After resetting the fuel reserve trip
meter, the display always returns to the
“TRIP 1” mode, unless a different mode
had been previously selected; in that
case, the display automatically returns
to the prior mode. @
1. Speedometer
2. Odometer/tripmeter/clock
3. “RESET” button
4. “SELECT” buttonE_5jc_Functions.fm Page 5 Saturday, October 16, 1999 1:08 PM
Page 20 of 121
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3 Clock mode
To change the display to the clock
mode, push the “SELECT” button for at
least two seconds.
To change the display back to the
odometer modes, push the “SELECT”
button.
To set the clock
1. Push both the “SELECT” and
“RESET” buttons for at least two
seconds.
2. When the hour digits start flashing,
push the “RESET” button to set
the hours.
3. Push the “SELECT” button and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button to start
the clock.
NOTE:@ After setting the clock, be sure to push
the “SELECT” button before turning the
main switch to “OFF”, otherwise the
clock will not be set. @
E_5jc_Functions.fm Page 6 Saturday, October 16, 1999 1:08 PM
Page 26 of 121
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU02917
Fuel tank capTo remove
Slide the lock cover open, insert the
key and turn it 1/4 turn clockwise. The
lock will be released and the cap can
be removed.
To install
Make sure the arrow mark on the tank
cap is facing forward, then push the
tank cap into position. Turn the key
counterclockwise to the original posi-
tion and remove it. Close the lock cov-
er.
NOTE:@ This tank cap cannot be closed unless
the key is in the lock. The key cannot
be removed if the cap is not locked
properly. @
EW000023
WARNING
@ Be sure the cap is properly installed
and locked in place before riding the
motorcycle. @
1. Lock cover
2. Open
E_5jc_Functions.fm Page 12 Saturday, October 16, 1999 1:08 PM
Page 31 of 121

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU01866
Saddlebags and travel trunk
EWA00021
WARNING
@ l
Always be sure to close and
lock the saddlebags and travel
trunk securely before operating
the motorcycle.
l
Distribute weight evenly on
each side of the motorcycle.
l
Never exceed the maximum
loading limit of 9 kg in each sad-
dlebag and the travel trunk. Im-
proper loading or overloading
can cause vehicle handling
problems leading to an accident
or personal injury.
l
Read the Owner’s manual for
important loading and tire pres-
sure information.
l
Total weight of rider, passen-
ger, accessories and cargo
must not exceed the motorcycle
load capacity shown in the
Owner’s Manual.
l
Never ride above 120 km/h with
travel trunk and/or saddlebags
because handling could be af-
fected. This maximum speed
may be reduced by such factors
as improper loading, poor tire
or overall motorcycle condi-
tions, poor road surfaces or ad-
verse weather conditions.
@

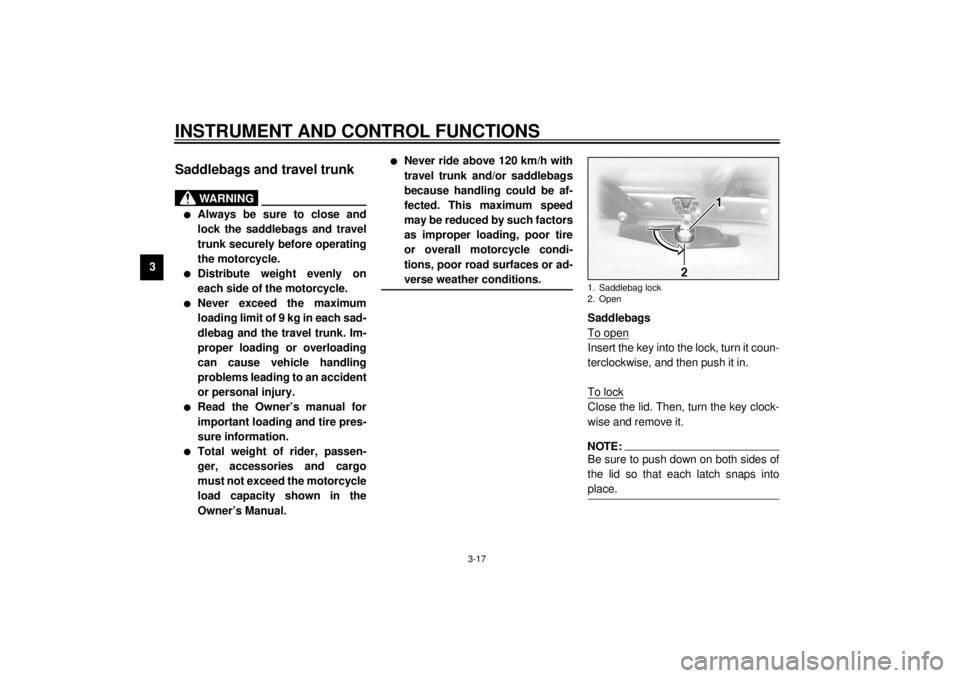

Saddlebags
To openInsert the key into the lock, turn it coun-
terclockwise, and then push it in.
To lockClose the lid. Then, turn the key clock-
wise and remove it.NOTE:@ Be sure to push down on both sides of
the lid so that each latch snaps into
place. @1. Saddlebag lock
2. Open
E_5jc_Functions.fm Page 17 Saturday, October 16, 1999 1:08 PM
Page 32 of 121
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
Travel trunk
To open
1. Insert the key into the lock, turn it
counterclockwise, and then push it
in.2. Lift up the lid so that it will rest in
place as shown when it is re-
leased.
ECA00029
CAUTION:@ Do not apply excessive pressure on
the travel trunk lid when it is open. @
1. Storage compartment
2. Storage pouch
1. Travel trunk lock
2. Open
1. Lid resting in opened position
2. Storage pouch
E_5jc_Functions.fm Page 18 Saturday, October 16, 1999 1:08 PM
Page 33 of 121
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
To lock
1. Lift up the lid completely, and then
close it.
NOTE:@ Be sure to push down on both sides of
the lid so that each latch snaps into
place. @2. Turn the key clockwise and re-
move it.
ECA00030
CAUTION:@ Be sure not to lock the key inside ei-
ther saddlebag or the travel trunk. @
EAU01878*
Front fork adjustmentThis front fork is equipped with a spring
preload adjuster.
EW000035
WARNING
@ Always adjust each fork leg to the
same setting. Uneven adjustment
can cause poor handling and loss of
stability. @Adjust spring preload as follows.
1. Put the motorcycle on the side-
stand.NOTE:@ There should be no weight on the
motorcycle when performing this job. @
E_5jc_Functions.fm Page 19 Saturday, October 16, 1999 1:08 PM
Page 98 of 121
PERIODIC MAINTENANCE AND MINOR REPAIR
7-32
7 Main fuse box
The main fuse box is located behind
panel E. (See page 7-9 for removal and
installation procedures.)
EAU01802
Headlight bulb replacementThis motorcycle is equipped with a
quartz bulb headlight. If headlight bulb
burns out, replace the bulb as follows:
1. Disconnect the headlight connec-
tor and remove the bulb holder
cover.2. Turn the bulb holder counterclock-
wise to remove it and remove the
defective bulb.
EW000120
WARNING
@ Keep flammable products and your
hands away from the bulb while it is
on, as it is hot. Do not touch the bulb
until it cools down. @3. Put a new bulb into position and
secure it in place with the bulb
holder.
1. Main fuse
2. Spare fuse
Specified main fuse: 30 A
1. Bulb holder cover
2. Headlight connector
1. Bulb holder
E_5jc_Periodic.fm Page 32 Saturday, October 16, 1999 1:10 PM
Page 99 of 121
PERIODIC MAINTENANCE AND MINOR REPAIR
7-33
7
EC000106
CAUTION:@ Avoid touching the glass part of the
bulb. Keep it free from oil; other-
wise, the transparency of the glass,
life of the bulb, and illuminous flux
will be adversely affected. If oil gets
on the bulb, thoroughly clean it with
a cloth moistened with alcohol or
lacquer thinner. @4. Install the bulb holder cover and
connect the headlight connector.
If the headlight beam adjustment is
necessary, ask a Yamaha dealer to
make that adjustment.
EAU00855*
Turn signal and tail/brake light
bulb replacement1. Remove the screws and the lens.
2. Push the bulb inward and turn it
counterclockwise.3. Place a new bulb in the socket.
Push the bulb inward and turn it
clockwise until it engages into the
socket.
4. Install the lens and the screws.
EC000108
CAUTION:@ Do not over-tighten the screws as
the lens may break. @
1. Don’t touch
1. Screw (´ 2)
1. Screw (´ 3)
E_5jc_Periodic.fm Page 33 Saturday, October 16, 1999 1:10 PM
