2000 RENAULT CLIO Owners Manual



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page57
1.49
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
9Not used
Handbrake “on”
warning light and fault
sensor indicator light
on the brake circuit.
If it illuminates when the
brakes are applied, it indicates
that the fluid level in the circuit
is low. It may be dangerous to
continue driving. Call for the
assistance of a Renault Dealer.
10Lights linked to the function
and/or failure of the automatic
gearbox.
Refertotheinformationonthe
proactive automatic gearbox in
section 2.11Warning light for
monitoring exhaust gas
For vehicles equipped
with this option, the light
illuminates when the ignition
is switched on and
extinguishes within 3 seconds.
•Ifitilluminates
continuously, consult your
Renault Dealer as soon as
possible.
• If it flashes, reduce the
engine speed until the light
stops flashing. Consult your
Renault Dealer as soon as
possible.
Refer to the information on
anti-pollution, fuel economy
and driving in section 2.11Anti-lock brake
warning light
This illuminates when
the ignition is switched on and
extinguishes within 3 seconds.
If it illuminates when you are
driving, it indicates an fault in
the anti-lock braking system.
Braking will then occur
normally, without the anti-lock
system.
Consult your Renault Dealer as
soon as possible.

12
3



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page58
1.50
ON-BOARD COMPUTER
1Display
2General reset and trip mileage
recorder reset button
To reset the trip mileage recorder,
the display must show the “trip
mileometer” function.
Automatic reset
Automatic resetting will occur
when the maximum of any of the
memories is exceeded.3Display selection button
Keep pressing button3to show the
following information in sequence:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) current consumption,
f) estimated range,
g) distance covered,
h) average speed.
Refer to the table on the next page
for examples of the displays.
Display flashing
If the display flashes, consult a
Renault Dealer.
Interpretation of certain values
displayed after resetting:
The values for average
consumption, range and average
speed become more stable and
more significant the further the
vehicle is driven after the last reset.In the first few miles after resetting,
you may notice:
• that the range increases as you
drive. This is normal as the average
consumption may reduce when:
- the vehicle is no longer
accelerating,
- the engine reaches normal
operating temperature (reset
when engine was cold),
- you drive from a built up area to
the open road.
If average consumption is
decreased, the expected range
will therefore increase.
• average consumption increases
when the vehicle is stationary and
idling.
This is normal as the computer
takes into account the fuel used
during idling.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page59
1.51
ON-BOARD COMPUTER(continued)
Examples of
display selections by
pressing button3Interpreting the display
a) Total mileage recorder.
b) Trip mileage recorder.
c) Fuel used(in litres or gallons) since the last reset.
d) Average consumption(in mpg or l/100 km) since the last reset.
The value is displayed after covering 400 metres taking into account the
distance covered and the fuel used since the last reset.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page60
1.52
ON-BOARD COMPUTER(continued)
Examples of
display selections by
pressing button3Interpreting the display
e) Current consumption(in mpg or litres/100 km)
The value is displayed after reaching a speed of 15 mph (25 km/h).
f) Estimated range with remaining fuel(in miles or km)
This function uses the average consumption since the last general reset.
The value is displayed after covering 400 metres.
g) Distance covered(in miles or km) since the last reset.
h) Average speed(in mph or km/h) since the last reset.
The value is displayed after covering 400 metres.

1BA2C
D
E



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page61
1.53
REAR VIEW MIRRORS
External rear view mirrors with
manual adjustment
To adjust the mirror, move lever1.
External rear view mirrors with
electrical adjustment
Ignition on,moveknob2:
- positionCto adjust the left hand
mirror;
- positionEto adjust the right hand
mirror;
Dis the central neutral position.
Heated rear view mirrors
The mirrors are de-iced at the same
time as the rear screen demisting /
de-icing is used.The driver’s side external
rear view mirror has two
clearly marked areas. Zone
Bcorresponds to what can
normally be seen in a conventional
rear view mirror. ZoneAincreases
the area visible to the rear and to
the side of your vehicle, for your
safety.
Objects in zoneAappear to be
much further away than they
really are.

1
2



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page62
1.54
REAR VIEW MIRRORS(continued)STEERING WHEEL
Interior rear view mirror
This is adjustable. When driving at
night, to avoid being blinded by the
headlights of a following vehicle,
lower the small lever1located
behind the rear view mirror.
Adjusting the steering wheel
On certain vehicles, the position of
the steering wheel can be adjusted.
Lift lever2and set the steering
wheel in the required position.
Lower the lever to lock the steering
wheel.
For safety reasons, only
adjust the steering
wheel when the vehicle
is stationary.

1
2
1
3



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page63
1.55
EXTERNAL LIGHTING AND SIGNALS
Side lights
Turn the end of stalk1to
align the symbol opposite the mark3.
The instrument panel illuminates.
The brightness of the lights can be
modified by turning wheel2,ifthis
feature is fitted to the vehicle.
Dipped headlights
Turn the end of stalk1to
align the symbol opposite the mark3.
A warning light illuminates on the
instrument panel.
Before driving at night:
check that the electrical
equipment is in good condition
and adjust the headlight beam (if
your vehicle is not carrying its
normal load).
Main beam headlights
With stalk1in the dipped
beam headlight position, move the
stalk towards you.
When the main beam headlights are
on, a warning light illuminates on
the instrument panel.
To return to the dipped beam
headlight position, move the stalk
towards you once more.
Turning the lights off
Return stalk1to its initial
position.
Lights on reminder buzzer
If the driver’s door is opened, a
buzzer will sound to indicate that
the lights have been left on after the
ignition has been switched off (to
prevent discharge of the battery
etc.).

445



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page64

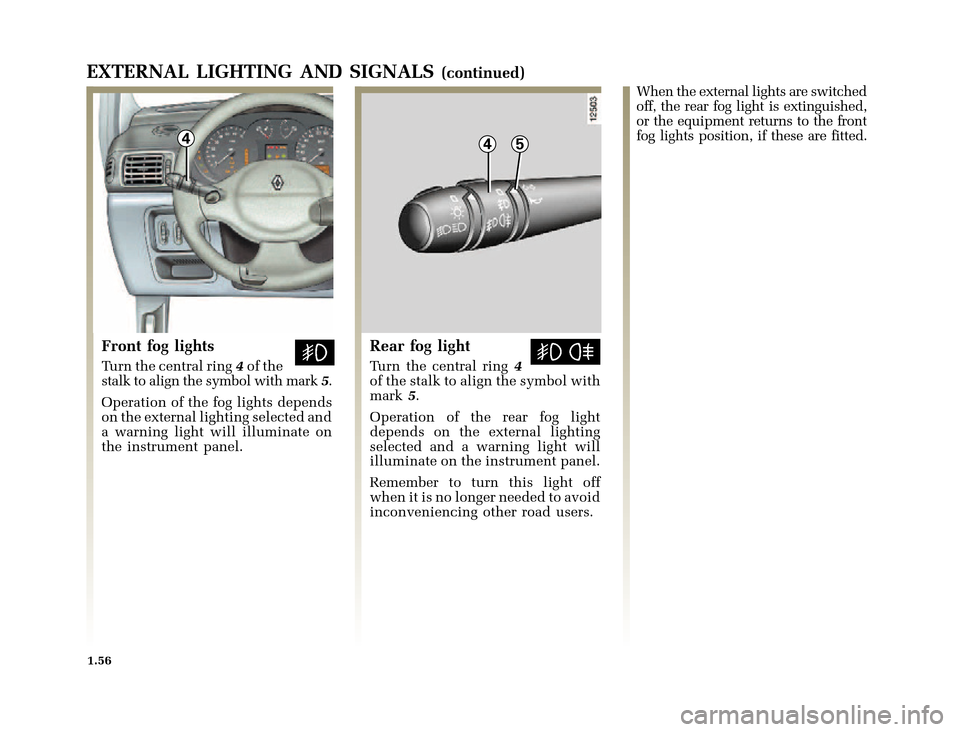

1.56
EXTERNAL LIGHTING AND SIGNALS(continued)
Front fog lights
Turn the central ring4of the
stalk to align the symbol with mark5.
Operation of the fog lights depends
on the external lighting selected and
a warning light will illuminate on
the instrument panel.
Rear fog light
Turn the central ring4
of the stalk to align the symbol with
mark5.
Operation of the rear fog light
depends on the external lighting
selected and a warning light will
illuminate on the instrument panel.
Remember to turn this light off
when it is no longer needed to avoid
inconveniencing other road users.When the external lights are switched
off, the rear fog light is extinguished,
or the equipment returns to the front
fog lights position, if these are fitted.
