2000 RENAULT CLIO isofix

1
3
2



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page32
1.24

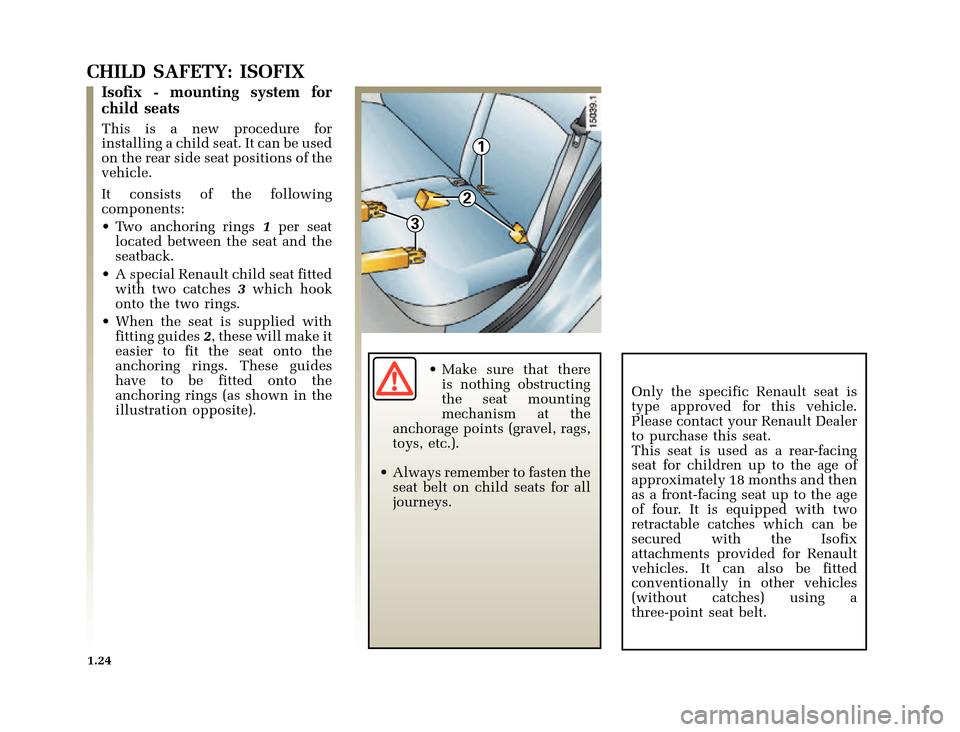

CHILD SAFETY: ISOFIX
Isofix - mounting system for
child seats
This is a new procedure for
installing a child seat. It can be used
on the rear side seat positions of the
vehicle.
It consists of the following
components:
• Two anchoring rings1per seat
located between the seat and the
seatback.
• A special Renault child seat fitted
with two catches3which hook
onto the two rings.
• When the seat is supplied with
fitting guides2, these will make it
easier to fit the seat onto the
anchoring rings. These guides
have to be fitted onto the
anchoring rings (as shown in the
illustration opposite).• Make sure that there
is nothing obstructing
the seat mounting
mechanism at the
anchorage points (gravel, rags,
toys, etc.).
• Always remember to fasten the
seat belt on child seats for all
journeys.Only the specific Renault seat is
type approved for this vehicle.
Please contact your Renault Dealer
to purchase this seat.
This seat is used as a rear-facing
seat for children up to the age of
approximately 18 months and then
as a front-facing seat up to the age
of four. It is equipped with two
retractable catches which can be
secured with the Isofix
attachments provided for Renault
vehicles. It can also be fitted
conventionally in other vehicles
(without catches) using a
three-point seat belt.

1
3
2



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page33
1.25

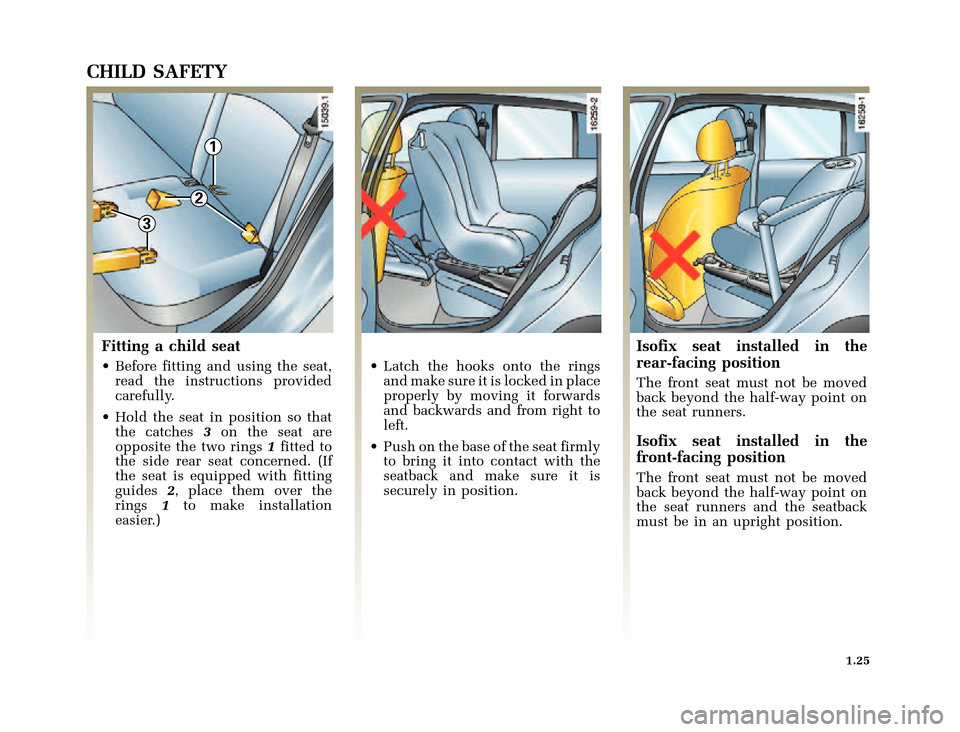

CHILD SAFETY
Fitting a child seat
•Before fitting and using the seat,
read the instructions provided
carefully.
• Hold the seat in position so that
the catches3on the seat are
opposite the two rings1fitted to
the side rear seat concerned. (If
the seat is equipped with fitting
guides2, place them over the
rings1to make installation
easier.)• Latch the hooks onto the rings
and make sure it is locked in place
properly by moving it forwards
and backwards and from right to
left.
• Push on the base of the seat firmly
to bring it into contact with the
seatback and make sure it is
securely in position.
Isofix seat installed in the
rear-facing position
The front seat must not be moved
back beyond the half-way point on
the seat runners.
Isofix seat installed in the
front-facing position
The front seat must not be moved
back beyond the half-way point on
the seat runners and the seatback
must be in an upright position.

12



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page35
1.27

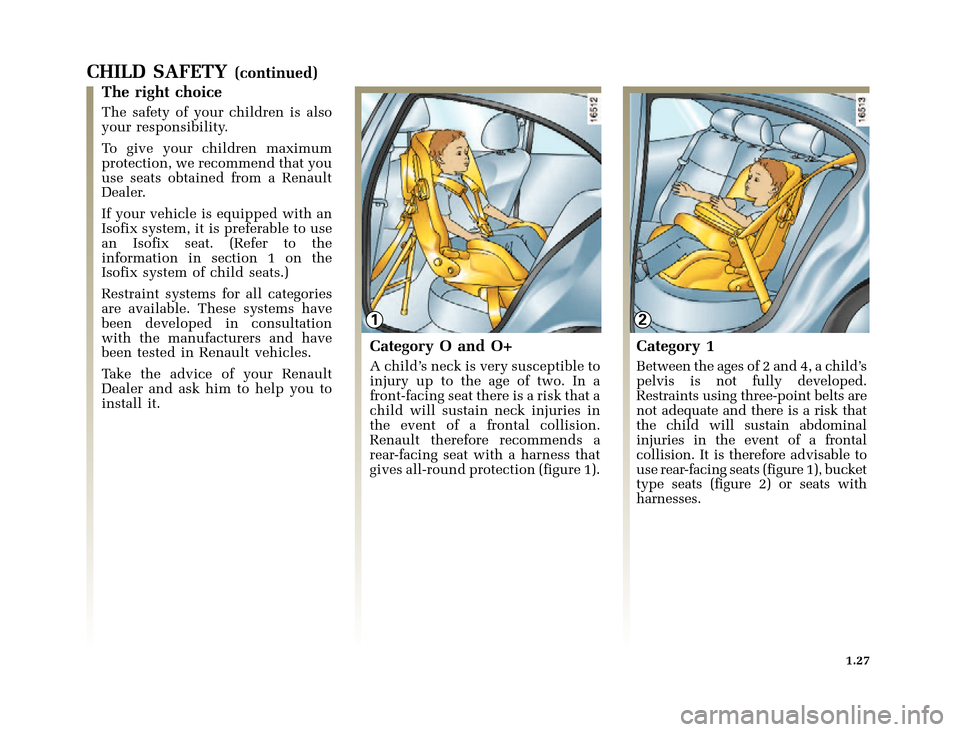

CHILD SAFETY(continued)
The right choice
The safety of your children is also
your responsibility.
To give your children maximum
protection, we recommend that you
use seats obtained from a Renault
Dealer.
If your vehicle is equipped with an
Isofix system, it is preferable to use
an Isofix seat. (Refer to the
information in section 1 on the
Isofix system of child seats.)
Restraint systems for all categories
are available. These systems have
been developed in consultation
with the manufacturers and have
been tested in Renault vehicles.
Take the advice of your Renault
Dealer and ask him to help you to
install it.
Category O and O+
A child’s neck is very susceptible to
injury up to the age of two. In a
front-facing seat there is a risk that a
child will sustain neck injuries in
the event of a frontal collision.
Renault therefore recommends a
rear-facing seat with a harness that
gives all-round protection (figure 1).
Category 1
Betweentheagesof2and4,achild’s
pelvis is not fully developed.
Restraints using three-point belts are
not adequate and there is a risk that
the child will sustain abdominal
injuries in the event of a frontal
collision. It is therefore advisable to
use rear-facing seats (figure 1), bucket
type seats (figure 2) or seats with
harnesses.
