2000 RENAULT CLIO Owners Manual

B
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page11
3.11
AIR CONDITIONING(continued)
Distribution of air in the
passenger compartment
Move controlB.
• Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.• Position
The air flow is directed to the
dashboard air vents and the footwells.
• Position
The air flow is directed to the
footwells.• Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen demisters
and the footwells.
• Position
For improved efficiency, close the
dashboard air vents.
All the air flow is directed to the
windscreen demisters and the side
window demisters.
In this position, simultaneous
operation of the air conditioning
system could make demisting more
efficient.

HIDE
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page12
3.12
AIR CONDITIONING(continued)
Heated rear screen
With the engine running,
press buttonHand warning lightI
illuminates.
This function ensures the de-icing
and demisting of the rear screen and
the heated external rear view mirrors
(if the vehicle is fitted with them).
Thefunctionisstopped:
- automatically after 15 minutes
operation,
- by pressing buttonHagain (the
warning lightIextinguishes).
Isolating the passenger
compartment
ButtonD
Normal operation of the system is
obtained using external air.
The air recycling position allows
the passenger compartment to be
isolated from the external atmosphere
(driving in polluted areas, etc.).
To enter the isolation mode, press
buttonDThis function allows the desired
warmth of the passenger
compartment to be achieved as
quickly as possible.
This button switches the air recycling
system on or off. Warning lightE
illuminates when the function is
operational. In this position, air is
taken from within the passenger
compartment and is recycled without
outside air entering.
Prolonged use of the isolation mode
may cause odours due to the air not
being renewed and may cause the
windows to mist up.
Return to normal operation (external
air) by pressing buttonDas soon as
the polluted area is left behind.

C
FG
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page13
3.13
AIR CONDITIONING(continued)
Air conditioning controls
ControlFoperates or stops
the air conditioning system.
The air conditioningwill not operate
if controlCis positioned on0.Using the air conditioning system:
• lowers the internal passenger
compartment temperature,
especially in hot weather, when
driving in traffic or when the
vehicle has been parked in the
sun;
• reduces the humidity of the air
blown inside the passenger
compartment (prevents misting).
Fuel consumption increases when
the air conditioning system is being
used. (Switch it off when it is not
required.)Note:the air conditioning may be
used in all conditions, but does not
operate when the external
temperature is low.
•ButtonFnot activated (warning
lightGextinguished)
The air conditioning is not
operational.
Heating and ventilation are
therefore identical to that of a
vehicle without air conditioning.
•ButtonFactivated (warning light
Gilluminated)
The air conditioning is operating.
Air is taken from outside the
vehicle and is constantly
renewed.

C
FG
18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page14
3.14
AIR CONDITIONING(continued)
In very hot weather, or when the
vehicle has been parked in the sun,
openthedoorsforafewmomentsto
allow the hot air to escape before
starting off.
To lower the temperature of the
passenger compartment as quickly
as possible to the required level, use
the “Isolation of the passenger
compartment” function. Once the
required comfort level has been
reached, turn the recycling function
off.When the air conditioning is
operating, all the windows must be
closed to give the best efficiency.
If there is an operating fault, contact
your Renault Dealer.
No cool air
Check that the controls are correctly
positioned and that the fuses are in
good condition. If not, stop the air
conditioning system (warning
lightGextinguished) and call for
the assistance of a Renault Dealer.
Do not open the refrigerant
circuit. The fluid is
dangerous to the eyes and
skin.

1
A
3
B
2
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page15
3.15
INTERIOR LIGHTING
LightA
Tilt light1to give:
- continuous lighting,
- lighting controlled, depending on
version, by the opening of one of
the front doors, or by one of the
four doors. It only extinguishes
when the doors concerned are
correctly closed.
LightB
Tilt switch2to give:
- Continuous lighting.
- Lighting controlled, depending on
version, by opening one of the
front doors, or by one of the four
doors. It only extinguishes when
the doors concerned are correctly
closed.
- No illumination of the light.
- Illumination of map reading light3.
Adjust map reading light3to the
required position.Automatic operation of the
interior lights (for certain vehicles)
•remote unlocking of the doors
illuminates the interior lights for
approximately 15 seconds;
• remote locking of the doors
extinguishes the interior lights
immediately;
• if a door remains open (or is not
correctly closed), the interior
lights will remain illuminated for
approximately 15 minutes;
• if all the doors are closed, when
the ignition is switched on, the
interior lights will start to dim.

5
6
7
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page16
3.16

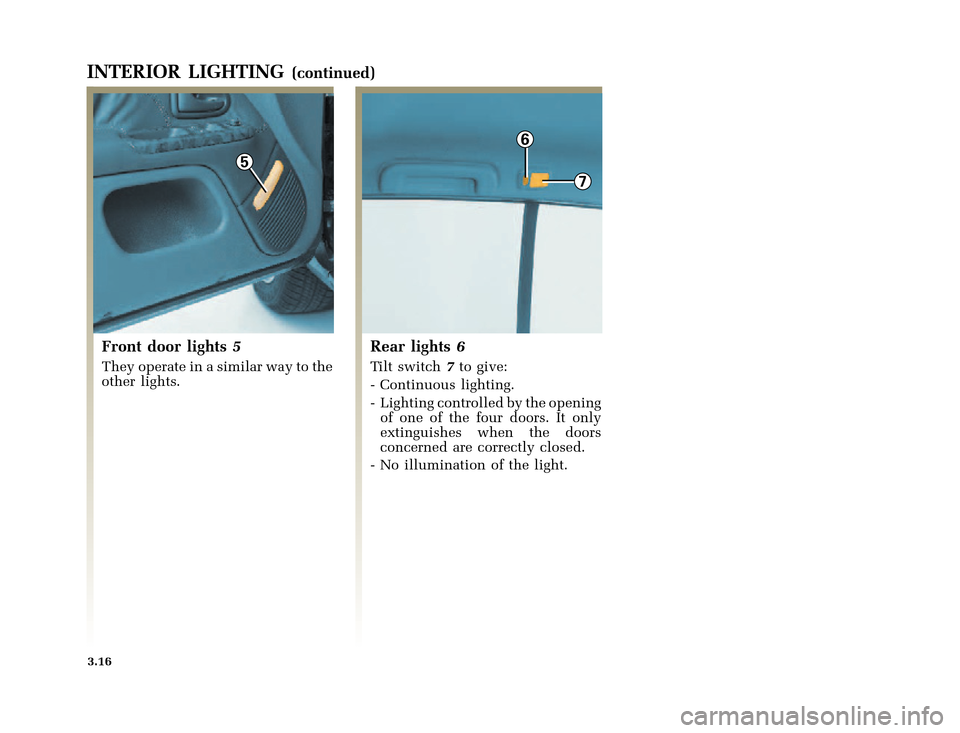

INTERIOR LIGHTING(continued)
Front door lights5
They operate in a similar way to the
other lights.
Rear lights6
Tilt switch7to give:
- Continuous lighting.
- Lighting controlled by the opening
of one of the four doors. It only
extinguishes when the doors
concerned are correctly closed.
- No illumination of the light.

2
11
2
3
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page17
3.17
WINDOW RISERS
Front driver's side electric
window
With the ignition on or off and the
driver’s door closed:
Press switch1to open the window
or lift switch1to close it.
Front passenger's side electric
window
With the ignition on,press switch2
to open the window or lift switch2
to close it.Automatic operation
This is in addition to the driver’s
window operation described above.
When the engine is running,briefly
pressing switch1allows the
window to be fully closed or
opened.
Anyactiononswitch1during this
operation will stop the window
moving.
Manual window risers
Operate window winder3.
Child safety
Never leave the key in
the ignition when there
is a child in the car(or
an animal). It would be possible
to operate the electric windows
and there is a risk that the child
could trap a part of his/her body
in the window (neck, arm, hand,
etc.), causing serious injury.

2
2
1
1
3
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page18
3.18

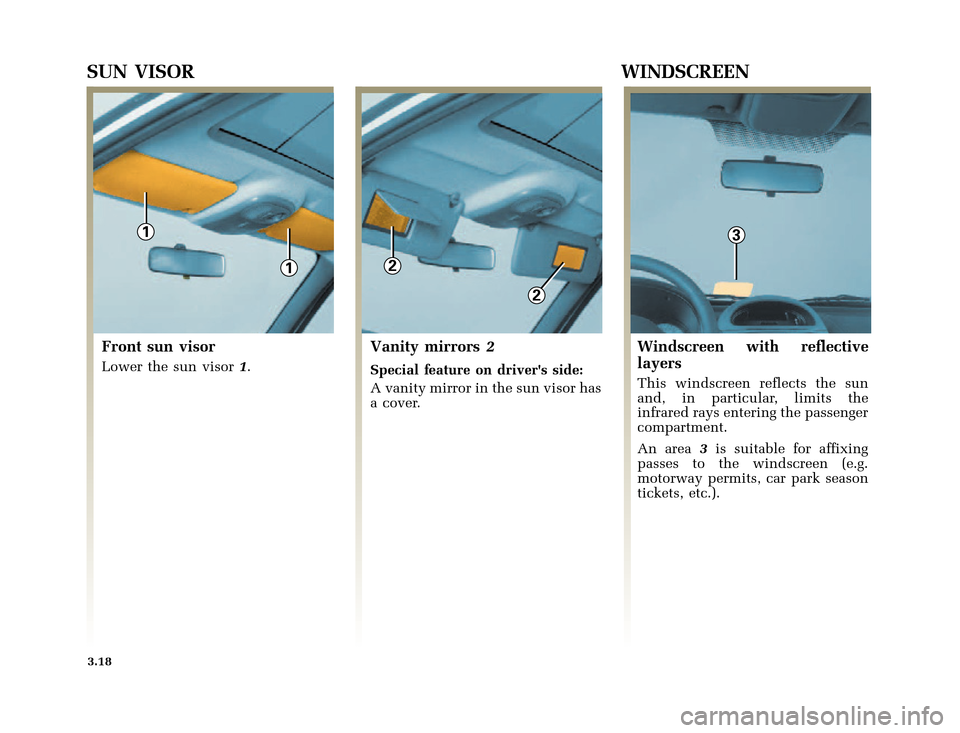

SUN VISOR WINDSCREEN
Front sun visor
Lower the sun visor1.
Vanity mirrors2
Special feature on driver's side:
A vanity mirror in the sun visor has
a cover.
Windscreen with reflective
layers
This windscreen reflects the sun
and, in particular, limits the
infrared rays entering the passenger
compartment.
An area3is suitable for affixing
passes to the windscreen (e.g.
motorway permits, car park season
tickets, etc.).
