2000 RENAULT CLIO Owners Manual



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page49
1.41
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
8Warning light for
monitoring exhaust gas
For vehicles equipped
with this option, the light
illuminates when the ignition
is switched on and
extinguishes within 3 seconds.
- If it is permanently lit, consult
your Renault Dealer as soon
as possible.
- If it flashes, reduce the engine
speed until the light stops
flashing. Consult your
Renault Dealer as soon as
possible.
Refer to the “Special features of
petrol version” in section 2.
9Multifunction key
Resetting the trip milometer
Press the button.
Setting the clock
Refertotheinformationonthe
clock in section 1.9Display selection keyfor total
and trip mileage
10Multifunction display
Oil level display function
The vehicle must be parked on
level ground and the engine
shouldhavebeenswitchedoff
for some time to obtain an
accurate level reading.
When ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
(To gain a more precise
indication of the level, press
the trip melometer reset
button or the information
scroll button on the onboard
computer for vehicles fitted
with this function. The
squares in the display
indicate the level. These
squares disappear as the oil
level drops and they are
replaced by dashes.
To move to milometer
reading, press the button
again).10Multifunction display
(continued)
-if the level is at its minimum,
theword“OK”willnot
appear on the display, the
dashes and the word “oil”
will flash.
It is vital to top up with oil as
soon as possible.
General mileage and trip
mileage counter and clock
Can be read approximately 30
seconds after the ignition is
switched on.
11Low headlight
wash/wipe fluid level
warning light
Fill up with fuel as soon as
soon as possible.
Battery charge warning
light
It should go out as soon
as the engine starts. If it
illuminates while you are
driving, it indicates that the
circuit is overcharging or
discharged. Stop and have the
circuit checked.

234a45
11 10 9 8 7
16



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page50

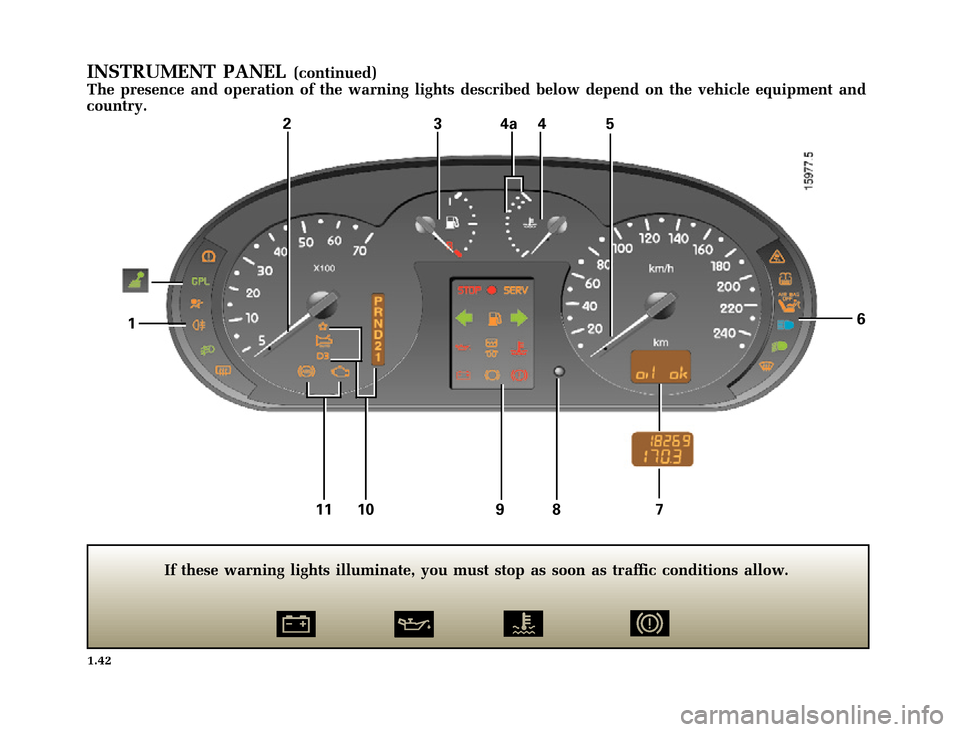

1.42
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page51
1.43
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
1Not used
orOver-revving warning
light
Indicates that you need
to change gear.
Not used
Air bag warning light
This illuminates when
the ignition is switched
on and extinguishes after a few
seconds.
If it does not illuminate when
the ignition is turned on or if it
flashes, there is a fault in the
system. Consult your Renault
Dealer as soon as possible.
Rear fog light warning
light
Front fog lights
warning light1Not used
2Rev counter
(scale ×100)
Up to 3000 rpm (or 2500 rpm
on diesel versions),engine
speed not to be exceeded in the
intermediate gears for
economical driving
3Fuel level gauge
4Coolant temperature indicator
In normal use, the needle
should be below zone4a.
Under severe conditions the
needle may enter this area. This
is not serious unless warning
light illuminates.
5Speedometer(km or miles per
hour)6Not used
Low screen wash/wipe
fluid level warning
light
Fill up with fuel as soon as
soon as possible.
Not used
Headlight main beam
indicator light
Headlight dipped beam
indicator light
Windscreen demisting
indicator

234a45
11 10 9 8 7
16



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page52

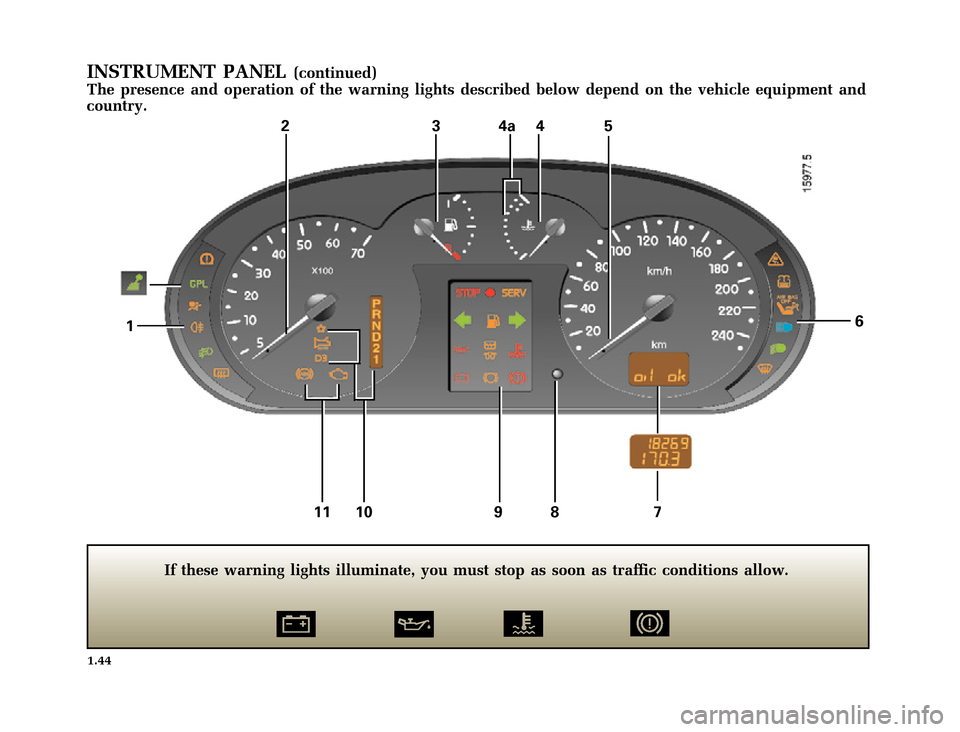

1.44
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page53
1.45
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
7Multifunction display
• Oil level display function
The vehicle must be parked on
level ground and the engine
should have been switched off
forsometimetoobtainan
accurate level reading.
When ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
(Togainamoreprecise
indication of the level, press
the trip milometer reset
button or the information
scroll button on the onboard
computer for vehicles fitted
with this function. The
squares which appear on the
display indicate the level.
The number of squares
displayed reduces as the oil
level drops and they are
replaced by a dash.
To move to onboard
computer reading, press the
button again).
-if the level is at its minimum,
the word “OK” will not
appear on the display, the
dashes and the word “oil”
will flash and the SERV
warning light will illuminate.
It is vital to top up the oil as
soon as possible.7• Total mileage and trip
mileage recorder
Canbereadapproximately
30 seconds after the ignition
is switched on.
or
• On board computer display
After 30 seconds, the display
will toggle depending on the
onboard computer: see the
“onboard computer” para-
graph in section 1.
8Multifunction key
• Display selection
Press briefly to move from
the total mileage to the trip
mileage and vice versa.
•Trip mileage reset button
Once the display of the the
trip mileage is selected, press
the button and hold it down.
9STOP light
It extinguishes as soon
as the engine starts.
This illuminates together with
one of the warning lights:9Engine immobiliser
warning light
This light has several
functions.
Refer to the information on the
engine immobiliser in section 1.
SERVICE warning light
This light illuminates
when the ignition is
switched on and then
extinguishes within 3 seconds.
If it illuminates when the
vehicle is being driven, it is
advisable to stop at a Renault
Dealer soon.
It illuminates together with one
of the warning lights:
Indicator light for
left-hand direction
indicator

234a45
11 10 9 8 7
16



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page54
1.46
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page55
1.47
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
9Low fuel-level warning
light
It extinguishes as soon
as the engine starts.
If it illuminates or remains
illuminated, fill up with fuel as
soon as possible.
Tell-tale light for
right-hand direction
indicators
Oil pressure warning
light
It should extinguish as
soon as the engine starts; if it
illuminates when you are
driving, stop at once, switch off
the ignition and check the oil
level. If this is normal, call for
the assistance of a Renault
Dealer.9Heater plugs “on”(on
diesel version)and
electronic incident
warning light(on petrol
and diesel versions).
• Heater plugs “on”
(on diesel version)
With the ignition key in
position M, this light should
illuminate. It indicates that
the heater plugs are switched
on. It goes out as soon as
preheating is sufficient and
the engine may be started.
•Electronic incident warning
light(on petrol and diesel
versions)
If it illuminates when you are
driving, it indicates an
electric or electronic fault.
Consult your Renault Dealer
as soon as possible.9Coolant temperature
warning light
It extinguishes as
soon as the engine starts. If it
illuminates when you are
driving, stop and let the engine
idle for a minute or two. The
temperature should drop. If it
does not, stop the engine and
check the coolant level (having
let the engine cool down). Call
for the assistance of a Renault
Dealer if necessary.
Battery charging
warning light
It should extinguish
as soon as the engine starts.
If it illuminates when you are
driving, it indicates that the
circuit is overcharging or
discharged. Stop and have the
circuit checked.

234a45
11 10 9 8 7
16



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page56
1.48
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
