1.04
OPENING THE DOORS
Opening the doors from the
outside
Front: Unlock using the key in one
of the front door locks2.Place your
hand under handle1and pull
towards you.
Rear: When one of the front doors is
open just lift the unlocking knob3
from the inside and move the handle.
Opening the doors from inside
the vehicle
Move handle4.
Lights on reminder buzzer
When one of the doors is opened, an
alarm will sound to remind you that
the lights have been left on after the
engine has been switched off (to
prevent the battery discharging, etc.).
Childproof locks
To prevent the rear doors being
opened from inside the vehicle,
move lever5on each door and
check from inside the car that both
doors are securely locked.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page8
2.08
ADVICE ON ANTIPOLLUTION AND HOW TO ECONOMISE ON FUEL WHEN DRIVING(continued)
General hints
•Electricity is “fuel”; switch off all
the electrical units which are not
really needed.
However,(with safety always in
mind), keep your lights on when
the visibility is bad (see and be
seen).
• Try to use the air vents. Driving at
a speed of 60 mph (100 km/h)
with the windows open will
increase the use of fuel by 4%.•For vehicles fitted with air
conditioning,morefuelmaybe
used during urban driving; switch
off the system when it is not really
needed.
• Never fill the fuel tank up to the
brim to avoid it overflowing.
• Do not leave an empty roof rack in
position.
• Use a trailer for carrying bulky
objects.
• When towing a caravan, fit a wind
deflector and adjust it properly.
• Avoid using the car for door to
door calls (short journeys with
long stops in between), as the
engine never reaches its ideal
temperature. Try to group your
calls.
Tyres
•Inflation pressures which are too
low may increase fuel
consumption.
• The use of non-recommended
tyres may also increase fuel
consumption.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page1
3.01

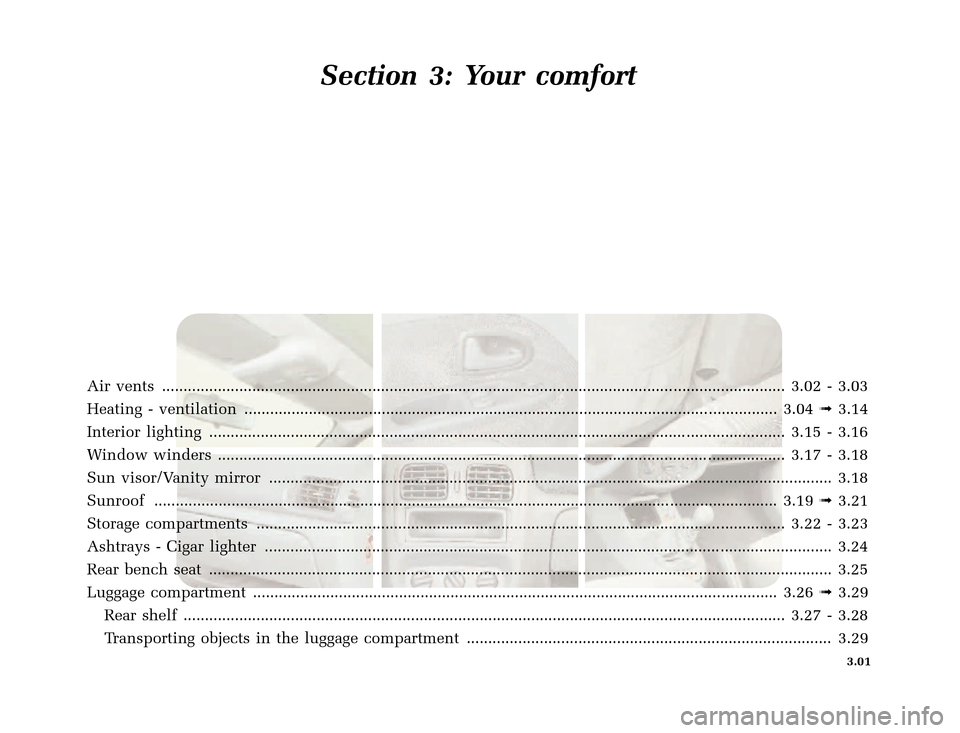

Section 3: Your comfort
Air vents ................................................................................................................................................. 3.02 - 3.03
Heating - ventilation ............................................................................................................................ 3.04
¬3.14
Interior lighting ...................................................................................................................................... 3.15 - 3.16
Window winders .................................................................................................................................... 3.17 - 3.18
Sun visor/Vanity mirror ................................................................................................................................... 3.18
Sunroof ................................................................................................................................................. 3.19
¬3.21
Storage compartments ........................................................................................................................... 3.22 - 3.23
Ashtrays - Cigar lighter .................................................................................................................................... 3.24
Rear bench seat ................................................................................................................................................. 3.25
Luggage compartment .......................................................................................................................... 3.26
¬3.29
Rear shelf ............................................................................................................................................ 3.27 - 3.28
Transporting objects in the luggage compartment .....................................................................................3.29

2
1
43
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page19
3.19

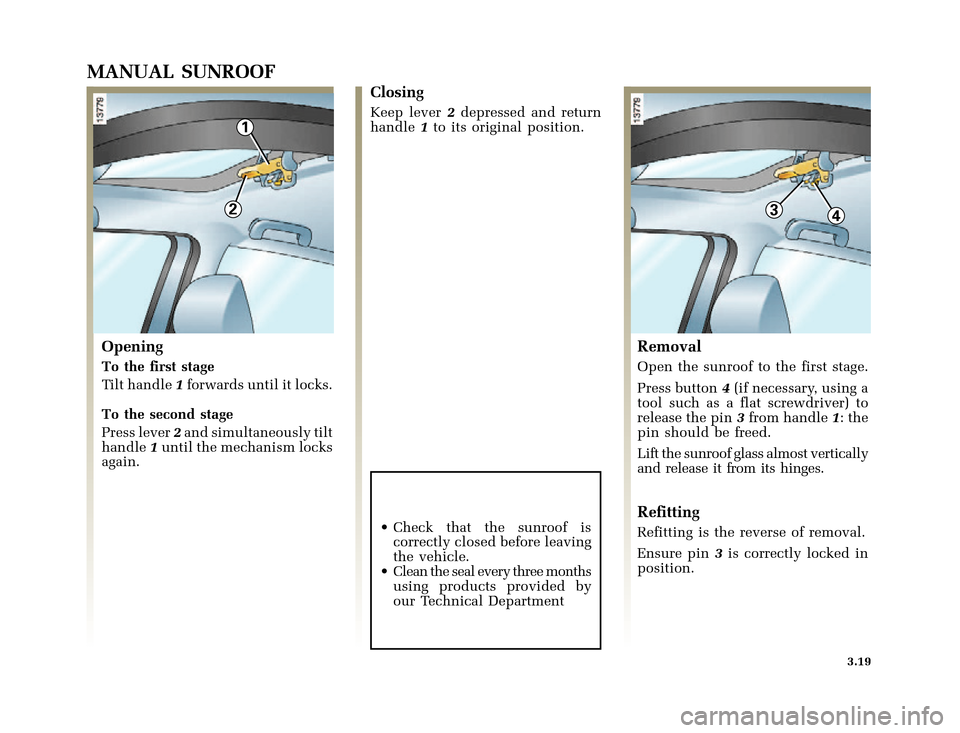

MANUAL SUNROOF
Opening
To the first stage
Tilt handle1forwards until it locks.
To the second stage
Press lever2and simultaneously tilt
handle1until the mechanism locks
again.
Closing
Keep lever2depressed and return
handle1to its original position.
• Check that the sunroof is
correctly closed before leaving
the vehicle.
• Clean the seal every three months
using products provided by
our Technical Department
Removal
Open the sunroof to the first stage.
Press button4(if necessary, using a
tool such as a flat screwdriver) to
release the pin3from handle1:the
pin should be freed.
Lift the sunroof glass almost vertically
and release it from its hinges.
Refitting
Refitting is the reverse of removal.
Ensure pin3is correctly locked in
position.

1
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page20
3.20
ELECTRIC SUNROOF
Tilt and slide sunroof
Ignition on:
• To tilt the sunroof
- Opening: Tilt switch1backwards
and keep it pressed until the
sunroof is open as far as required.
- Closing: Tilt switch1forwards.• To slide the sunroof
With the sunroof tilted,
- Opening: Tilt switch1backwards
and keep it pressed until the
sunroof is open as far as required.
- Closing: Tilt switch1forwards
Child safety
Never leave the key in the
ignition when there is a
child in the car(or an
animal). It would be possible to
operate the sunroof and there is a
risk that the child could trap a part
of his/her body in the sunroof
(neck, arm, hand, etc.), causing
serious injury.

2
18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page21
3.21

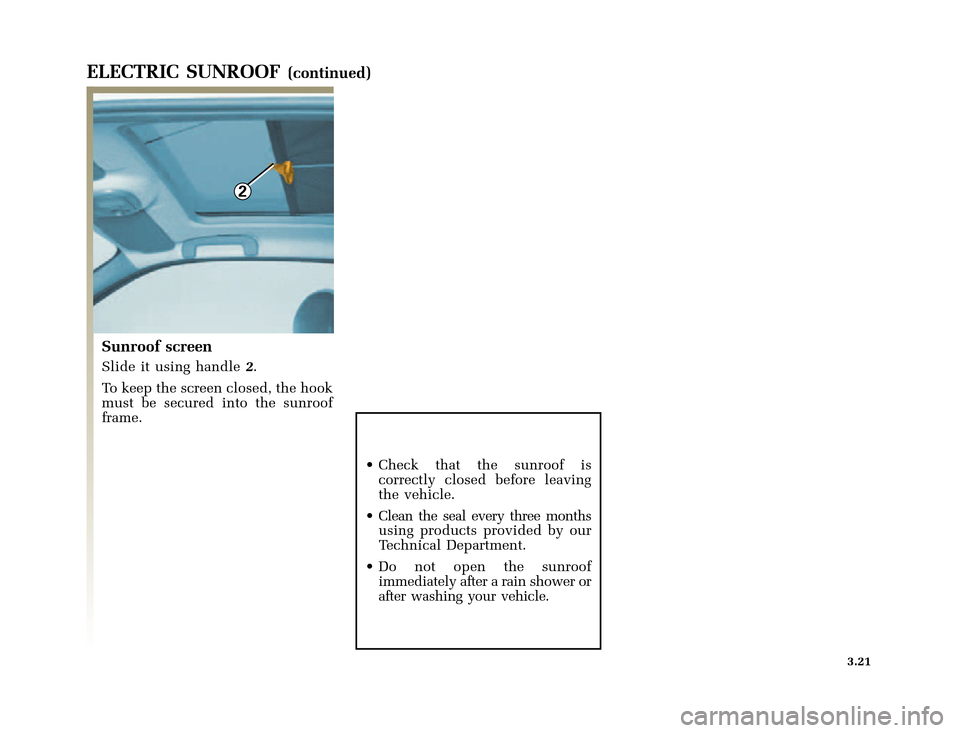

ELECTRIC SUNROOF(continued)
Sunroof screen
Slide it using handle2.
To keep the screen closed, the hook
must be secured into the sunroof
frame.
• Check that the sunroof is
correctly closed before leaving
the vehicle.
• Clean the seal every three months
using products provided by our
Technical Department.
• Do not open the sunroof
immediately after a rain shower or
after washing your vehicle.

18IUB*DT[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page12
4.12
BODYWORK MAINTENANCE
Protection against the action of
corrosive agents
Although your vehicle has been
treated with very effective
anti-corrosion products, it is still
subject to the action of:
• corrosives in the atmosphere
- atmospheric pollution (urban
and industrial areas),
- saline atmosphere (near the sea,
particularly in hot weather),
- seasonal and humid climatic
conditions, especially road salt
in winter.
• abrasives
- wind-carried dust and sand, mud,
road grit thrown up by other
vehicles.
• minor impacts
To avoid losing the benefits of this
protection, a minimum number of
precautions should be taken to
ensure against this risk.
What you must not do
• Wash the vehicle in bright sunlight
or in freezing temperatures.
• Scrape off mud or dirt without
pre-wetting.
• Allow external dirt to accumulate.
• Allow rust to form after minor
impacts.
• Use solvents not recommended
by Renault's Technical Department
to remove spots as they may
damage the paintwork.
• Drive frequently in snow or muddy
conditions without periodically
washing the car, particularly
under the wheel arches and under
the body.• Degrease or clean mechanical
components (e.g. engine
compartment), underneath the
bodywork, parts with hinges (e.g.
inside the fuel tank flap, sunroof)
and painted plastic external
fittings (e.g. bumpers) using high
pressure cleaning apparatus or
spraying on products which are
not approved by our Technical
Department as this could give rise
to corrosion or incorrect operation.

18IUB*ET[G      3DJH
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page21
5.21
FUSES(continued)
Allocation of fuses(the presence of fuses depends on the vehicle equipment level)
Symbol Allocation
Air bag/Central timer
Stop lights
Heated rear screen
Windscreen wipers
Anti-lock braking (ABS)
Fan
Radio/Cigar lighter/Clock
Horn
Left hand
dipped headlight
Right hand
dipped headlight
Symbol Allocation
Right hand main beam
headlight
Left hand main beam
headlight
Dual headlights
(dipped beam headlights
and main beam
headlights)
Heated rear view mirrors
Front fog lights
Not used
Not used
Central timer
Direction
indicators/Hazard warning
lights
Rear fog light
Symbol Allocation
Left hand side light
Right hand side light
Engine immobiliser
Interior and luggage
compartment lights/Radio
Central door locking
Electric windows
Headlight washers
Heated seats
Electric sunroof
