GDI -Troubleshooting 13A-53
OK
Measure at throttle position sensor
connector B-102.
DUse test harness (MB991536) to
connect the connector, and
measure at the pick-up harness.
DIgnition switch: ON
(1) The voltage between terminal 1
and earth
OK:
4.8 - 5.2 V
(2) The voltage between terminal 3
and earth
OK:
0.5 V or less
(3) The voltage between terminal 4
and earth
OK:
Acceleratorpedalfully re-
leased: 4.0 V or more
Acceleratorpedalfully de-
pressed: 0.4 - 0.6 V(1), (2) NG
NGRepair
Check the following connector:
D-118NG
Repair
OK
Check the harness wire between
throttle position sensor (2nd channel)
and the throttle valve controller.
From the previouspage
(3) NG
Adjust the throttle position sensor.
(Refer to P.13A-220.)
OK
Check the harness wire between
throttle position sensor (2nd channel)
and the engine-ECU, and repair if
necessary.OK
Measure at engine-ECU connector
D-118.
DMeasure the voltage at the
engine-ECU terminal.
DIgnition switch: ON
DThe voltage between terminal 78
and earth
OK:
Acceleratorpedalfully re-
leased: 4.0 V or more
Acceleratorpedalfully de-
pressed: 0.4 - 0.6 VNGCheck the following connector:
D-118NGRepair
OK
Check the harness wire between
throttle position sensor (2nd channel)
and the engine-ECU, and repair if
necessary.
OKCheck the following connector:
D-118NGRepair
OK
Check the trouble symptoms.
NG
Replace the engine-ECU.
Check the following connector:
D-11
Code No.P0300 Ignition coil (power transistor) systemProbable cause
Range of Check
DEngine speed is approx. 50 - 4,000 r/min.
DEngine is not cranking.
Set Conditions
DThe ignition failure sensor does not send a signal about a certain cylinder for
four seconds.DMalfunction of the ignition coil
DMalfunction of the ignition failure sensor
DMalfunction of sparkplug
DOpen or short circuit in the primary ignition circuit
or loose connector contact
DMalfunction of engine-ECU


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-54
OK
Check the harness wire between the
engine-ECU and the intermediate
connector.NG
Repair
OK
Check the following connector:
D-116NG
Repair
OK
Check the harness wire between the
ignition coil connector for a defective
cylinder and the intermediate
connector.NG
Repair
MUT-
IIActuator Test
01 No.1 injector
02 No.2 injector
03 No.3 injector
04 No.4 injector
05 No.5 injector
06 No.6 injector
OK:
The idling condition should
change.
Reference
When the cylinder (defective
cylinder) whereidling conditiondoes
not change is detected after
suspending the injector, go to (1)
and inspect the spark plug, the
ignition coil, the connector, and the
harness of the defective cylinder.
(When more than one cylinder are
detected, inspect all of them.)
When all the cylinders are OK, go to
(2).(1)Check the following connectors:
B-107 and the ignition coil
connectors, which correspond to
defective cylinders (B-101, B-108,
B-112, B-113, B-116, B-119).NG
Repair
OK
Check the sparkplug and the
ignition coil for a defective cylinder.
(Refer to GROUP 16 - Ignition
System.)NG
Replace
OK
Use an analyzer to measure the signal waveform at engine-ECU connector D-116.
DEngine: Idling
DThe voltage between the ignition coil primary signal terminal for a defective cylinder
and earth
OK:
A normal waveform should be displayed as described on P.13A-122 (Inspection
Procedure Using an Analyzer).
OK
Repair the ignition coil assembly for
a defective cylinder and the spark
plug.
NG
Replace the engine-ECU.
(2)
Use an analyzer to measure the
signal waveform at the ignition failure
sensor connector B-04.
DUse test harness (MB991536) to
connect the connector, and
measure at the pick-up harness.
DEngine: Idling
DThe voltage between terminal 2
and earth
OK:
A normal waveform should
be displayed as described
on P.13A-122 (INSPEC-
TION PROCEDURE US-
ING AN ANALYZER).
Reference
When a normal waveform is
displayed, compare it with that of the
ignition coil primary signal at the
engine-ECU terminal to determine
the cylinder (defective cylinder) with
an abnormal waveform.
®When one or more cylinders are
abnormal, go to (1)
®When all of the cylinders are
abnormal, go to (3)
®When a normal waveform is
displayed, go to (4).(3)
Check the following connectors:
B-04, D-117NG
Repair
OK
Check the harness wires between
the ignition failure sensor and the
engine-ECU, and between the
ignition failure sensor and earth.NG
Repair
OK
Repair the ignition failure sensor
Check the trouble symptoms.NGReplace the engine-ECU.
(4)Check the trouble symptoms.OKIntermittent malfunction
(Refer to GROUP 00 - Points to
Note for Intermittent Malfunctions.)
NG
Check the sparkplug and the
ignition coil for a defective
cylinder.(Refer to GROUP16 -
Ignition System.)
(1)


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting GDI -Troubleshooting 13A-55
Code No.P0301 No.1 cylinder misfire detected.
Code No.P0302 No.2 cylinder misfire detected.
Code No.P0303 No.3 cylinder misfire detected.
Code No.P0304 No.4 cylinder misfire detected.
Code No.P0305 No.5 cylinder misfire detected.Probable cause
Range of Check
DThe enginespeed is 500 - 4,500 r/min.
DWhile the engine is runningexcept deceleration and sudden acceleration.
Set Conditions
DThe number of misfires exceeds a predetermined number per 200engine
revolutions (Misfire has occurred in only one cylinder).
or
DThe number of misfires exceeds a predetermined number per 100engine
revolutions (Misfire has occurred in only one cylinder).DMalfunction of the ignition system
DAbnormal compression
DMalfunction of injector
DMalfunction of engine-ECU
NG
Check the harness wire between the
ignition coil and the engine-ECU.
NG
Replace
NG
Repair
(2) NG
OK
Check the ignition failure sensor
(Refer to GROUP 16 - Ignition
System.)
OK
Check the harness wire between the
ignition coil and the earth, and repair
if necessary. (3) NG
OK
Measure at ignition coil connectors
B-101, B-108, B-112, B-113, B-116,
B-119.
DDisconnect the connector and
measure at the harness side.
(1) The voltage between terminal 1
and earth
(Ignition switch: ON)
OK:
System voltage
(2) The voltage between terminal 3
and earth
(Engine: cranking)
OK:
0.5 - 4.0 V
(3) The resistance between terminal
2 and earth
OK:
2Wor less(1) NGCheck the following connectors:
B-04, B-107, D-208, D-223NG
Repair
Check the ignition coil (Refer to
GROUP 16 - Ignition System.)
Check the compression pressure.
(Refer to GROUP 11A - On-vehicle
Service.)Repair
Replace the engine-ECU.
OK
Check the harness wire between the
ignition coil and the ignition failure
sensor, and between the ignition coil
and the ignition failure sensor.
NG
Repair
OK
NGNG
Repair
OKReplace
NG
Check the spark plugs.
Check the trouble symptoms.
OK
Check the trouble symptoms.NGReplace the engine-ECU.
Check the following connectors:
B-101, B-108, B-112, B-113, B-116,
B-119
Check the following connector:
B-107, D-116
OK


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-78
OK
Check ignition coil spark for each cylinder.
(1) Remove the ignition coil.
(2) Install a new sparkplug to the removed ignitioncoil.
(3) Disconnect the injector intermediate connector.
Caution
Never touch the connector terminal as approx. 100 V is
applied to the injector, or you are seriously injured.
(4) Earth the sparkplug electrodesecurely.
(5) Check that the sparkplug igniteswhen theengine iscranked.NGReplace the ignition coil.
OK
Check all the following items:
DSparkplug
DCompression pressure
DForeign material (such as water or kerosine) entered the fuel
lines
Check trouble symptom.OKNGReplace the injector.
From the previouspage


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-79

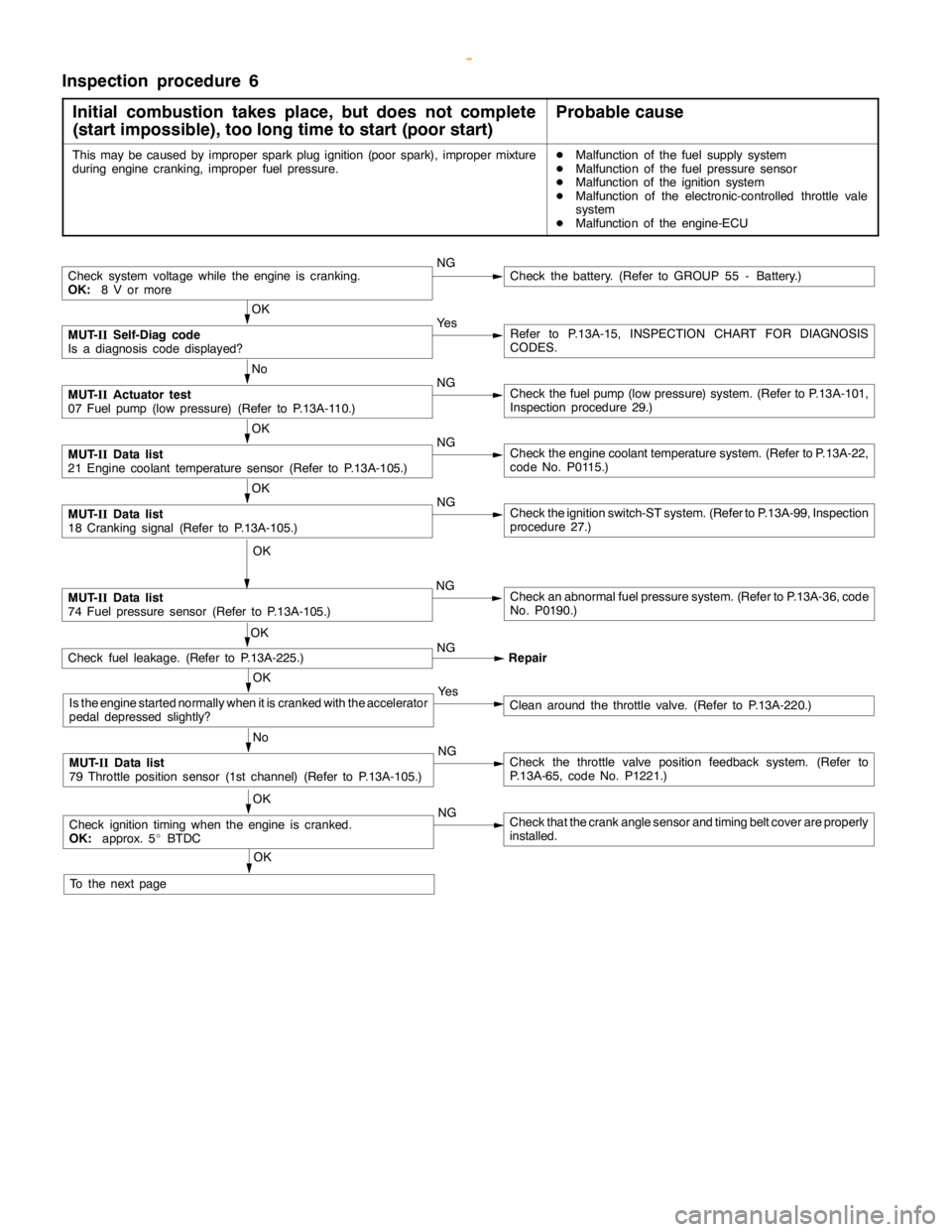

Inspection procedure 6
Initial combustion takes place, but does not complete
(start impossible), too long time to start (poor start)
Probable cause
This may be caused by improper sparkplug ignition (poorspark), improper mixture
during enginecranking, improper fuel pressure.DMalfunction of the fuel supply system
DMalfunction of the fuel pressure sensor
DMalfunction of the ignition system
DMalfunction of the electronic-controlled throttle vale
system
DMalfunction of the engine-ECU
Check system voltage while theengine iscranking.
OK:
8 V or moreNGCheck the battery. (Refer to GROUP 55 - Battery.)
OK
MUT-
IISelf-Diag code
Is a diagnosis code displayed?Ye sRefer to P.13A-15, INSPECTION CHART FOR DIAGNOSIS
CODES.
No
MUT-
IIActuator test
07 Fuel pump(low pressure) (Refer to P.13A-110.)NGCheck the fuelpump(low pressure) system. (Refer to P.13A-101,
Inspection procedure 29.)
OK
MUT-
IIData list
21 Engine coolant temperature sensor (Refer to P.13A-105.)NGCheck theengine coolant temperaturesystem. (Refer to P.13A-22,
code No. P0115.)
OK
MUT-
IIData list
18 Cranking signal (Refer to P.13A-105.)NGCheck the ignition switch-ST system. (Refer to P.13A-99, Inspection
procedure 27.)
OK
MUT-
IIData list
74 Fuel pressure sensor (Refer to P.13A-105.)NGCheck an abnormal fuel pressure system. (Refer to P.13A-36, code
No. P0190.)
Check fuel leakage. (Refer to P.13A-225.)NG
Repair
OK
Is the enginestarted normally when it is cranked with the accelerator
pedal depressed slightly?Ye sClean around the throttle valve. (Refer to P.13A-220.)
No
MUT-
IIData list
79 Throttle position sensor (1st channel) (Refer to P.13A-105.)NGCheck the throttle valve position feedback system. (Refer to
P.13A-65, code No. P1221.)
OK
Check ignitiontimingwhen theengine iscranked.
OK:
approx. 5_BTDCNGCheck that the crankanglesensor andtiming beltcover are properly
installed.
OK
To the nextpageOK


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-80
OK
Check ignition coil spark for each cylinder.
(1) Remove the ignition coil.
(2) Install a new sparkplug to the removed ignitioncoil.
(3) Disconnect the injector intermediate connector.
Caution
Never touch the connector terminal as approx. 100 V is
applied to the injector, or you are seriously injured.
(4) Earth the sparkplug electrodesecurely.
(5) Check that the sparkplug igniteswhen theengine iscranked.NGReplace the ignition coil.
OK
Check all the following items:
DSparkplug
DCompression pressure
DForeign material (such as water or kerosine) entered the fuel
lines
Check trouble symptom.OKNGReplace the injector.
From the previouspage


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-82
OK
Check that air is sucked in the air intake system.
DBroken intake manifold gasket
DDamaged vacuum hose
DDamaged air intake hose
From the previouspage
OK
MUT-
IIData list
27 Power steering fluid pressure switch (Refer to P.13A-105.)NGCheck the power steering fluid pressure switch system. (Refer
to P.13A-102, Inspection procedure 30.)
OK
MUT-
IIData list
28 A/C switch (Refer to P.13A-105.)NGCheck the A/C switch and A/C relay system. (Refer to P.13A-102,
Inspection procedure 31.)
OK
MUT-
IIData list
67 Stoplampswitch (Refer to P.13A-105.)NGCheck the stoplampswitch. (Refer to P.13A-103, Inspection proce-
dure 32.)
OK
MUT-
IIData list
31 Small lampswitch (Refer to P.13A-105.)NGCheck the smalllampswitch system. (Refer to P.13A-104, Inspec-
tion procedure 33.)
OK
MUT-
IIData list
68 EGR valve (Refer to P.13A-105.)NGCheck the EGR valve. (Refer to P.13A-60, code No. P0403.)
OK
NG
Check that the crankanglesensor andtiming beltcover are properly
installed.
OK
Check ignition coil spark for each cylinder.
(1) Remove the ignition coil.
(2) Install a new sparkplug to the removed ignitioncoil.
(3) Disconnect the injector intermediate connector.
Caution
Never touch the connector terminal as approx. 100 V is
applied to the injector, or you are seriously injured.
(4) Earth the sparkplug electrodesecurely.
(5) Check that the sparkplug igniteswhen theengine iscranked.NGReplace the ignition coil.
OK
Check trouble symptom.
Check all the following items in that order.
(1) Spark plugs
(2) Exhaust gas emission control system
(3) EGR system
(4) Compression pressure
(5) Foreign material (such as water or kerosine)entered the fuel
line.
(6) Air is sucked in the air intake system, or EGR gas leaks.
DDamaged intake manifoldgasket
DDamaged air intake hose
DDamaged vacuum hose
DFaulty EGR valve seat
OK
MUT-
IIData list
11 Oxygen sensor (front)
OK:
0 - 400 mV and 600 - 1,000 mV alternates when the
engine is idling(wait for four minutes after theengine
started).NG
NG
Repair
Measure fuel high-pressure between the fuel pump (highpressure)
and injector. (Refer to P.13A-224.)
Clean around the throttle valve. (Refer to P.13A-220.)
NG
Check ignition timing. (Refer to GROUP 11A - Engine Adjustment.)


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-84
Inspection procedure 9
When the engine is cold, it stalls at idling. (Die out)
Probable cause
The cause is probably an incorrect air/fuel ratio or poor intake airamountwhen the
engine iscold.DMalfunction of the electronic-control throttle valve
system
DMalfunction of the throttle body
Have the battery terminalsbeen disconnectedrecently?Ye sWarm up the engine, and then let it run at idle for approx. ten
minutes.
No
MUT-
IISelf-Diag code
Is a diagnosis code displayed?Ye s(Refer to P.13A-15, INSPECTION CHART FOR DIAGNOSIS
CODES.)
No
Is the engine idlingcorrect after theengine has been warmed up?Ye sRefer to “Unstableidling (rough idle, hunting).”(Refer to P.13A-81,
Inspection procedure 7.)
No
MUT-
IIData list
22 Crankanglesensor (Refer to P.13A-105.)
Checkidlingspeed when theengine iscold.NGCheck the throttle valve position feedback system. (Refer to
P.13A-65, code No. P1221.)
OK
MUT-
IIData list
26 Acceleratorpedal positionswitch (Refer to P.13A-105.)NGCheck the accelerator position switch. (Refer to P.13A-100, Inspec-
tion procedure 28.)
OK
MUT-
IIData list
21 Engine coolant temperature sensor (Refer to P.13A-105.)NGCheck theengine coolant temperaturesensor. (Refer to P.13A-22,
code No. P0115.)
OK
MUT-
IIData list
68 EGR valve (Refer to P.13A-105.)NGCheck the EGR valve system. (Refer to P.13A-60, code No. P0403.)
OK
Does theenginestall immediately after the acceleratorpedal is
released?Ye sClean around the throttle valve. (Refer to P.13A-220.)
No
Measure fuel highpressure between the fuelpump (highpressure)
and injector. (Refer to P.13A-224.)NG
Repair
OK
Check ignition timing. (Refer to GROUP 11A - Engine Adjustment.)NGCheck that the crankanglesensor andtiming beltcover are properly
installed.
OK
Check ignition coil spark for each cylinder.
(1) Remove the ignition coil.
(2) Install a new sparkplug to the removed ignitioncoil.
(3) Disconnect the injector intermediate connector.
Caution
Never touch the connector terminal as approx. 100 V is
applied to the injector, or you are seriously injured.
(4) Earth the sparkplug electrodesecurely.
(5) Check that the sparkplug igniteswhen theengine iscranked.NGReplace the ignition coil.
OK
Check all the following items:
DSpark plugs
DCompression pressure
DEngine oilviscosityNGCheck trouble symptom. OK
Replace the injector.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk
