Closing the Convertible Top
If the electric motor will not close
the convertible top, do the following.
1. Check the fuse for the convertible
top motor (see page
231 ) . If the
fuse is blown, replace it with one
of
the same or lower rating.
2. Try closing the convertible top. If
the new fuse blows immediately or
the convertible top still does not
operate, you can close
the
convertible top manually.
230 Taking Care of the Unexpected
3. Locate the electrical connector for
the convertible top motor.
It is under the lower corner of the
dashboard on the passenger's side.
Disconnect
the connector by
pushing
the tab and pulling the
connector down.
4. Holding each corner of the
convertible top, raise the top and
push it forward as far as it will go.
5. Follow steps 5 through 7 of the
closing procedure on page 75 .

All the electrical circuits in your car
have fuses to protect them from a
short circuit or overload.
These
fuses are located in three fuse boxes.
The interior fuse box is underneath
the dashboard on the driver's side.
Fuses
There are two under-hood fuse
boxes
in the engine compartment.
The main fuse box is located on the
passenger's side near the battery. To
open it, push the two tabs as shown.
CONTINUED
Taking Care of the Unexpected 231

Fuses
The auxiliary fuse box is located on
the driver's side near the brake fluid
reservoir. To open it, push the tab on
each side and remove the
lid.
232 Taking Care of the Unexpected
Checking and Replacing Fuses
If something electrical in your car
stops working, the first thing you
should check for is a blown fuse.
Determine from the chart on pages
234 and 235 , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
fuses first, but check
all the fuses
before deciding that a blown fuse is
not the cause. Replace any blown
fuses and check
the component's
operation.
1. Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
2. Remove the cover from the fuse
box.
3. Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire
inside. Removing these fuses
requires a Phillips-head screw­
driver.

4. Check the smaller fuses by pulling
out
the fuse with the fuse puller
provided in
the interior fuse box.
5. Look for a burned wire inside the
fuse.
If it is burned, replace it with
one of
the spare fuses of the same
rating or lower.
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of
the other circuits. Make
sure you can do without that circuit
temporarily (such as the accessory
power socket
or radio).
Fuses
If you replace the blown fuse with a
spare fuse that
has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
NOTICE
Replacing a fuse with one that has a
higher rating greatly increases the
chances
of damaging the electrical
system.
If you do not have a replace­
ment
fuse with the proper rating for the
circuit, install one with a lower rating.
6. If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your car.
Leave
the blown fuse in that
circuit and have your car checked
by a qualified mechanic.
CONTINUED
Taking Care of the Unexpected 233

Fuses
INTERIOR FUSE BOX
No: Amps. Circuits Protected No. Amps. Circuits Protected
1 7.5A Windshield Wiper, 14 lOA Daytime Running Lights*
Auto
Stop Signal 15 lOA Keyless Entry
2
15A Washer Motor 16 7.5A Back-up
3
-Not used 17 7.5A Interior Light
4
-Not used 18 lOA Small Lights
5
lOA Accessory Socket 19 15A Radio
6
20A Windshield Wiper 20 7.5A Starter Signal
7 7.5A Tum Light 21 7.5A Heater Control,
8 15A ACG Cooling Fan
Relay
9
7.5A Instrument Light, Back·up 22 7.5A Power Mirrors
Lights
23 20A Right Power Window
10 15A Ignition Coil 24 20A Left Power Window
11 7.5A Engine Start 25 -Not used
12 15A Fuel Pump, SRS 26 -Not used
13 lOA SRS 27 -Not used
* : Canadian Model
234 Taking Care of the Unexpected

UNDER-HOOD FUSE BOXES
(MAIN FUSE BOX)
(AUXILIARY FUSE BOX)
No.
1 -~~ 2 ---------3
4
5 6
7
8 9
10
11
i 12
13
No.
1
2
~-3 4
5
Amps. Circuits Protected
Lighting 1 Relay ·--··---·-Lighting 2 Relay ~-r--c-~----Horn Relay
40A Power Window Motor
20A Right Roof Motor ~ Not used
30A ! BackUpACC
20A Left Roof Motor
40A ' Heater Motor
20A Condenser Fan ~ Not used ~ Condenser Fan Reday ~ Cooling Fan Relay
Amps. Circuits Protected
-Not used -··--·-··-· Not used ______ ,. ________ ~---~ Not used ---·· 70A EPS ___________ , __
60A Air Pump
Fuses
'
No. Amps. Circuits Protected
14 Magnetic Clutch Relay r--~~ ·--··-----------------....... -·---15 20A Right Headlight '1:6-·-· --15A ACGS
17 lOA Hazard
Warning Lights
18 20A Cooling Fan --19 ~ Not used ··-20 lOA Stop
21 20A Left Headlight
22 20A ABS F/S
23 30A ABS Motor
24 lOOA Battery
25 40A IGl Main
--------
Taking Care of the Unexpected 235

If Your Car Gets Stuck
If your car gets stuck in sand, mud,
or snow, call a towing service to pull
it out (see page
238).

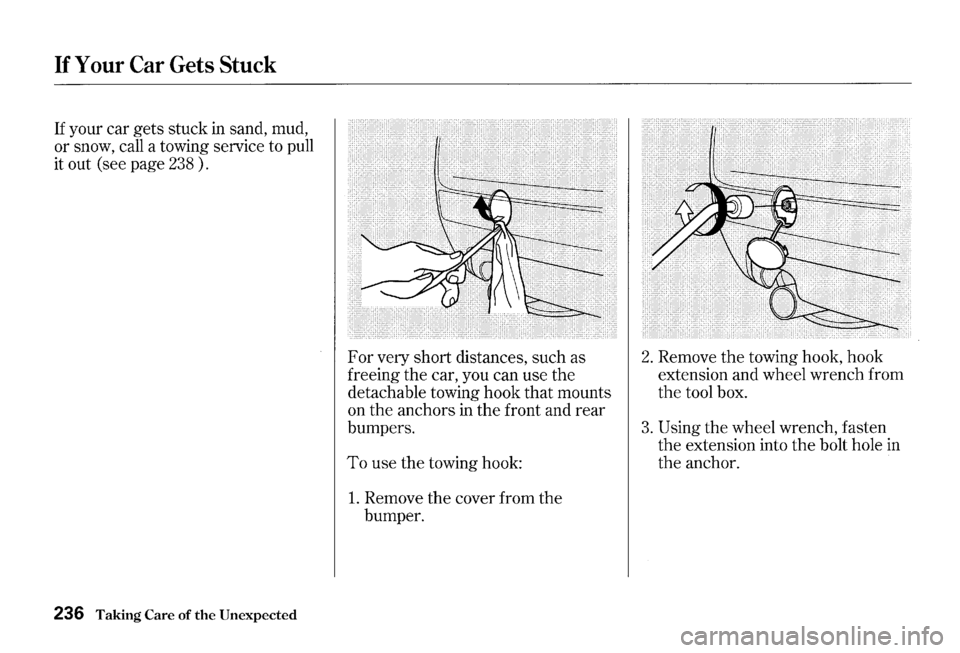

236 Taking Care of the Unexpected
For very short distances, such as
freeing
the car, you can use the
detachable towing hook that mounts
on
the anchors in the front and rear
bumpers.
To use the towing hook:
1. Remove the cover from the
bumper.
2. Remove the towing hook, hook
extension and wheel wrench from
the tool box.
3. Using the wheel wrench, fasten
the extension into the bolt hole in
the anchor.

4. Screw the towing hook into the
extension and tighten it securely
by hand.
If Your Car Gets Stuck
Taking Care of the Unexpected 237
