2000 HONDA S2000 Owners Manual

Heating and Cooling
Proper use of the Heating and
Cooling system can make the
interior dry and comfortable, and
keep the windows clear for best
visibility.
What Each Control Does
Fan Control Lever
Pushing this lever up and down
increases and decreases
the fan
speed.
The indicators next to the
lever show you the speed selected.
Temperature Control Dial
Turning this dial clockwise increases
the temperature of the air
flow.
Air Conditioning (A/C) Button
This button turns the air condi­
tioning
ON and OFF. The indicator
in the button lights when theA/Cis
on.
86 Comfort and Convenience Features
Recirculation Button
This button controls the source of
the air going into the system. When
the indicator
in this button is lit, air
from the car's interior is sent
through the system again (Recircula­
tion mode). When the indicator is off,
air
is brought in from outside the car
(Fresh Air mode).

Mode Control Dial
Use the MODE control dial to select
the vents
the air flows from.
;i Air flows from the vents on
both sides of the instrument panel,
and from the dashboard vent
in front
of the passenger.
W Air flow is divided between
the vents
in the dashboard and the
floor vents.
~ Air flows from the center
vents in the dashboard above the
audio system, the vents on both
sides of the instrument panel and
from the floor vents.
Select this
position when you drive with the
convertible top folded.
W Air flows from the floor
vents and
the vents on both sides of
the instrument panel.
~ Air flow is divided between
the floor vents, the defroster vents at
the base of the windshield and the
vents on both sides of the instrument
panel.
\W Air flows from the defroster
vents at the base of the windshield
and the vents on both sides of the
instrument panel.
Heating and Cooling
When you select \W , the system
automatically switches to Fresh Air
mode and turns on the
A/C.
Comfort and Convenience Features 87

Heating and Cooling
Vent Controls
You can adjust the direction of the
air coming from the vents on both
sides of the instrument panel and at
the corner of the dashboard on the
passenger's side.
To adjust the air
flow up and down, move the tab
in
the center of each vent up and down.
To adjust it left and right, turn the
dial under each vent left and right.
88 Comfort and Convenience Features
You can shut off the air flow from
each vent by turning the dial
all the
way toward the
t>UO mark until it
clicks. How
to Use the System
This
section covers how to set up the
system controls for ventilation,
heating, cooling, dehumidifying, and
defrosting.
The engine must be running for the
heater and air conditioning to
generate hot and cold air.
The heater
uses engine coolant to warm the air.
If the engine is cold, it will be several
minutes before you feel warm air
coming from the system.
The air conditioning does not rely on
engine temperature.

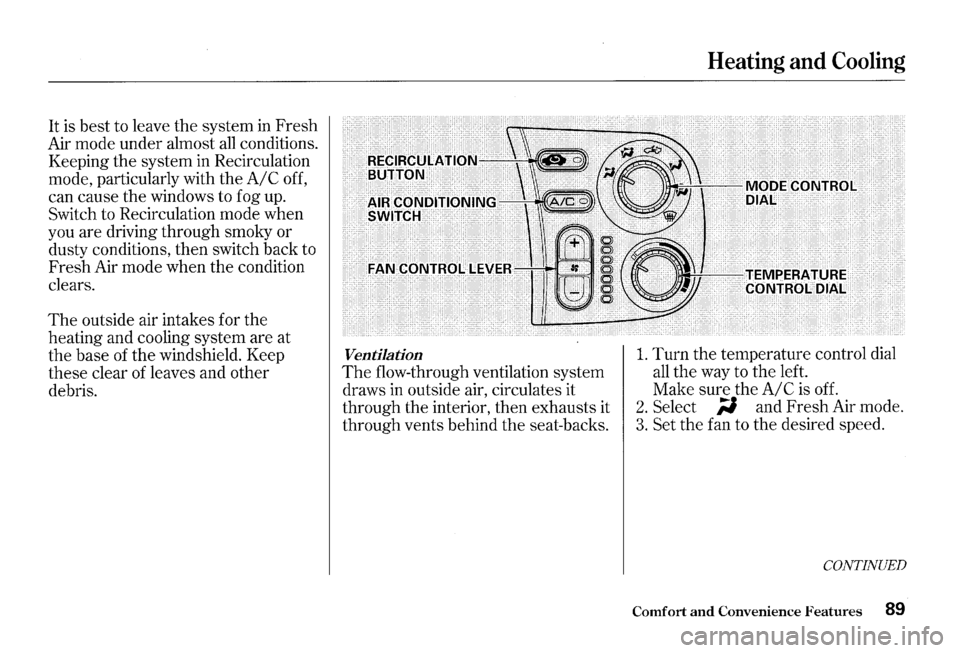

It is best to leave the system in Fresh
Air mode under almost all conditions.
Keeping
the system in Recirculation
mode, particularly with
the A/C off,
can cause
the windows to fog up.
Switch to Recirculation mode when
you are driving
through smoky or
dusty conditions,
then switch back to
Fresh Air mode when the condition
clears.
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.
Ventilation
The flow-through ventilation system
draws in outside air, circulates it
through
the interior, then exhausts it
through vents behind
the seat-backs.
Heating and Cooling
1. Turn the temperature control dial
all
the way to the left.
Make sure
theA/Cis off.
2. Select ;J and Fresh Air mode.
3. Set the fan to the desired speed.
CON11NUED
Comfort and Convenience Features 89

Heating and Cooling
To Cool with A/C
1. Turn on the AI C by pressing the
button.
The light in the button
should come on when a fan speed
is selected.
2. Make sure the temperature
control dial is
all the way to the left.
3. Select ;,; .
4. If the outside air is humid, select
Recirculation mode.
If the outside
air is dry, select Fresh Air mode.
Set
the fan to the desired speed.
If the interior is very warm from
being parked
in the sun, you can cool
it down more rapidly by setting up
the controls this way:
1. Start the engine.
2. Turn on the A/C by pressing the
button. Make sure the tempera­
ture control dial is
all the way to
the left.
3. Set the fan to maximum speed.
4. Open the windows partially. Select
;,; and Recirculation mode.
90 Comfort and Convenience Features
When the interior has cooled down
to a more comfortable temperature,
close the windows and set the
controls as described for normal
cooling. Air
conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
47) when driving in stop-and-go
traffic or climbing a long, steep hill.
If it moves near the red mark, turn
off the
A/ C until the reading returns
to normal.

To Heat
To warm the interior:
1. Start the engine.
2. Select w and Fresh Air mode.
3. Set the fan to the desired speed.
4. Adjust the warmth of the air with
the temperature control dial.
To Heat and Dehumidify with Air
Conditioning
Air conditioning, as it cools, removes
moisture from the air. When used
in
combination with the heater, it
makes the interior warm and dry.
1. Switch the fan on.
2. Turn on the air conditioning.
3. Select w and Fresh Air mode.
4. Adjust the temperature control
dial so the mixture of heated and
cooled air feels comfortable.
This setting
is suitable for all driving
conditions whenever the outside
temperature is above
32°F (0°C).
Heating and Cooling
To Defog and Defrost
To remove fog from the inside of the
windows:
1. Switch the fan on.
2. Select @ .
When you select @ , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Adjust the temperature control
dial so the air flow from the
defroster vents feels warm.
When you switch to another mode
from
@ , the A/ C stays on.
Press the A/C button to turn if off.
CONTINUED
Comfort and Convenience Features 91

Heating and Cooling
To remove exterior frost or ice from
the windshield and side windows
after the vehicle
has been sitting out
in cold weather:
1. Start the engine.
2. Select \@ .
When you select \@ , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Switch the fan and temperature
controls to maximum.
To rapidly remove exterior frost or
ice from the windshield (on very cold
days), first select the Recirculation
mode.
Once the windshield is clear,
select the
Fresh Air mode to avoid
fogging the windows.
92 Comfort and Convenience Features
MODE CQNTROL·.DIAL
RECIRCULATION~~~ SUlTON ~;;;;;;;;;;;;:~
AIR .coNDitiONING ·~-+-::-:

These settings direct all the air flow
to the defroster vents at the base of
the windshield and the side window
defroster vents.
The air flow will get
warmer and clear the windows faster
as the engine warms up. You can
close the side vents with the dial
beside each vent.
This will send
more warm air to the windshield
defroster vents.
For safety, make sure you have a
clear view through all the windows
before driving away.
To Tum Everything Off
To shut off the system temporarily,
turn off the fan (no lights
illuminated).
You should shut the system
completely off only for the first few
minutes of driving in cold weather,
until the engine coolant warms up
enough to operate the heater. Keep
the fan on at
all other times so stale
air does not build up
in the interior.
