2000 HONDA S2000 clock

Keys and Locks
Panic Mode
Panic mode allows you to remotely
activate your car's security system to
attract attention. When activated,
the
horn will sound, and the exterior
lights will flash for about
30 seconds.
To activate panic mode, press and
hold
the PANIC button for about one
second.
To cancel Panic mode before 30
seconds, press any button on the
remote transmitter. You can also
turn the ignition switch to
0 N (II).
64 Instruments and Controls
Replacing the Battery
When the remote transmitter's
battery begins to
get weak, it may
take several pushes on the button to
lock or unlock
the doors, and the
LED will
get dim. Replace the
battery as soon as possible.
Battery type: CR2025
To replace the battery, remove the
round cover on the back of the trans­
mitter by turning it counterclockwise
with a coin.

Remove the old battery and note the
polarity. Make sure the polarity of
the new battery is the same (
+ side
facing up), then insert it
in the
transmitter.
Align the
v mark on the cover
with the
0 mark on the
transmitter, then set the cover
in
place and turn it clockwise.
Transmitter Care
Avoid severe shock to the trans­
mitter, such as dropping or throwing
it. Also, protect it from extreme hot
or cold temperatures.
Clean the transmitter case with a
soft cloth.
Do not use strong
cleaners or solvents that could harm
the case. Immersing the transmitter
in any liquid will harm the trans­
mitter and cause it to not function
properly.
If you lose a transmitter, you will
need to have the replacement
programmed to your vehicle's
system by your Honda dealer. Any
other transmitters you have
will also
need to be reprogrammed.
Keys and Locks
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
(1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that
may cause undesired
operation.
Changes
or modifications not expressly
approved
by the party responsible for
compliance could void
the user's
authority to operate
the equipment.
111is device complies with Industry
Canada Standard RSS-210.
Operation is subject
to the following two
conditions:
(1) this device may not cause
interference,
and (2) this device must
accept any interference that may cause
undesired operation
of the device.
Instruments and Controls 65

Heating and Cooling
Proper use of the Heating and
Cooling system can make the
interior dry and comfortable, and
keep the windows clear for best
visibility.
What Each Control Does
Fan Control Lever
Pushing this lever up and down
increases and decreases
the fan
speed.
The indicators next to the
lever show you the speed selected.
Temperature Control Dial
Turning this dial clockwise increases
the temperature of the air
flow.
Air Conditioning (A/C) Button
This button turns the air condi­
tioning
ON and OFF. The indicator
in the button lights when theA/Cis
on.
86 Comfort and Convenience Features
Recirculation Button
This button controls the source of
the air going into the system. When
the indicator
in this button is lit, air
from the car's interior is sent
through the system again (Recircula­
tion mode). When the indicator is off,
air
is brought in from outside the car
(Fresh Air mode).

Cooling System
2. Turn the radiator cap counter­
clockwise, without pressing down
on it, until it stops.
This relieves
any pressure remaining in the
cooling system.
3. Remove the radiator cap by
pushing down and turning
counterclockwise.
162 Maintenance
4. The coolant level should be up to
the base of the filler neck. Add
coolant
if it is low.
5. Put the radiator cap back on.
Tighten it fully.
6. Pour coolant into the reserve tank.
Fill it to halfway between the
MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle's
cooling system.
They may not be
compatible with
the coolant or
engine components.

Replacing Engine Coolant
The cooling system should be
completely drained and refilled with
new coolant according to
the time
and distance recommendations in
the maintenance schedule. Only use
Genuine Honda Antifreeze/Coolant.
Draining the coolant requires access
to
the underside of the vehicle.
Unless you have the tools and
knowledge, you should have this
maintenance done by a skilled
mechanic.
1. Turn the ignition ON (II). Turn
the heater temperature control
dial fully clockwise.
Turn the
ignition off.
2. Open the hood. Make sure the
engine and radiator are cool to the
touch.
3. Remove the radiator cap.
Cooling System
4. Loosen the drain plug on the
bottom of the radiator. The
coolant will drain through the
splash guard. Remove the drain
bolt and washer from the engine
block.
CONTINUED
Maintenance 163

Lights
Replacing Front Tum Signal and
Side Marker Light Bulbs
1. If you are changing the bulb on
the driver's side, start the engine,
turn the steering wheel
all the way
to the right, and turn off the
engine.
If you are changing the
bulb on the passenger's side, turn
the steering wheel to the left.
196 Maintenance
2. Use a flat-tipped screwdriver to
remove the three holding clips
from the inner fender.
3. Pull the inner fender cover back.
4. Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
5. Pull the bulb straight out of its
socket.
6. Install the new bulb in the socket.
7. Insert the socket back into the
headlight assembly.
Turn it
clockwise to lock it
in place.
8. Test the lights to make sure the
new bulb is working.
9. Put the inner fender in place.
Install the two holding clips. Lock
each clip in place by pushing on
the center.

Replacing a Side Turn Signal Bulb 3. Pull the bulb straight out of its
1. Push the side turn signal assembly
forward until it pops out of
the
body.
2. Turn the bulb holder one-quarter
turn counterclockwise to remove it
from
the lens. socket.
Push the new
bulb straight into
the socket until it bottoms.
4. Put the bulb holder back into its
hole in
the lens, and turn it
clockwise until it locks.
5. Test the lights to make sure the
new bulb is working.
6. Put the side turn signal assembly
back into the body, back first.
Push on the front edge until it
snaps into place.
Lights
Maintenance 197

Lights

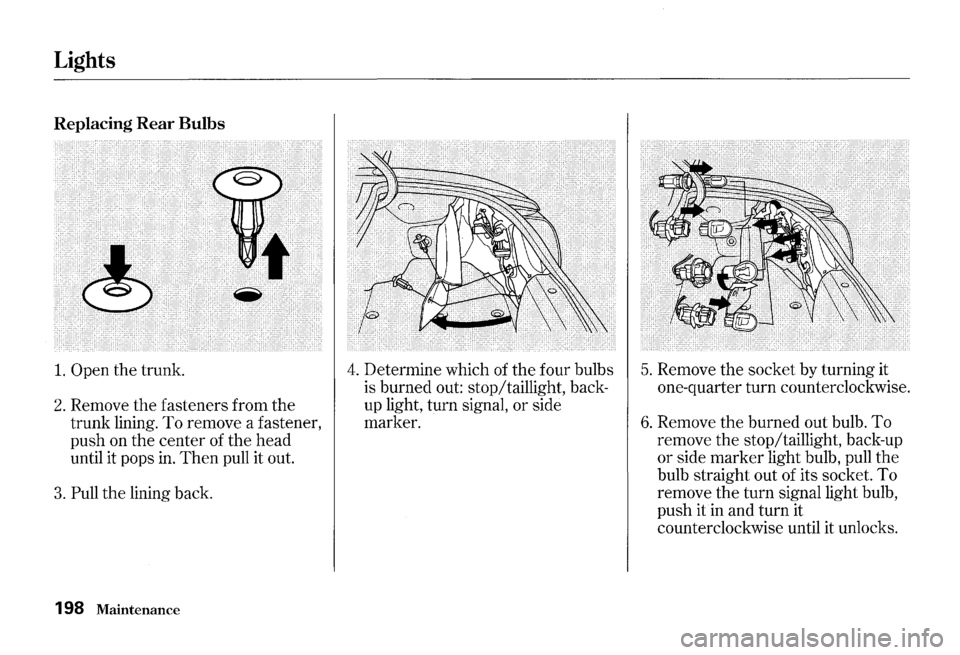

Replacing Rear Bulbs
1. Open the trunk.
2. Remove the fasteners from the
trunk lining. To remove a fastener,
push on
the center of the head
until it pops in. Then pull it out.
3. Pull the lining back.
198 Maintenance
4. Determine which of the four bulbs
is burned out: stop/taillight, back­
up light, turn signal, or side
marker. 5. Remove the socket by turning it
one-quarter
turn counterclockwise.
6. Remove the burned out bulb. To
remove the stop/taillight, back-up
or side marker light bulb, pull the
bulb straight out of its socket. To
remove the turn signal light bulb,
push it in and turn it
counterclockwise until it unlocks.
